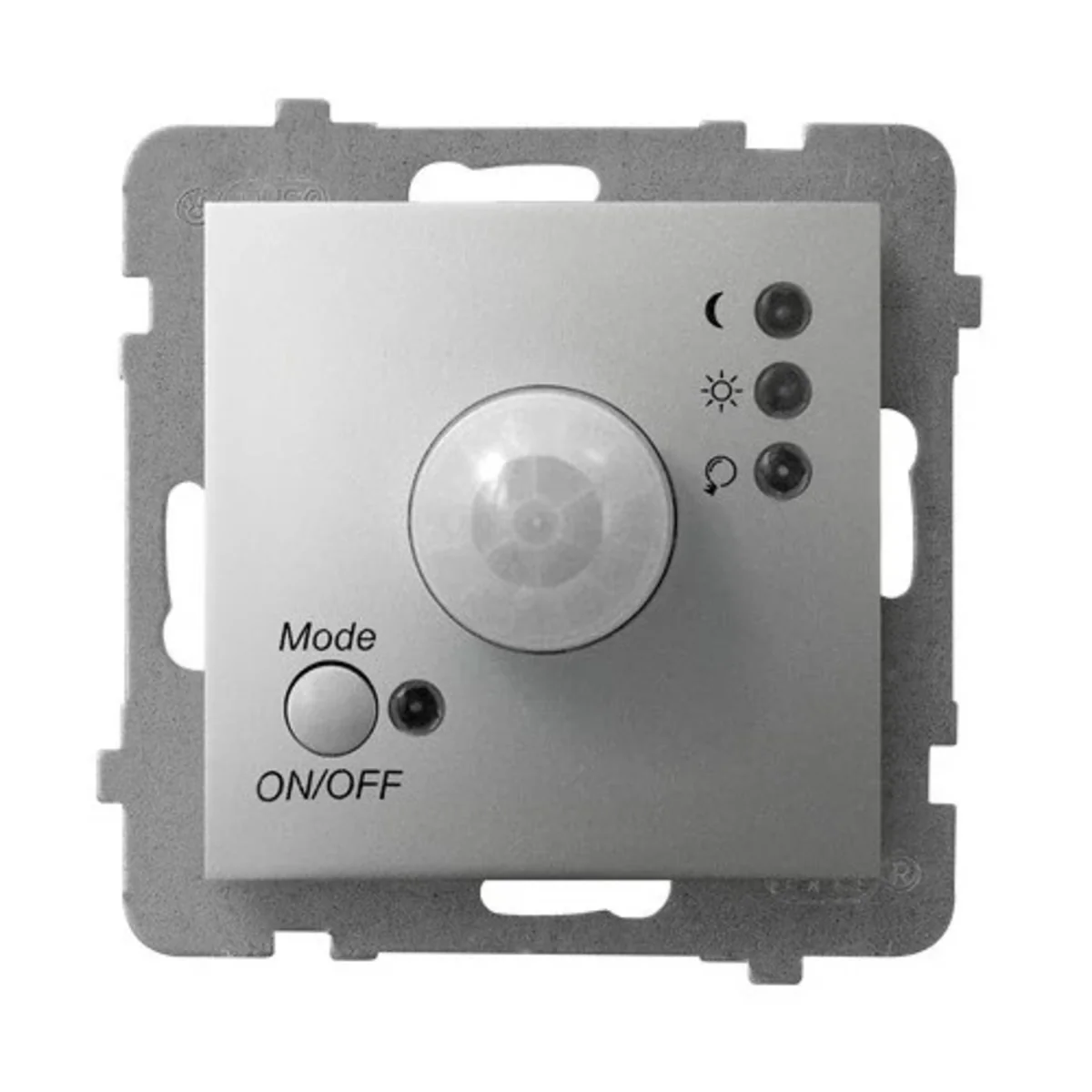

ARIA Electronic motion sensor silver ŁP-16U/M/18

local index:
APK007OSPE
Catalog No:
ŁP-16U/M/18
EAN code:
5907577483708
Manufacturer: OSPEL
Color: Silver
maximum range [m]: 7
Material: Plastic
Price:
63,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The electronic motion sensor is used to automatically switch on light sources and signaling equipment (e.g. in home alarm systems) after detecting movement in the coverage area and automatically switch off after the set time has elapsed. A frame is required for the set. Can be used in multiple frame systems.

The motion sensor works with LED bulbs.

The construction of the sensor allows it to be used to build serial installations consisting of any number of sensors. w, as well as with other standard switches for domestic use (e.g. single pole or changeover). The sensor is controlled by pressing the button located in the lower left corner of the outer cover marked MODE/ON/OFF. You can set one of five operating modes:

  1. OFF – off mode (sensor completely off). The relay diode (next to the bulb pictogram) is green.
  2. ON – switched on mode (the sensor turns on the lighting permanently – acts as a single-pole switch) the relay diode (next to the bulb pictogram) lights red.
  3. TRAFFIC - DAY - mode in which Therefore, the lighting is turned on when the sensor detects movement, regardless of the degree of light intensity in the room where the sensor is installed (day or night). Mode LED “Motion” (next to the sun pictogram) lights up red. “relay”diode” (next to the bulb pictogram) lights up green if the lighting is off or red if the lighting is on.
  4. TRAFFIC - NIGHT – a mode in which the lighting is switched on when motion is detected by the sensor, but only when the light intensity in the room where the sensor is installed drops below a certain level. This level is defined by the user by turning the adjustment knob (described as LUX ) located on the control module under the outer cover of the sensor on the left side. The adjustment range is from 0 to 1000 lux. During this mode, the “motion LED – night” (at the moon pictogram) lights up red, while the relay diode (at the bulb pictogram) lights up green if the lighting is off or red if the lighting is on.
  5. RANDOM - presence simulation mode – is a form of securing the room against burglary during a long-term absence of the user. After dusk, the sensor will turn on the lighting at a randomly selected time in the range from 10 to 60 minutes for the time set by the user, multiplied by a random multiplier in the range of 1÷3. Adjustment of the time setting is made using the knob (described as TIME) located on the control module under the outer cover on the right side. The adjustment range is within 3s÷5min. During this mode, 2 LEDs (next to the sun and moon pictograms) blink red alternately.

Control button lock function

If the product is installed in a public facility (e.g. hotel), the building administrator often does not want random people to be able to change the setting of the motion sensor's operating mode. Please use the control button lock function at that time. We initiate it by pressing and holding the above button for about 10s. During this setting, the sensor will not respond to short-term pressing of the button. We can also cancel the lock function by pressing and holding the button for about 10s.

Technical data

  • Color
    Silver
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Mounting method
    Thread clamps
  • Dimension [mm]
    71 x 71
  • maximum range [m]
    7
  • Installation
    Flush-mounted
  • Family
    ARIA
  • Level of security
    IP20
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Movement sensor
  • With DALI interface
    No
  • HVAC-control
    No
  • Forced switch off
    Yes
  • Creep-under protection
    No
  • Scan angle
    136 °
  • Staircase light controller
    No
  • Max. reach sideways
    7 m
  • Max. reach frontally
    4 m
  • Suitable for wireless transmission
    No
  • With remote control
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Suitable for wall mounting
    Yes
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • Colour
    Silver
  • Transparent
    No
  • Impact strength
    IK03
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    3 s
  • Switch-off delay
    0 s
  • Detection angle horizontal
    0 ... 136 °
  • Pivoting range sensor, vertical
    0 ... 0 °
  • Max. switching power
    3200 W
  • Temperature
    5 ... 45 °C
  • Max. starting current
    14 A
  • Control current
    20 mA
  • With alarm function
    No
  • Height
    82 mm
  • Built-in depth
    31 mm
  • Sensor type
    Passive infrared
  • Constant light control
    No
  • Forced switch on
    No
  • Animal zone
    No
  • Networkable
    Yes
  • Optimum mounting height
    1.4 m
  • Bridging switch
    No
  • Max. presence range
    10 m²
  • Diameter reach on floor
    13 m
  • Remote operation
    No
  • Response value sensitivity adjustable
    Yes
  • With signal unit
    Yes
  • Suitable for ceiling mounting
    No
  • Dim function with dimmer basic element
    No
  • Connection type
    Screwed terminal
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • RAL-number (similar)
    9006
  • Degree of protection (IP)
    IP20
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    5 min
  • Switching-on delay
    0 s
  • Pivoting range sensor, horizontal
    0 ... 0 °
  • Response value luminosity
    0 ... 1000 lx
  • Suitable for C-load
    Yes
  • Number of switching zones
    1
  • Min. starting current
    0 A
  • Substation input
    No
  • Width
    75 mm
  • Depth
    58 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 5 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
