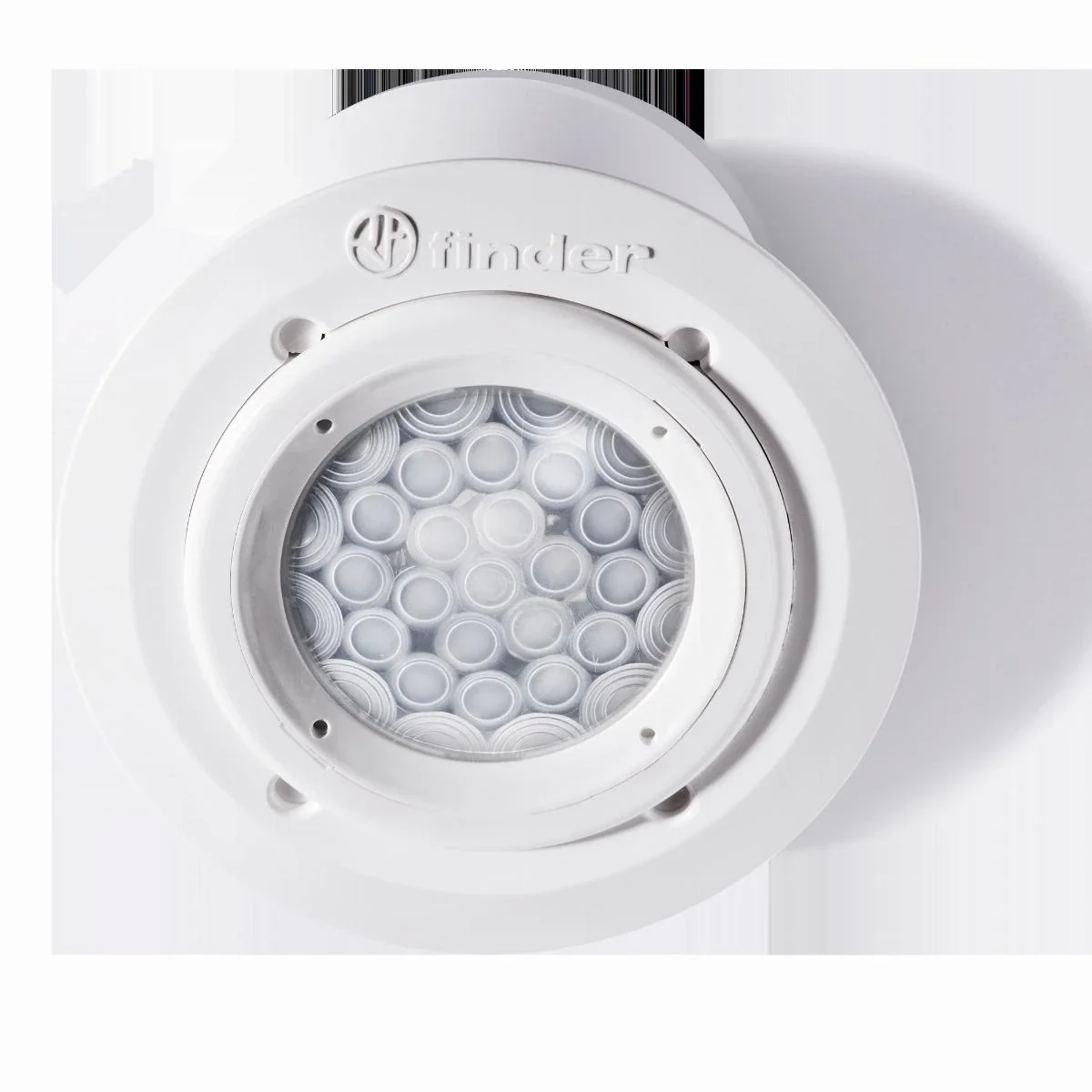

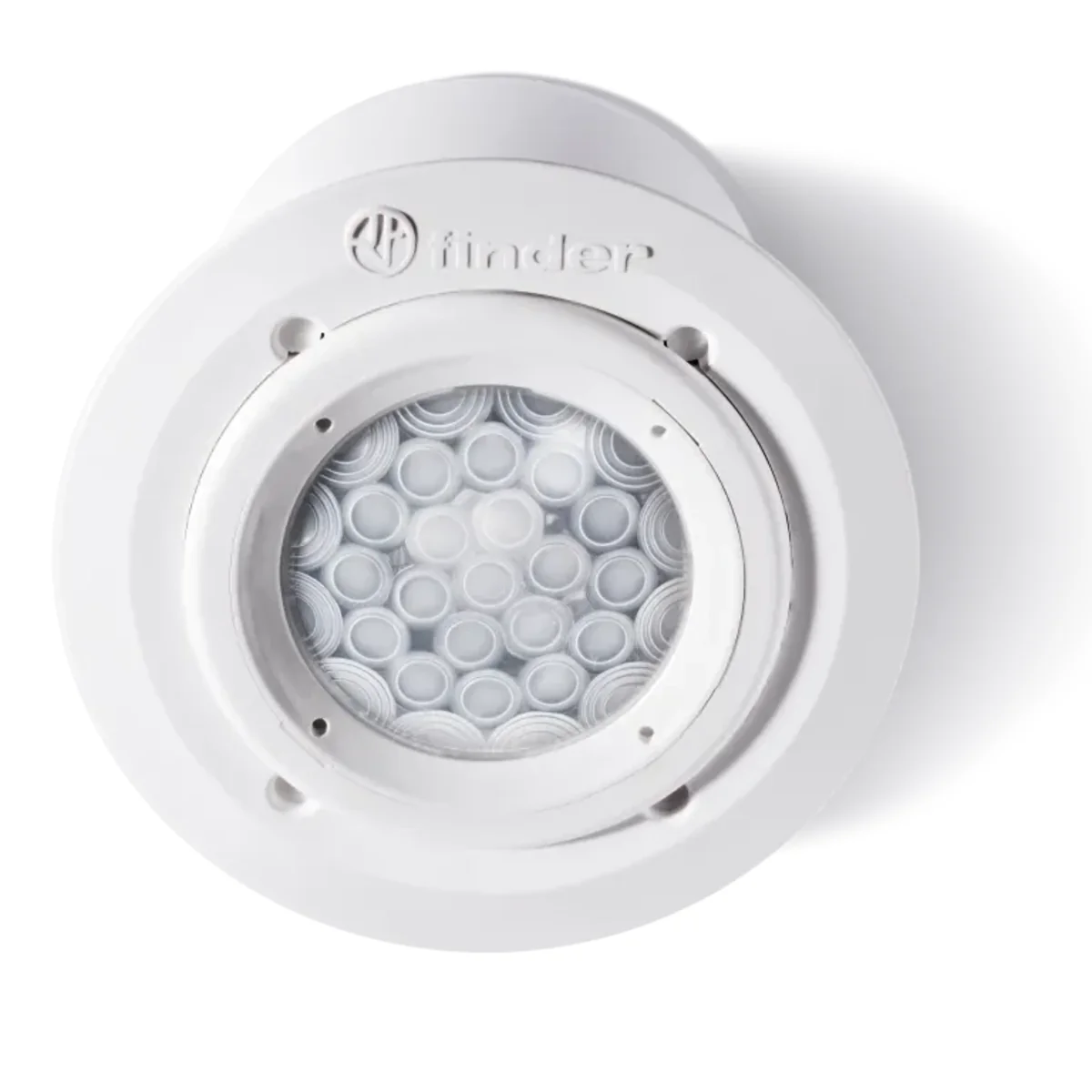

18 SERIES PIR motion sensor for high mounting IP40 1Z 10A 230V AC 5-350lx 360° 12m 183182300031PAS

local index:
APK006FIND
Catalog No:
183182300031PAS
EAN code:
8012823359106
Price:
85,41 €
gross / pcs.
including VAT 23%
Last lowest price:
82,93 € gross
Base price:
123,79 € gross -31%
Availability:
Check availability in branches
In warehouses 18 pcs.
Delivery:
From 3,69 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Infrared motion sensor for mounting inside objects on the ceiling

Features:

  • Output contact connected to the power circuit
  • Small dimensions
  • Adjustable activation sensitivity
  • Adjustable operating time
  • Wide viewing angle
  • For high rooms (max. 6 m)
  • Surface or recessed version
  • Can be used as a presence detector

Technical data

  • Detection angle [°]
    360
  • Fixing
    screw terminals
  • AC coil voltage [V]
    120-230
  • Overvoltage resistance [kV]
    1
  • Power consumption [W]
    1
  • Contact type
    Potential-free
  • Level of security
    IP40
  • Height [mm]
    50.5
  • Rated inrush current [A]
    20
  • Maximum detection distance [m]
    12
  • Rated AC switching voltage [V]
    230
  • Rated switching power for AC15 (230V AC) [VA]
    450
  • Sensitivity setting range [lx]
    5-350
  • Contact material
    AgSnO2
  • Installation
    Surface Flush-mounted
  • Rated voltage [V]
    230
  • Power consumption [VA]
    2
  • Rated current [A]
    10
  • Family
    18
  • Diameter [mm]
    75.1
  • Range [m]
    12
  • Number of contacts
    1Z
  • Type of coil voltage
    AC
  • Rated switching power for AC1 [VA]
    2300
  • Electrical durability AC1 [number of cycles]
    100000
  • Switching time range [s-min]
    10-12
