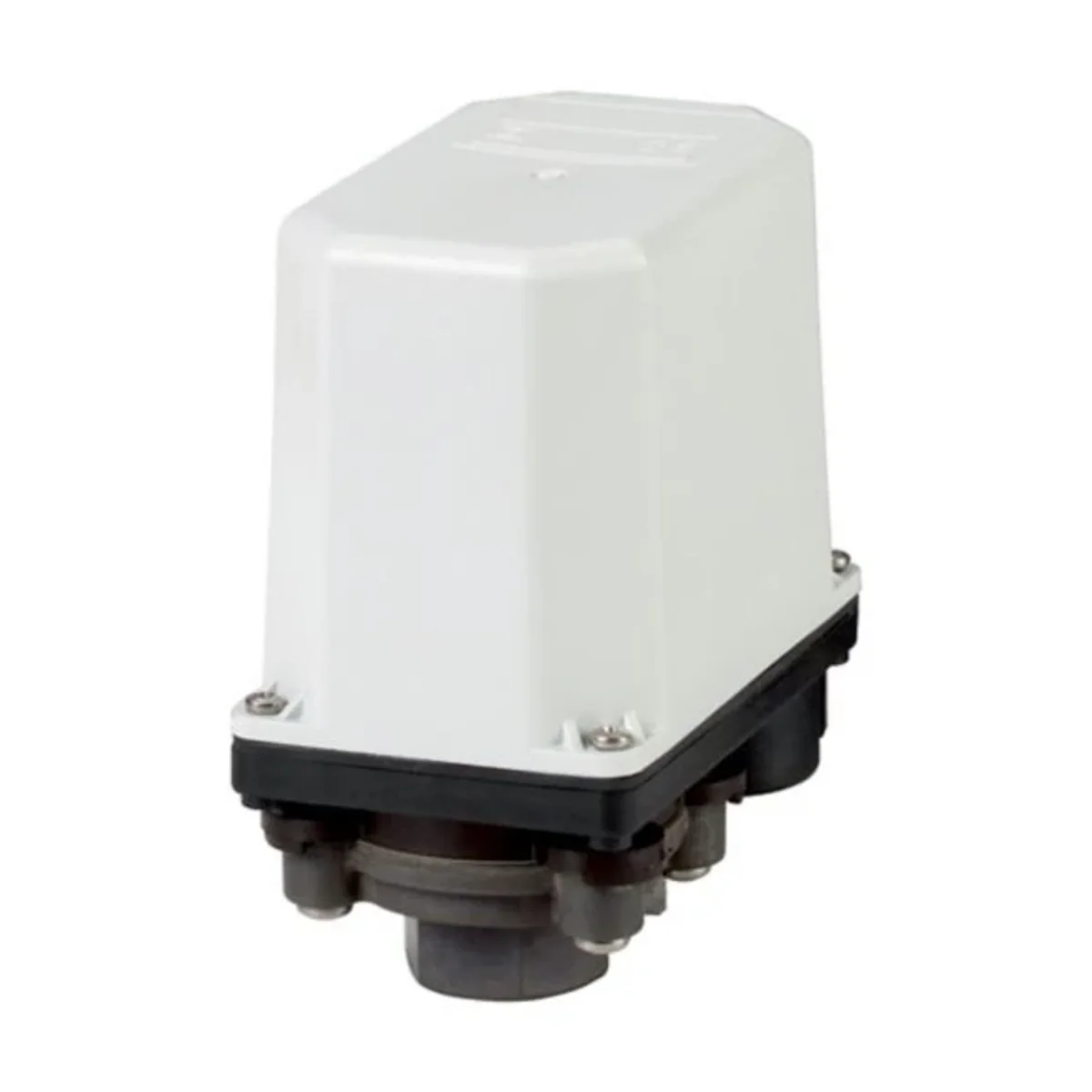

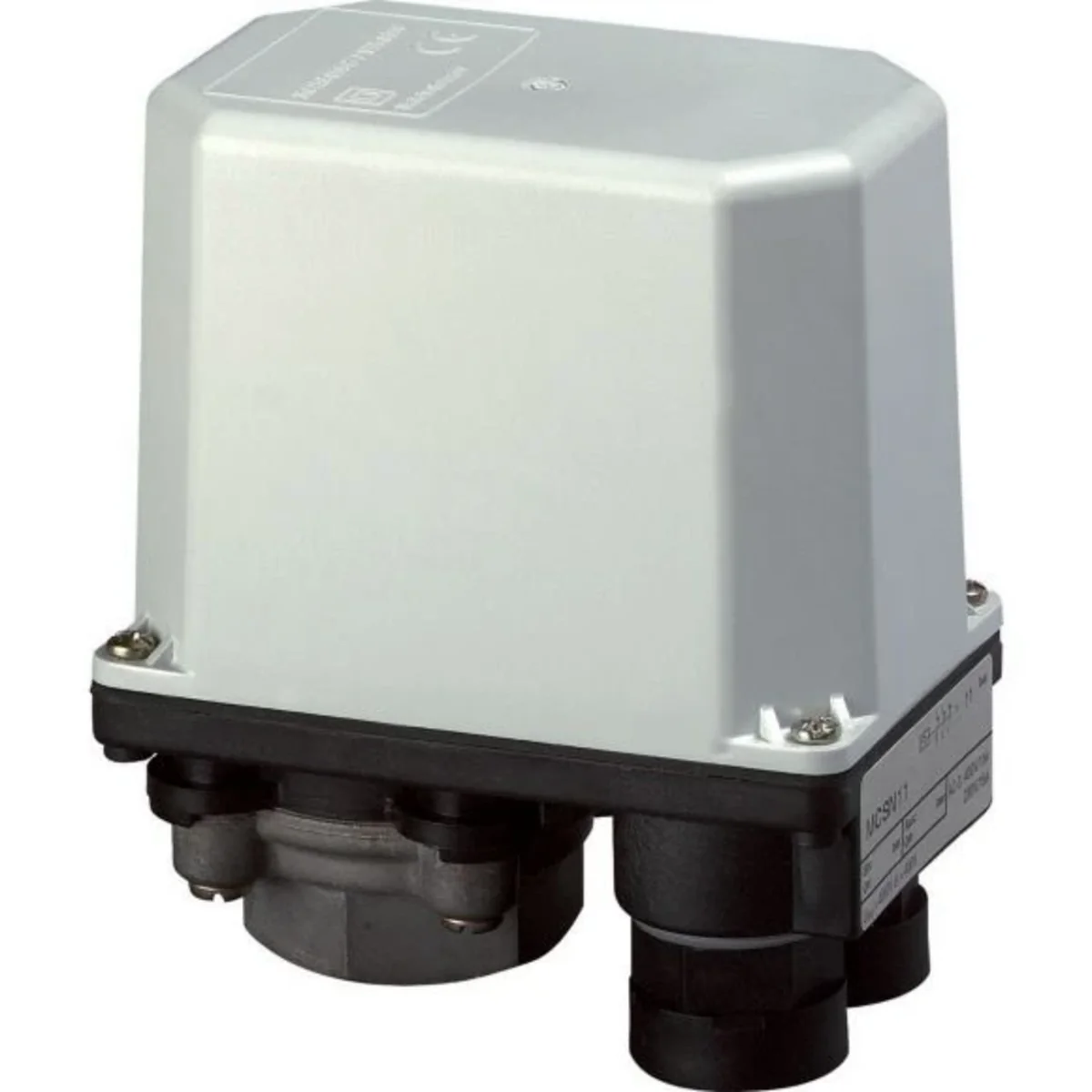

Pressure sensor, MCSN11 029203

local index:
NPP002MOEL
Catalog No:
029203
EAN code:
4015080292036
Manufacturer: EATON
Maximum working pressure: 15
Price:
195,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Pressure sensors with main contacts, IP65, 3-pole
Accessories:
• Always with terminal coverów
• 1 insulated protective conductor clamp
• 1 insulated terminal N
• 2 knock-out cable entries for M20, without glands
• IP65 in combination with V-M20 cable gland
• Orifice R ½”
• On request: R ¼”
• Neoprene membrane
R ¼” corresponds to G ¼
R ½” corresponds to G ½ according to ISO 228-1

Technical data

  • Maximum working pressure
    15

Other technical data

  • Suitable as guard
    Yes
  • Suitable as limiter
    No
  • Engaging pressure
    0 ... 9.4 bar
  • Switch off pressure
    0 ... 11 bar
  • Pressure-switching differential
    0 bar
  • Bursting pressure
    90 bar
  • Connection
    Internal thread cylindrical BSPP-G (ISO 228-1)
  • Rated voltage Ue at AC 50 Hz
    0 ... 400 V
  • Rated voltage Ue at DC
    0 ... 250 V
  • End value measuring range pressure
    0 Pa
  • Switching capacity at AC-3, 240 V
    15 kA
  • Rated operation current Ie at AC-3, 400 V
    11.5 A
  • Number of auxiliary contacts as normally closed contact
    0
  • Type of electric connection
    Screw connection
  • Number of normally open contacts as main contact
    0
  • With hand operation
    No
  • Electronic version
    No
  • Explosion-proof
    No
  • Degree of protection (NEMA)
    Other
  • Width
    60 mm
  • Depth
    96 mm
  • Suitable as 2-point controller
    Yes
  • Max. operating pressure
    15000 hPa
  • Initial setting
    0 ... 0 hPa
  • End setting
    0 ... 0 hPa
  • Max. test pressure
    32 bar
  • Medium temperature
    25 ... 80 °C
  • Thread size
    1/2 inch
  • Rated voltage Ue at AC 60 Hz
    0 ... 400 V
  • Initial value measuring range pressure
    0 Pa
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated operation current Ie at AC-1, 400 V
    0 A
  • Number of auxiliary contacts as normally open contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Number of normally closed contacts as main contact
    3
  • Adjustable current range
    0 ... 0 A
  • With manual on/off switch
    No
  • With display
    No
  • Degree of protection (IP)
    IP65
  • Height
    111 mm
  • Diameter
    0 mm

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,493
Volume (m3) 0,001
Width (m) 0,067
Length (m) 0,100
Depth (m) 0,111
