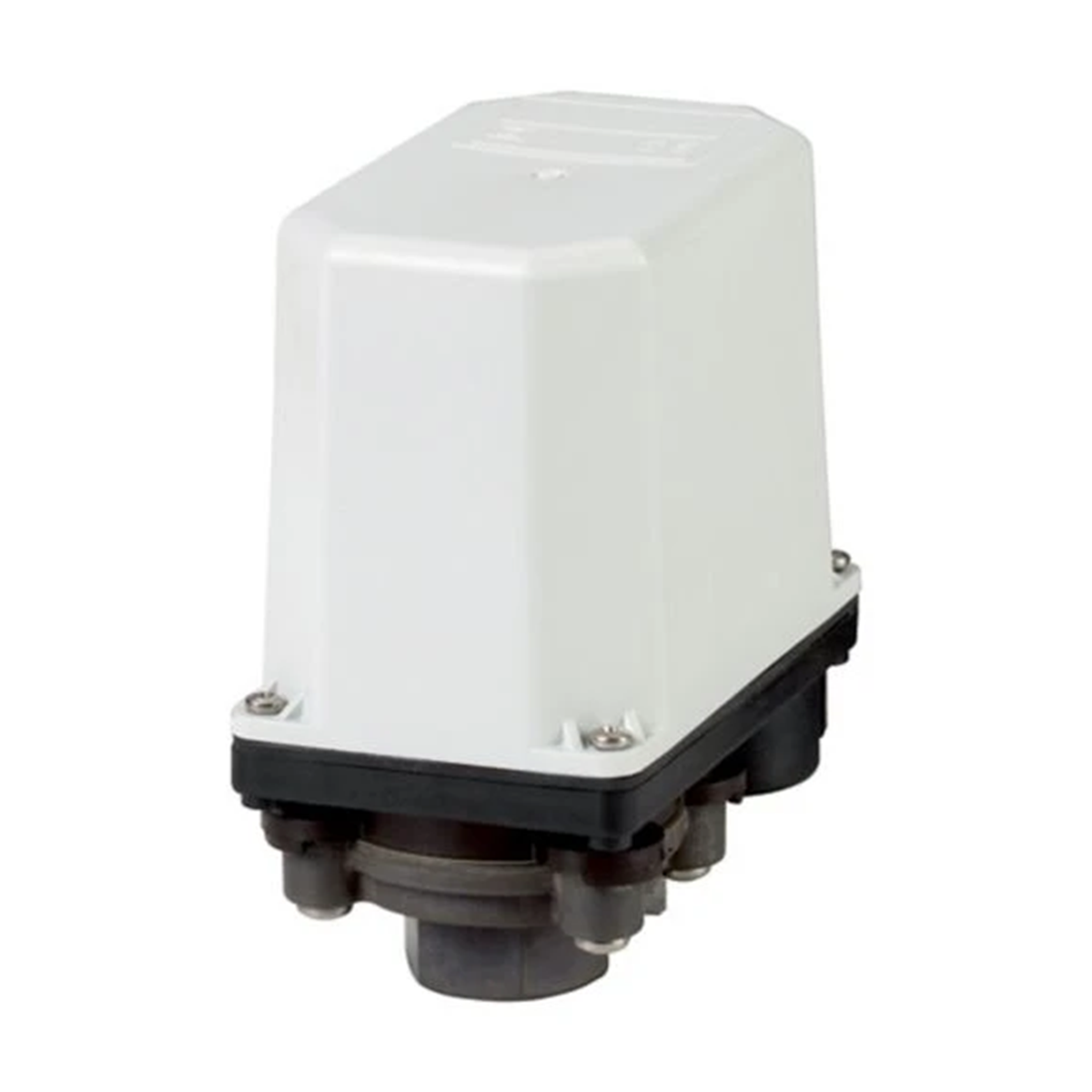

MCS pressure sensor, MCS11 088527

Name: MCS pressure sensor, MCS11
Brand: EATON
SKU: NPP001MOEL
Price: 216.00 PLN

Indeks lokalny:

NPP001MOEL

Nr katalogowy:

088527

Kod EAN:

4015080885276

Kliknij zdjęcie, aby powiększyć

Producent: EATON

Maximum working pressure: 15

Zobacz cały opis

Cena:

216,00 €

gross / szt.

(w tym VAT 23%)

Dostawa do 3h

do 2 tygodni (dni robocze)

Odbiór za 1h

Ilość szt.

(wielokrotność:

)

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

Pressure sensors with auxiliary contacts, IP65.
Accessories:
• Orifice R ¼”
• Orifice R ½”
• IP65 in combination with V-M20 cable gland
• 1 insulated protective terminal
• 2 knock-out cable entries for M20
• neoprene membrane, resistant to aging, air, mineral oils, water.
min. –25°C, max. +80°C
R ¼” corresponds to G ¼
R ½” corresponds to G ½ according to ISO 228-1
Auxiliary contacts according to IEC/EN 60947-1
1) Gold contacts, designed especially for switching low voltages and currents from 12 V AC/DC, 0, 1 A.

Dane techniczne

Maximum working pressure

15

Pozostałe dane techniczne

Suitable as guard

Yes
Suitable as limiter

No
Engaging pressure

0 ... 10.4 bar
Switch off pressure

0 ... 11 bar
Pressure-switching differential

0 bar
Bursting pressure

90 bar
Connection

Internal thread cylindrical BSPP-G (ISO 228-1)
Rated voltage Ue at AC 50 Hz

0 ... 230 V
Rated voltage Ue at DC

0 ... 110 V
End value measuring range pressure

0 Pa
Switching capacity at AC-3, 240 V

0 kA
Rated operation current Ie at AC-3, 400 V

0 A
Number of auxiliary contacts as normally closed contact

0
Type of electric connection

Screw connection
Number of normally open contacts as main contact

0
With hand operation

No
Electronic version

No
Explosion-proof

No
Degree of protection (NEMA)

Other
Width

60 mm
Depth

96 mm

Suitable as 2-point controller

Yes
Max. operating pressure

15000 hPa
Initial setting

0 ... 0 hPa
End setting

0 ... 0 hPa
Max. test pressure

32 bar
Medium temperature

25 ... 80 °C
Thread size

1/2 inch
Rated voltage Ue at AC 60 Hz

0 ... 230 V
Initial value measuring range pressure

0 Pa
Rated operation power at AC-3, 400 V

0 kW
Rated operation current Ie at AC-1, 400 V

0 A
Number of auxiliary contacts as normally open contact

0
Number of auxiliary contacts as change-over contact

1
Number of normally closed contacts as main contact

0
Adjustable current range

0 ... 0 A
With manual on/off switch

No
With display

No
Degree of protection (IP)

IP65
Height

111 mm
Diameter

0 mm

Dane producenta

Producent

EATON Electric Sp. z o.o.
Adres

80-299 Gdańsk ul. Galaktyczna 30
NIP

5841022327

Opakowania zbiorcze

Rodzaj opakowania	Skrzynia
Ilość	1 szt.
Waga (kg)	0,409
Objętość (m3)	0,001
Szerokość (m)	0,067
Długość (m)	0,100
Głębokość (m)	0,111
