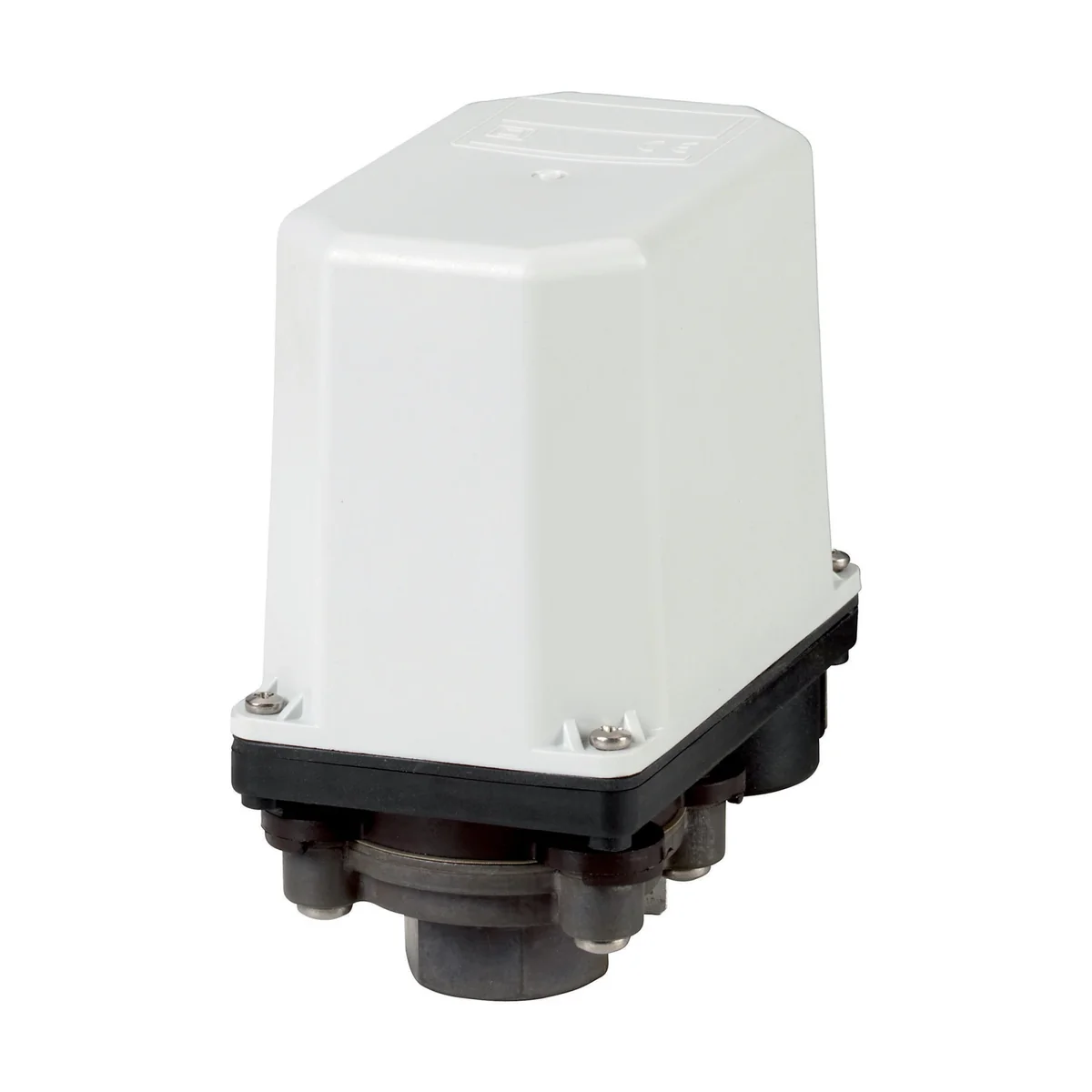

MCS pressure sensor, MCS11 088527
local index:
NPP001MOEL
Catalog No:
088527
EAN code:
4015080885276
Manufacturer:
EATON
Maximum working pressure: 15
Price:
196,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Pressure sensors with auxiliary contacts, IP65.
Accessories:
• Orifice R ¼”
• Orifice R ½”
• IP65 in combination with V-M20 cable gland
• 1 insulated protective terminal
• 2 knock-out cable entries for M20
• neoprene membrane, resistant to aging, air, mineral oils, water.
min. –25°C, max. +80°C
R ¼” corresponds to G ¼
R ½” corresponds to G ½ according to ISO 228-1
Auxiliary contacts according to IEC/EN 60947-1
1) Gold contacts, designed especially for switching low voltages and currents from 12 V AC/DC, 0, 1 A.
Accessories:
• Orifice R ¼”
• Orifice R ½”
• IP65 in combination with V-M20 cable gland
• 1 insulated protective terminal
• 2 knock-out cable entries for M20
• neoprene membrane, resistant to aging, air, mineral oils, water.
min. –25°C, max. +80°C
R ¼” corresponds to G ¼
R ½” corresponds to G ½ according to ISO 228-1
Auxiliary contacts according to IEC/EN 60947-1
1) Gold contacts, designed especially for switching low voltages and currents from 12 V AC/DC, 0, 1 A.
Technical data
-
Maximum working pressure15
Other technical data
-
Suitable as guardYes
-
Suitable as limiterNo
-
Engaging pressure0 ... 10.4 bar
-
Switch off pressure0 ... 11 bar
-
Pressure-switching differential0 bar
-
Bursting pressure90 bar
-
ConnectionInternal thread cylindrical BSPP-G (ISO 228-1)
-
Rated voltage Ue at AC 50 Hz0 ... 230 V
-
Rated voltage Ue at DC0 ... 110 V
-
End value measuring range pressure0 Pa
-
Switching capacity at AC-3, 240 V0 kA
-
Rated operation current Ie at AC-3, 400 V0 A
-
Number of auxiliary contacts as normally closed contact0
-
Type of electric connectionScrew connection
-
Number of normally open contacts as main contact0
-
With hand operationNo
-
Electronic versionNo
-
Explosion-proofNo
-
Degree of protection (NEMA)Other
-
Width60 mm
-
Depth96 mm
-
Suitable as 2-point controllerYes
-
Max. operating pressure15000 hPa
-
Initial setting0 ... 0 hPa
-
End setting0 ... 0 hPa
-
Max. test pressure32 bar
-
Medium temperature25 ... 80 °C
-
Thread size1/2 inch
-
Rated voltage Ue at AC 60 Hz0 ... 230 V
-
Initial value measuring range pressure0 Pa
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation current Ie at AC-1, 400 V0 A
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact1
-
Number of normally closed contacts as main contact0
-
Adjustable current range0 ... 0 A
-
With manual on/off switchNo
-
With displayNo
-
Degree of protection (IP)IP65
-
Height111 mm
-
Diameter0 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,409 |
| Volume (m3) | 0,001 |
| Width (m) | 0,067 |
| Length (m) | 0,100 |
| Depth (m) | 0,111 |
