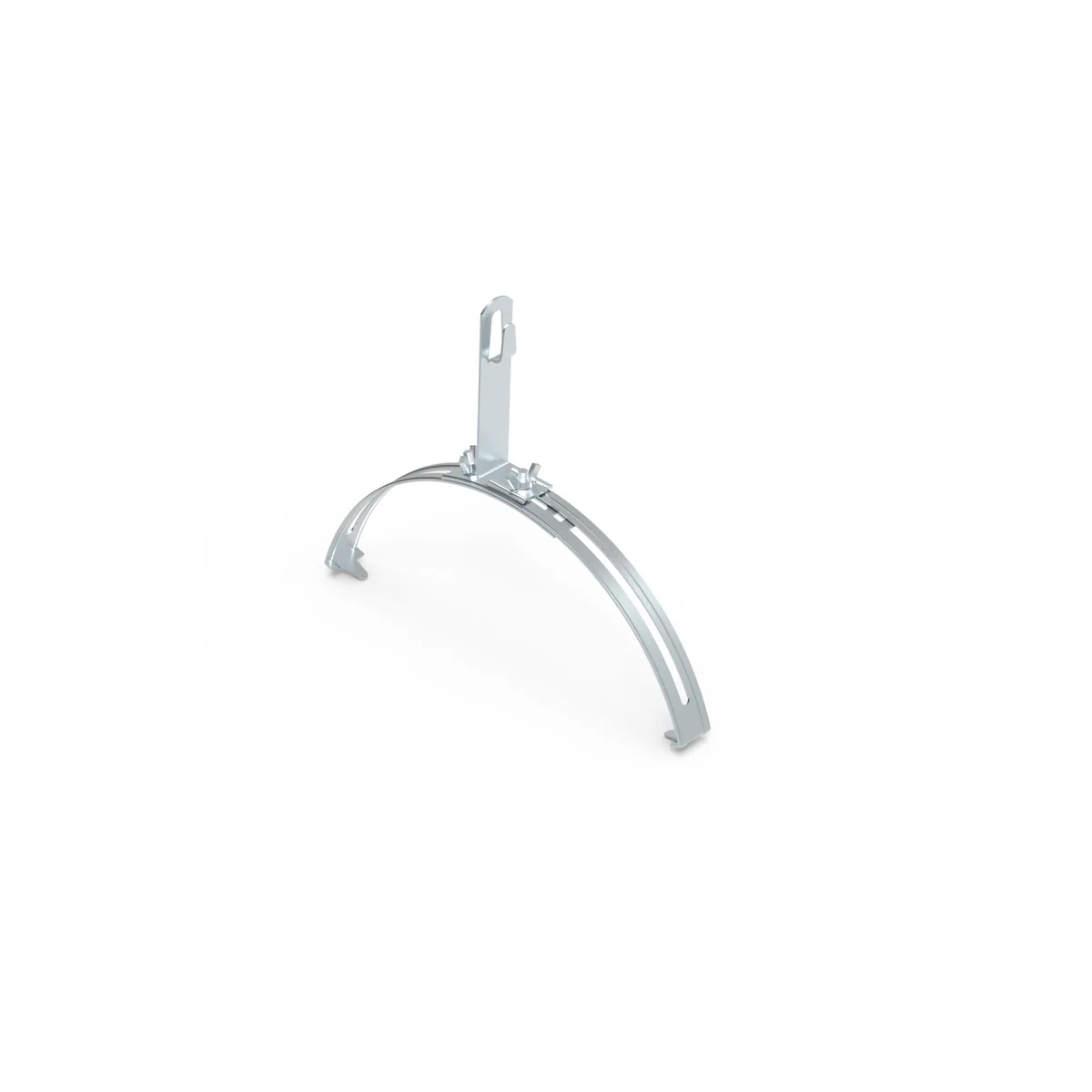

Universal ridge tile holder G5 clamped 200-390mm 2xM6x16 95900101

Indice locale:
AOU013ELKO
Numero di catalogo:
95900101
Codice EAN:
5907676742447
Produttore: ELKO-BIS
Length [mm]: 200-390
Material: Galvanized steel
Type: clamped
Prezzo:
15,65 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 68 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

It is used to guide the lightning wire on the tops of tiles covered with tiles. Fixed to the ridge tile by twisting. Thanks to a large adjustment range of the clamp, this handle allows for fitting to most models and types of ridge tile.

Dati tecnici

  • Length [mm]
    200-390
  • Type
    clamped
  • Screw
    2xM6x16
  • PKWIU
    25.99.29.0
  • Material
    Galvanized steel
  • Width [mm]
    26
  • Height [mm]
    180

Altri dati tecnici

  • Mounting type conductor
    With grip clamp
  • Application
    Ridge/hip
  • Chucking range
    125 ... 205 mm
  • Conductor diameter
    6 ... 8 mm
  • Mounting method
    Clampable
  • Length carrier
    115 mm

Dettagli del produttore

  • Produttore
    ELKO-BIS Systemy Odgromowe Sp. z o.o.
  • Indirizzo
    51-501 Wrocław Swojczycka 38E
  • NIP
    8952011110
