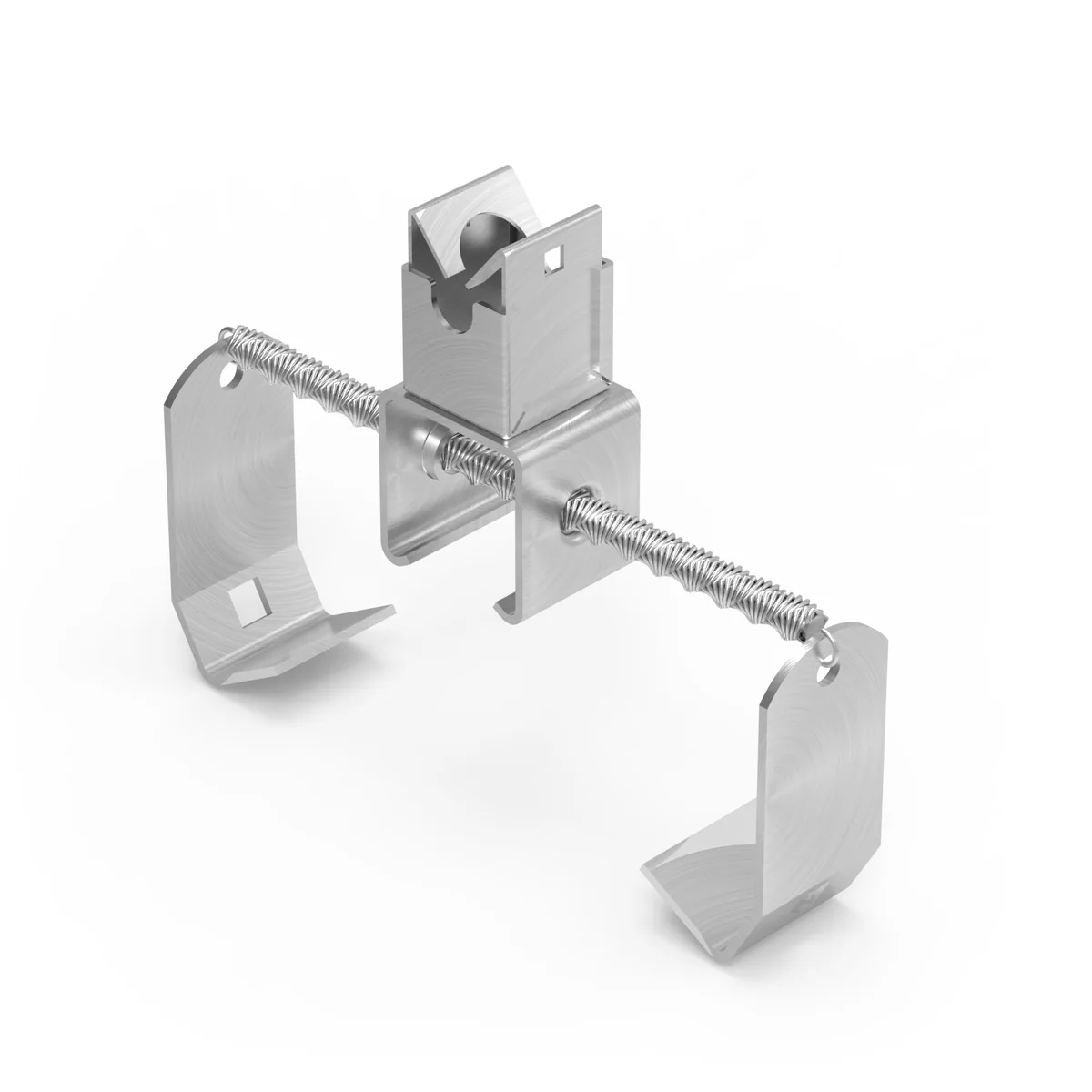

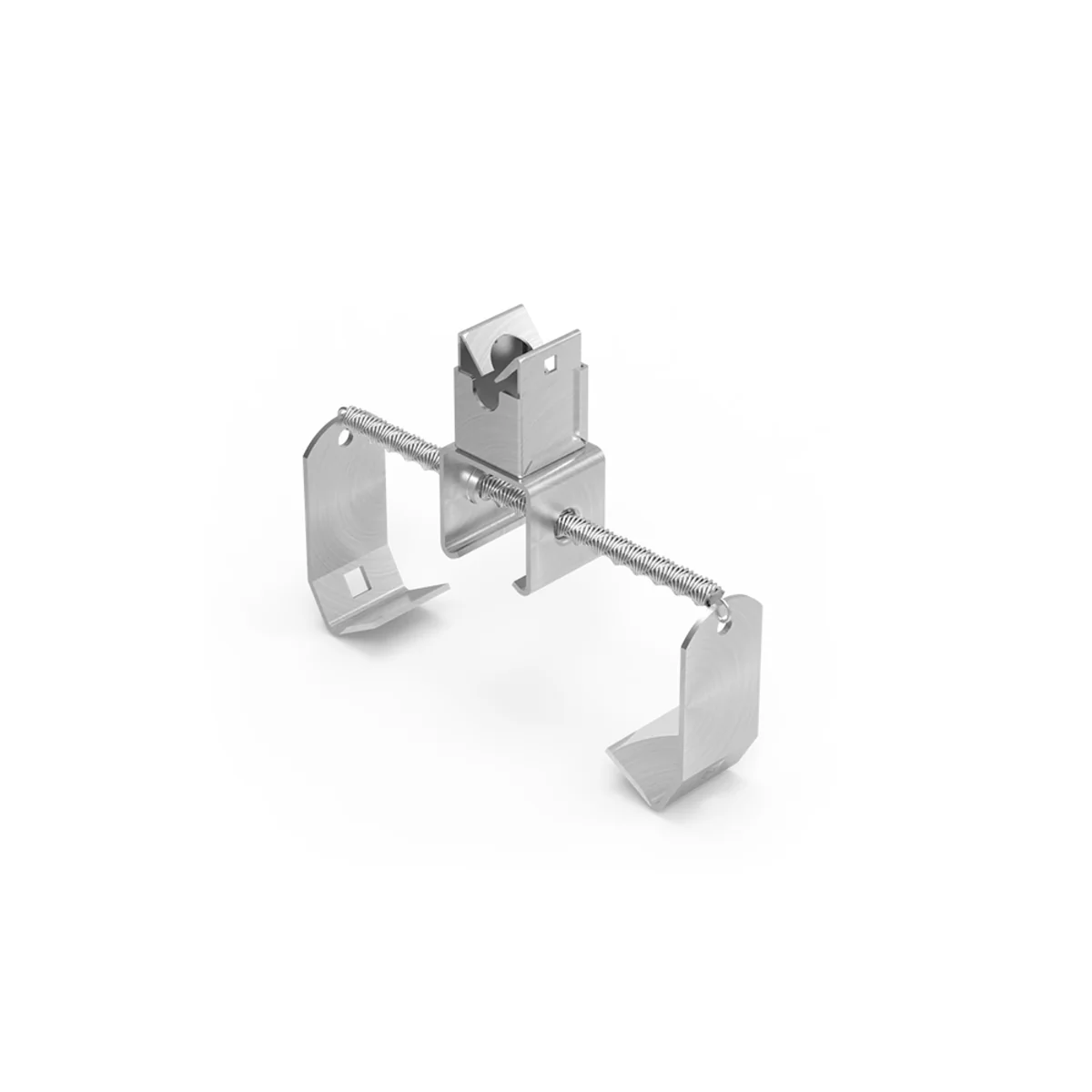

Universal low spring ridge tile holder 140-500mm 25910105
local index:
AOU109ELKO
Catalog number:
25910105
EAN code:
5907676709471
24
18
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne 4 185 pcs.
Check
Odbiór!
Odbierz w godzinę!
Details
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
It is used to route the grounding wire on the tops of covered roof tiles and metal roof tiles. Fixed to the ridge tile with a flexible spring holder. This handle, through a large range of operation, allows it to be adapted to most models and types of ridge tile. To be used with a wire with a cross-section of O 8.
Technical data
-
Length [mm]140-500
-
Width [mm]26
-
Handle height [mm]55
-
Materialstainless steel
-
Bracket height [mm]54
-
PKWIU25.99.29.0
Other technical data
-
Mounting type conductorWith snap clamp
-
ApplicationRidge/hip
-
Chucking range240 ... 400 mm
-
Material of carrierStainless steel 304 (V2A)
-
Assembly height conductor holder48.5 mm
-
Conductor diameter8 ... 8 mm
-
Mounting methodStretchable
-
Material of holderStainless steel 304 (V2A)
-
Length carrier55 mm
Manufacturer details
-
ManufacturerElko-Bis Systemy Odgromowe Sp. z o.o.
-
Address51-501 Wrocław Swpjczycka 38E Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | Karton |
| Quantity | 50 pcs. | 50 pcs. |
| Weight (kg) | 5,500 | - |
| Width (m) | 0,180 | - |
| Length (m) | 0,265 | - |
| Depth (m) | 0,310 | - |
