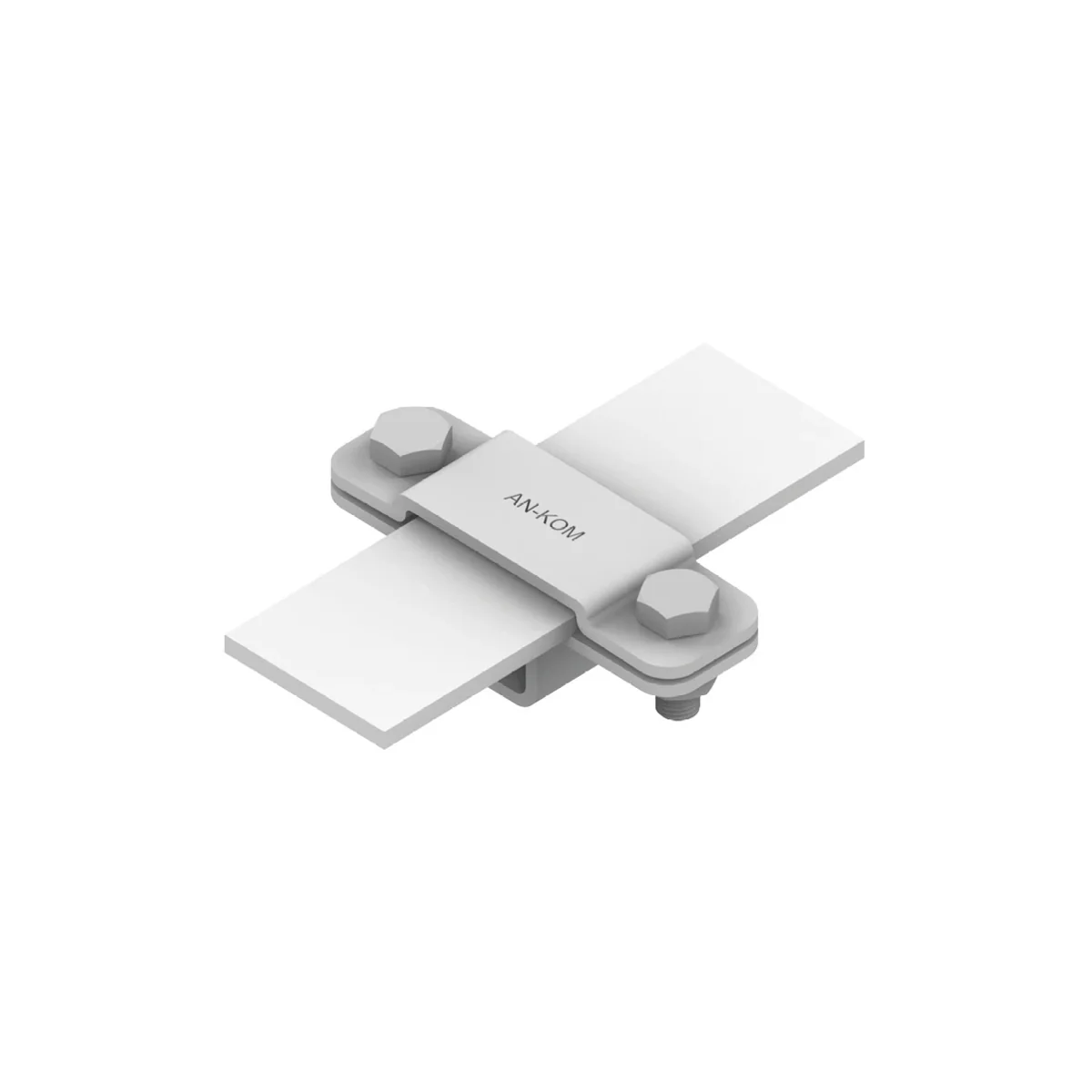

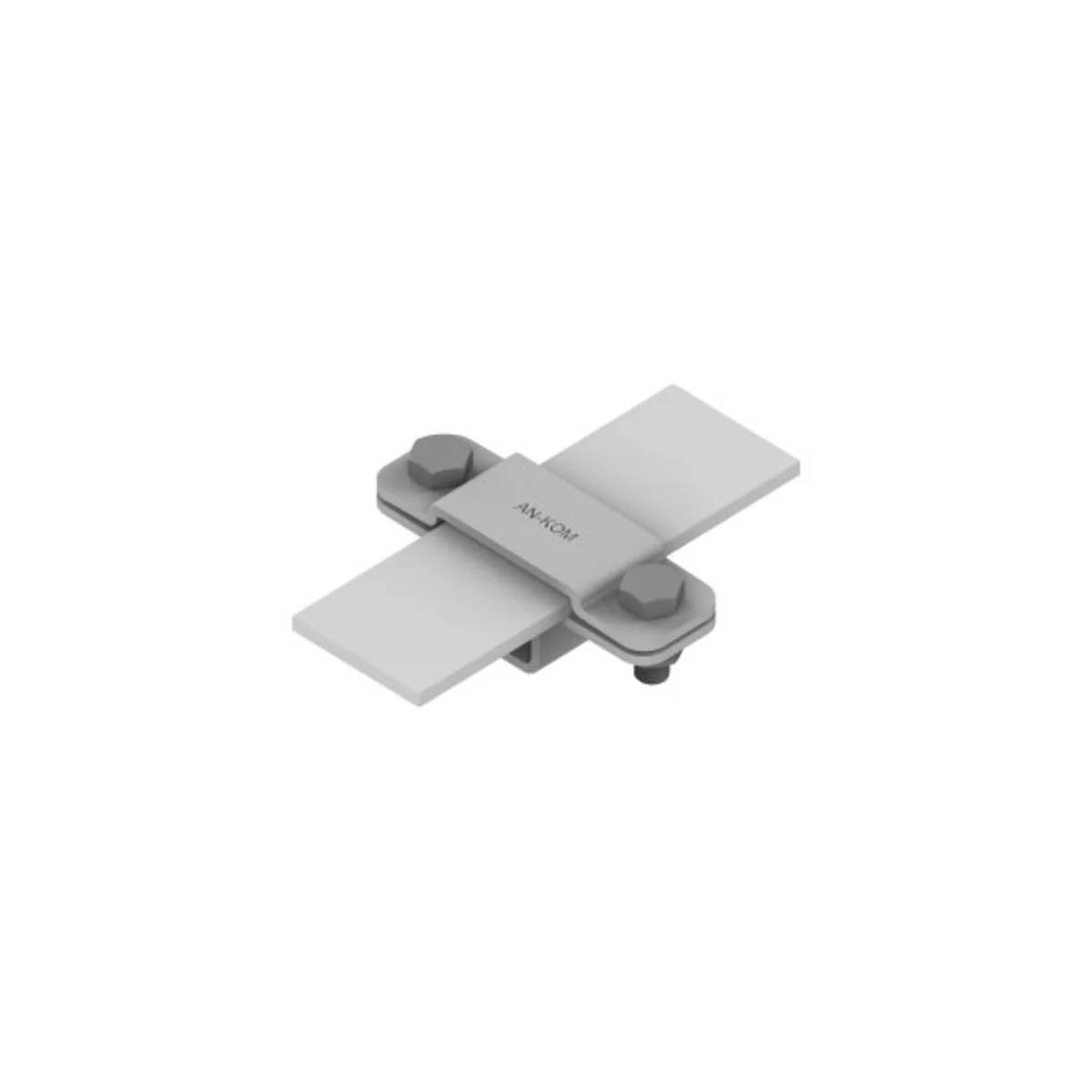

The handle is screwed onto the hoop iron, hot-dip galvanized C192464
local index:
AOU220ANKO
Catalog No:
C192464
EAN code:
5907770516548
Price:
3,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
For routing flat cables (hoop irons) without spacers on the wall or foundation. Mounting the holder to the ground with an expansion bolt.

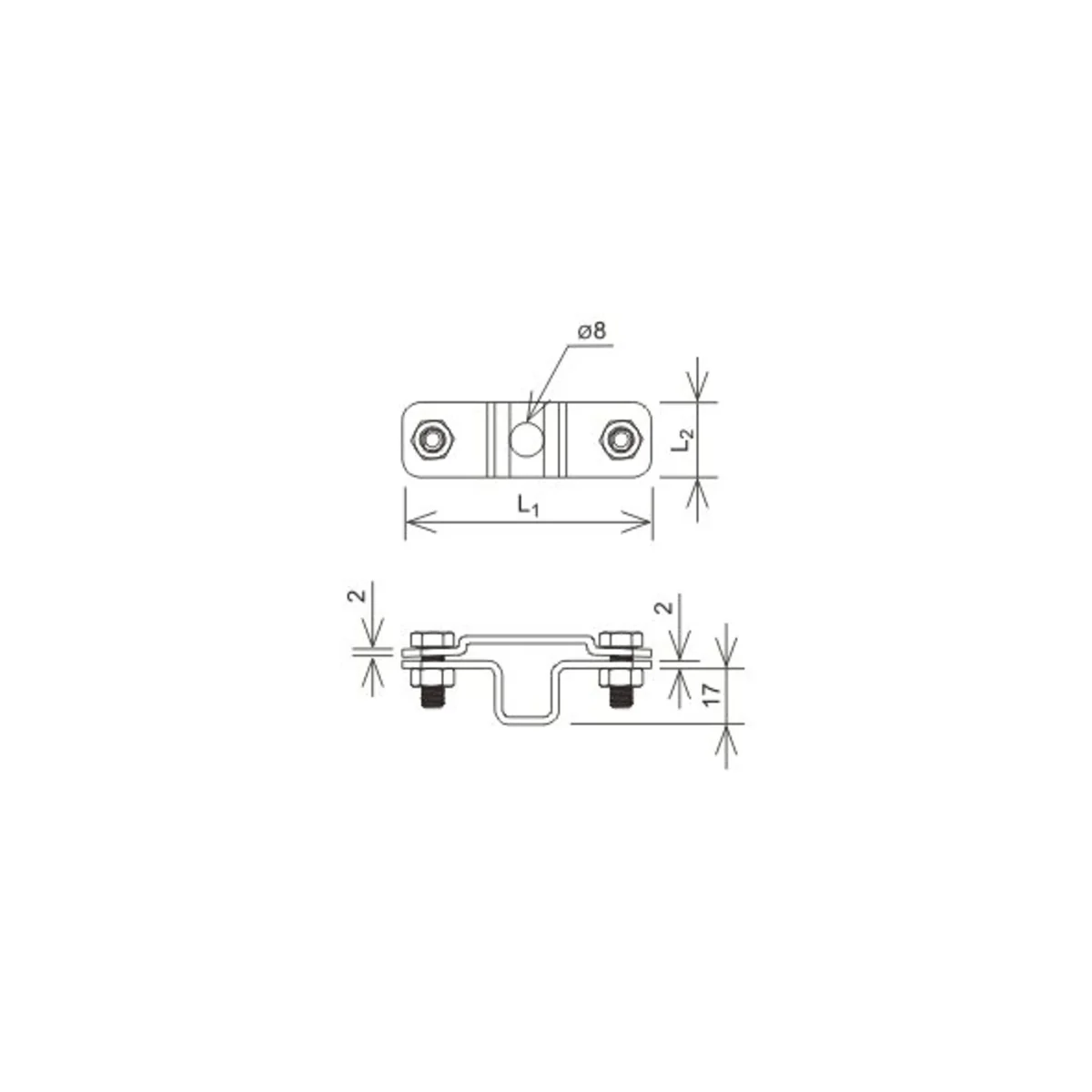

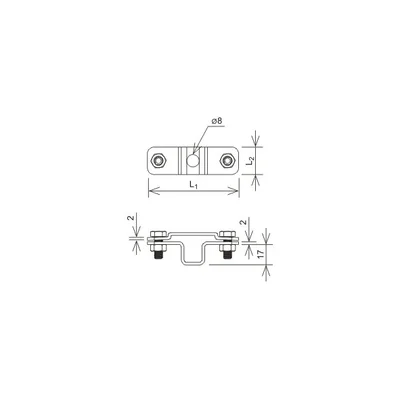

Technical data
-
Length [mm]92
-
Maximum tape width [mm]50
-
Width [mm]25
-
screws2xM8x20
-
Surface protectionhot-dip galvanized
-
Materialgalvanized steel
-
Maximum dimensions of the hoop iron [mm]50x5
-
Mounting hole diameter [mm]8
-
Clamp typeZ-screw
-
PKWIU25.99.29.0
Other technical data
-
Mounting type conductorWith screw clamp
-
Material of holderStal ocynkowana ogniowo
-
Material of saddle clampStal ocynkowana ogniowo
-
Thread size (metric)8
-
Rozmiar przewoduPłaski 50x5 mm
-
Mounting type holderBore hole with M thread
-
Material base partStal ocynkowana ogniowo
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Andrychów Inwałd, ul.Ks.Władysława Bukowińskiego 15
-
