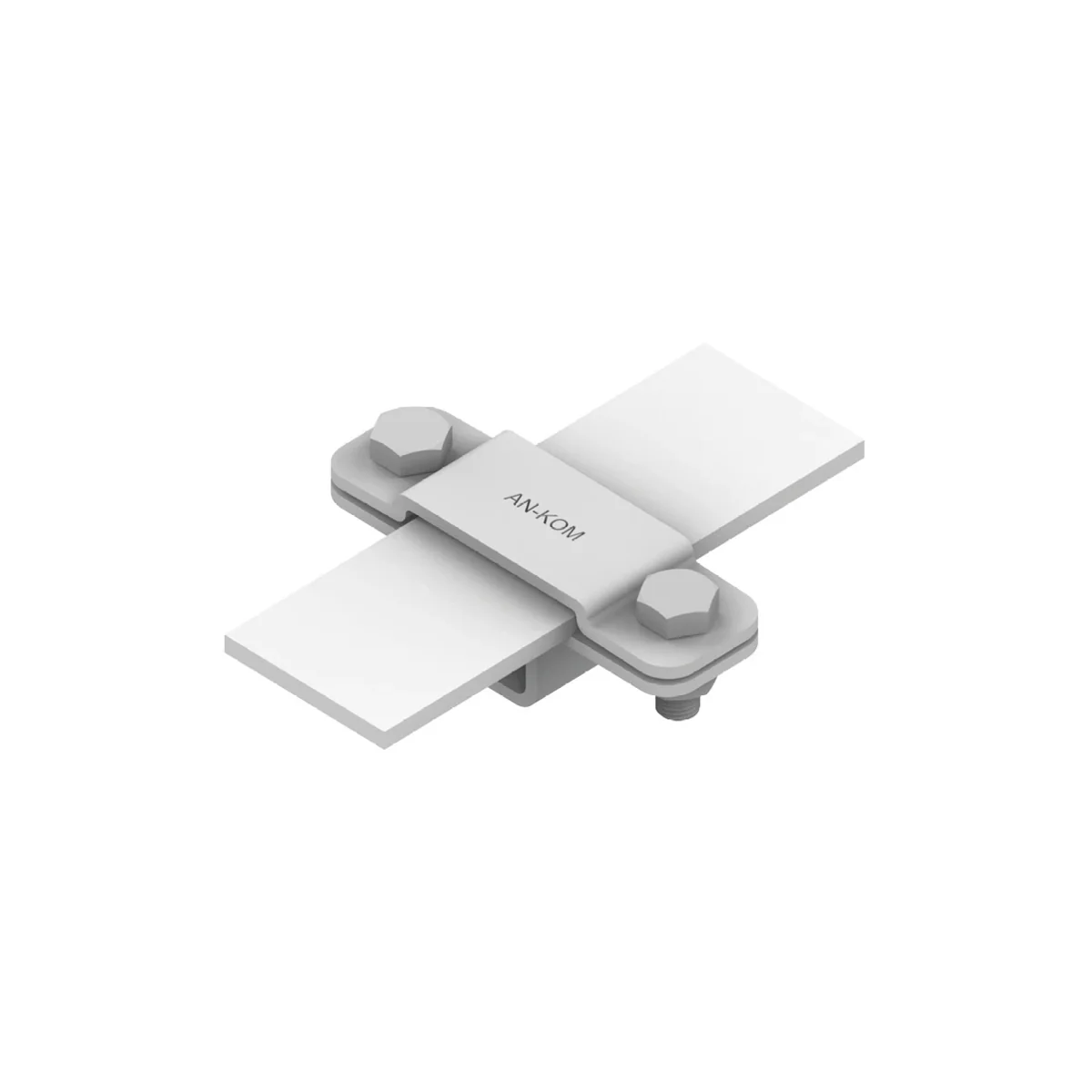

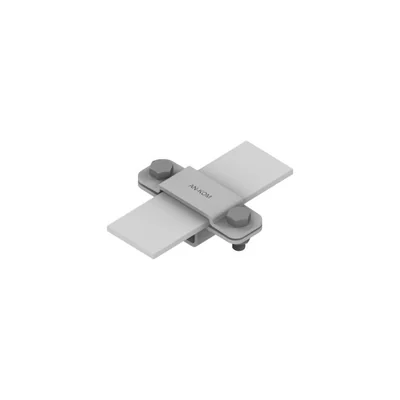

The handle is screwed onto the hoop iron, hot-dip galvanized C192456

Índice local:
AOU060ANKO
Número de catálogo:
C192456
Código EAN:
5907770509120
Fabricante: AN-KOM
Length [mm]: 60
Material: galvanized steel
Maximum tape width [mm]: thirty
Precio:
2,58 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 4 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

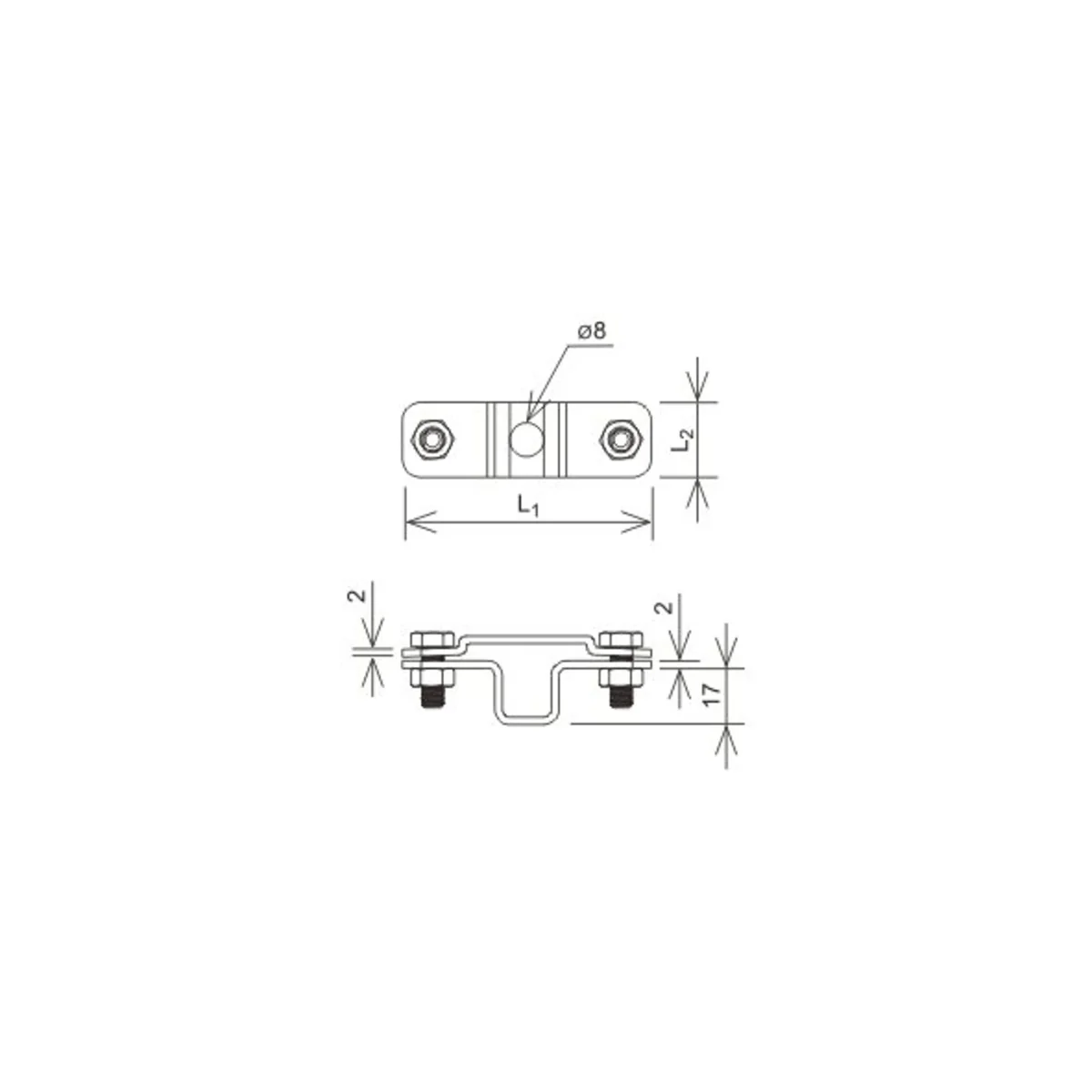

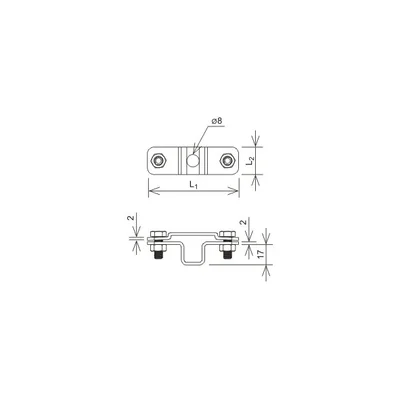

For routing flat cables (hoop irons) without spacers on the wall or foundation. Mounting the holder to the ground with an expansion bolt. L1=66mm, L2=20mm.

Datos técnicos

  • Length [mm]
    60
  • Maximum tape width [mm]
    thirty
  • Mounting hole diameter [mm]
    8
  • Clamp type
    Z-screw
  • PKWIU
    25.99.29.0
  • Material
    galvanized steel
  • Maximum dimensions of the hoop iron [mm]
    35x5
  • screws
    2xM6x16
  • Surface protection
    hot-dip galvanized

Otros datos técnicos

  • Mounting type conductor
    With screw clamp
  • Material of holder
    Stal ocynkowana ogniowo
  • Material of saddle clamp
    Stal ocynkowana ogniowo
  • Thread size (metric)
    8
  • Rozmiar przewodu
    Płaski 30x4 mm
  • Mounting type holder
    Bore hole with M thread
  • Material base part
    Stal ocynkowana ogniowo

Detalles del fabricante

  • Fabricante
    AN-KOM 2 Sp. z o.o.
  • Dirección
    34-120 Inwałd ks. W. Bukowińskiego 15 Polska
