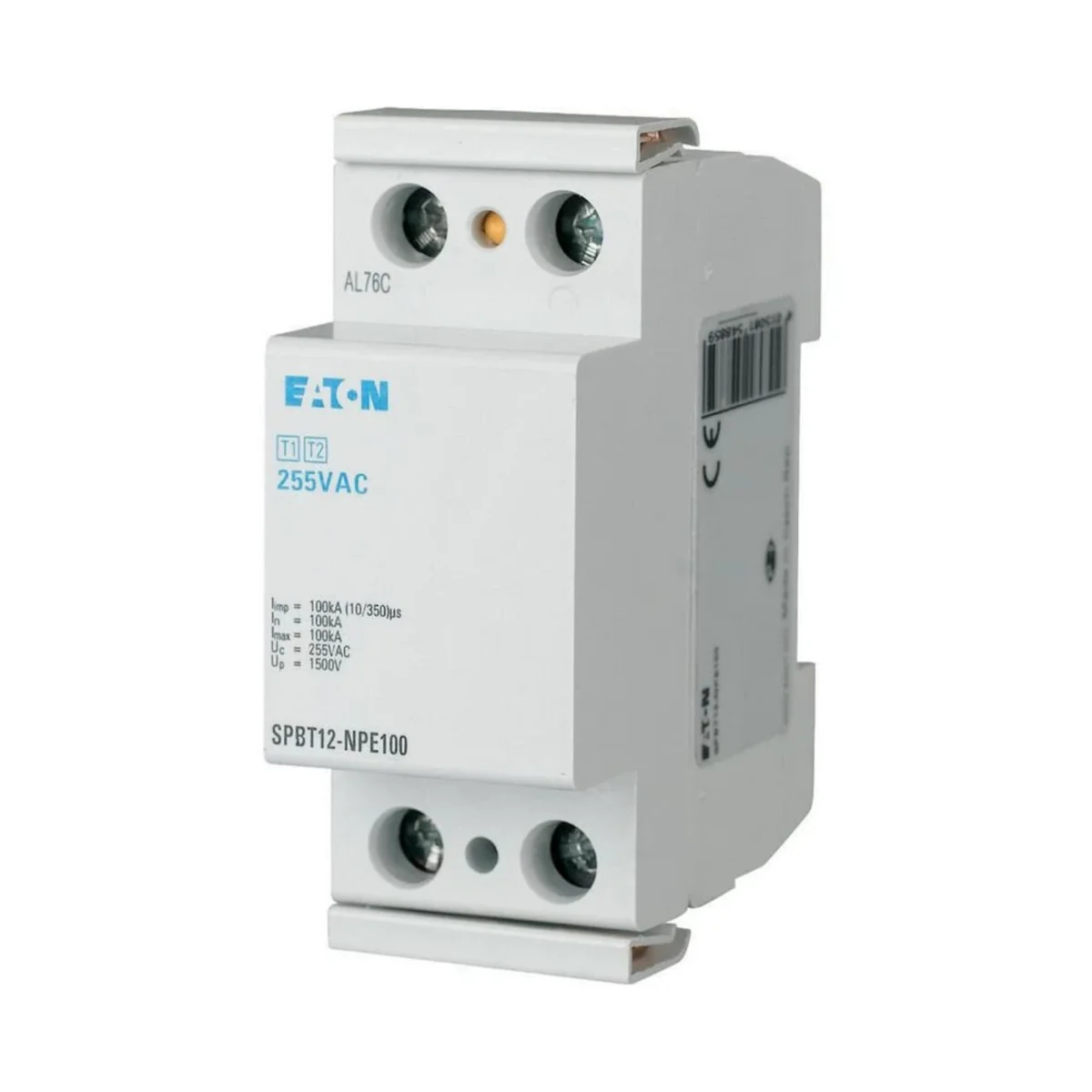

Surge arrester type 1+2 (class B+C) SPBT12-NPE100 158307
local index:
AOG058MOEL
Catalog No:
158307
EAN code:
4015081548859
Manufacturer:
EATON
Level of security: IP20
Price:
179,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arresters type 1+2 (class B+C)
• Replaceable varistor inserts.
• One auxiliary contact for 1, 2, 3 and 4 pole devices.
• Iimp (10/350) μs = 12.5 kA / pole
• Coded inserts eliminate the possibility of connection errors.
Technical data
-
Level of securityIP20
Other technical data
-
System configuration DCNo
-
System configuration TNYes
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of poles1
-
Max. continuous voltage AC255 V
-
Nominal voltage AC255 V
-
Max. PV-voltage0 V
-
Voltage protection level L-N0 kV
-
Voltage protection level N-PE1.5 kV
-
Voltage protection level (DC+/DC- - PE)0 kV
-
Specific energy (W/R)2500 kJ/Ω
-
Max. overcurrent protection device, series connection (fuse)0 A
-
Construction size2 modular spacing
-
Max. conductor cross section flexible (fine-strand)0 mm²
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
-
Voltage switching spark gap technologyYes
-
Degree of protection (IP)IP20
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SNo
-
System configuration otherYes
-
Lightning impulse current (10/350 µs)100 kA
-
Max. continuous voltage DC0 V
-
Nominal voltage DC0 V
-
Voltage protection level1.5 kV
-
Voltage protection level L-PE1.5 kV
-
Voltage protection level (DC+ - DC-)0 kV
-
Follow current extinguishing capability0 kA
-
Max. overcurrent protection device, parallel connection (fuse)0 A
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)35 mm²
-
Remote signallingNo
-
Test classType 1 + 2
-
Energy-coordinated protection effect with regard to the terminal equipmentNo
-
Overcurrent protected voltage tappingNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,241 | 0,255 | 15,512 |
| Volume (m3) | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,035 | 0,037 | 0,235 |
| Length (m) | 0,080 | 0,092 | 0,385 |
| Depth (m) | 0,065 | 0,075 | 0,190 |
