Surge arrester type 1+2 (class B+C) SPBT12-280/3 158330

Name: Surge arrester type 1+2 (class B+C) SPBT12-280/3
Brand: EATON
SKU: AOG061MOEL
Price: 149.08 PLN

local index:

AOG061MOEL

Catalog No:

158330

EAN code:

4015081548880

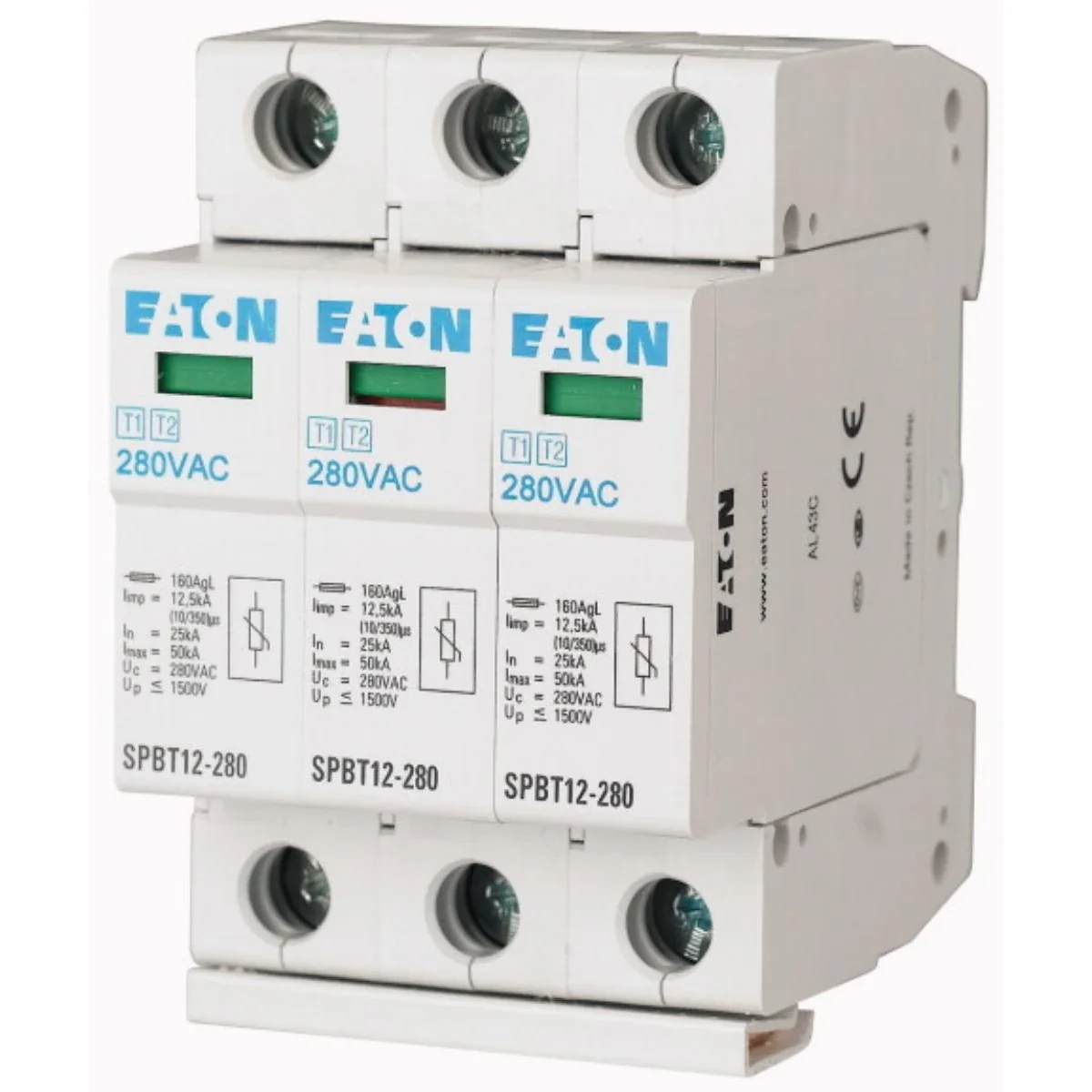

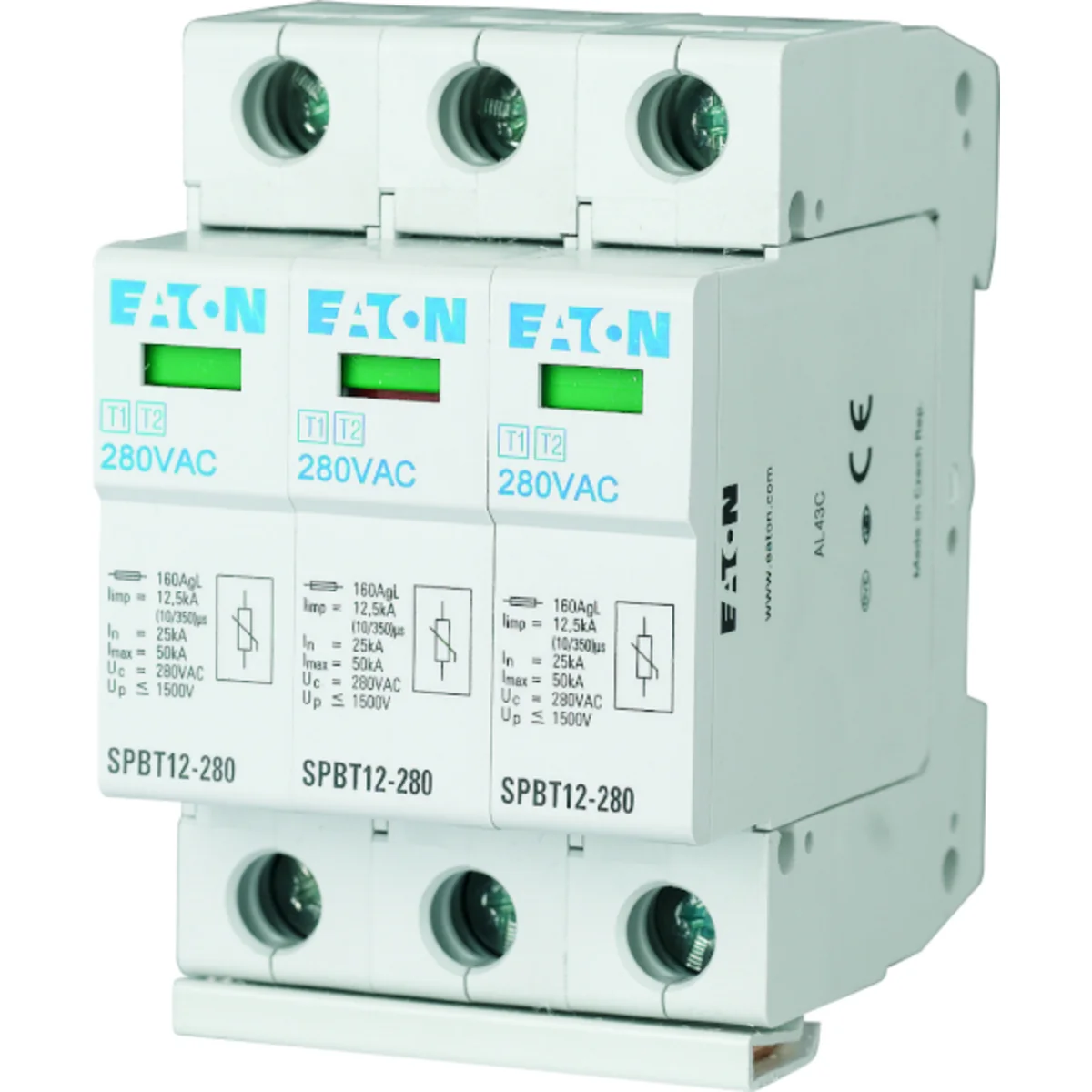

Surge arrester type 1+2 (class B+C) SPBT12-280/3

Click on the photo to enlarge

Manufacturer: EATON

Application: TN-C system

See full description

Price:

149,08 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Two-stage surge arresters type 1+2 (class B+C)
• Type SPBT12-280 dedicated in particular for use in switchboards of single-family houses
impulse current Iimp (10/350) μs = 12.5 kA / pole; III and IV class of lightning protection
• Type SP-B+C designed especially for public utility facilities and industry surge current Iimp (10/350) μs = 100 kA; I, II, III and IV class of lightning protection
• The sets are installed at the places where the electrical installation enters the building (in / next to the connector or the main LV switchgear)
• Protection Level Up < 1.5kV
• Interchangeable modules
• Sealed construction – no exhaust gasesóoutside

Technical data

Application

TN-C system

Other technical data

System configuration DC

No
System configuration TN

Yes
System configuration TN-C-S

Yes
System configuration TT

No
Number of poles

3
Max. continuous voltage AC

280 V
Nominal voltage AC

280 V
Max. PV-voltage

0 V
Voltage protection level L-N

0 kV
Voltage protection level N-PE

0 kV
Voltage protection level (DC+/DC- - PE)

0 kV
Specific energy (W/R)

39.1 kJ/Ω
Max. overcurrent protection device, series connection (fuse)

160 A
Construction size

3 modular spacing
Max. conductor cross section flexible (fine-strand)

35 mm²
Signalling at the device

Optical
Integrated backup fuse

No
Voltage switching spark gap technology

No
Degree of protection (IP)

IP20

System configuration IT

No
System configuration TN-C

Yes
System configuration TN-S

Yes
System configuration other

Yes
Lightning impulse current (10/350 µs)

12.5 kA
Max. continuous voltage DC

0 V
Nominal voltage DC

0 V
Voltage protection level

1.5 kV
Voltage protection level L-PE

1.5 kV
Voltage protection level (DC+ - DC-)

0 kV
Follow current extinguishing capability

0 kA
Max. overcurrent protection device, parallel connection (fuse)

0 A
Mounting method

DIN rail (top hat rail) 35 mm
Max. conductor cross section solid (solid, stranded)

25 mm²
Remote signalling

No
Test class

Type 1 + 2
Energy-coordinated protection effect with regard to the terminal equipment

No
Overcurrent protected voltage tapping

No
