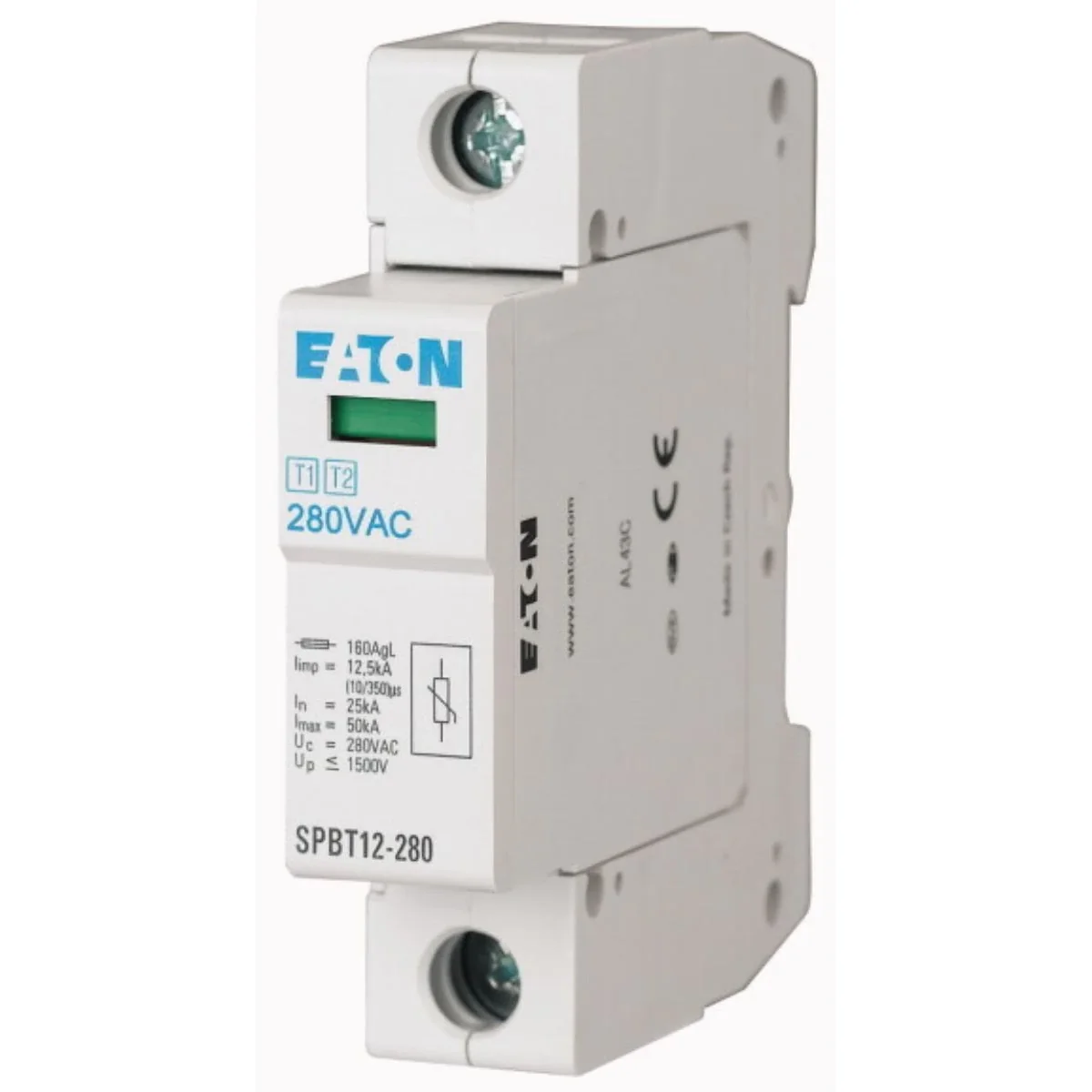

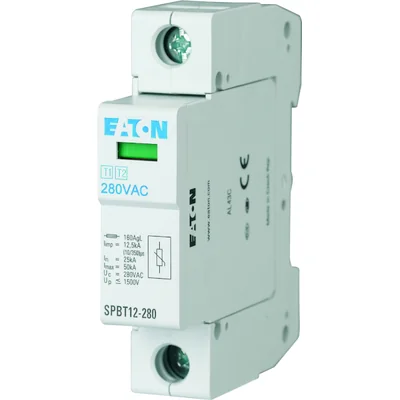

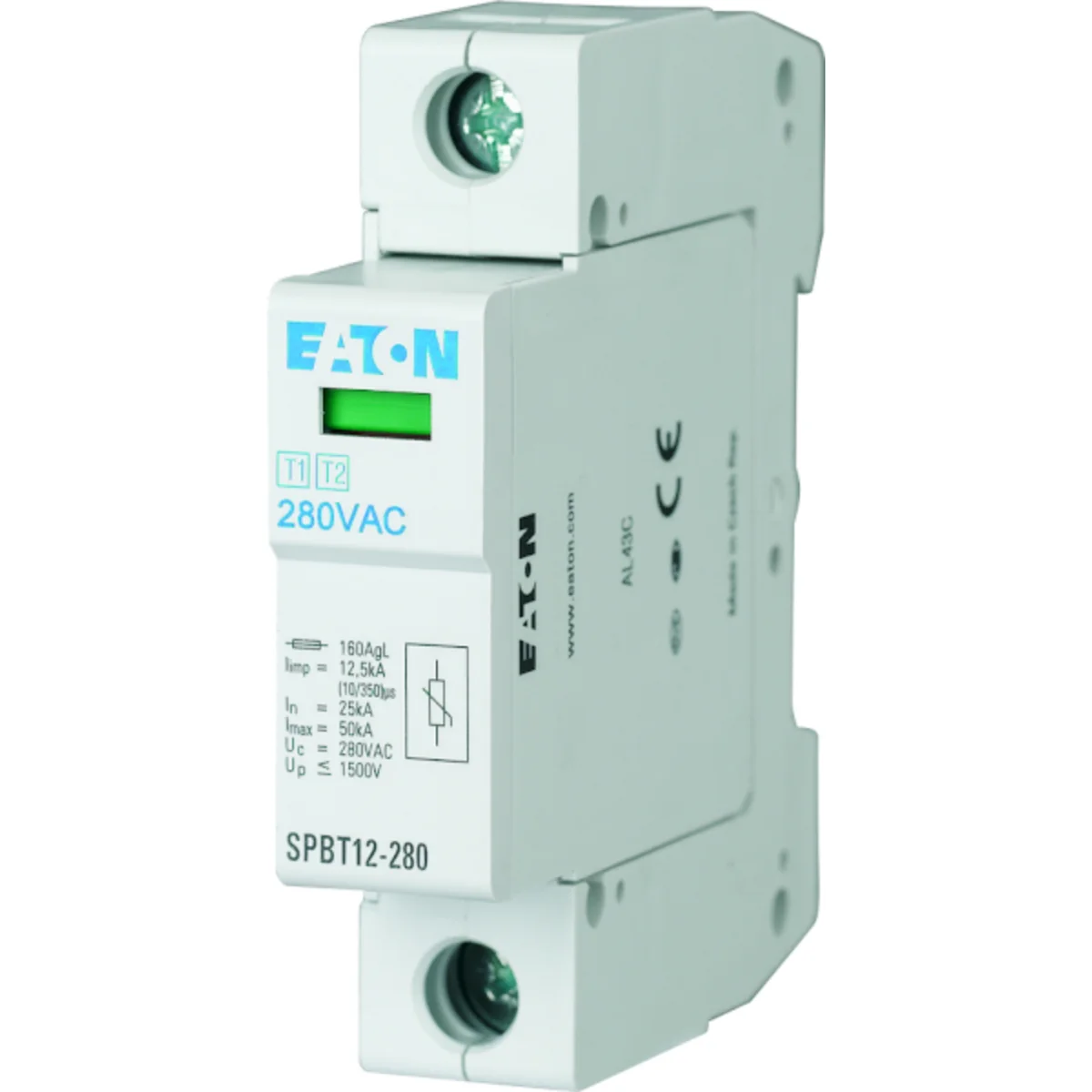

Surge arrester type 1+2 (class B+C) SPBT12-280/1 158306

local index:
AOG059MOEL
Catalog No:
158306
EAN code:
4015081548842
Manufacturer: EATON
Application: Single-phase receivers
Price:
74,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
12
)
Print

Product description

Two-stage surge arresters type 1+2 (class B+C)
• Type SPBT12-280 dedicated in particular for use in switchgears of single-family houses surge current Iimp (10/350) μs = 12.5 kA / pole; III and IV class of lightning protection
• Type SP-B+C designed especially for public utility facilities and industry surge current Iimp (10/350) μs = 100 kA; I, II, III and IV class of lightning protection
• The sets are installed at the places where the electrical installation enters the building (in / next to the connector or the main LV switchgear)
• Protection Level Up < 1.5 kV
• Interchangeable modules
• Sealed construction – no exhaust gasesóoutside



Technical data

  • Application
    Single-phase receivers

Other technical data

  • System configuration DC
    no
  • System configuration TN
    yes
  • System configuration TN-C-S
    no
  • System configuration TT
    no
  • Number of poles
    1
  • Max. continuous voltage AC
    280 V
  • Nominal voltage AC
    280 V
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    0 kV
  • Voltage protection level N-PE
    0 kV
  • Voltage protection level (DC+/DC- - PE)
    0 kV
  • Specific energy (W/R)
    39.1 kJ/Ω
  • Max. overcurrent protection device, series connection (fuse)
    160 A
  • Construction size
    1 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    35 mm²
  • Signalling at the device
    Optical
  • Integrated backup fuse
    no
  • Voltage switching spark gap technology
    no
  • Degree of protection (IP)
    IP20
  • System configuration IT
    no
  • System configuration TN-C
    no
  • System configuration TN-S
    yes
  • System configuration other
    yes
  • Lightning impulse current (10/350 µs)
    12.5 kA
  • Max. continuous voltage DC
    0 V
  • Nominal voltage DC
    0 V
  • Voltage protection level
    1.5 kV
  • Voltage protection level L-PE
    1.5 kV
  • Voltage protection level (DC+ - DC-)
    0 kV
  • Follow current extinguishing capability
    0 kA
  • Max. overcurrent protection device, parallel connection (fuse)
    0 A
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    25 mm²
  • Remote signalling
    no
  • Test class
    Type 1 + 2
  • Energy-coordinated protection effect with regard to the terminal equipment
    no
  • Overcurrent protected voltage tapping
    no

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,142 1,699 17,090
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,086 0,180
Length (m) 0,082 0,218 0,385
Depth (m) 0,067 0,074 0,230
