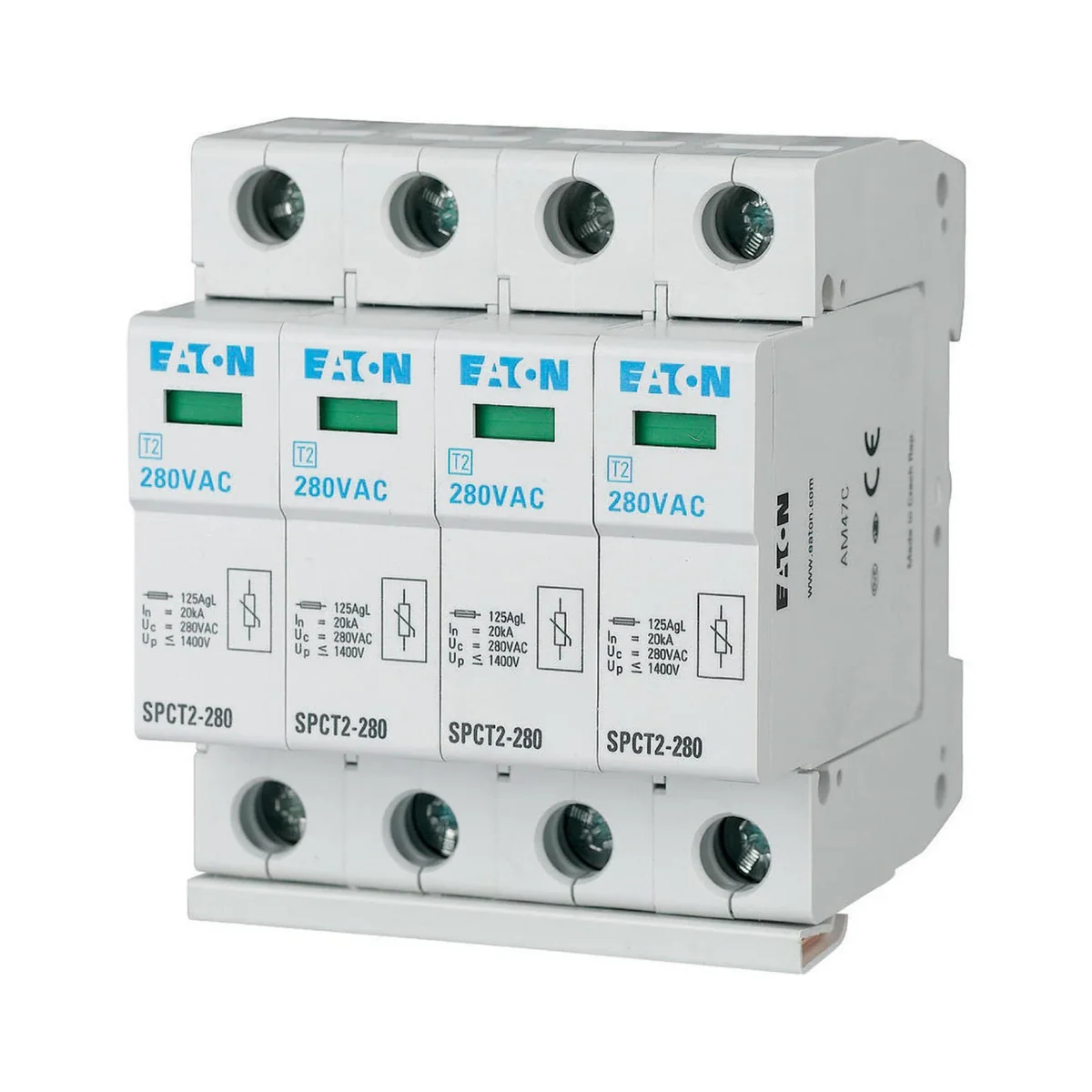

Surge arrester SPCT2-280/4 167596

local index:
AOG054MOEL
Catalog No:
167596
EAN code:
4015081640874
Manufacturer: EATON
Level of security: IP20
Price:
53,81 €
gross / pcs.
(including VAT 23%)
Last lowest price: 54,08 € gross
Base price: 78,88 € gross -32%
Delivery in 3h
Accessible 47 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surge arrester, SPCT2-280/4

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.10.0

Other technical data

  • System configuration DC
    No
  • System configuration TN
    Yes
  • System configuration TN-C-S
    Yes
  • System configuration TT
    No
  • Number of conductors (without earthing)
    4
  • Max. discharge surge current (8/20)
    40 kA
  • Nominal voltage DC
    0 V
  • Max. continuous voltage DC
    0 V
  • Voltage protection level
    1.4 kV
  • Voltage protection level N-PE
    0 kV
  • Max. overcurrent protection device, series connection (fuse)
    125 A
  • Integrated short-circuit protection
    No
  • Integrated backup fuse
    No
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Max. conductor cross section solid (solid, stranded)
    25 mm²
  • With remote signalling contact
    No
  • Category type 2
    Yes
  • System configuration IT
    No
  • System configuration TN-C
    No
  • System configuration TN-S
    Yes
  • System configuration other
    Yes
  • Nominal discharge surge current (8/20)
    20 kA
  • Nominal voltage AC
    280 V
  • Max. continuous voltage AC
    280 V
  • Max. PV-voltage
    0 V
  • Voltage protection level L-N
    0 kV
  • Max. overcurrent protection device, parallel connection (fuse)
    0 A
  • Short-circuit breaking capacity (Isccr)
    0 kA
  • Integrated short-circuit protection selective to fuse gG
    0 A
  • Leakage-current free
    No
  • Construction size
    4 modular spacing
  • Max. conductor cross section flexible (fine-strand)
    35 mm²
  • Signalling at the device
    Optical
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 30 pcs.
Weight (kg) 0,449 13,309
Volume (m3) 0,000 0,016
Width (m) 0,073 0,180
Length (m) 0,086 0,385
Depth (m) 0,075 0,230
