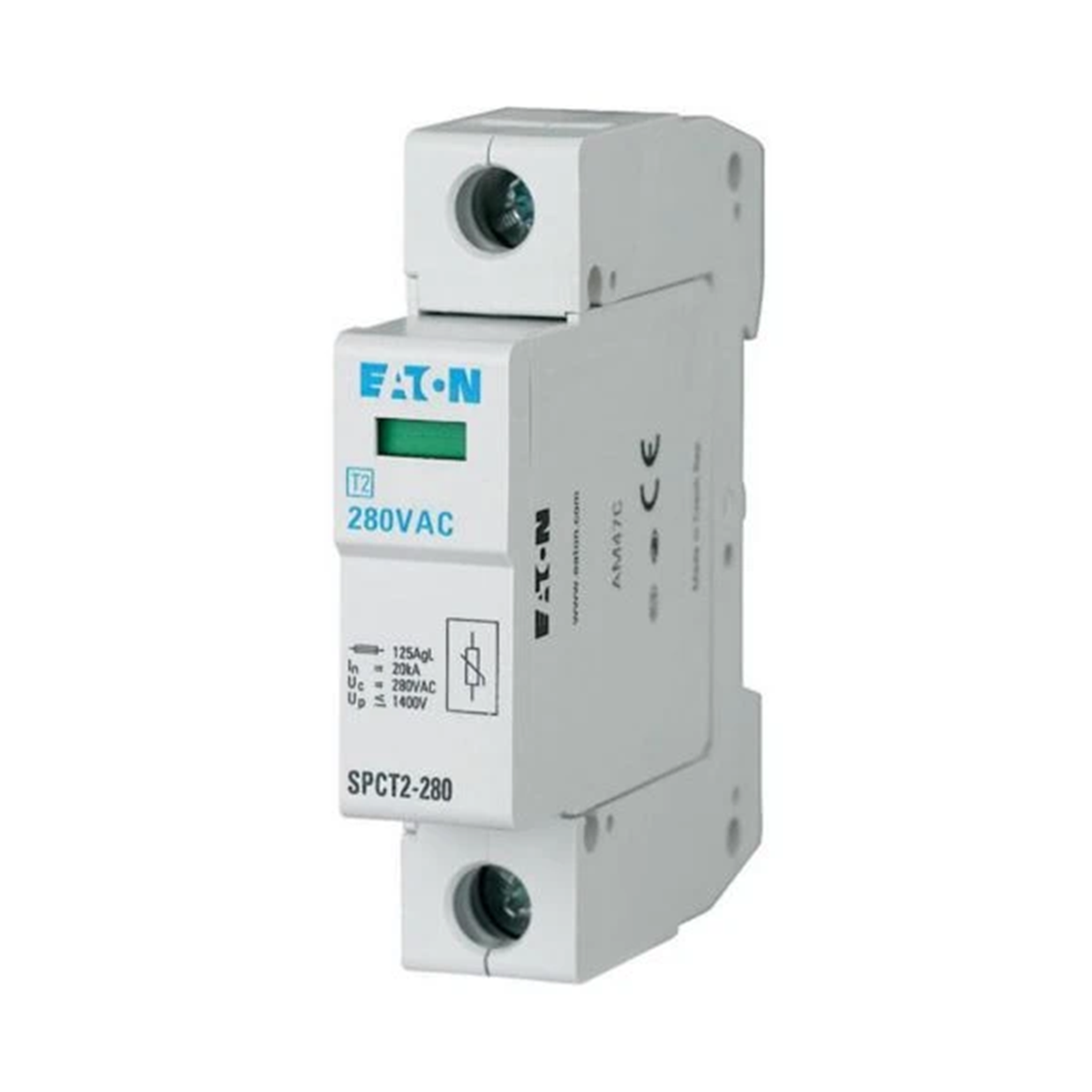

Surge arrester SPCT2-280/1 167593
local index:
AOG013MOEL
Catalog No:
167593
EAN code:
4015081640850
Price:
13,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Type 2 surge arresters (class C)
• Protection of electrical installations against the effects of overvoltages resulting from indirect lightning discharges or switching processes in the electrical network
• Mounted in floor and branch switchgears and switchboards
• Protection Level for SPCT2-280 < 1.4 kV
• Discharge current Imax (8/20) μs = 40kA
• Replaceable varistor inserts
• Actuation indicator
Technical data
-
Number of poles1
-
ApplicationReceivers
-
TypeSPCT2-280/1
Other technical data
-
System configuration DCNo
-
System configuration TNYes
-
System configuration TN-C-SNo
-
System configuration TTNo
-
Number of conductors (without earthing)1
-
Max. discharge surge current (8/20)40 kA
-
Nominal voltage DC0 V
-
Max. continuous voltage DC0 V
-
Voltage protection level1.4 kV
-
Voltage protection level N-PE0 kV
-
Max. overcurrent protection device, series connection (fuse)125 A
-
Integrated short-circuit protectionNo
-
Integrated backup fuseNo
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)25 mm²
-
With remote signalling contactNo
-
Category type 2Yes
-
System configuration ITNo
-
System configuration TN-CNo
-
System configuration TN-SYes
-
System configuration otherYes
-
Nominal discharge surge current (8/20)20 kA
-
Nominal voltage AC280 V
-
Max. continuous voltage AC280 V
-
Max. PV-voltage0 V
-
Voltage protection level L-N0 kV
-
Max. overcurrent protection device, parallel connection (fuse)0 A
-
Short-circuit breaking capacity (Isccr)0 kA
-
Integrated short-circuit protection selective to fuse gG0 A
-
Leakage-current freeNo
-
Construction size1 modular spacing
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Signalling at the deviceOptical
-
Degree of protection (IP)IP20
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton |
| Quantity | 1 pcs. | 2 pcs. | 120 pcs. |
| Weight (kg) | 0,111 | 0,222 | 12,799 |
| Volume (m3) | 0,000 | 0,000 | 0,016 |
| Width (m) | 0,020 | 0,037 | 0,180 |
| Length (m) | 0,087 | 0,086 | 0,385 |
| Depth (m) | 0,069 | 0,075 | 0,230 |
