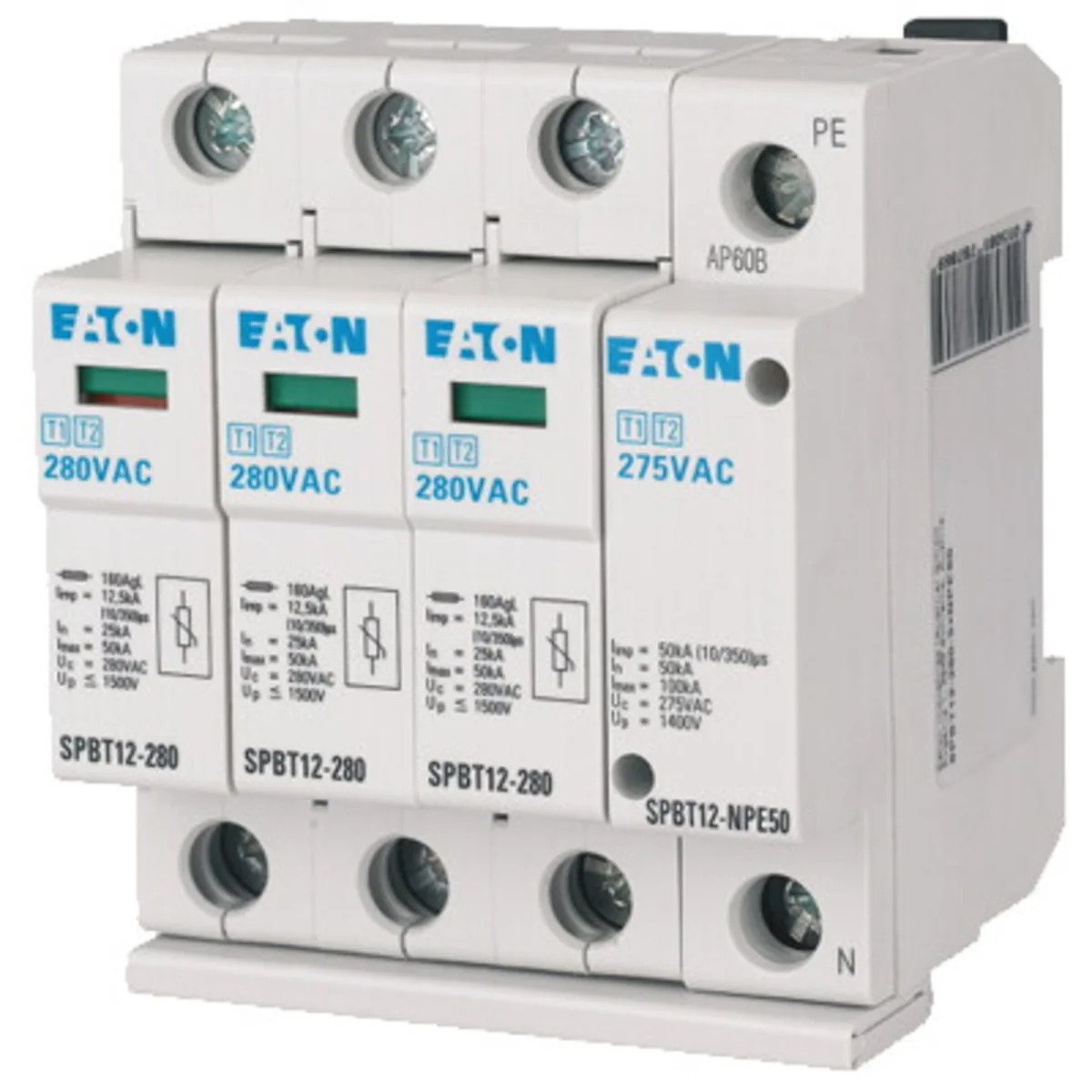

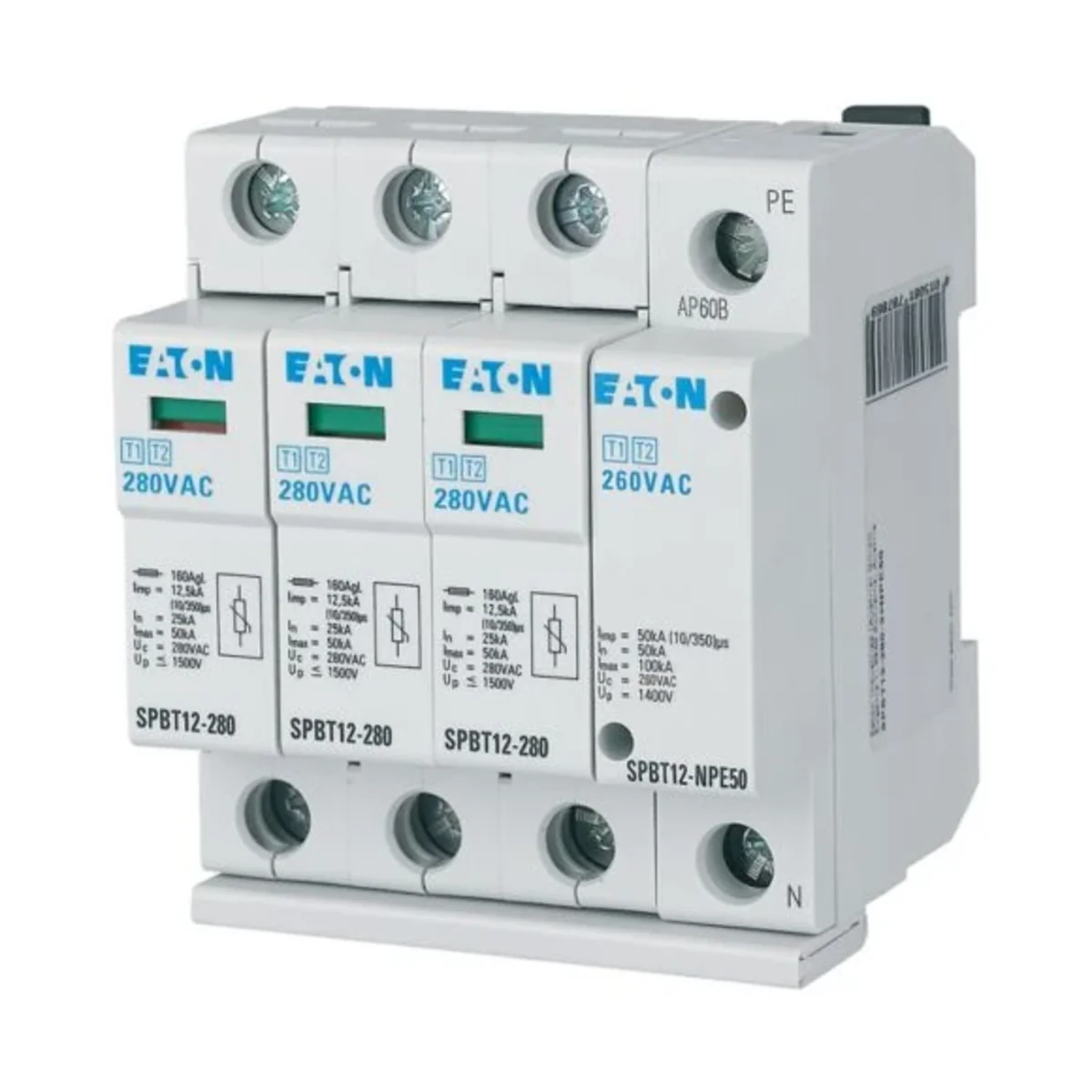

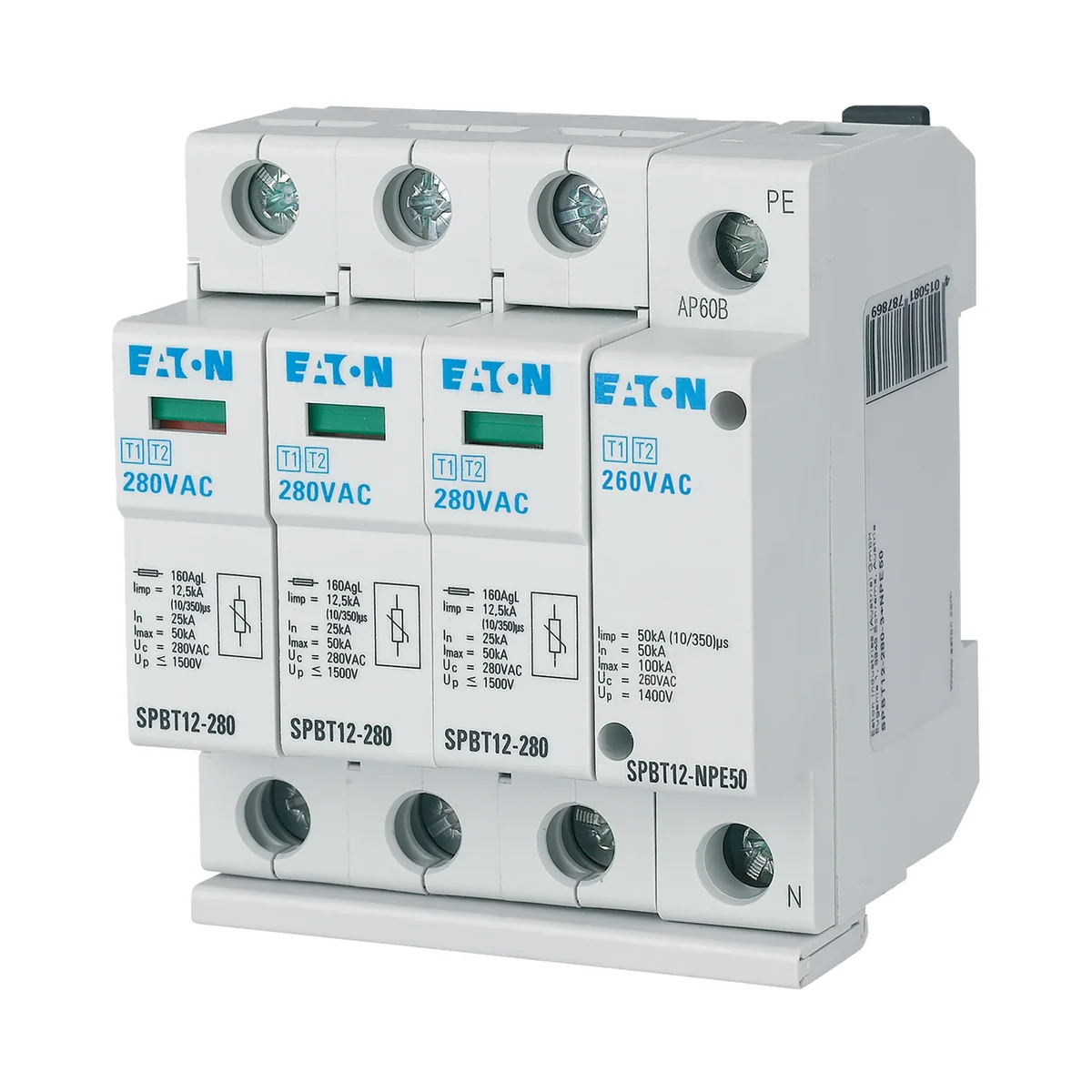

Surge arrester - network system IT, TN, TN-S, TT, type 1+2 (class B+C) 184750
local index:
AOC023MOEL
Catalog No:
184750
EAN code:
4015081787869
Outlet
Price:
127,28 €
gross / pcs.
(including VAT 23%)
The lowest price from 30 days before the reduction:
127,28 € gross
Price history for this product
1. 127,28 € gross / pcs.
2. The lowest price from 30 days before the reduction:
127,28 €
3. Base price:
210,66 €
1. How much does this product cost today
2. The lowest price from 30 days before the reduction
3. The base price of the product
Base price:
210,66 € gross
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Surge arrester type 1+2 (class B+C) with replaceable cartridge
Technical data
-
CharacteristicB+C
-
Number of poles4
-
Rated voltage [V]240
-
Surge current [kA]12.5
-
Width [number of modules]4
-
Voltage typeAC
-
PKWIU25.11.23.0
-
Protection classB+C
-
InstallationOn the TH-35 rail
-
Protection level [kV]1.5
-
Level of securityIP20
-
Wire cross-section [mm²]25
-
Specific energy [kJ/Ω]625
Other technical data
-
System configuration DCNo
-
System configuration TNYes
-
System configuration TN-C-SNo
-
System configuration TTYes
-
Number of poles4
-
Max. continuous voltage AC260 V
-
Nominal voltage AC240 V
-
Max. PV-voltage0 V
-
Voltage protection level L-N1.5 kV
-
Voltage protection level N-PE1.4 kV
-
Voltage protection level (DC+/DC- - PE)0 kV
-
Specific energy (W/R)625 kJ/Ω
-
Max. overcurrent protection device, series connection (fuse)0 A
-
Construction size4 modular spacing
-
Max. conductor cross section flexible (fine-strand)35 mm²
-
Signalling at the deviceOptical
-
Integrated backup fuseNo
-
Voltage switching spark gap technologyYes
-
Degree of protection (IP)IP20
-
System configuration ITYes
-
System configuration TN-CNo
-
System configuration TN-SYes
-
System configuration otherYes
-
Lightning impulse current (10/350 µs)12.5 kA
-
Max. continuous voltage DC0 V
-
Nominal voltage DC0 V
-
Voltage protection level1.5 kV
-
Voltage protection level L-PE1.5 kV
-
Voltage protection level (DC+ - DC-)0 kV
-
Follow current extinguishing capability0 kA
-
Max. overcurrent protection device, parallel connection (fuse)0 A
-
Mounting methodDIN rail (top hat rail) 35 mm
-
Max. conductor cross section solid (solid, stranded)25 mm²
-
Remote signallingNo
-
Test classType 1 + 2
-
Energy-coordinated protection effect with regard to the terminal equipmentNo
-
Overcurrent protected voltage tappingNo
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 30 pcs. |
| Weight (kg) | 0,527 | 0,551 | 16,730 |
| Volume (m3) | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,071 | 0,073 | 0,235 |
| Length (m) | 0,085 | 0,092 | 0,385 |
| Depth (m) | 0,067 | 0,075 | 0,190 |
