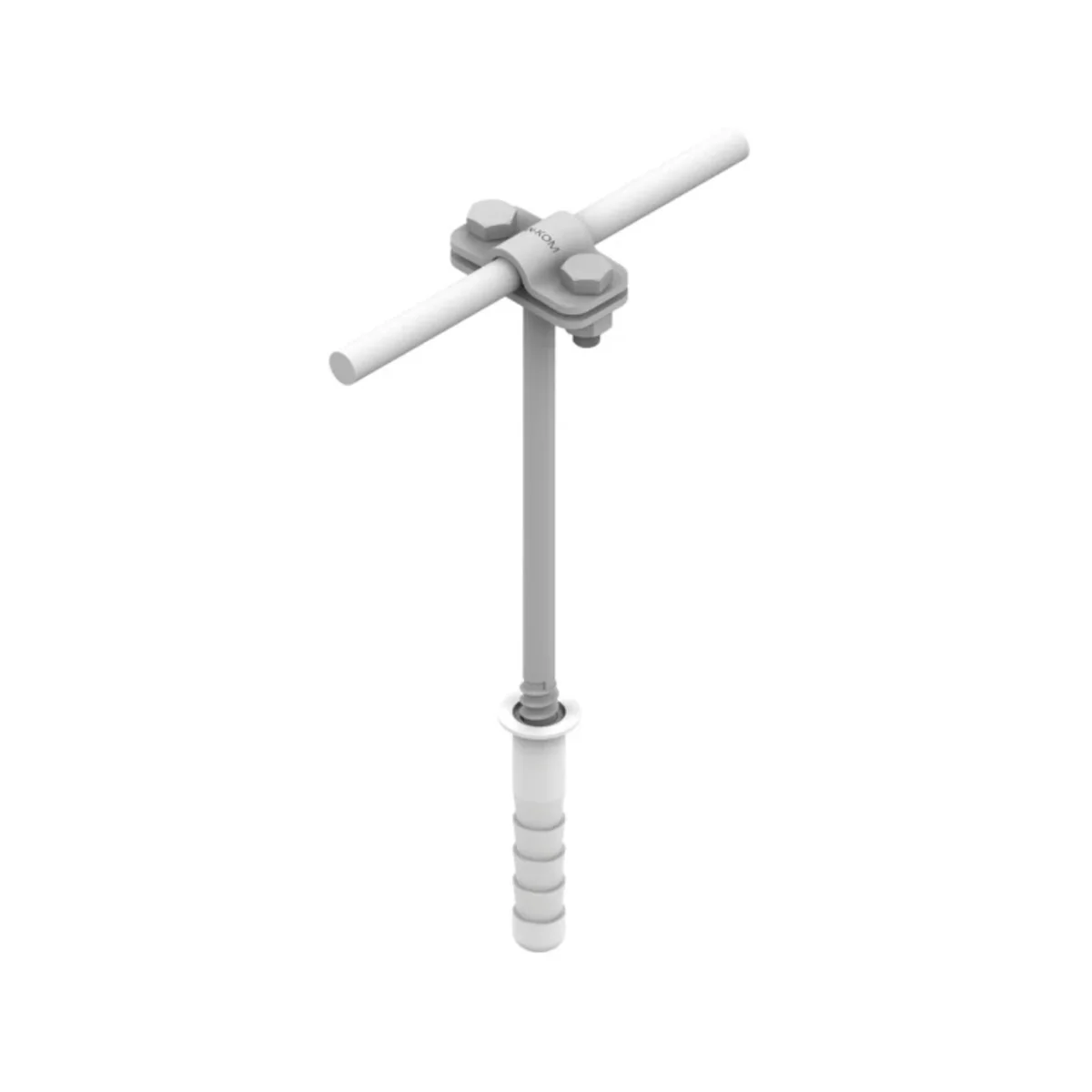

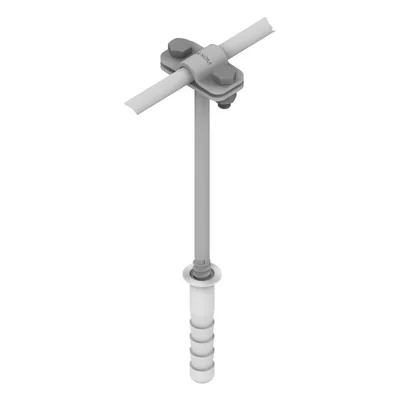

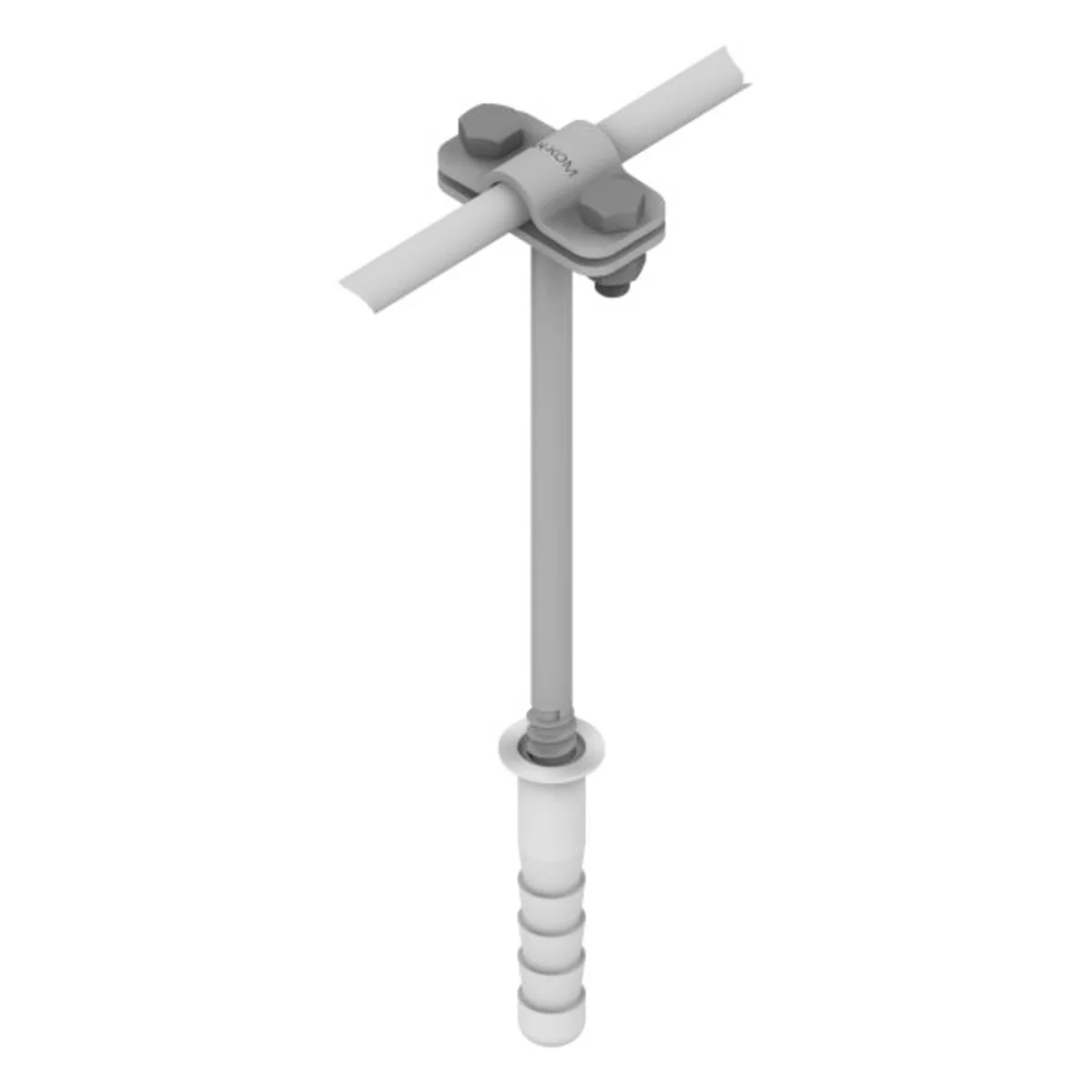

Screw-in handle with an expansion bolt with an M12 screw L=25cm, hot-dip galvanized C192356

Name: Screw-in handle with an expansion bolt with an M12 screw L=25cm, hot-dip galvanized
Brand: AN-KOM
SKU: AOU042ANKO
Price: 3.01 PLN
Availability: InStock

local index:

AOU042ANKO

Catalog No:

C192356

EAN code:

5907770508239

Screw-in handle with an expansion bolt with an M12 screw L=25cm, hot-dip galvanized

Click on the photo to enlarge

Manufacturer: AN-KOM

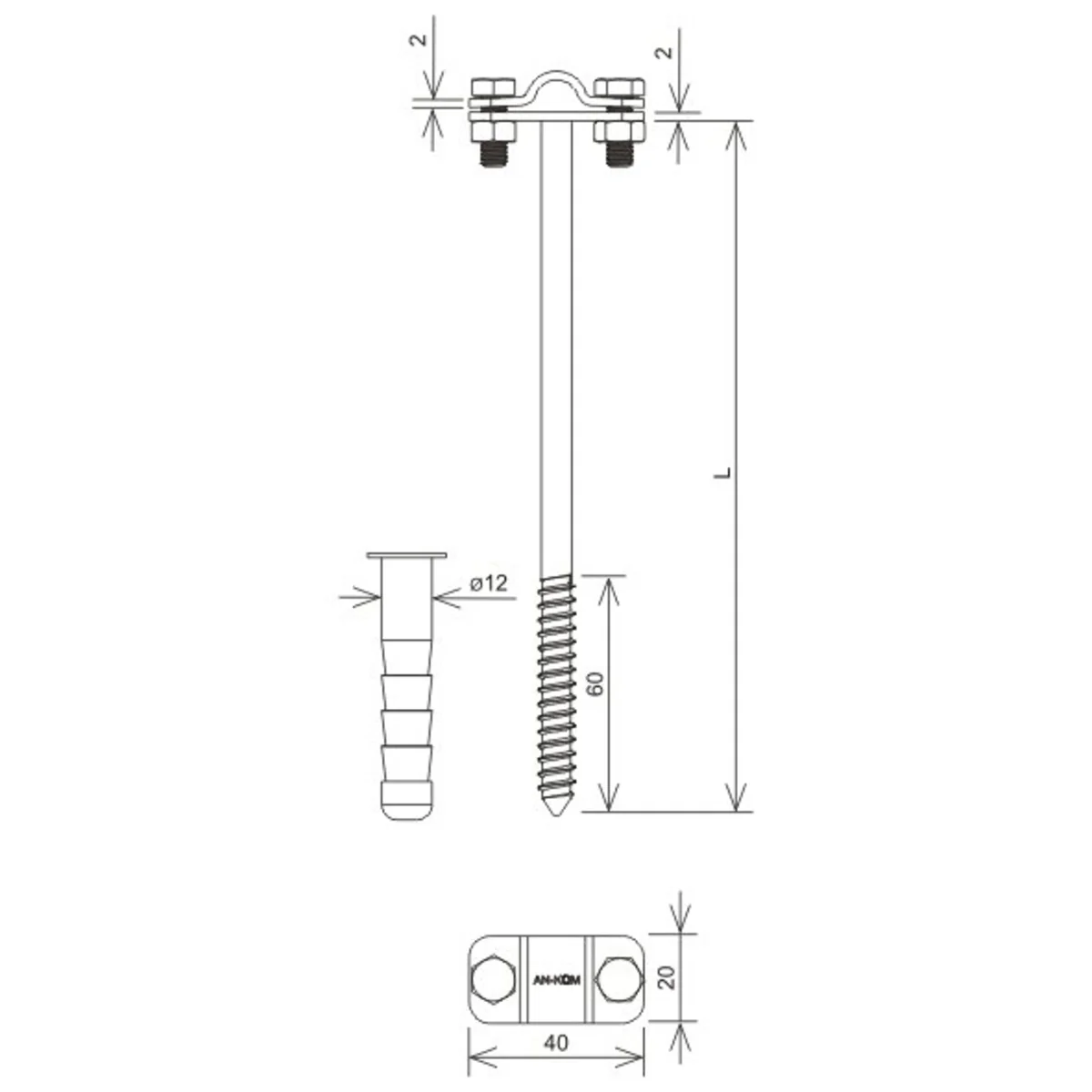

Length [mm]: 250

Material: galvanized steel

Pin sleeve diameter [mm]: 12

See full description

Price:

3,01 €

gross / pcs.

(including VAT 23%)

Accessible 226 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Screwed holder for routing the ground wire on the façade, wooden structures. Installation of the cable in the holder by means of a screw clamp.

Technical data

Length [mm]

250
Pin sleeve diameter [mm]

12
Clamp type

Z-screw
Surface protection

hot-dip galvanized

Material

galvanized steel
screws

M6x16
Cable dimensions [mm]

6-8
PKWIU

25.99.29.0

Other technical data

Mounting type conductor

With screw clamp
Material of holder

Stal ocynkowana ogniowo
Material of saddle clamp

Stal ocynkowana ogniowo

Rozmiar przewodu

Okrągły 6-8 mm
Mounting type holder

With plug
Material base part

Stal ocynkowana ogniowo

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	50 pcs.
Weight (kg)	0,118	6,020
Volume (m3)	-	0,007
Width (m)	0,040	0,200
Length (m)	0,260	0,300
Depth (m)	0,020	0,110
