Screw-in handle with an expansion bolt with a M12 screw L=16cm, hot-dip galvanized C192332

local index:
AOU039ANKO
Catalog No:
C192332
EAN code:
5907770508055
Manufacturer: AN-KOM
Length [mm]: 160
Material: galvanized steel
Pin sleeve diameter [mm]: 12
Price:
2,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 249 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

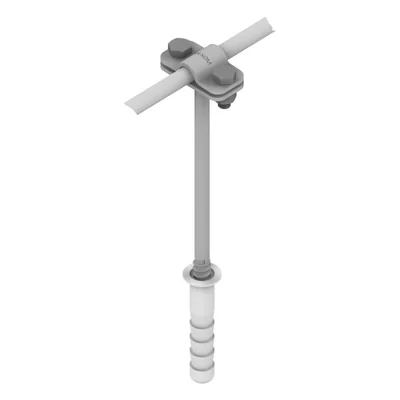

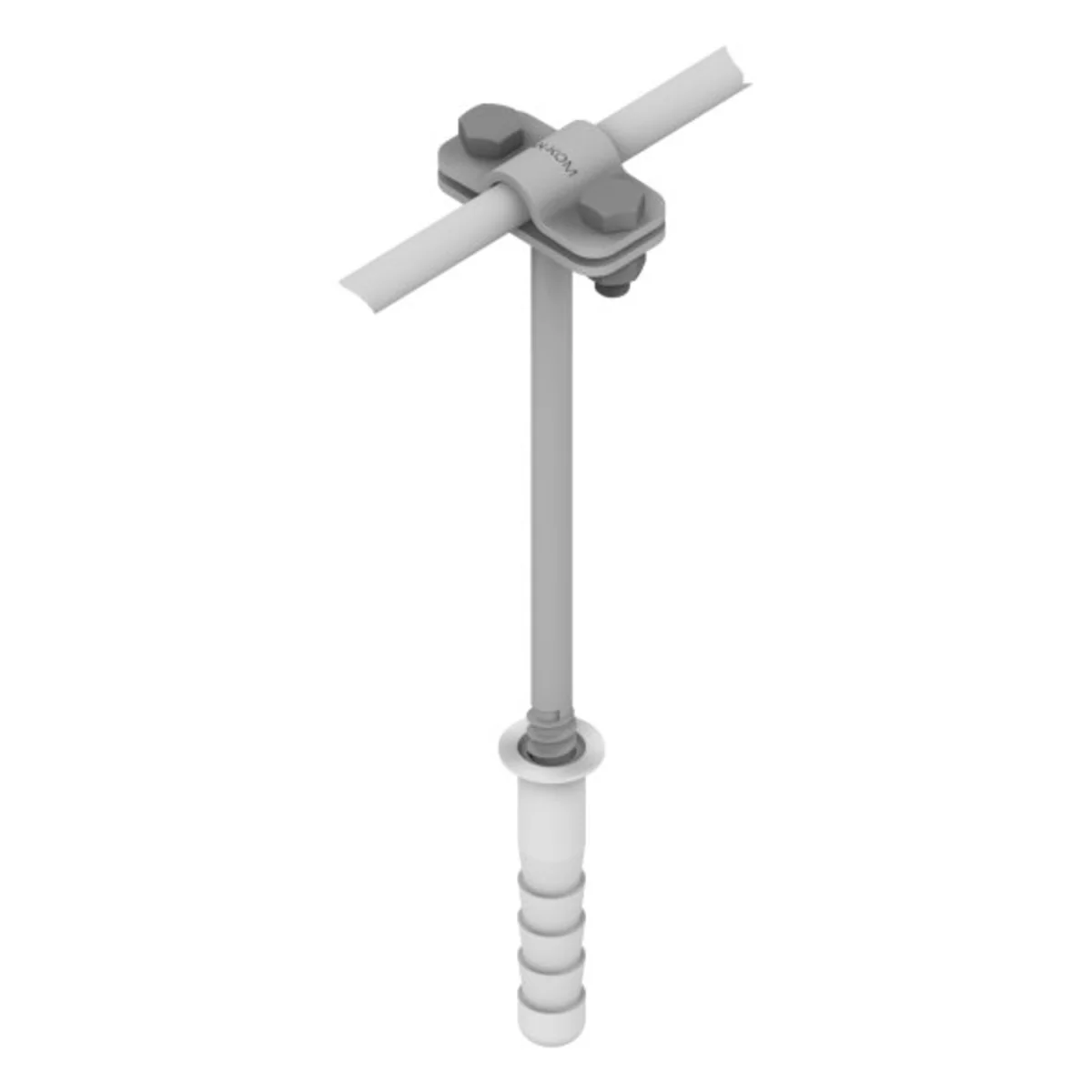

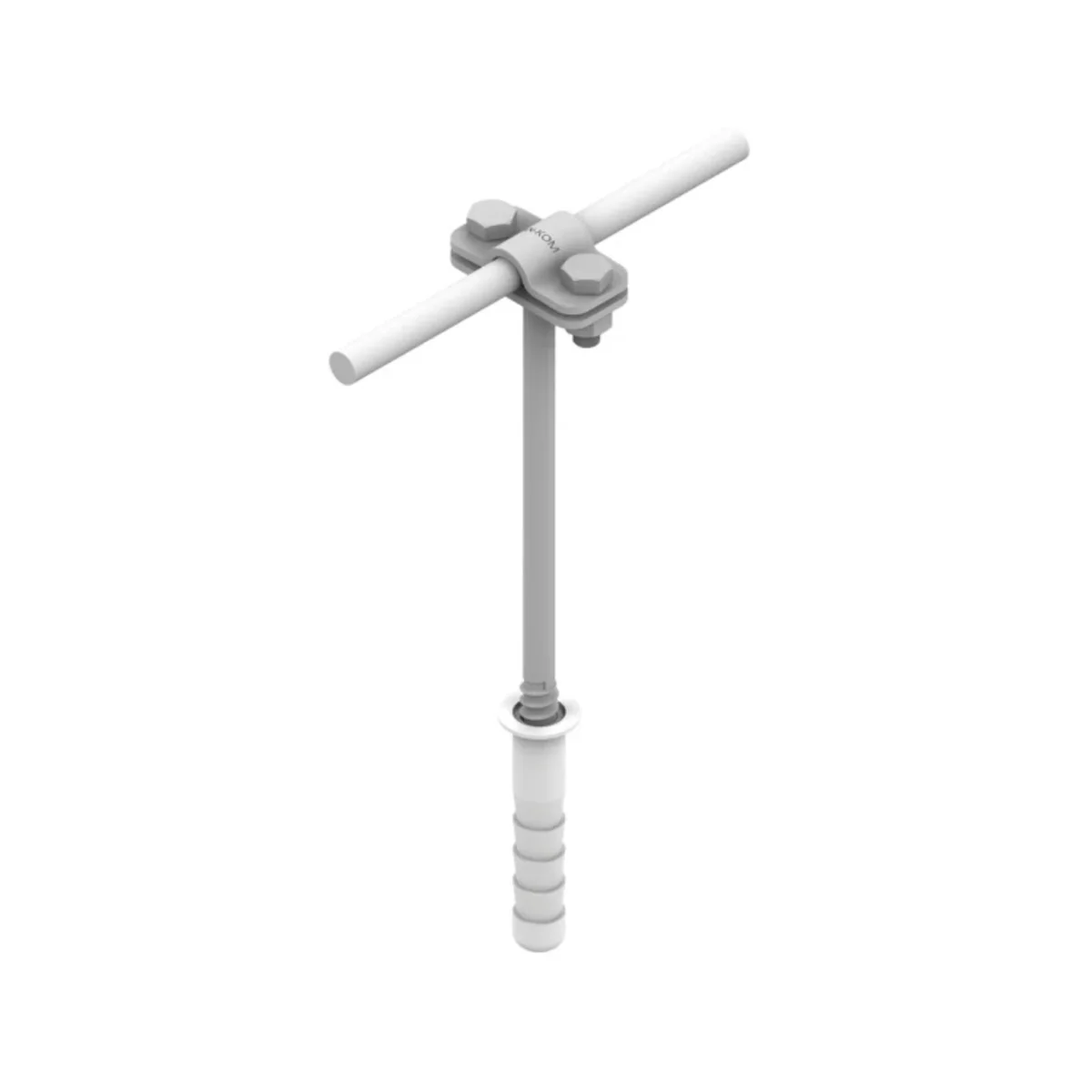

Screwed holder for routing the ground wire on the façade, wooden structures. Installation of the cable in the holder by means of a screw clamp.

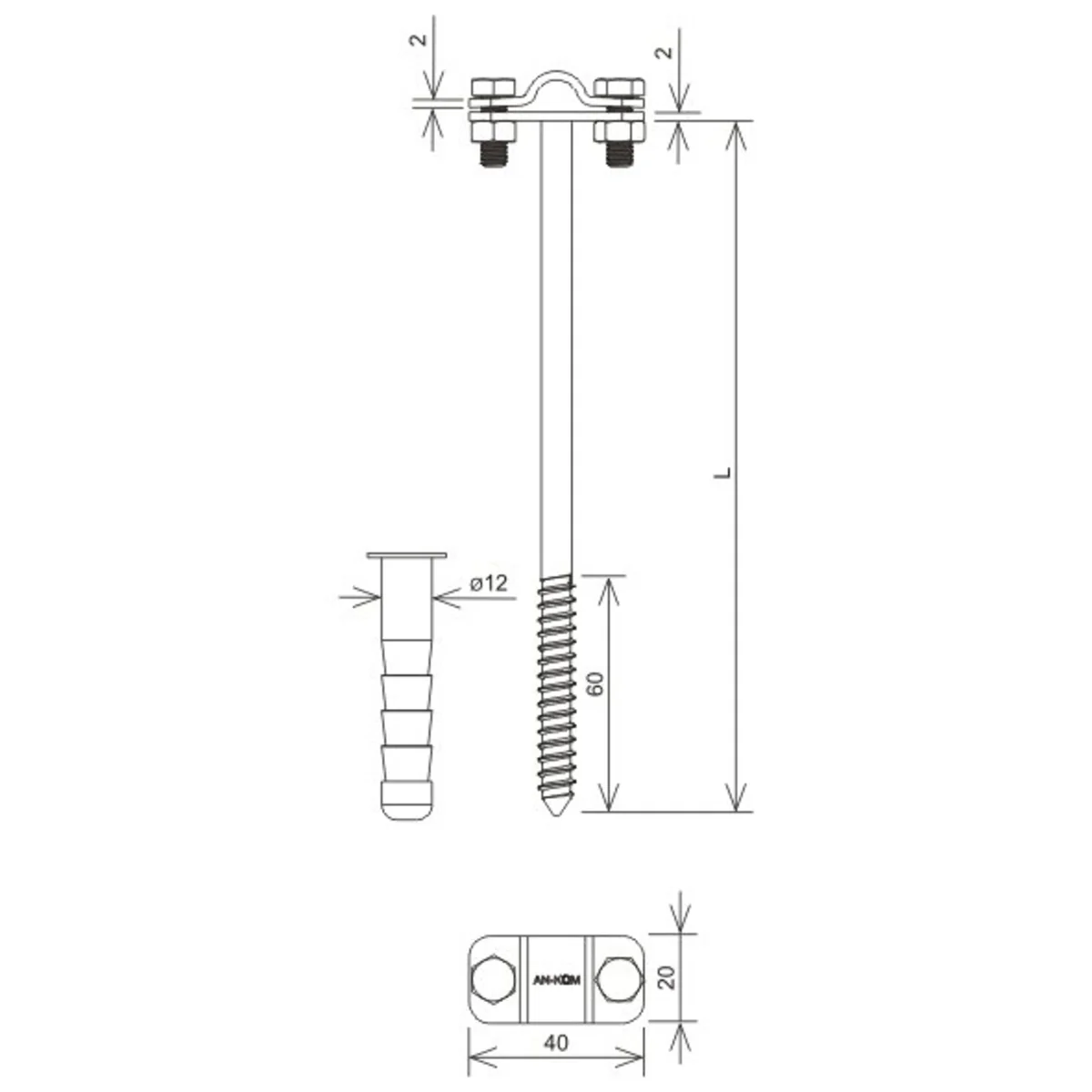

Technical data

  • Length [mm]
    160
  • Pin sleeve diameter [mm]
    12
  • Clamp type
    Z-screw
  • Surface protection
    hot-dip galvanized
  • Material
    galvanized steel
  • screws
    M6x16
  • Cable dimensions [mm]
    6-8
  • PKWIU
    25.99.29.0

Other technical data

  • Mounting type conductor
    With screw clamp
  • Material of holder
    Stal ocynkowana ogniowo
  • Material of saddle clamp
    Stal ocynkowana ogniowo
  • Rozmiar przewodu
    Okrągły 6-8 mm
  • Mounting type holder
    With plug
  • Material base part
    Stal ocynkowana ogniowo
