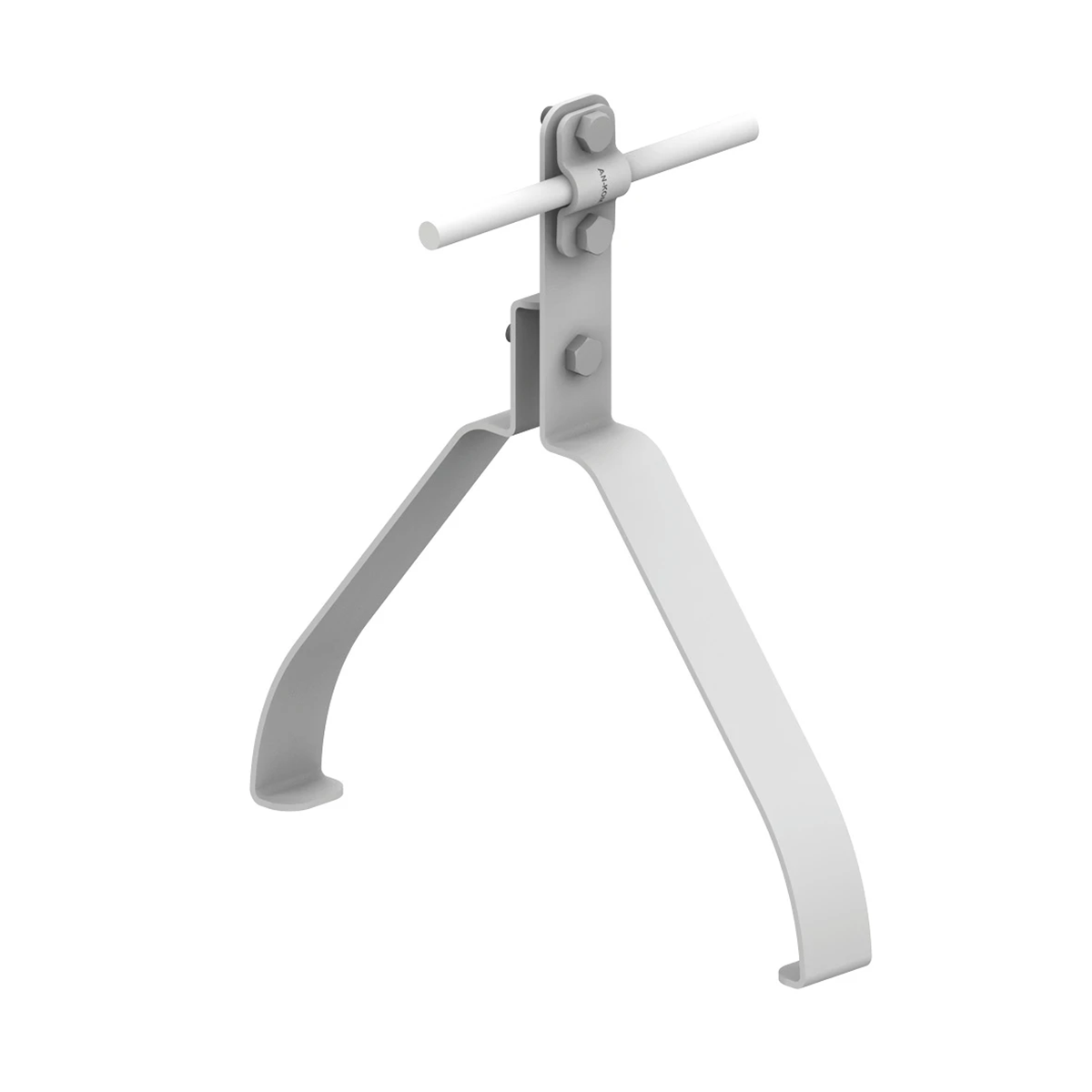

Ridge tile holder type ERLUS Z-screw H=10cm, hot-dip galvanized D193136
local index:
AOU138ANKO
Catalog No:
D193136
EAN code:
5907770515305
Price:
4,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

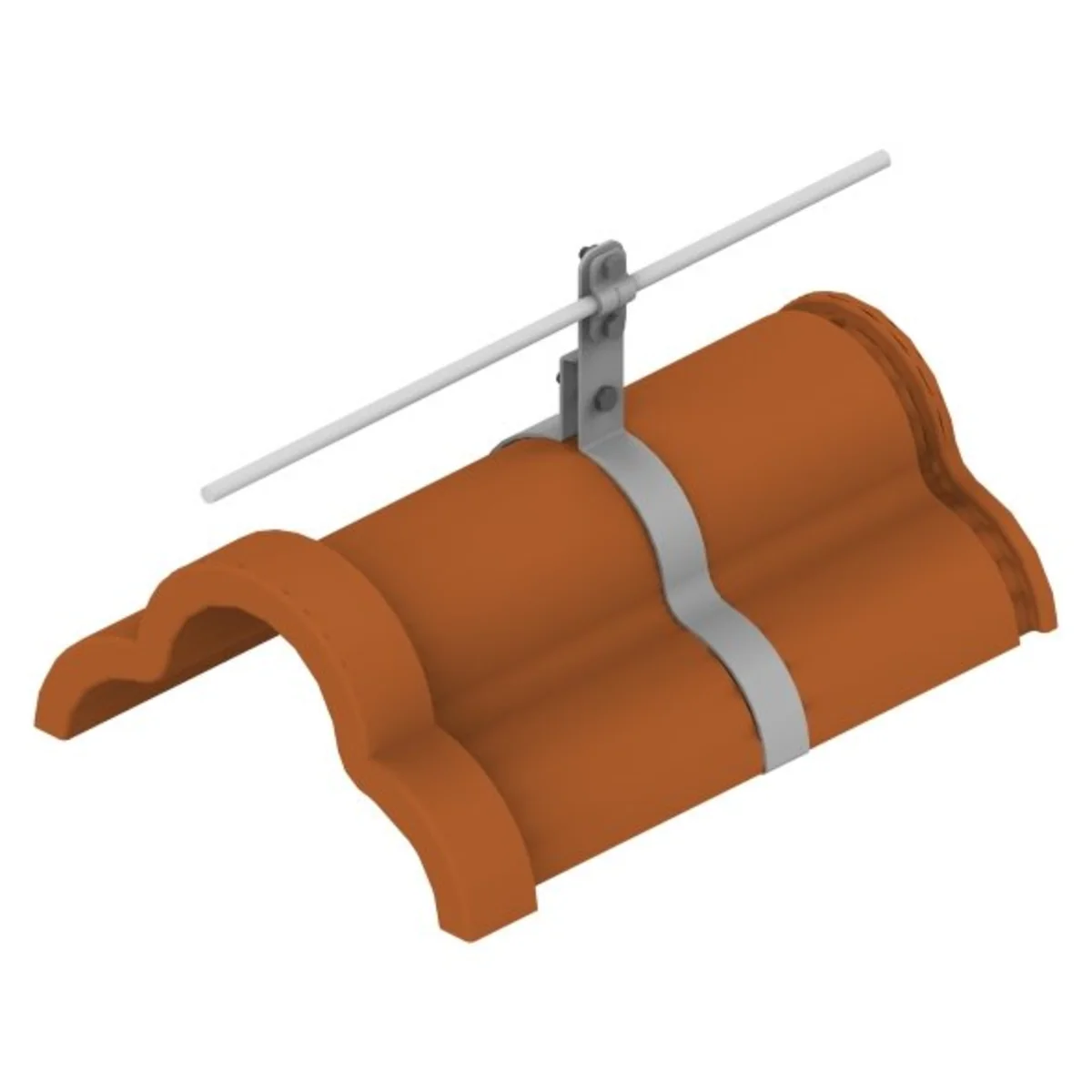

Profiled ridge tile handles are dedicated to specific ridge tiles. The selection of the handle is based on the name of the manufacturer and the ridge tile. In the case of a holder for metal sheet metal, the selection of the holder is based on the dimensions contained in the product card. MANUFACTURER name of the ridge ridge: ERLUS No. 18, Hd=70mm, pattern=12.

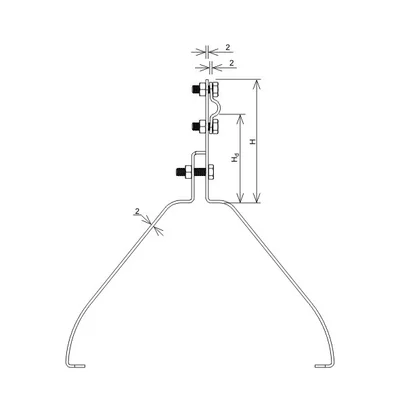

Technical data
-
Materialgalvanized steel
-
Cable dimensions [mm]6-8
-
Surface protectionhot-dip galvanized
-
screwsM6x16, M6x25
-
Height [mm]96
-
PKWIU25.99.29.0
Other technical data
-
Mounting type conductorWith screw clamp
-
ApplicationRidge/hip
-
Material of holderStal ocynkowana ogniowo
-
Length carrier96 mm
-
Conductor diameter6 ... 8 mm
-
Mounting methodClampable
-
Material of carrierStal ocynkowana ogniowo
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
