Hot-dip galvanized wire holder with screw L=16 cm C192288
local index:
AOU082ANKO
Catalog No:
C192288
EAN code:
5907770507515
Price:
2,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

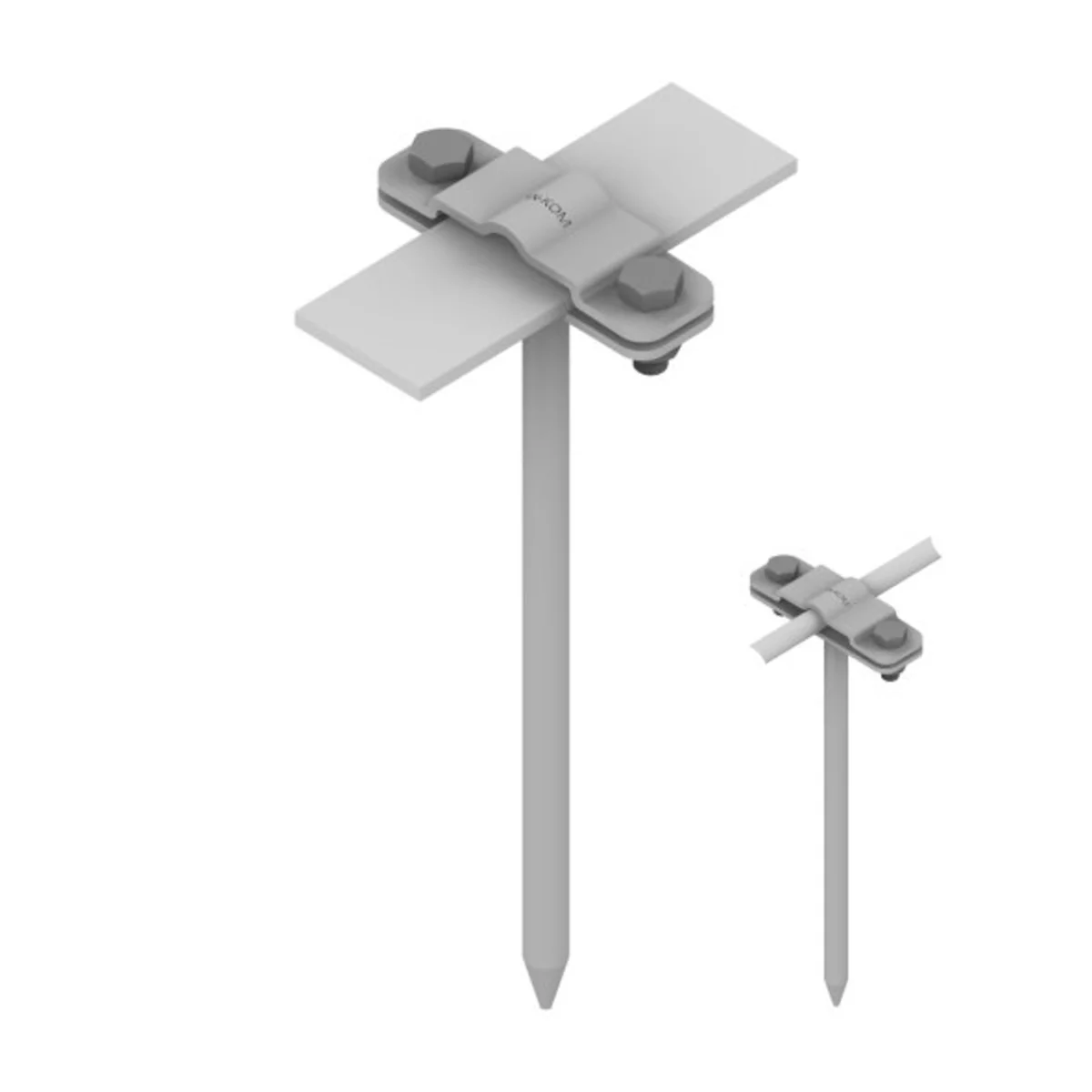

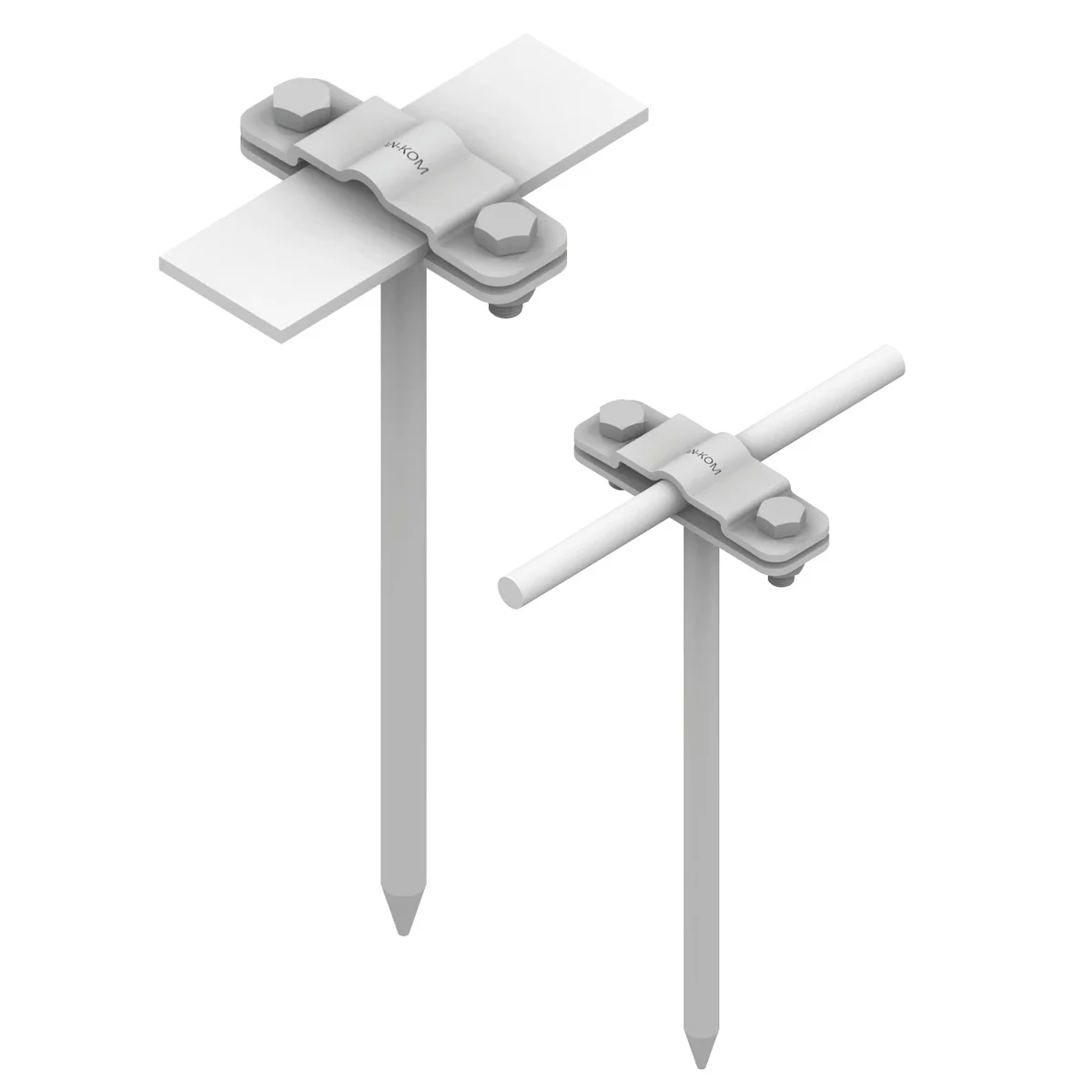

A hammer-in holder for routing the lightning conductor on the façade, wooden structures. Installation of the cable in the holder by means of a screw clamp.

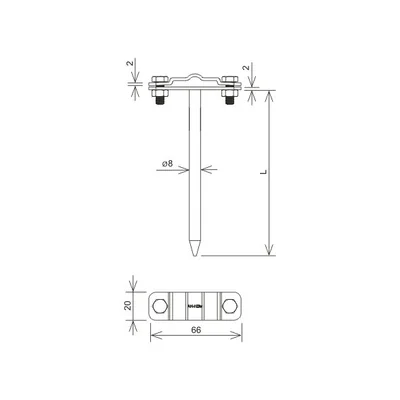

Technical data
-
Length [mm]160
-
Maximum tape width [mm]thirty
-
screwsM6x16
-
Cable dimensions [mm]6-8
-
PKWIU25.99.29.0
-
Materialgalvanized steel
-
Rod diameter [mm]8
-
Clamp typeZ-screw
-
Surface protectionhot-dip galvanized
Other technical data
-
Mounting type conductorWith screw clamp
-
Material of holderStal ocynkowana ogniowo
-
Material of saddle clampStal ocynkowana ogniowo
-
Rozmiar przewoduPłaski 30x4 mm
-
Mounting type holderWith hammer-drive pin
-
Material base partStal ocynkowana ogniowo
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
E-mail
Bulk packaging
| A kind of package | Karton | |
| Quantity | 1 pcs. | 50 pcs. |
| Weight (kg) | 0,118 | 6,060 |
| Volume (m3) | - | 0,007 |
| Width (m) | 0,065 | 0,200 |
| Length (m) | 0,170 | 0,300 |
| Depth (m) | 0,025 | 0,110 |
