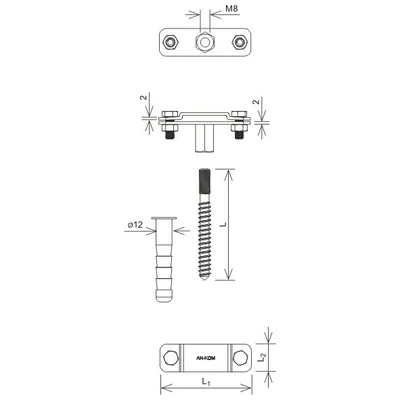

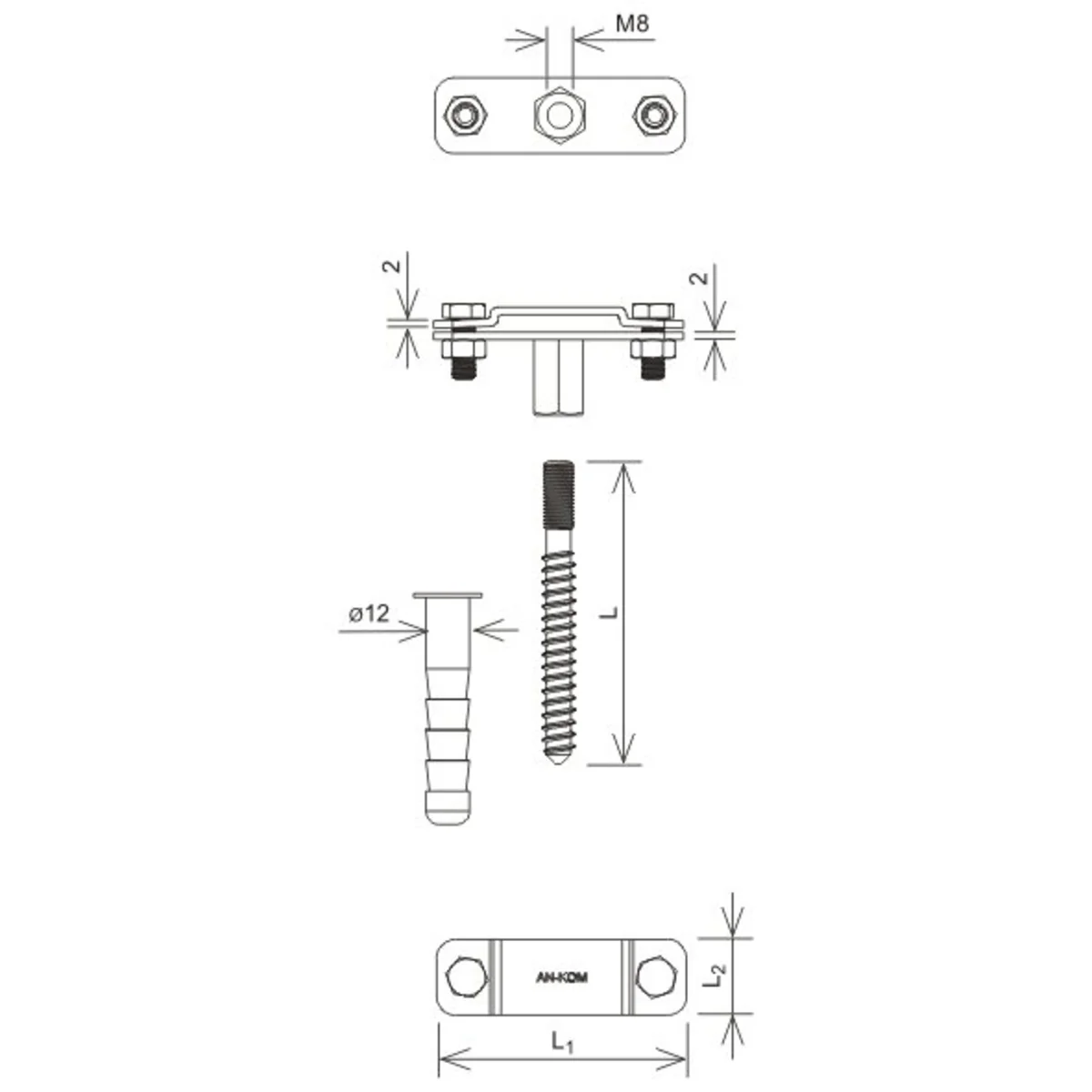

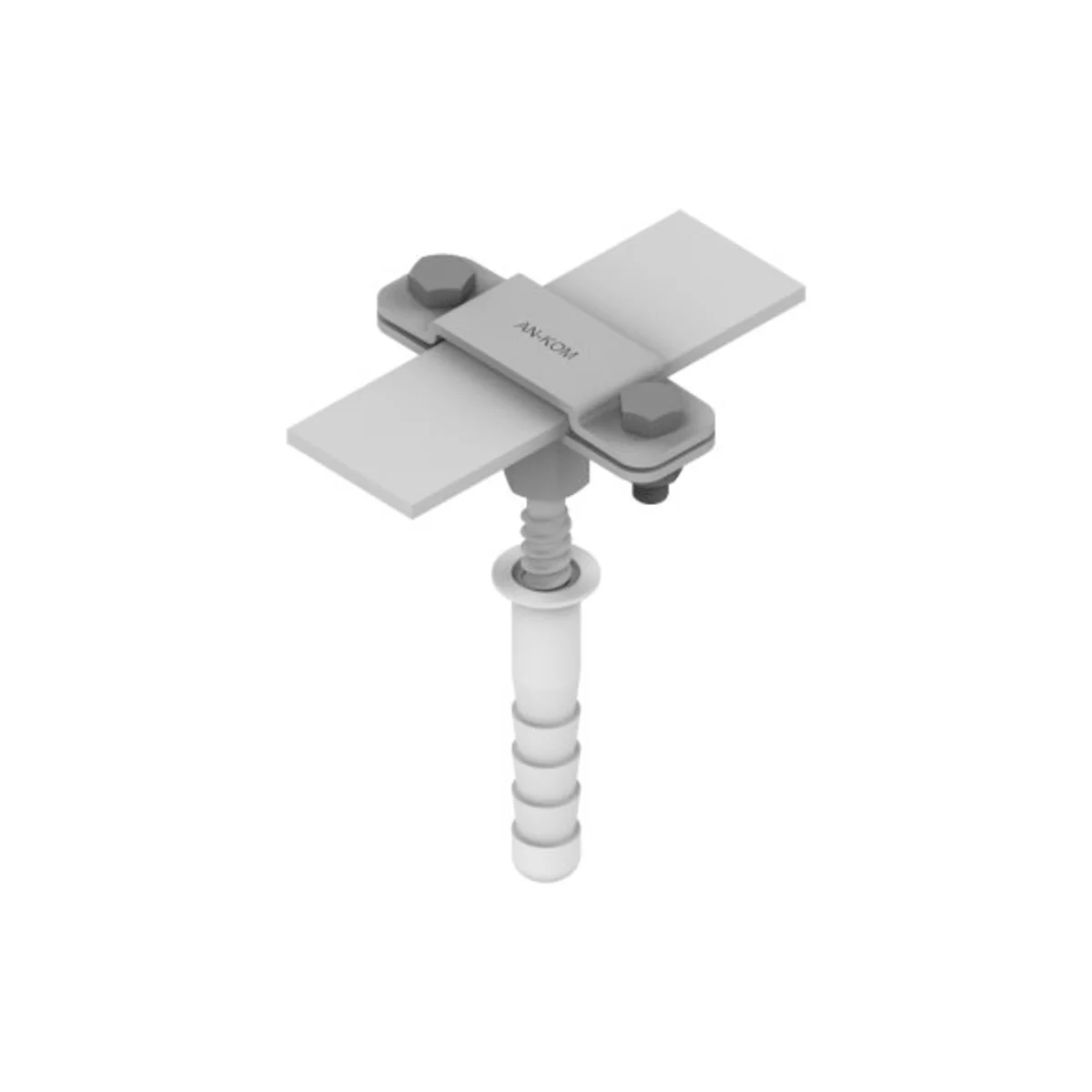

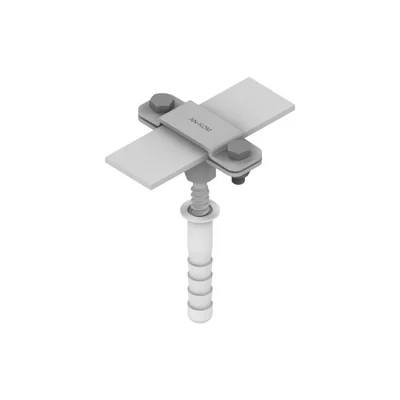

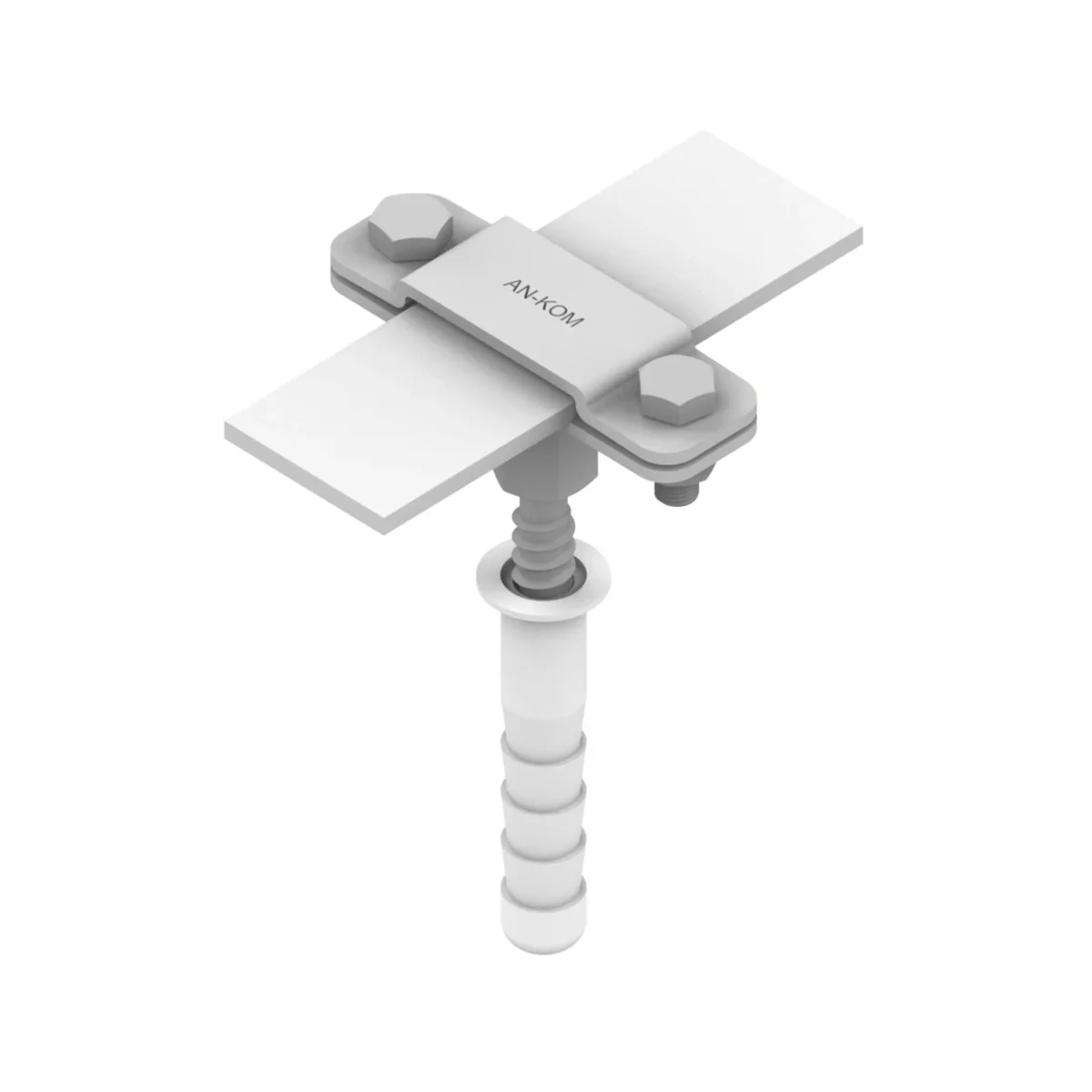

el12 Lightning protection Lightning handles Hoop iron holder M8 L=8cm, hot-dip galvanized
Hoop iron holder M8 L=8cm, hot-dip galvanized
Hoop iron holder M8 L=8cm, hot-dip galvanized
Hoop iron holder M8 L=8cm, hot-dip galvanized

Click on the photo to enlarge

Hoop iron holder M8 L=8cm, hot-dip galvanized
Hoop iron holder M8 L=8cm, hot-dip galvanized
Hoop iron holder M8 L=8cm, hot-dip galvanized
AN-KOM

Hoop iron holder M8 L=8cm, hot-dip galvanized C192428

local index:
AOU162ANKO
Catalog No:
C192428
EAN code:
5907770516067
Price:
3,64 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,47 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Handle for a flat cable (hoop iron) with an expansion pin included. Wall or foundation mounting.

Print the product sheet Report an error

Technical data

  • Length [mm]
    80
  • Maximum tape width [mm]
    thirty
  • Pin sleeve diameter [mm]
    12
  • Clamp type
    Z-screw
  • Material
    galvanized steel
  • Maximum dimensions of the hoop iron [mm]
    40x5
  • screws
    2xM6x16
  • Surface protection
    hot-dip galvanized

Other technical data

  • Mounting type conductor
    With screw clamp
  • Material of holder
    Stal ocynkowana ogniowo
  • Material of saddle clamp
    Stal ocynkowana ogniowo
  • Rozmiar przewodu
    Płaski 30x4 mm
  • Mounting type holder
    With plug
  • Material base part
    Stal ocynkowana ogniowo

Catalog cards, diagrams, certificates

deklaracja-zgodnosci-29-06-2022.pdf
DEKLARACJA ZGODNOŚCI Z REACH.pdf
karta_danych_technicznych_C192428.pdf
DEKLARACJA ZGODNOŚCI Z ROHS.pdf
