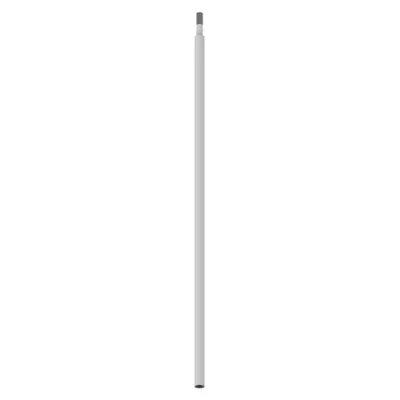

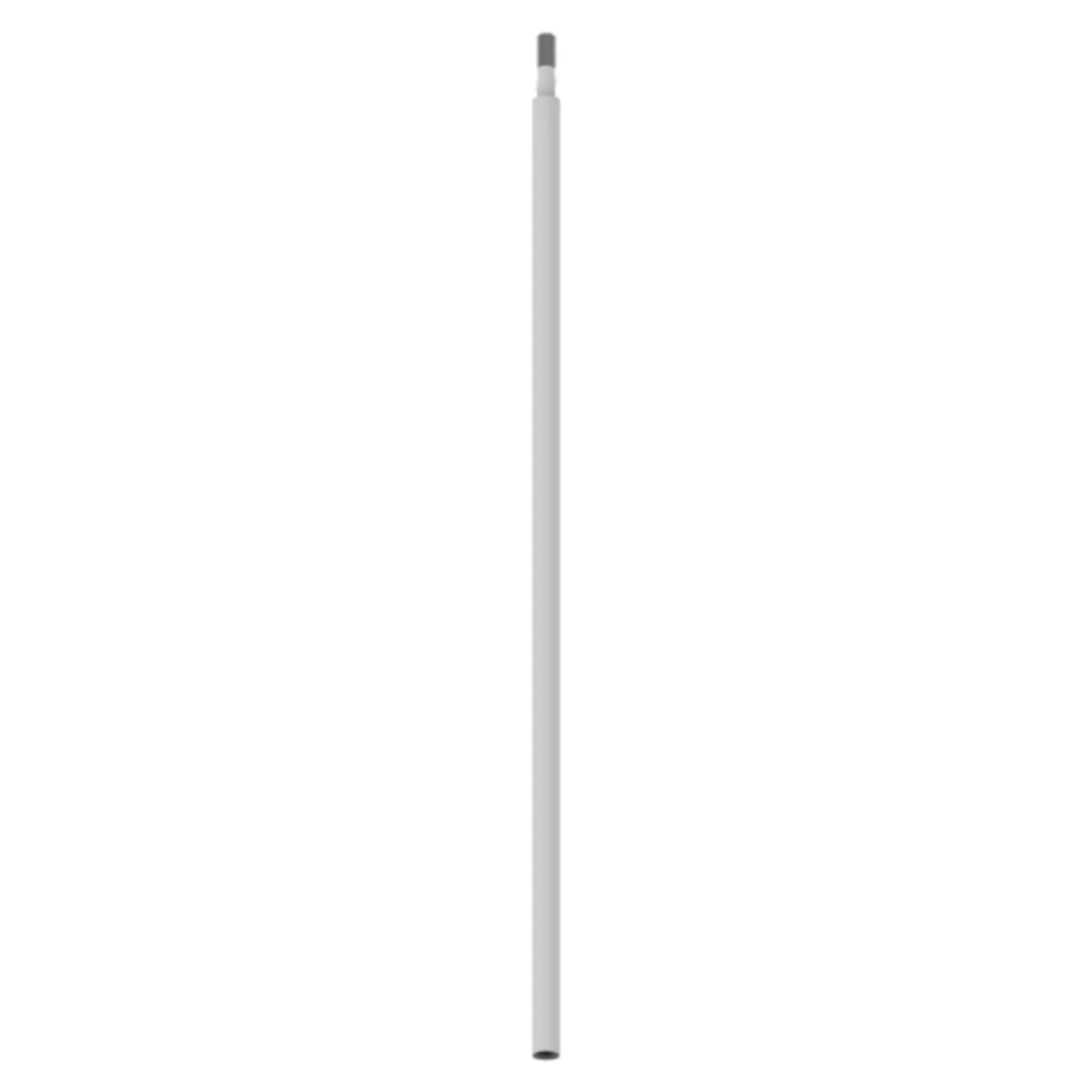

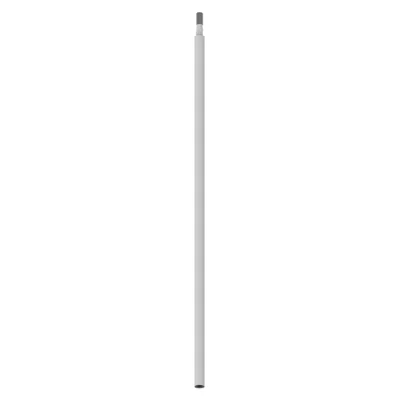

Earth electrode FI 20 X 1500 MM Stainless steel 1404 F285136

Index local:
AOM007ANKO
Numéro de catalogue:
F285136
Code EAN:
5907770522785
Producteur: AN-KOM
Length [mm]: 1500
Material: stainless steel
Earth electrode diameter [mm]: 20
Produit de grande taille
Prix:
339,30 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

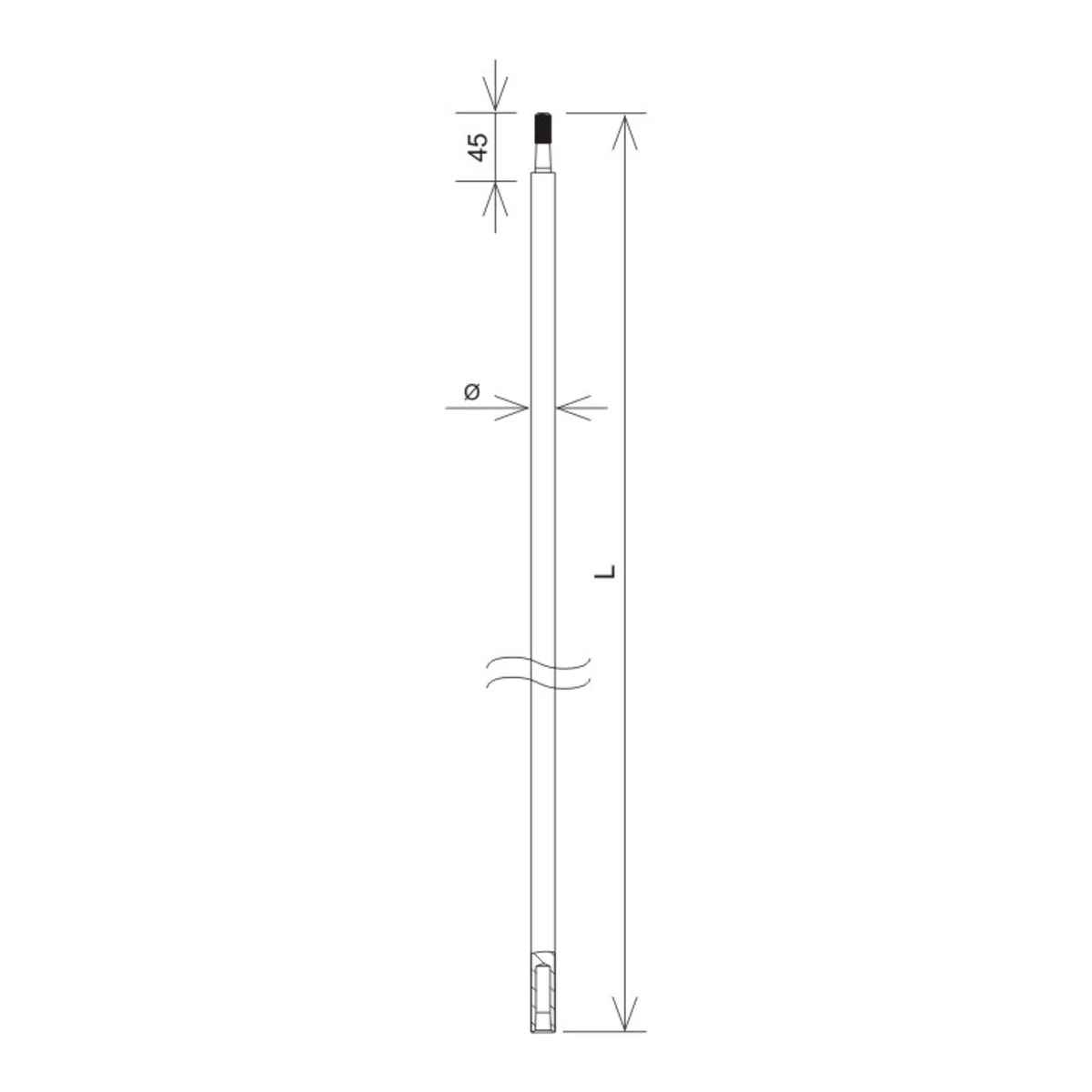

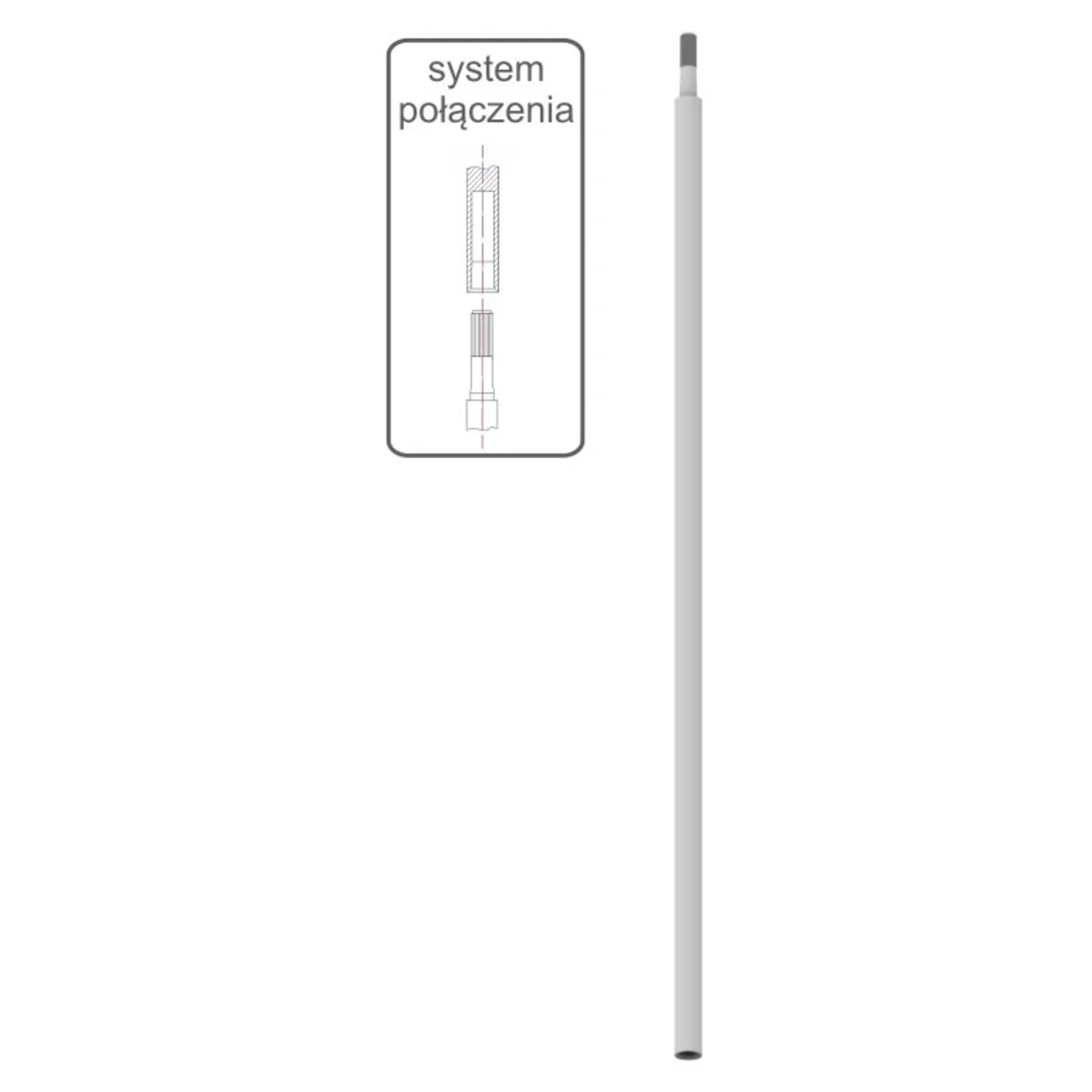

The extension earth electrode is another element of vertical earthing. It allows you to extend the earthing to any length. Insert the (cone) of the base earth electrode into the hole of the extension earth electrode, building a deep earthing system. It is possible to insert a special tip from the AN-51Z series into the hole of the earth electrode, where the earth electrode of the extension becomes the base earth electrode.

Données techniques

  • Length [mm]
    1500
  • Earth electrode diameter [mm]
    20
  • Material
    stainless steel
  • PKWIU
    25.99.29.0

Autres données techniques

  • Model
    Other
  • Type of connection
    With tappet/bore hole
  • Material
    Stainless steel 316 (V4A)
  • Type of profile
    Okrągły D=20 mm
  • Length
    1500 mm
  • Surface protection
    Other

Détails du fabricant

  • Producteur
    AN-KOM 2 Sp. z o.o.
  • Adresse
    34-120 Inwałd ks. W. Bukowińskiego 15 Polska

Emballage en vrac

Une sorte de paquet Karton
Quantité 1 pcs. 1 pcs.
poids (kg) 3,700 3,800
Volume (m3) - 0,002
Largeur (m) 0,020 0,040
Longueur (m) 1,500 1,520
Profondeur (m) 0,020 0,040
