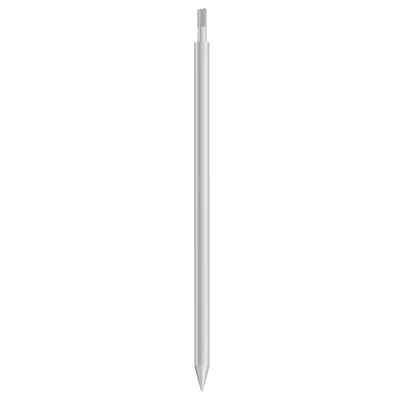

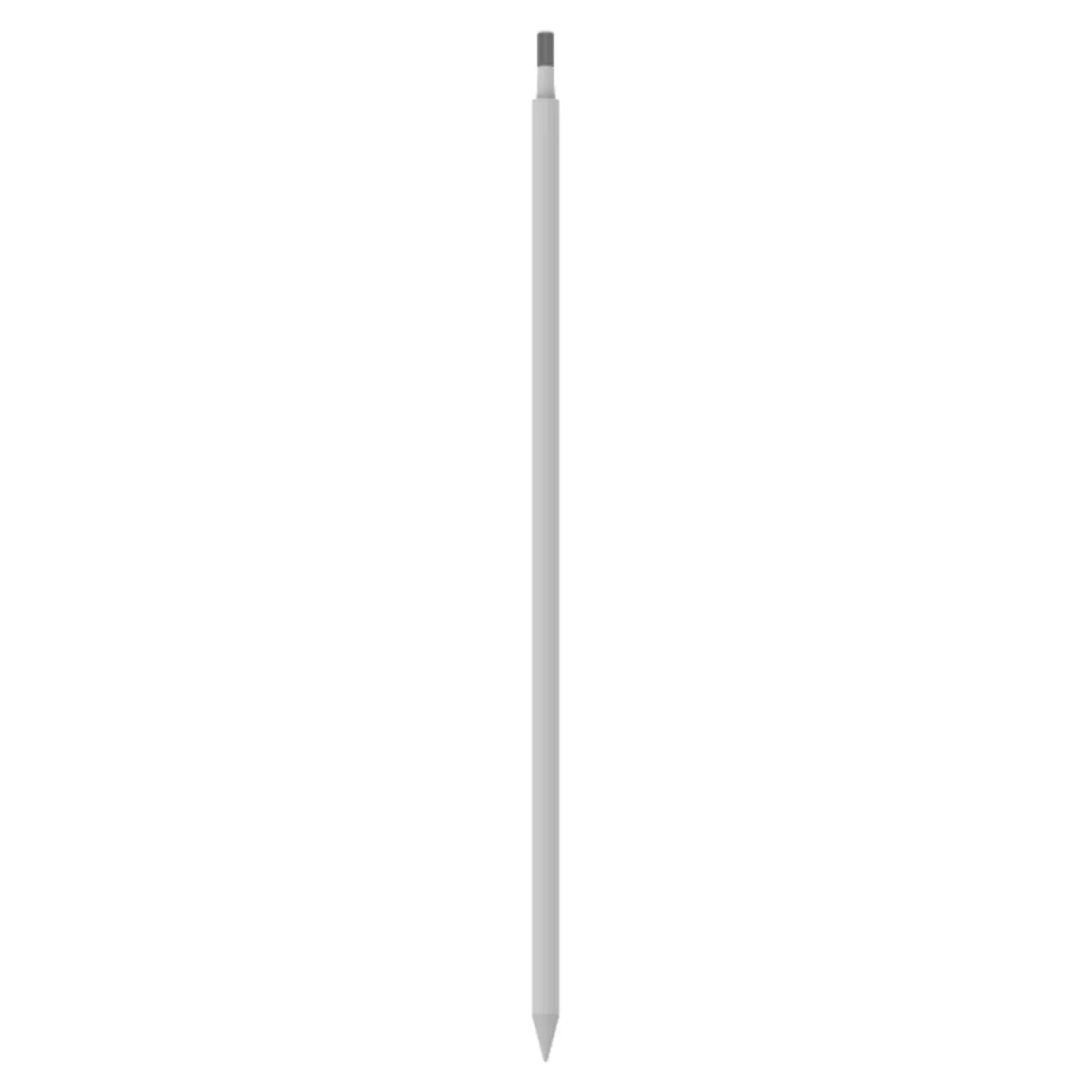

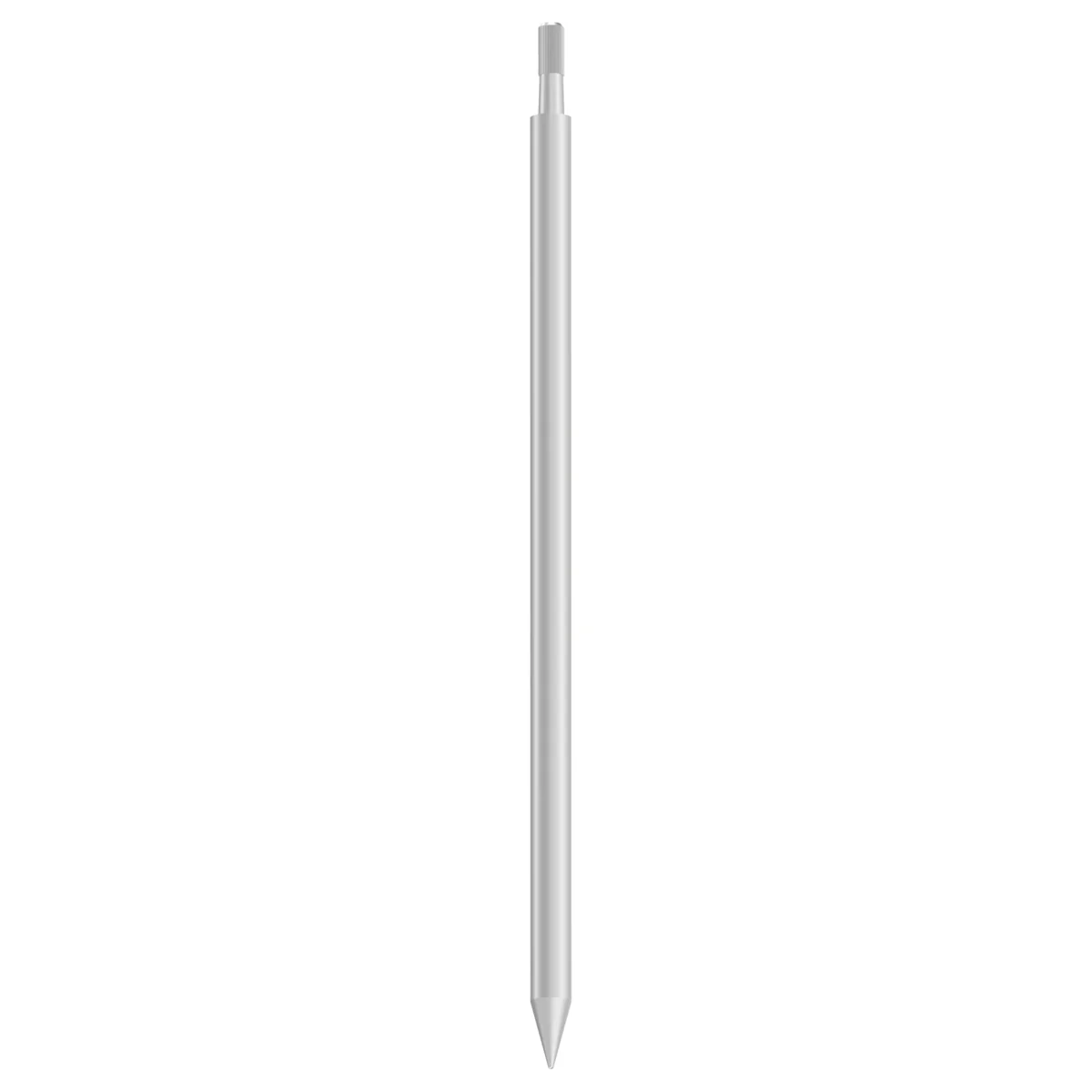

Earth electrode FI 20 X 1500 MM Stainless steel 1404 F285100

Indeks lokalny:
AOM006ANKO
Numer katalogowy:
F285100
Kod EAN:
5907770522778
Producent: AN-KOM
Length [mm]: 1500
Material: stainless steel
Earth electrode diameter [mm]: 20
Produkt wielkogabarytowy
Cena:
356,79 zł
gross / szt.
(w tym VAT 23%)
do 2 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

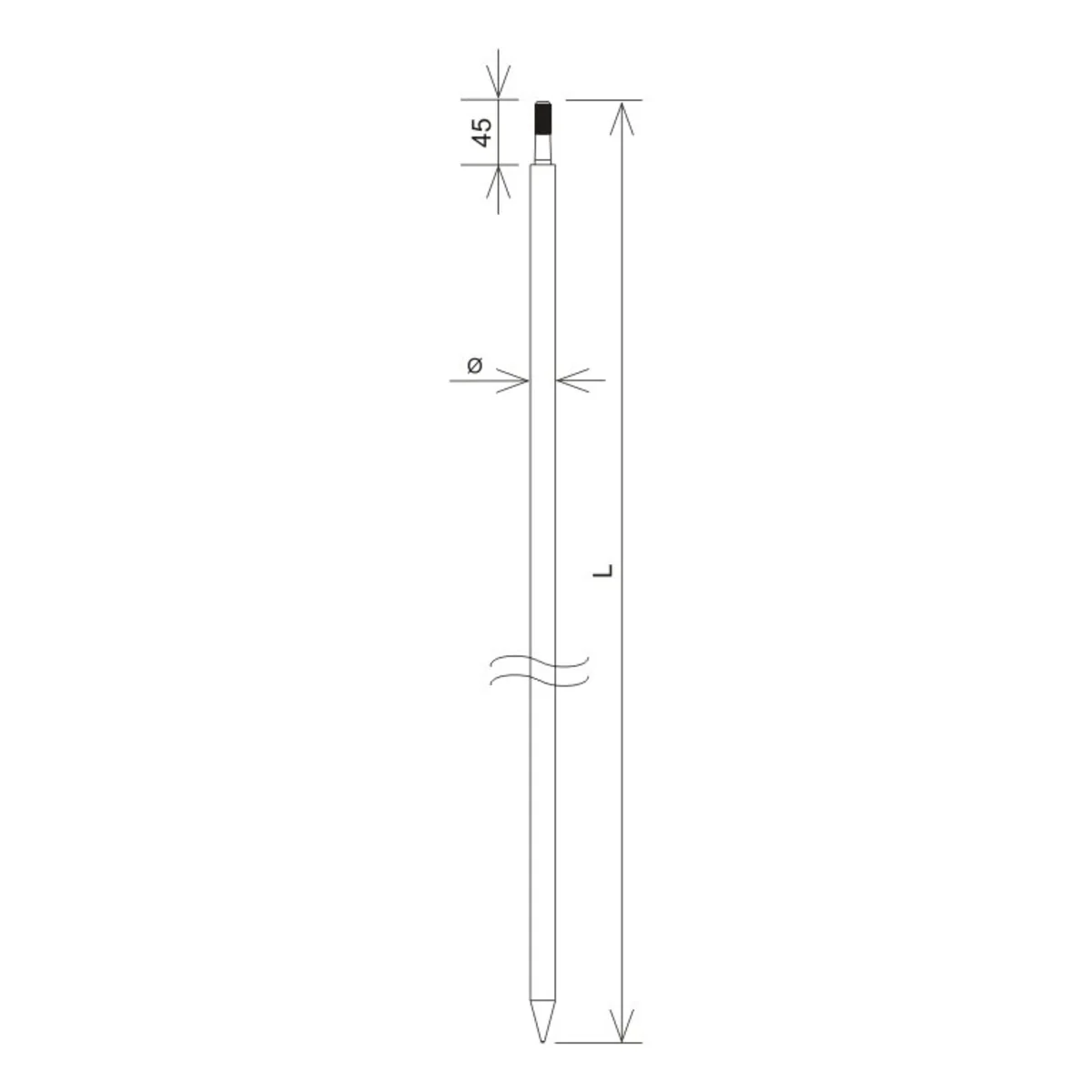

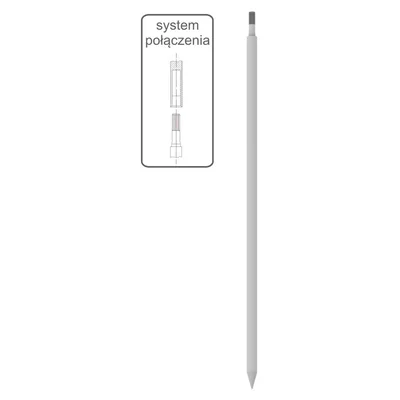

The base earth electrode is the first element of vertical earthing with a spike in order to make it easier to bury it in the ground. A properly profiled tip (cone) enables the installation of another vertical earthing element - the extension earthing rod - by pressing it in. This connection is also characterized by a very good electrical connection of the two earth electrodes.

Dane techniczne

  • Length [mm]
    1500
  • Earth electrode diameter [mm]
    20
  • Material
    stainless steel
  • PKWIU
    25.99.29.0

Pozostałe dane techniczne

  • Model
    Other
  • Type of connection
    With tappet/bore hole
  • Material
    Stainless steel 316 (V4A)
  • Type of profile
    Okrągły D=20 mm
  • Length
    1500 mm
  • Surface protection
    Other

Dane producenta

  • Producent
    AN-KOM 2 Sp. z o.o.
  • Adres
    34-120 Inwałd ks. W. Bukowińskiego 15 Polska

Opakowania zbiorcze

Rodzaj opakowania NE Karton
Ilość 1 szt. 1 szt.
Waga (kg) 3,550 3,650
Objętość (m3) - 0,002
Szerokość (m) 0,020 0,040
Długość (m) 1,500 1,520
Głębokość (m) 0,020 0,040
