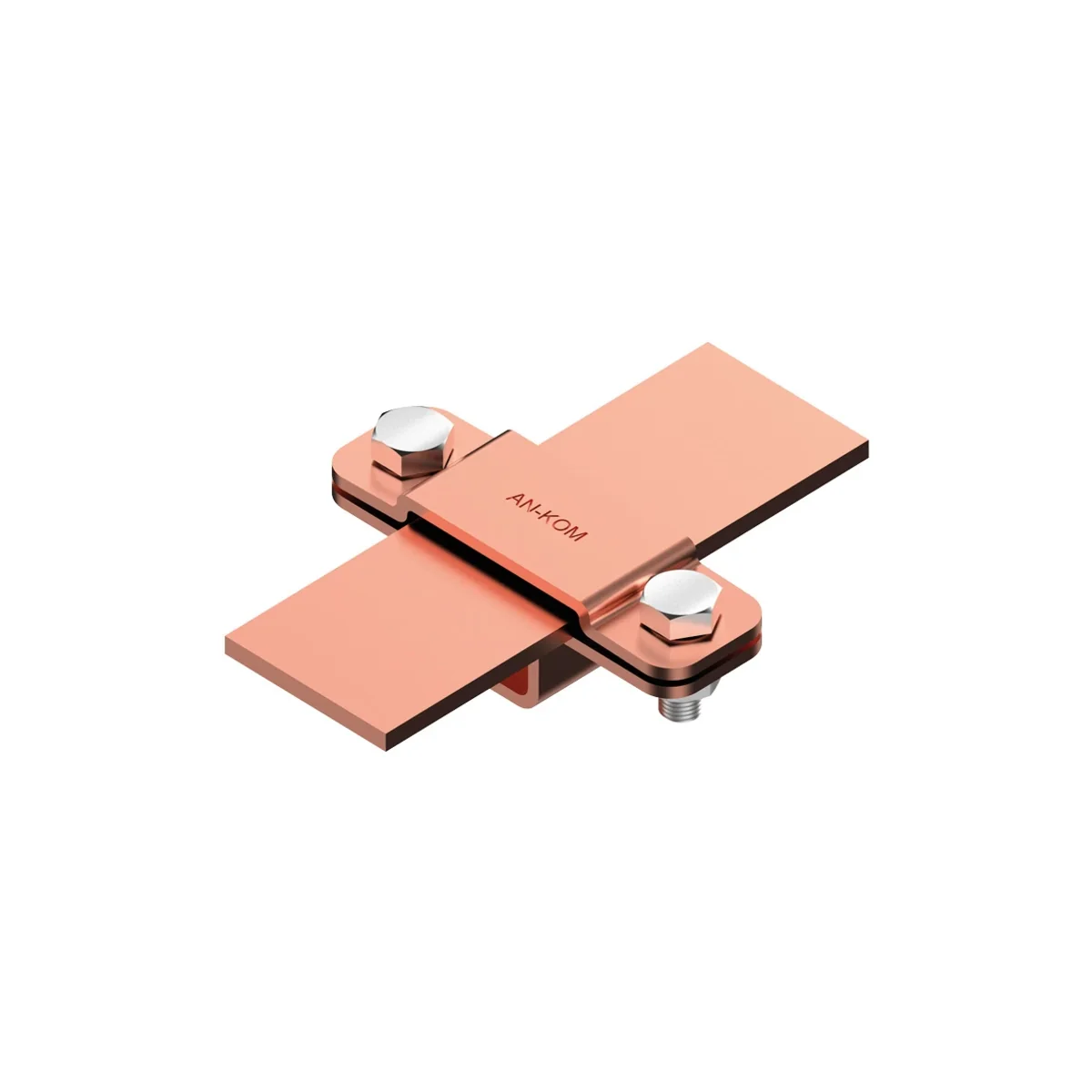

Copper holder for the hoop iron screwed with a screw, the width of the hoop iron is 50mm C372464

local index:
AOU917ANKO
Catalog No:
C372464
EAN code:
5907770517255
Manufacturer: AN-KOM
Length [mm]: 92
Material: Copper
Maximum tape width [mm]: 50
Price:
9,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

For routing flat cables (hoop irons) without spacers on the wall or foundation. Mounting the holder to the ground with an expansion bolt.

Technical data

  • Length [mm]
    92
  • Maximum tape width [mm]
    50
  • Coverage
    Tin plated
  • Material
    Copper
  • Width [mm]
    25
  • PKWIU
    25.99.29.0

Other technical data

  • Mounting type conductor
    With screw clamp
  • Material of holder
    Copper
  • Material of saddle clamp
    Copper
  • Thread size (metric)
    8
  • Rozmiar przewodu
    Płaski 50x5 mm
  • Mounting type holder
    Bore hole with M thread
  • Material base part
    Copper
