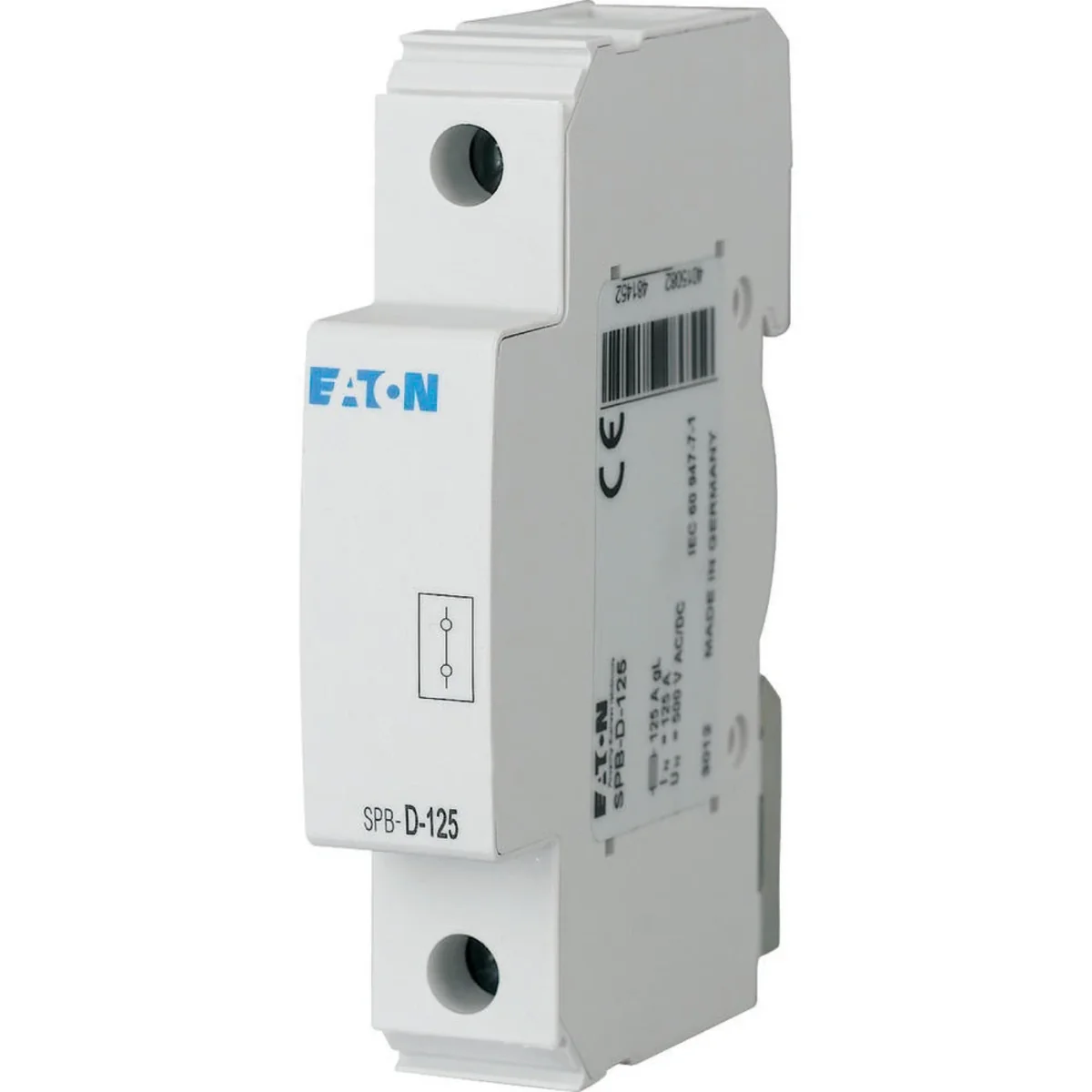

Connection bushing for lightning arresters, SPB-D-125 248145

local index:
AOC016MOEL
Catalog No:
248145
EAN code:
4015082481452
Manufacturer: EATON
Type: SPB-D-125
Price:
45,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print

Product description

Connection bushing for lightning arresters (type 1)
• The use of bushings makes it easier to connect and busbar surge arresters. Example page 8
• Width 1 module
• Rated current IN 125 A

Technical data

  • Type
    SPB-D-125

Other technical data

  • Device fitting
    Other
  • Montowane fabrycznie
    No
  • Number of fault-signal switches
    0
  • Rated voltage
    500 V
  • With auto test for earth leakage function
    No
  • Suitable for max. current main contact unit
    12 A
  • Rodzaj wyposażenia dodatkowego
    Other
  • Szerokość montażowa
    1
  • Rated switch current
    125 A
  • Voltage type for actuating
    AC/DC
  • Suitable for max. number of poles main contact unit (total)
    1

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 2 pcs. 60 pcs.
Weight (kg) 0,085 0,170 6,240
Volume (m3) 0,000 0,000 0,020
Width (m) 0,020 0,039 0,198
Length (m) 0,092 0,092 0,393
Depth (m) 0,068 0,075 0,251
