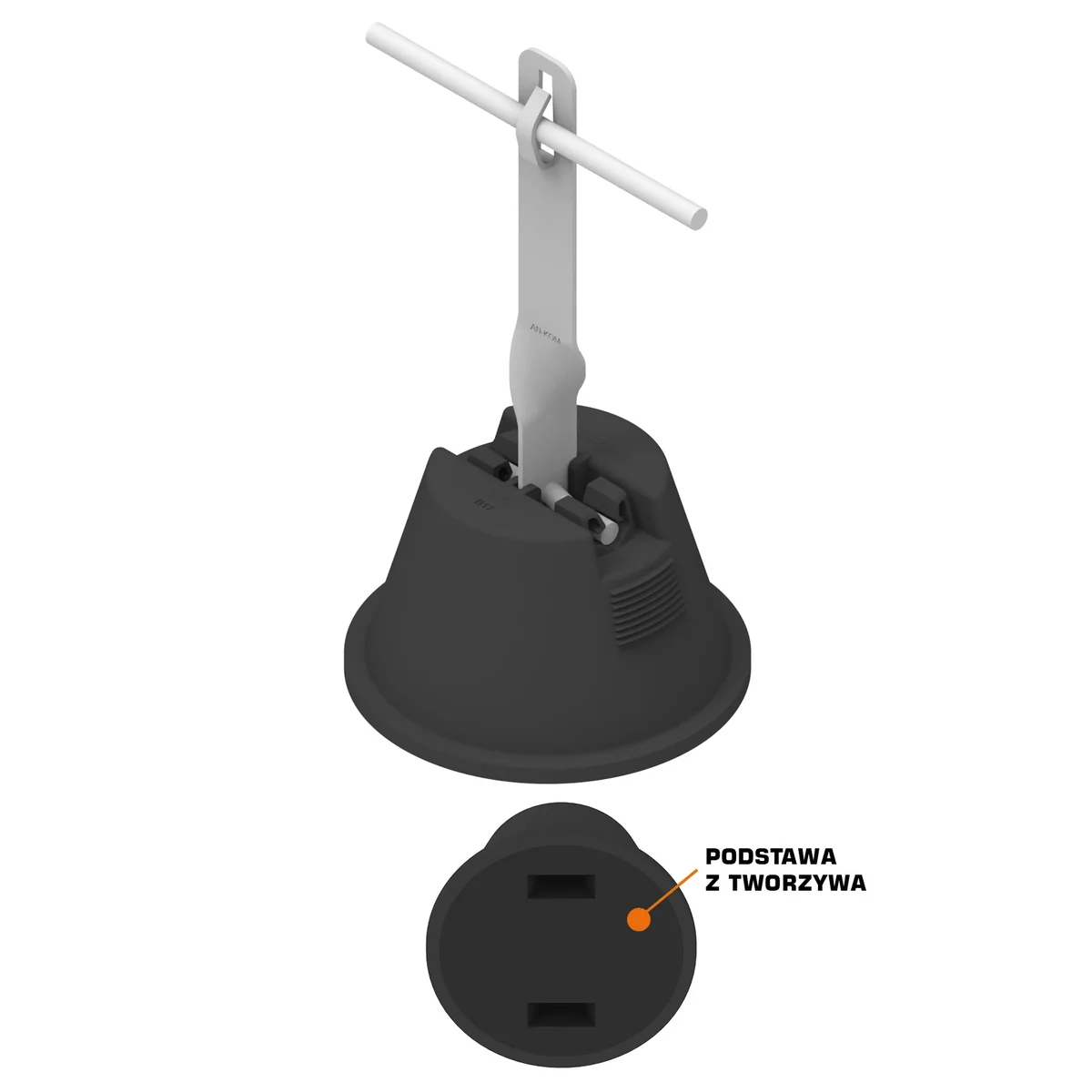

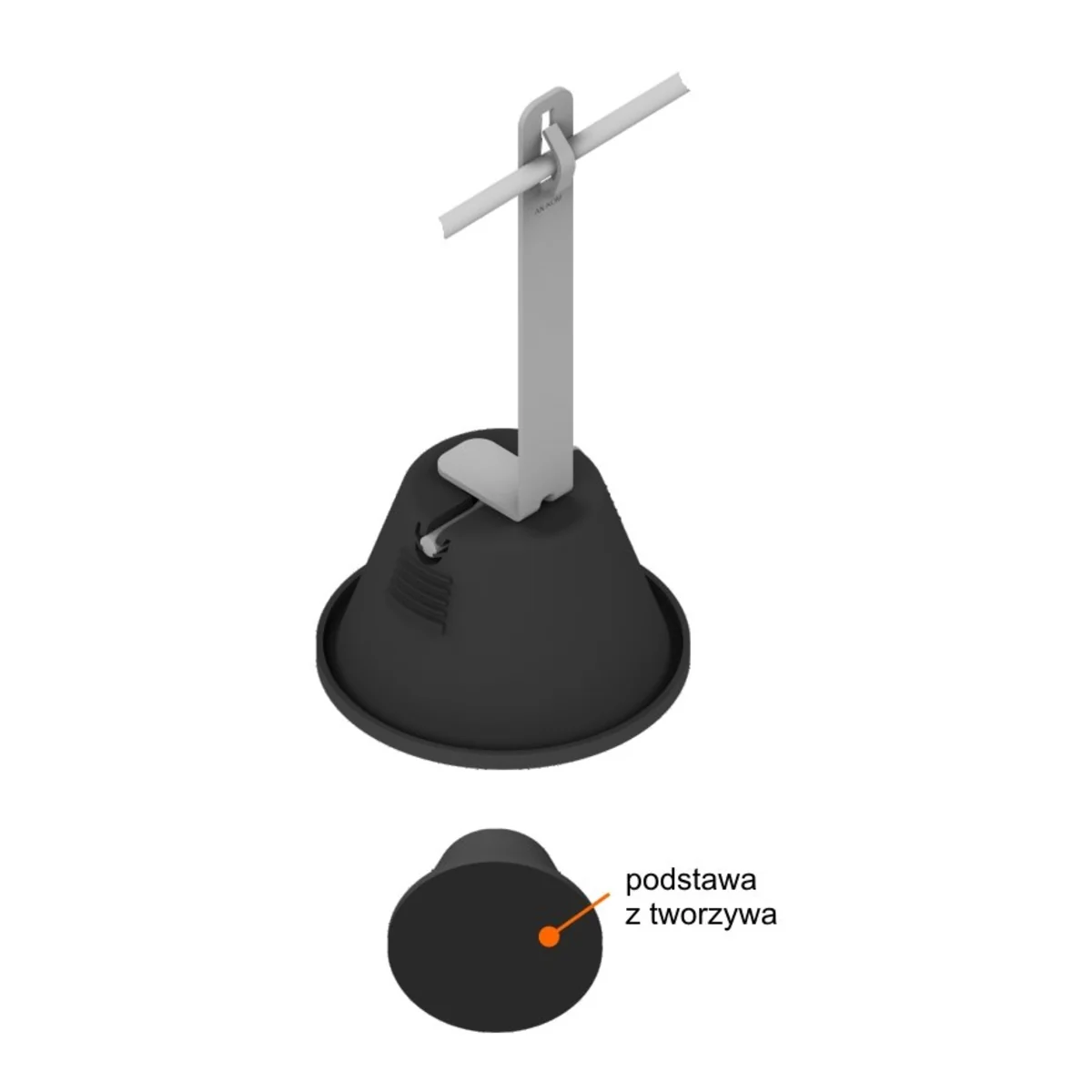

Concrete handle in plastic with extension H=175mm Z-bend B931552

local index:
AOU264ANKO
Catalog No:
B931552
EAN code:
5907770520071
Manufacturer: AN-KOM
Clamp type: Z-bend
Weight [g]: 1000
Cable dimensions [mm]: 6-8
Price:
3,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The concrete bracket in plastic with an extension is used to build a mesh of air-termination rods on flat roofs. Made of polypropylene - PP (resistant to frost) with additives protecting against UV radiation. The support is filled with frost-resistant cement mortar. Hd=150mm. DESTINATION: flat roofs covered with membrane or roofing felt. ASSEMBLY: bonding to roofing felt - with an adhesive mass, e.g. AN-MK, bonding to membrane roofing - with an adhesive mass recommended by the membrane manufacturer.

Technical data

  • Clamp type
    Z-bend
  • Cable dimensions [mm]
    6-8
  • PKWIU
    22.23.19.0
  • Weight [g]
    1000
  • Height [mm]
    175

Other technical data

  • Mounting type conductor
    With grip clamp
  • Application
    Flat roof
  • Chucking range
    175 ... 175 mm
  • Material of carrier
    Plastic
  • Conductor diameter
    6 ... 8 mm
  • Mounting method
    Adhesive
  • Material of holder
    Stal ocynkowana ogniowo
  • Length carrier
    130 mm
