Concrete handle in plastic with a plastic base B931532
local index:
AOU118ANKO
Catalog number:
B931532
EAN code:
5907770502046
Price:
10,42 zł
gross / pcs.
(including VAT 23%)
10,42 zł gross/kg.
Pickup in 1h
Delivery in 3h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

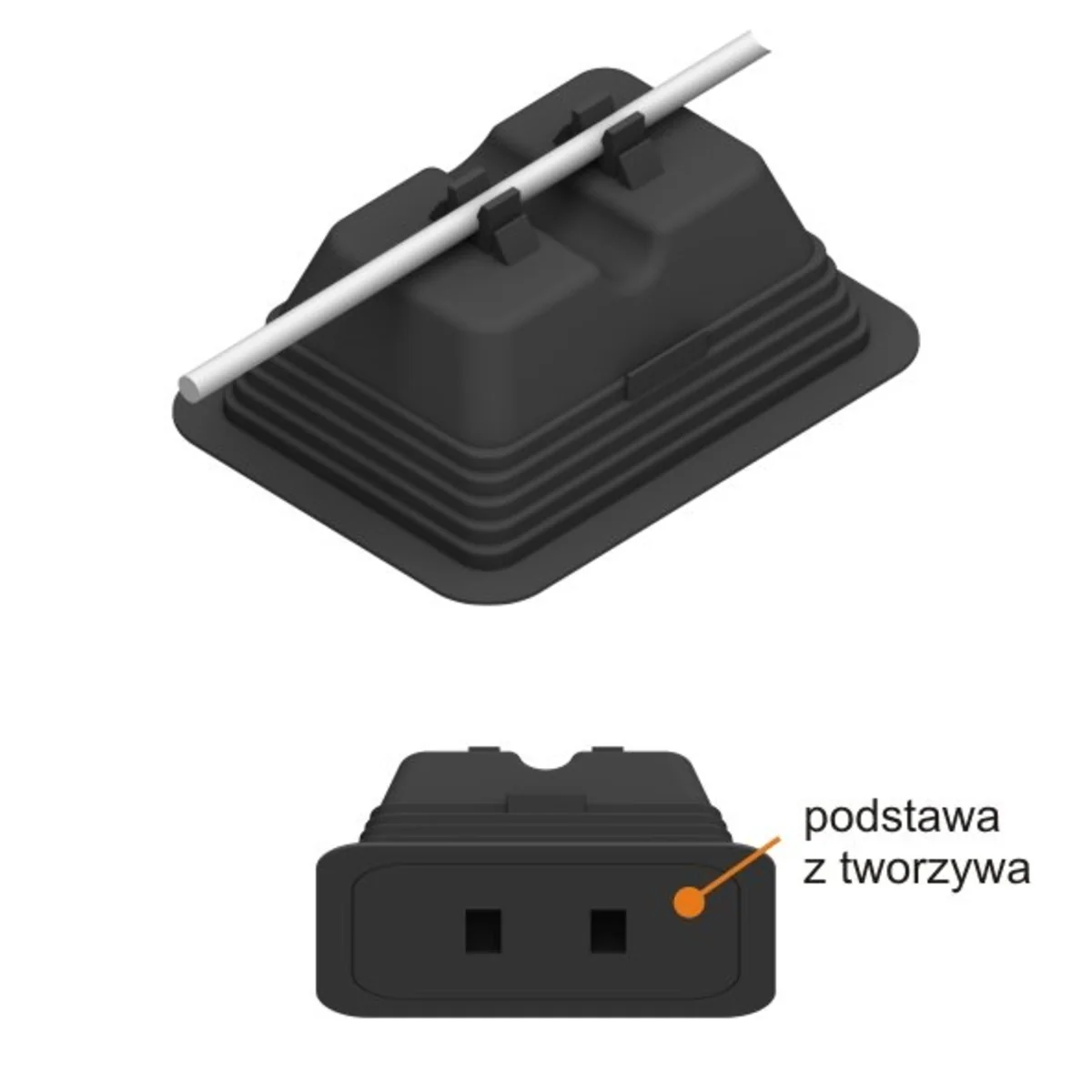

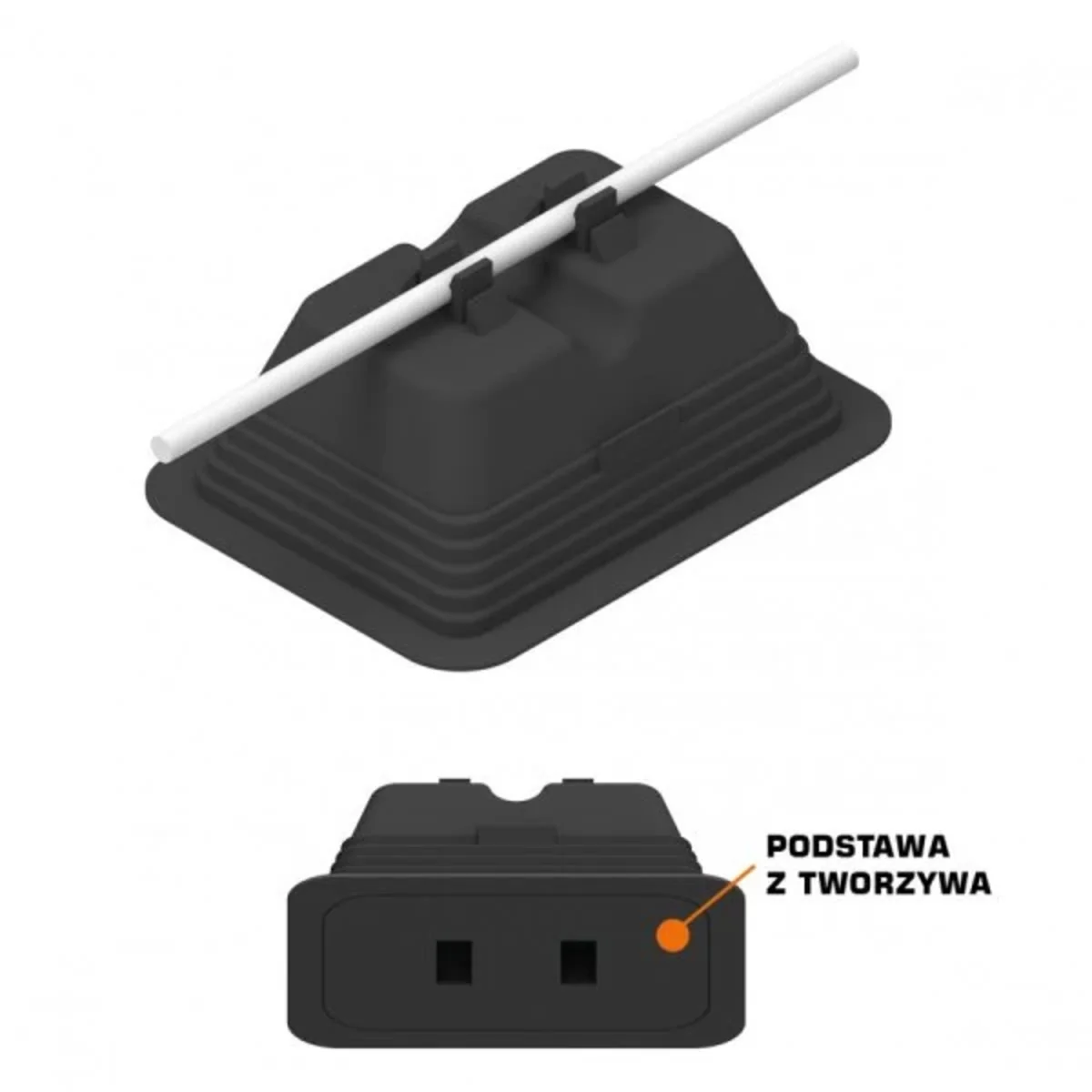

Concrete handle in plastic with a plastic base. It is used to build horizontal air terminals on flat roofs covered with roofing felt and membrane.

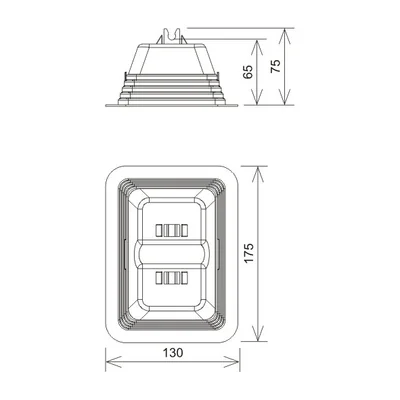

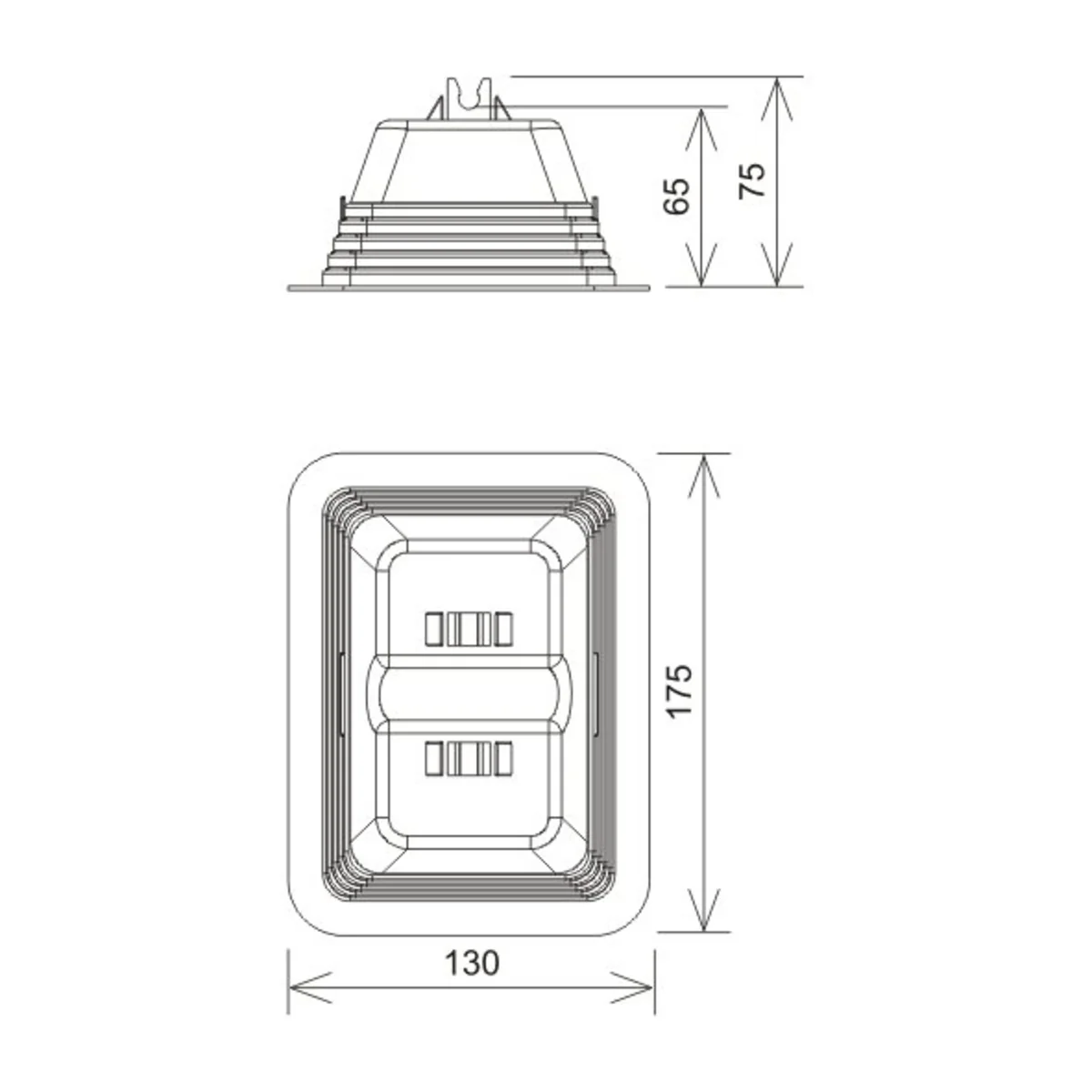

Technical data
-
Length [mm]175
-
Clamp typeZ-latch
-
Cable dimensions [mm]8
-
PKWIU22.23.19.0
-
Width [mm]130
-
Weight [g]1000
-
Height [mm]70
Other technical data
-
Mounting type conductorWith snap clamp
-
ApplicationFlat roof
-
Chucking range75 ... 75 mm
-
Material of carrierPlastic
-
Conductor diameter6 ... 8 mm
-
Mounting methodAdhesive
-
Material of holderPlastic
-
Length carrier175 mm
Manufacturer details
-
ManufacturerAN-KOM 2 Sp. z o.o.
-
Address34-120 Inwałd ks. W. Bukowińskiego 15 Polska
-
E-mail
Bulk packaging
| A kind of package | NE | Karton |
| Quantity | 1 pcs. | 12 pcs. |
| Weight (kg) | 1,102 | 13,280 |
| Volume (m3) | - | 0,016 |
| Width (m) | 0,130 | 0,230 |
| Length (m) | 0,180 | 0,340 |
| Depth (m) | 0,080 | 0,200 |
