Concrete handle in plastic with a concrete base B931504
local index:
AOU008ANKO
Catalog No:
B931504
EAN code:
5907770501995
Price:
2,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

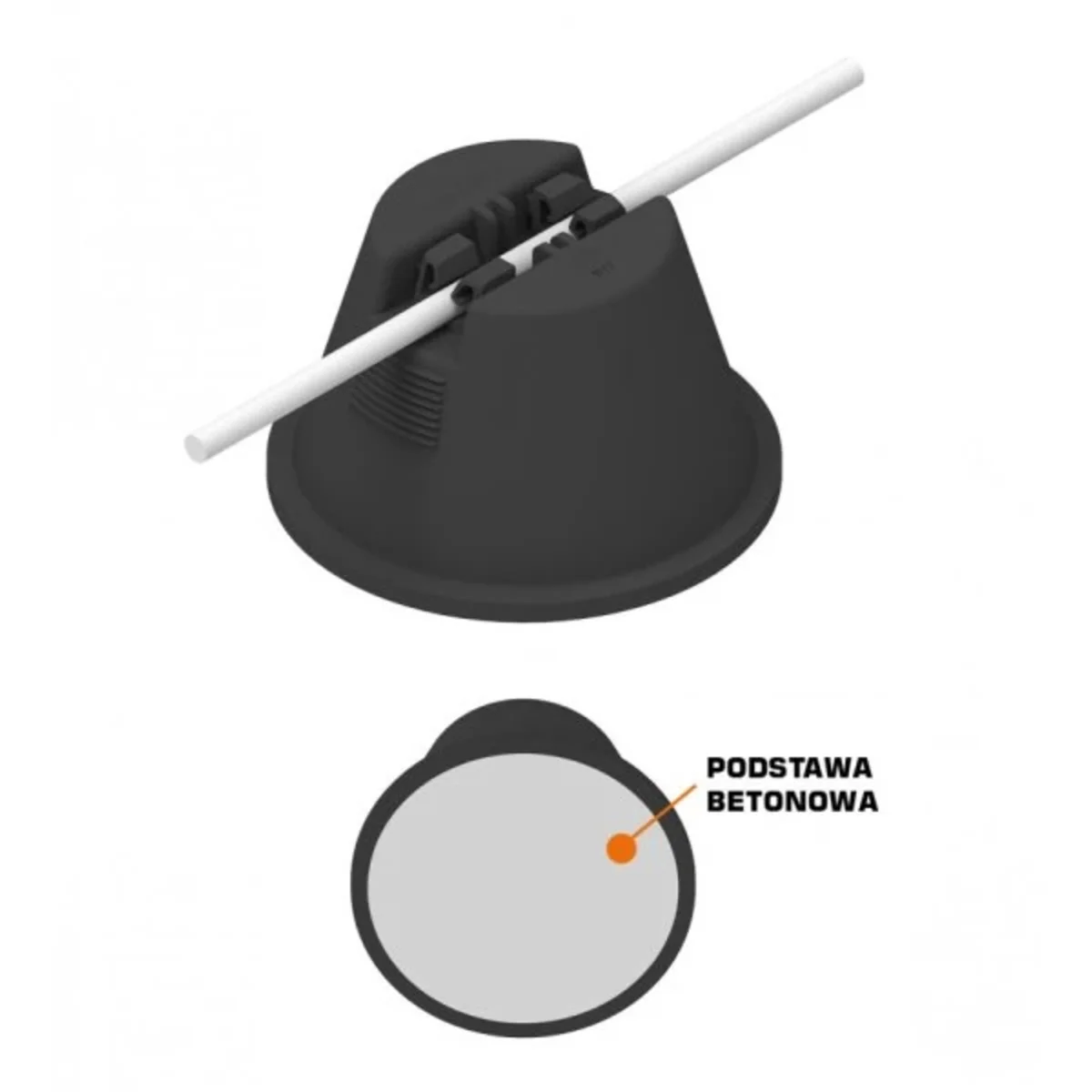

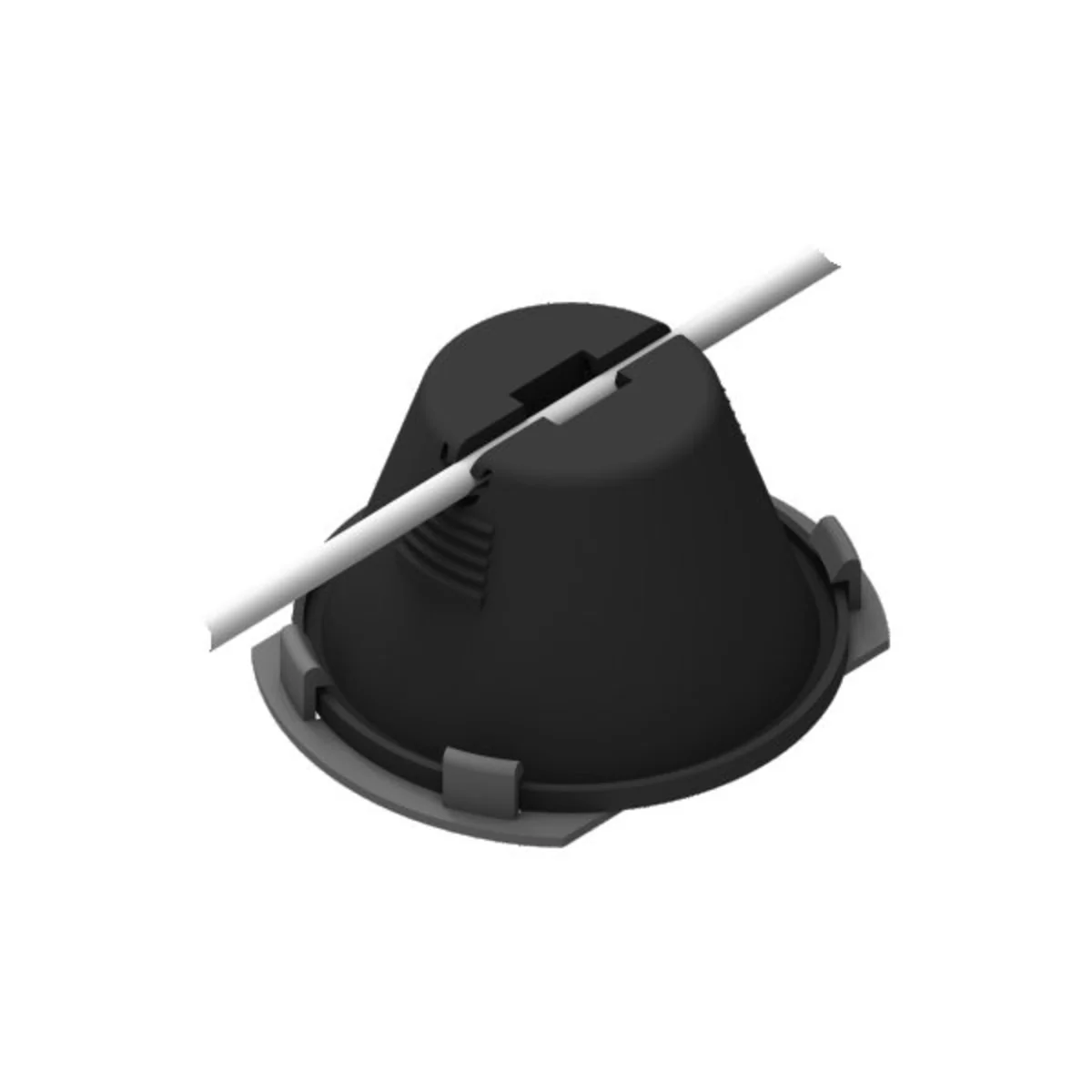

Concrete handle in plastic with concrete base. It is used to build horizontal air terminals on flat roofs covered with roofing felt.
Technical data
-

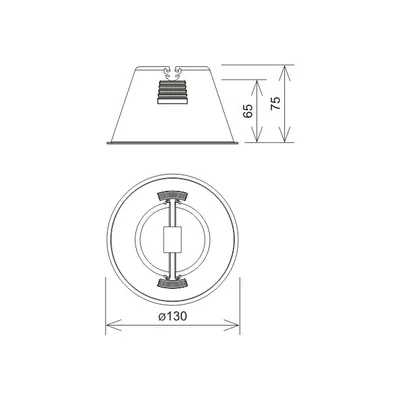

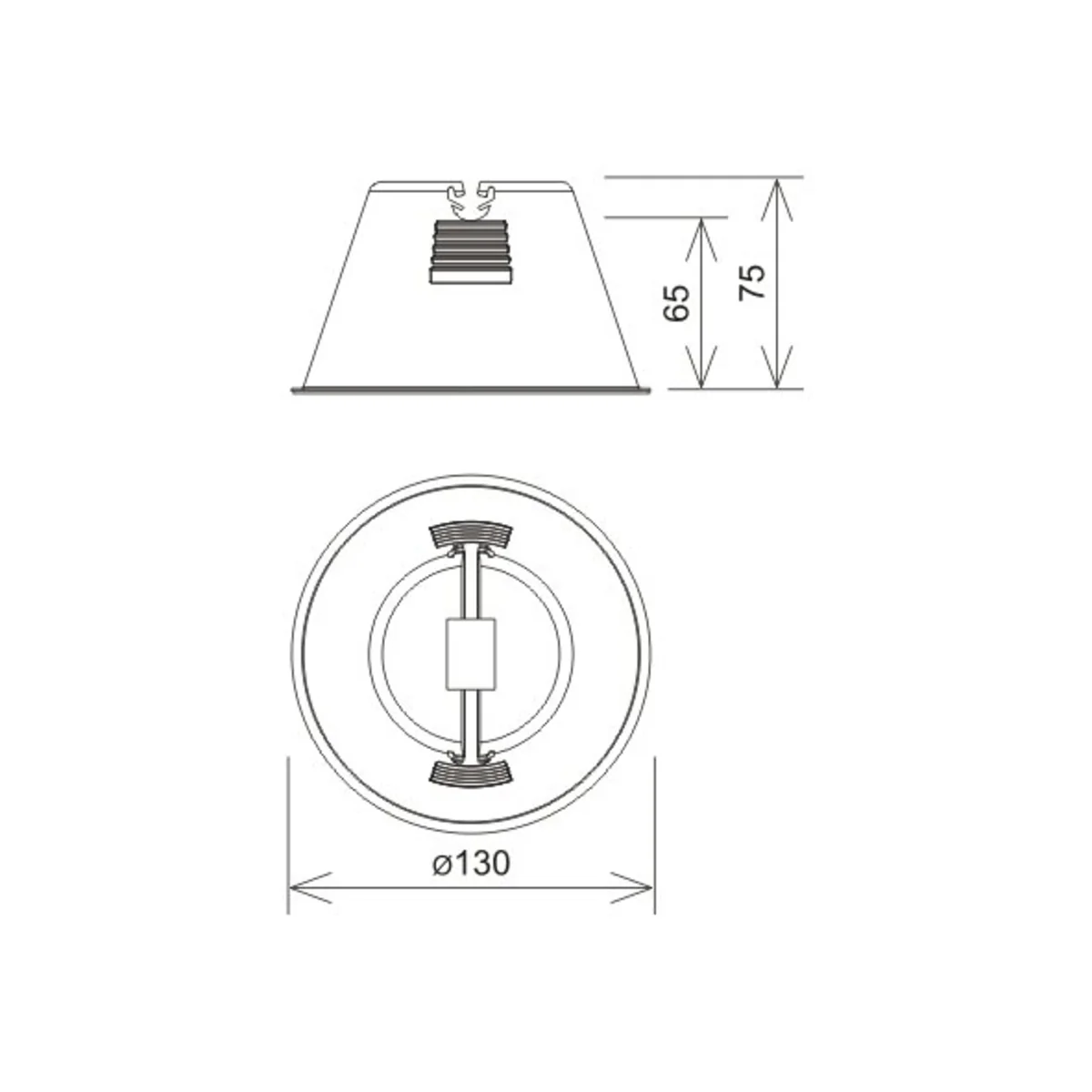

Base diameter [mm]130
-
Weight [g]1000
-
Height [mm]75
-
Clamp typeZ-latch
-
Cable dimensions [mm]6-8
-
PKWIU22.23.19.0
Other technical data
-
Mounting type conductorWith snap clamp
-
ApplicationFlat roof
-
Chucking range75 ... 75 mm
-
Material of carrierConcrete
-
Conductor diameter6 ... 8 mm
-
Mounting methodAdhesive
-
Material of holderPlastic
-
Length carrier130 mm
