Concrete handle in plastic, plastic base with angular adjustment B931508

Name: Concrete handle in plastic, plastic base with angular adjustment
Brand: AN-KOM
SKU: AOU110ANKO
Price: 2.77 PLN

local index:

AOU110ANKO

Catalog No:

B931508

EAN code:

5907770502008

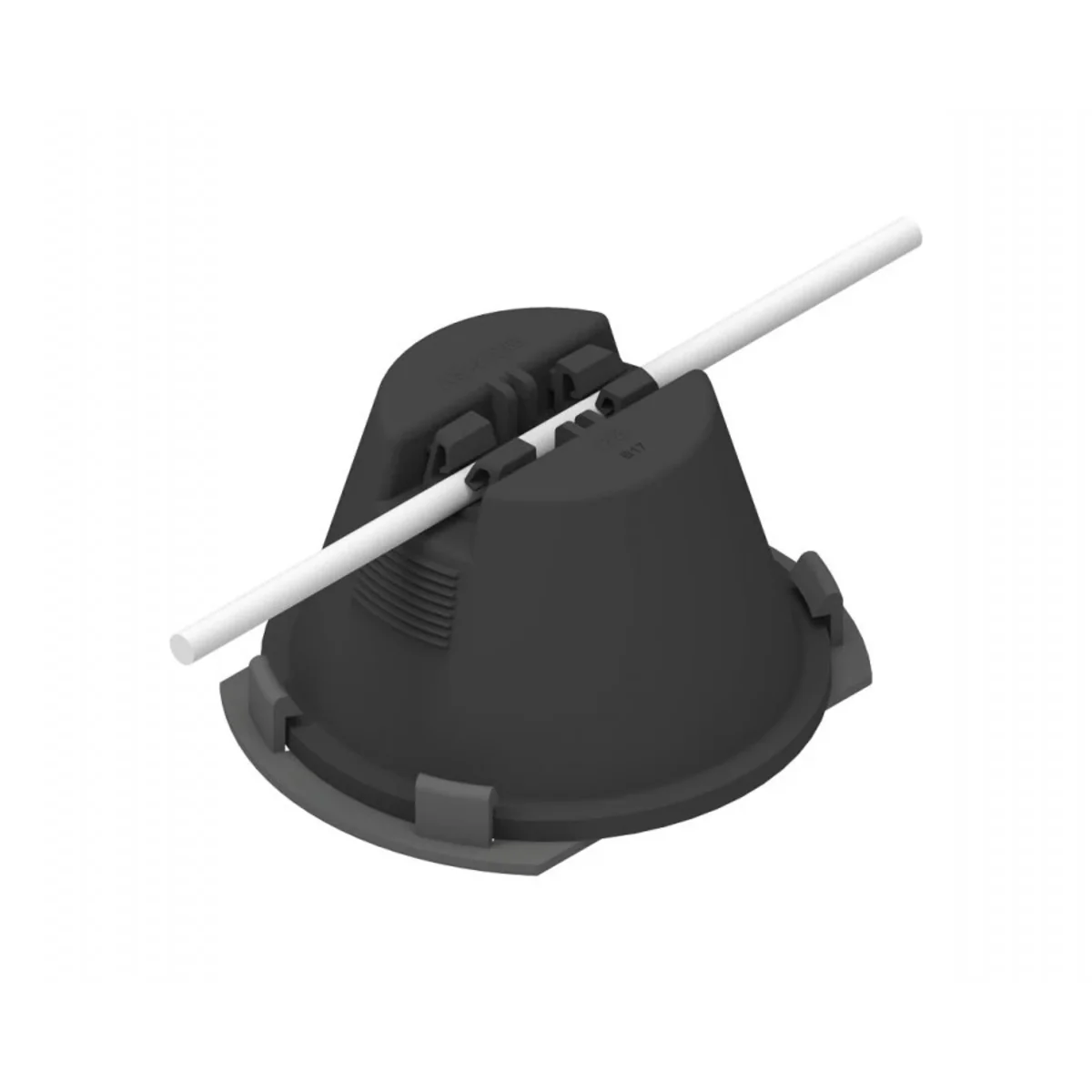

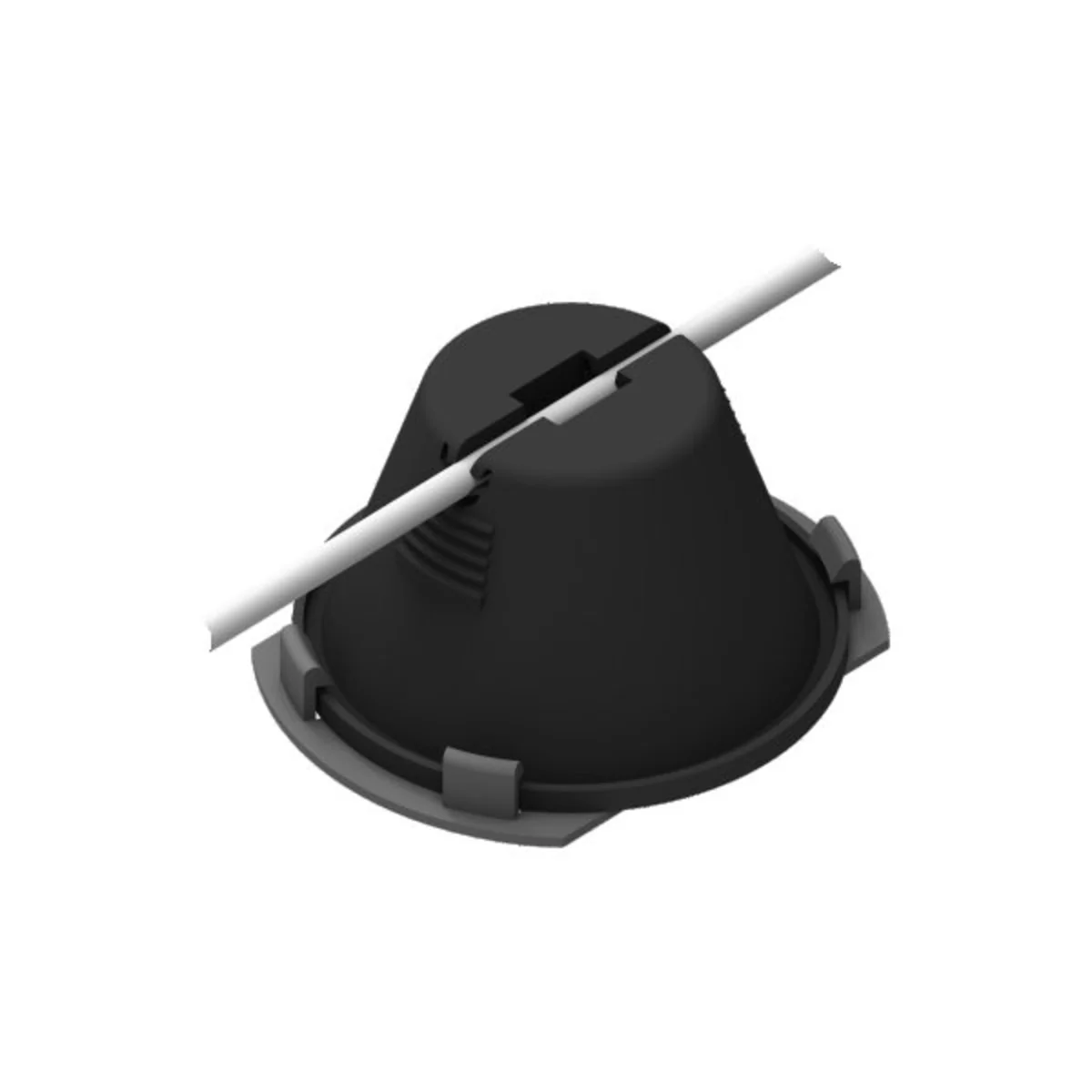

Concrete handle in plastic, plastic base with angular adjustment

Click on the photo to enlarge

Manufacturer: AN-KOM

Length [mm]: 105

Width [mm]: 150

Clamp type: Z-latch

See full description

Price:

2,77 €

gross / pcs.

(including VAT 23%)

2,77 € gross/kg.

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Concrete handle in plastic with a swivel base made of plastic. It is used to build horizontal air terminals on flat roofs covered with roofing felt and membrane. The base is glued with a strip of material appropriate for a given cover. Handle locked in the base.

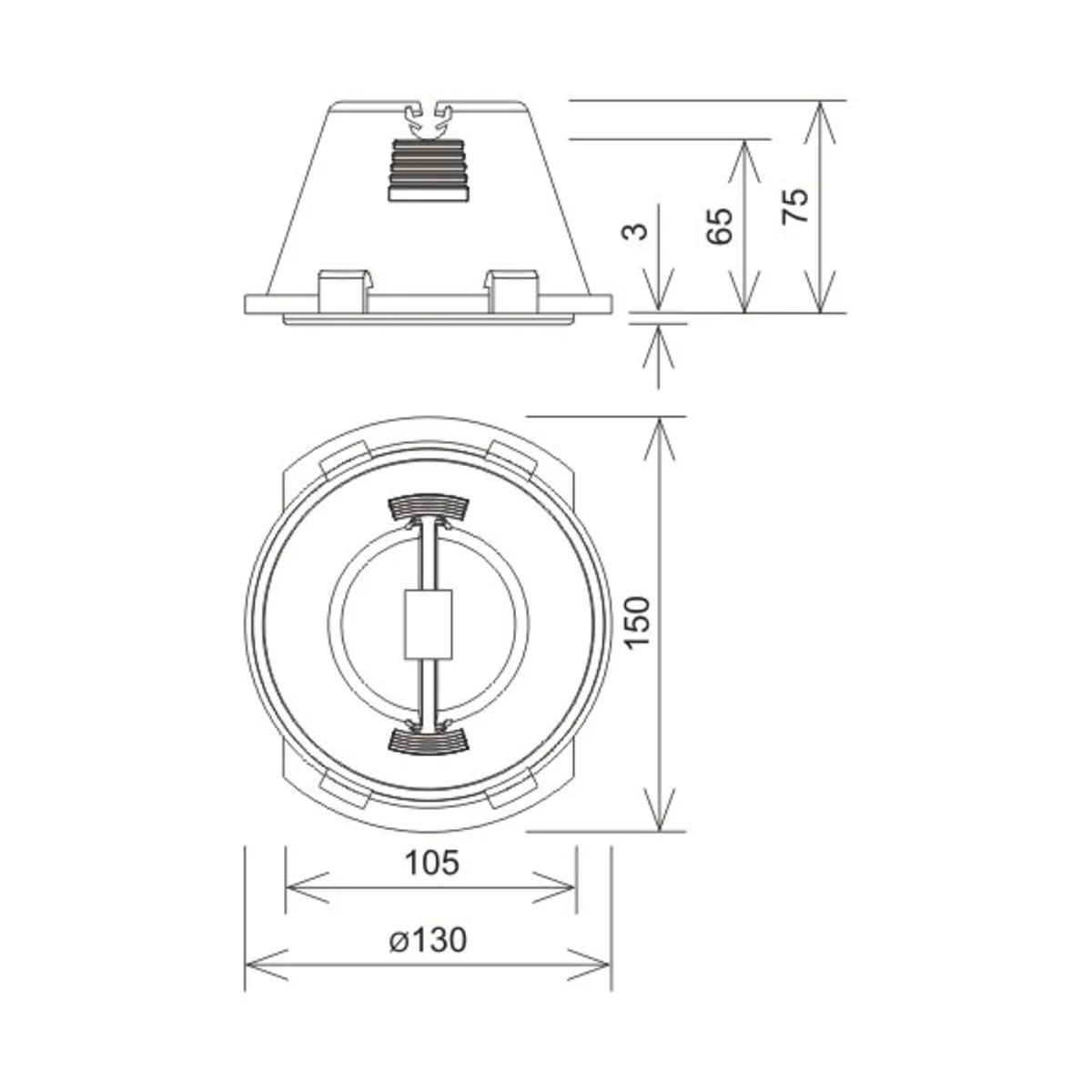

Technical data

Length [mm]

105
Clamp type

Z-latch
Cable dimensions [mm]

6-8
PKWIU

22.23.19.0

Width [mm]

150
Weight [g]

1000
Height [mm]

75

Other technical data

Mounting type conductor

With snap clamp
Application

Flat roof
Chucking range

75 ... 75 mm
Material of carrier

Plastic

Conductor diameter

6 ... 8 mm
Mounting method

Screwable
Material of holder

Plastic
Length carrier

130 mm

Manufacturer details

Manufacturer

AN-KOM 2 Sp. z o.o.
Address

34-120 Inwałd ks. W. Bukowińskiego 15 Polska
E-mail

biuro@an-kom.pl

Bulk packaging

A kind of package		Karton
Quantity	1 pcs.	12 pcs.
Weight (kg)	1,028	12,390
Volume (m3)	-	0,020
Width (m)	0,130	0,250
Length (m)	0,155	0,350
Depth (m)	0,090	0,230
