Adjustable tile holder, straight bend, length 28cm, height 10cm, painted E464544

local index:
AOU0P5ANKO
Catalog number:
E464544
EAN code:
5907770528657
Manufacturer: AN-KOM
Length [mm]: 280
Material: stainless steel
Width [mm]: 25
Price:
26,29 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

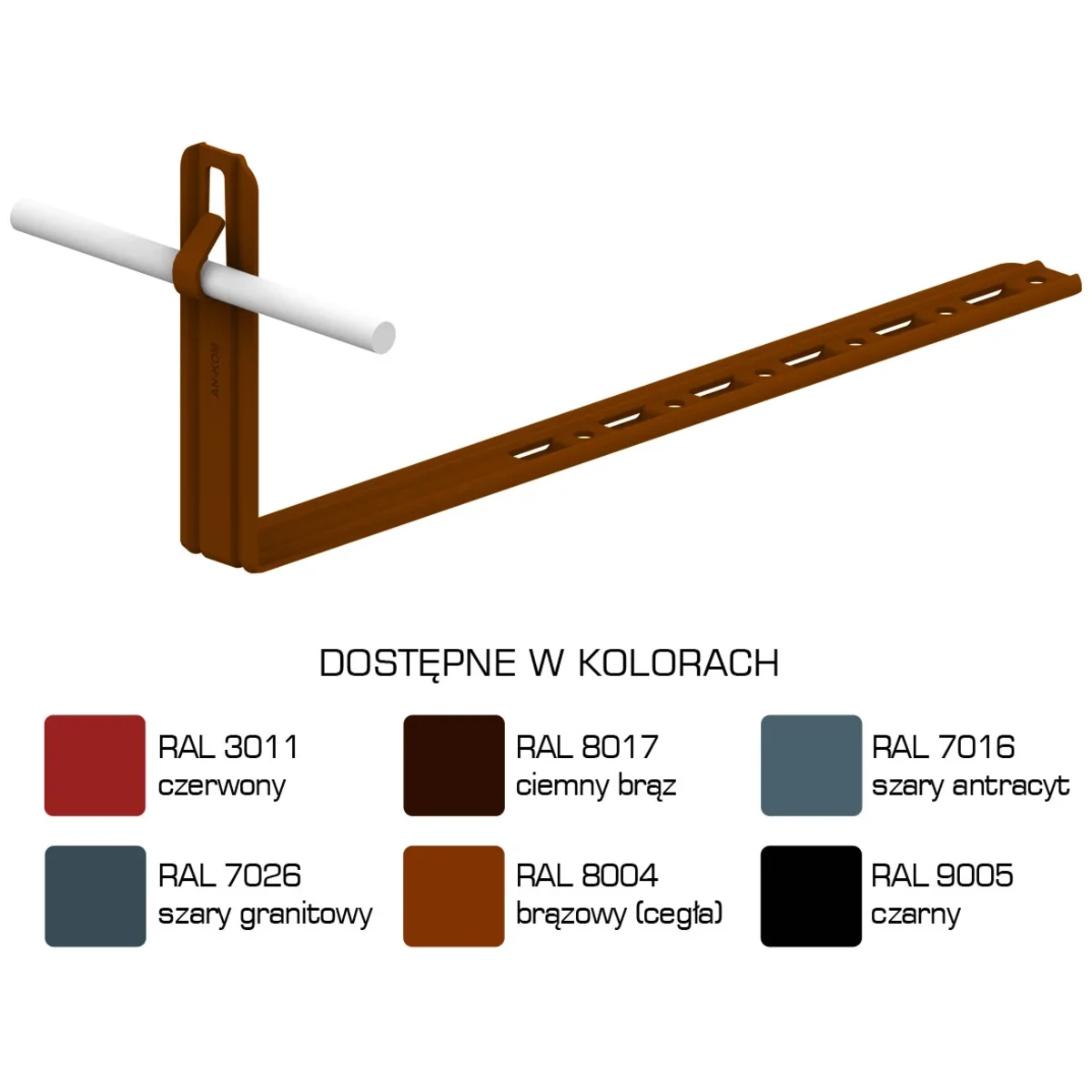

Tile holder - adjustable, it is used to build air terminals and lightning conductors on the roof across or along the tile. The holder is installed by bending the tooth and inserting the holder between the tiles or screwing it to the batten with screws through the mounting holes.

Technical data

  • Length [mm]
    280
  • Width [mm]
    25
  • Cable dimensions [mm]
    AT 8
  • PKWIU
    25.99.29.0
  • Material
    stainless steel
  • Opening width [mm]
    4
  • Height [mm]
    96

Manufacturer details

  • Manufacturer
    AN-KOM 2 Sp. z o.o.
  • Address
    34-120 Inwałd ks. W. Bukowińskiego 15 Polska

Bulk packaging

A kind of package Bez opakowania Karton
Quantity 1 pcs. 50 pcs.
Weight (kg) 0,118 6,210
Volume (m3) - 0,014
Width (m) 0,105 0,240
Length (m) 0,280 0,400
Depth (m) 0,025 0,150
