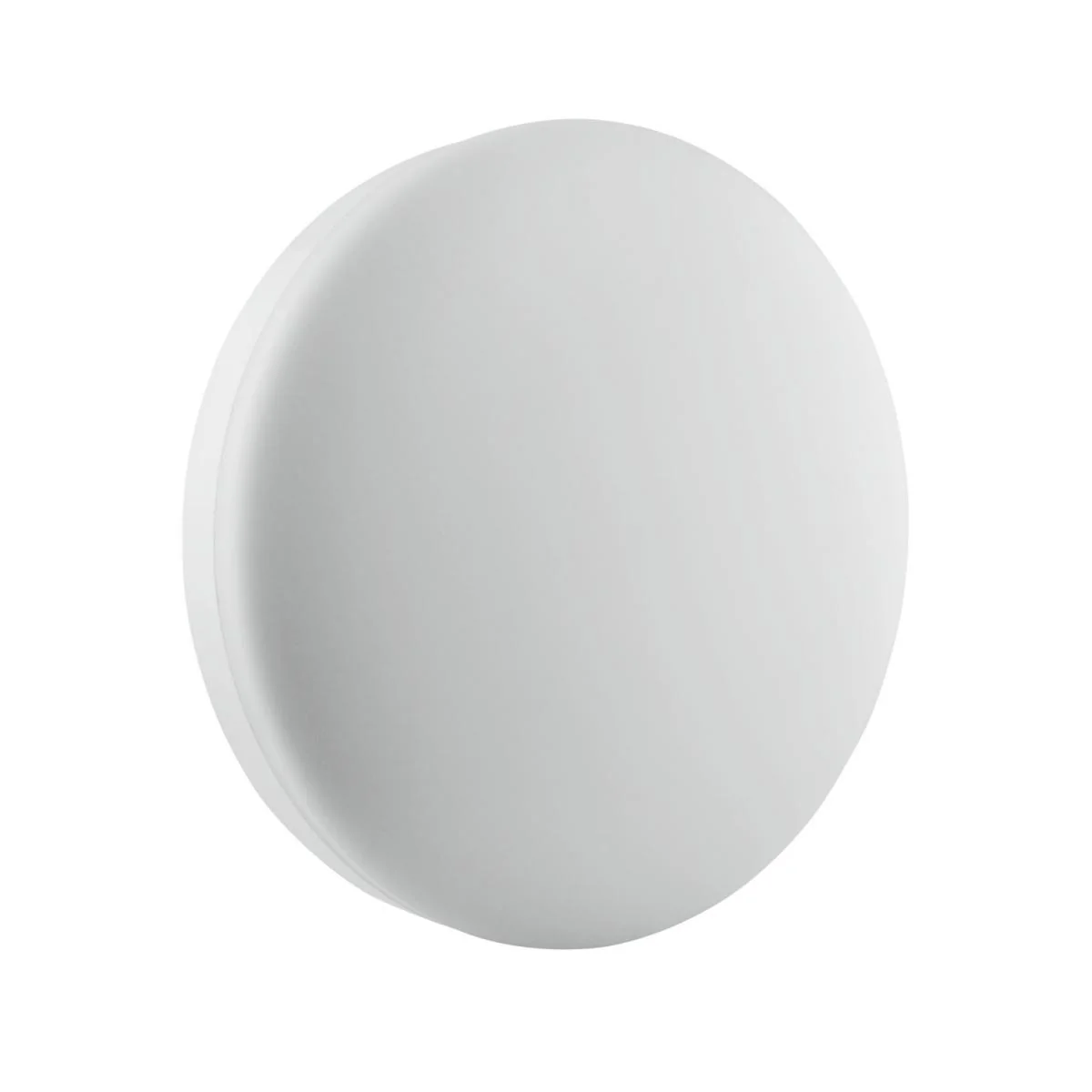

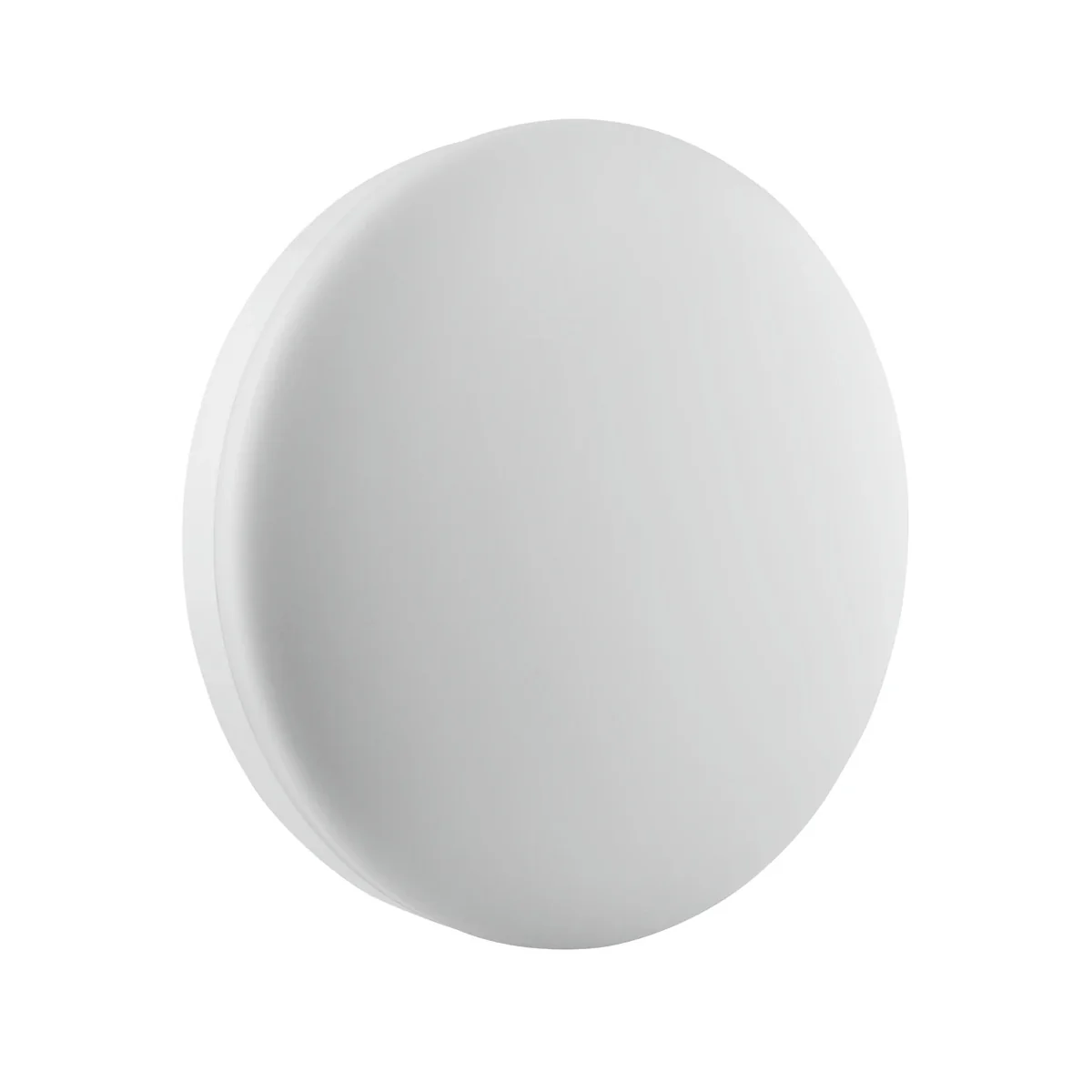

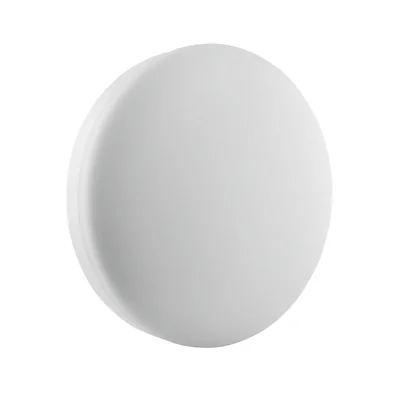

SURFACE COMPACT LED wall and ceiling luminaire 230V 24W 1920lm IP65 n/t NW 300mm IK10 white 4058075062221

local index:
OWJ014LEDV
Catalog No:
4058075062221
EAN code:
4058075062221
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)

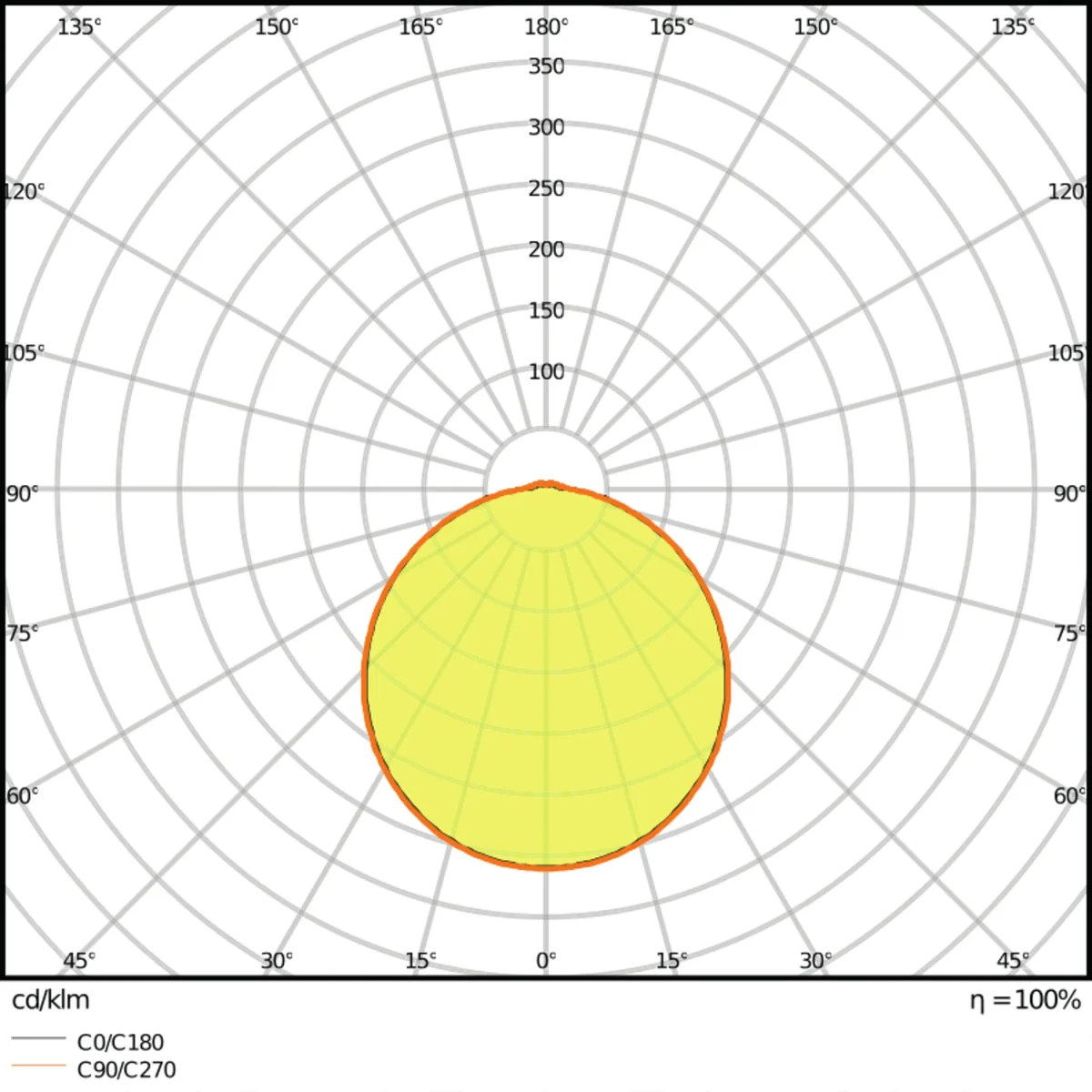

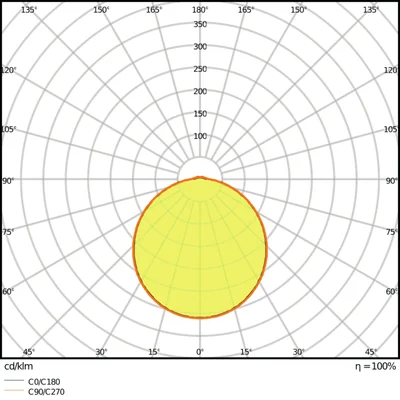

beam angle [°]: 120
Protection class: II
Price:
97,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall and ceiling luminaire with high impact resistance, from the SURFACE COMPACT series.

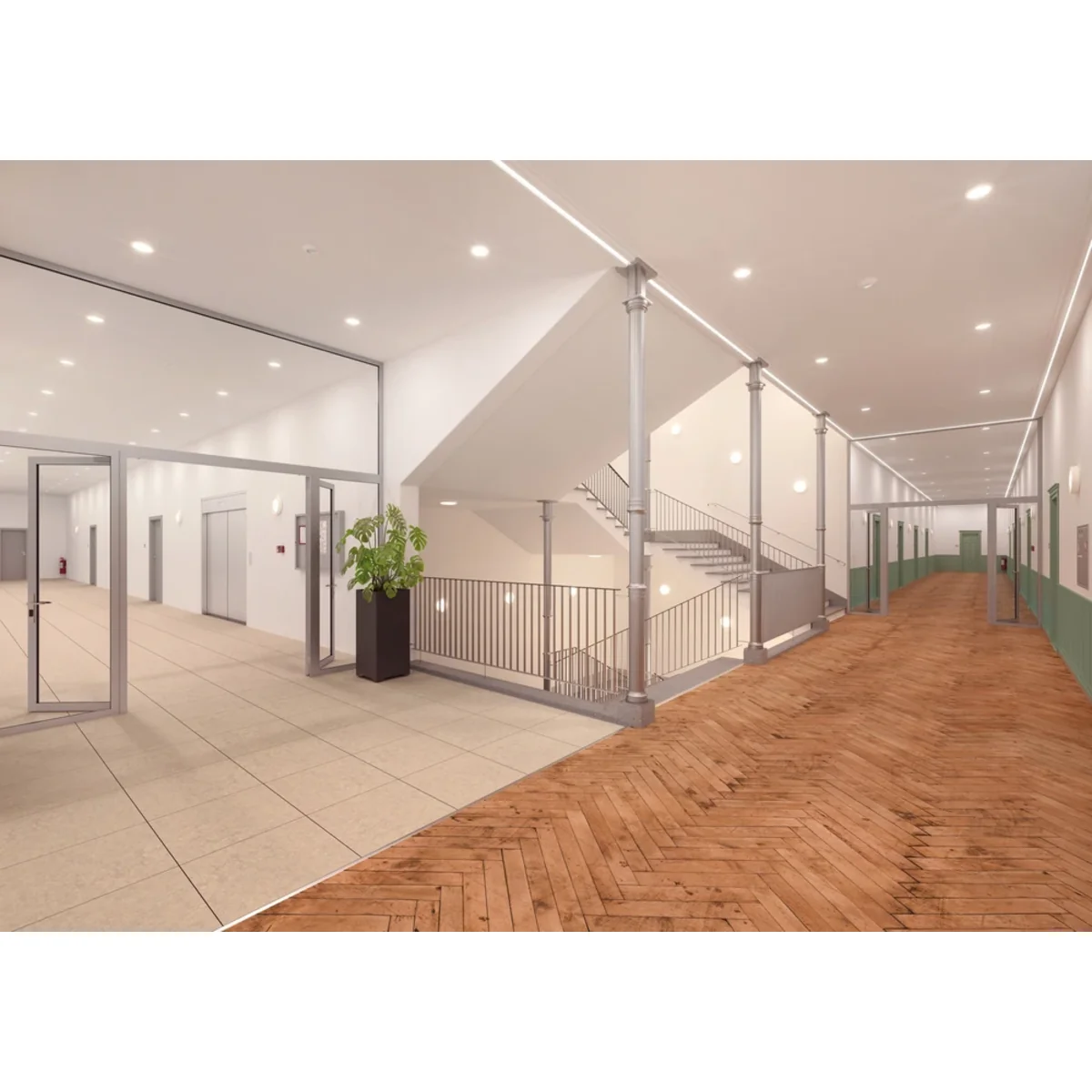

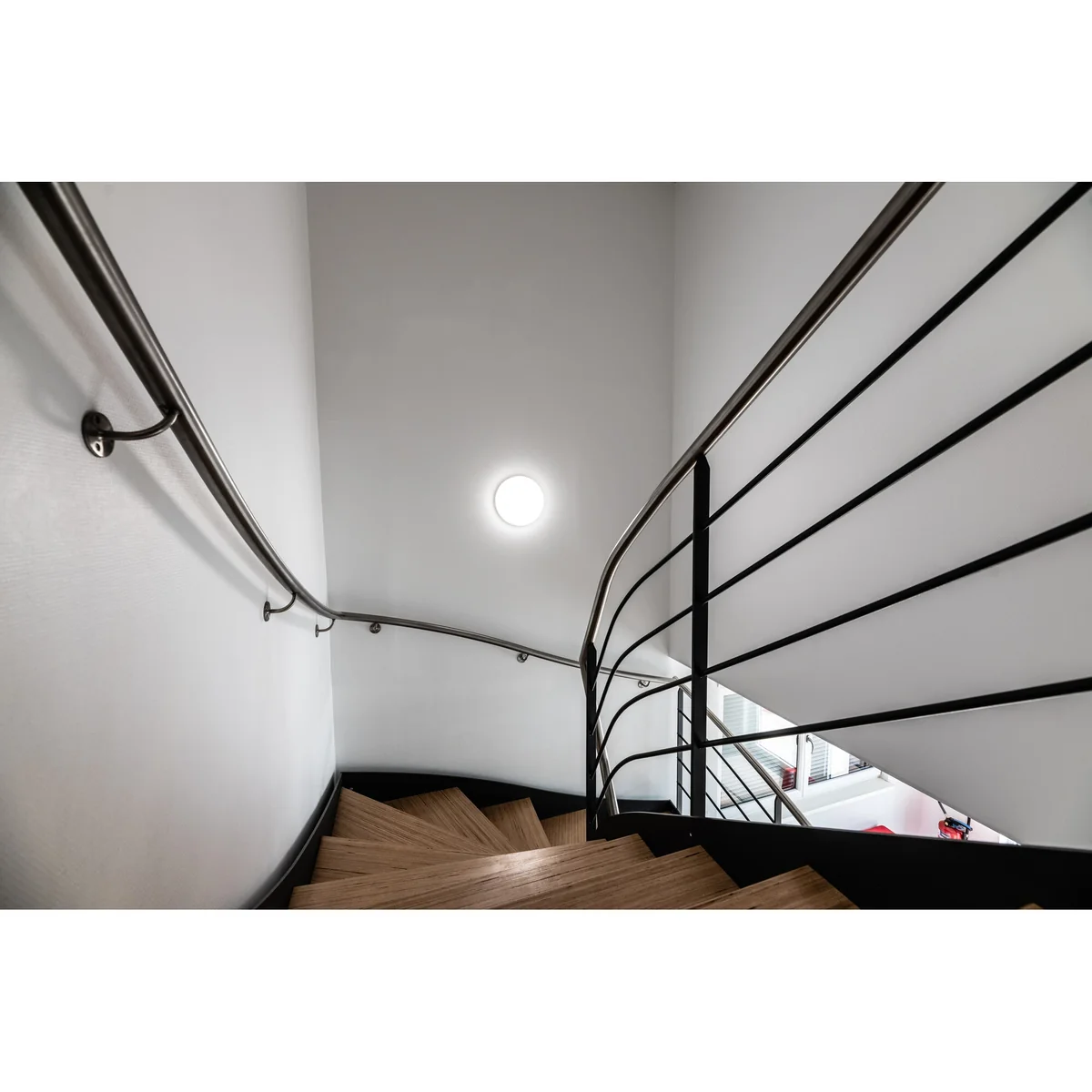

Area of application:< /p>

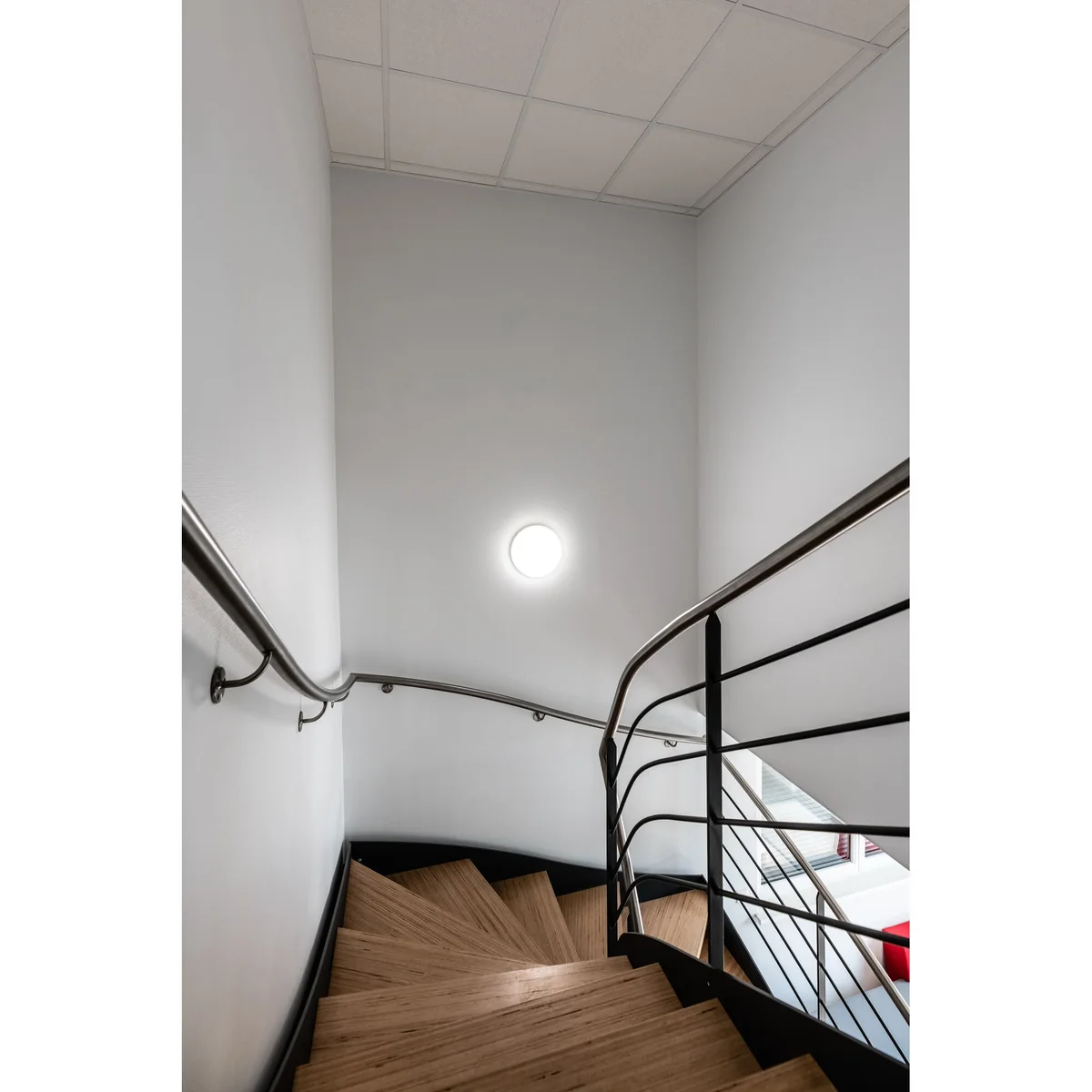

  • Corridors,
  • Stairs,
  • Bathrooms,
  • Hallways,
  • Public areas.

Product benefits:

  • Slim profile,
  • Protection against vandalism,
  • < li> High luminous efficiency,
  • Very homogeneous light,
  • LED lamps ensure safe installation.

Product features:

  • Impact resistance: IK10,
  • Housing and diffuser made of polycarbonate,

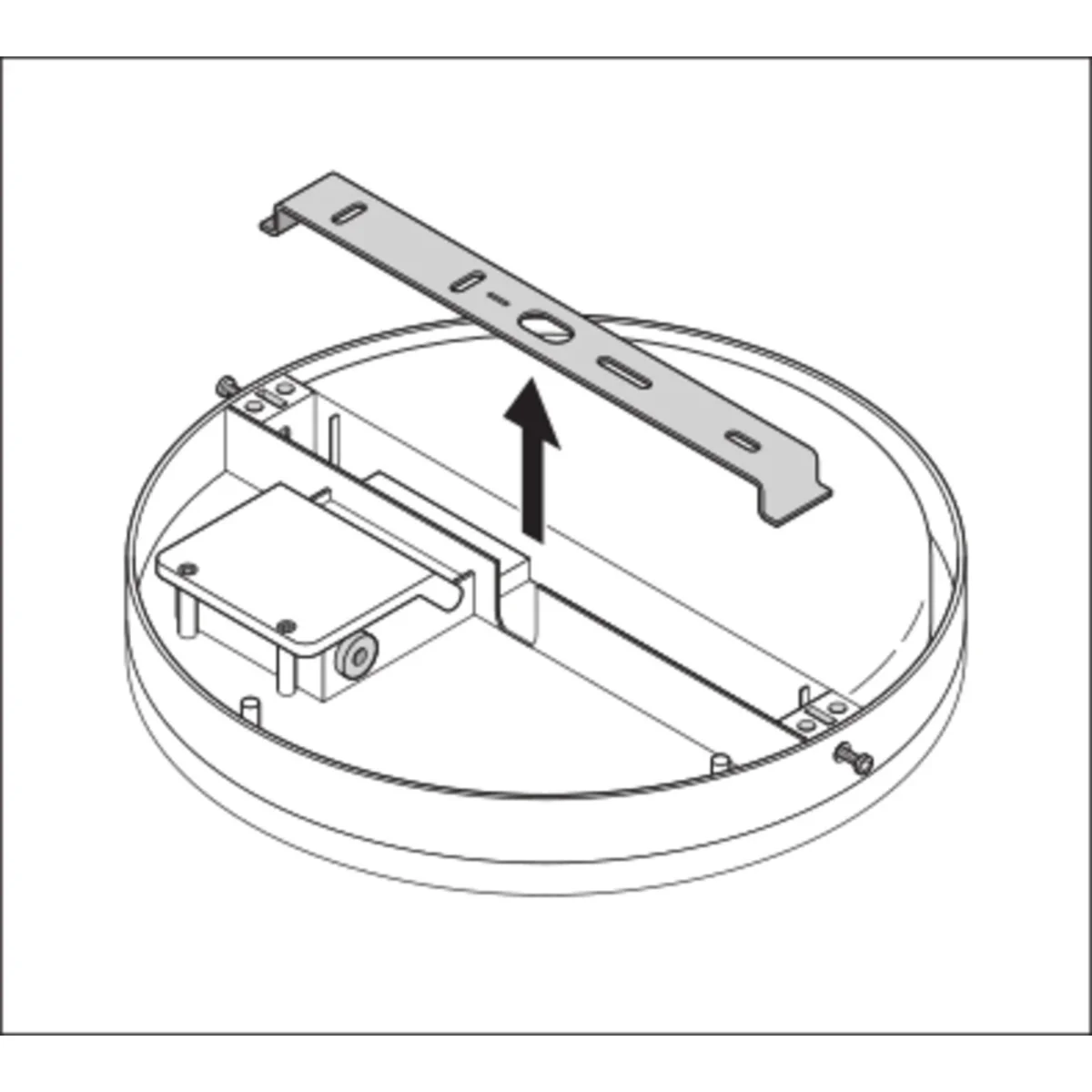

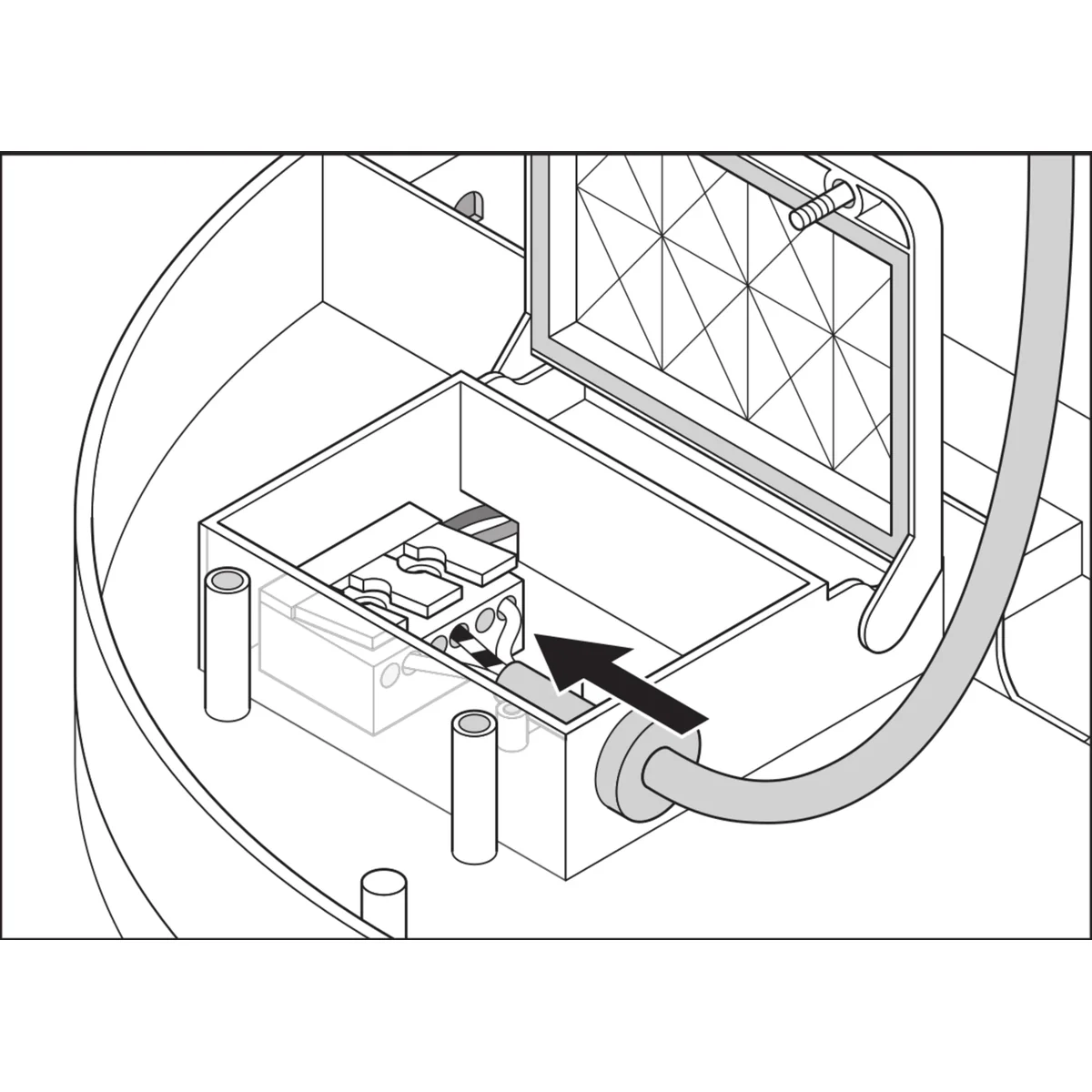

  • Possibility of using internal wiring.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Protection class
    II
  • Power [W]
    24
  • Rated voltage [V]
    230
  • Family
    SURFACE COMPACT
  • Level of security
    IP65

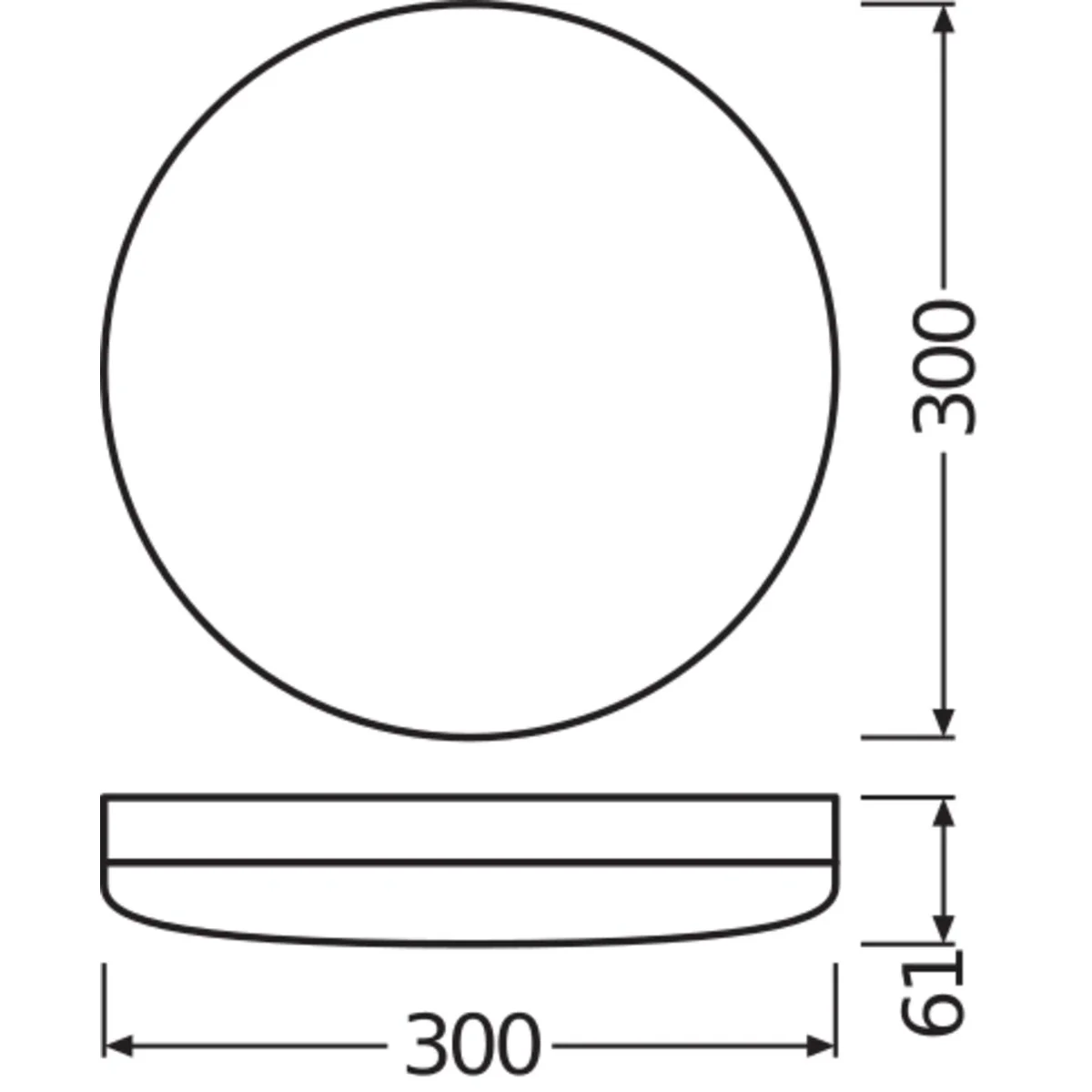

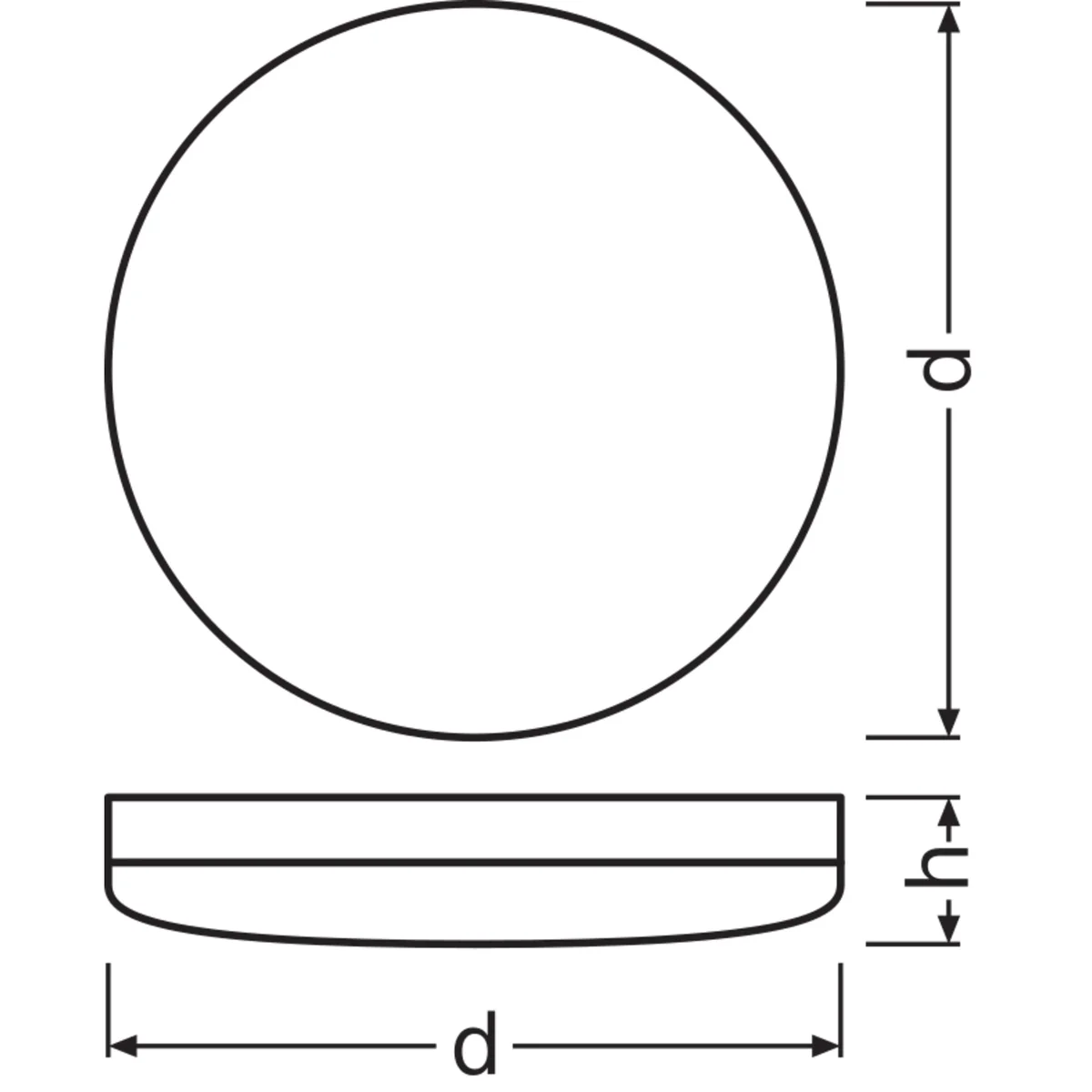

  • Diameter [mm]
    300
  • Color Temperature [K]
    4000
  • PKWIU
    27.40.25
  • beam angle [°]
    120
  • Color
    White
  • Installation
    Surface-mounted
  • Output current [mA]
    280
  • Luminous efficiency [lm/W]
    80
  • luminous flux [lm]
    1920
  • Height [mm]
    61
  • cri (ra)
    >80

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    White
  • Type of grid
    Matt
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    30000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    15000 h
  • Impact strength
    IK10
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Max. system power
    24.00 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Height/depth
    61.0 mm
  • Number of poles
    2
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    110 ... 110 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Żywotność znamionowa L70/B10 przy 25 °C
    50000 h
  • Rated life time L80/B10 at 25 °C
    30000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    15000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    850 °C - 30 s
  • Rated luminous flux according to IEC 62722-2-1
    1920 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    80 lm/W

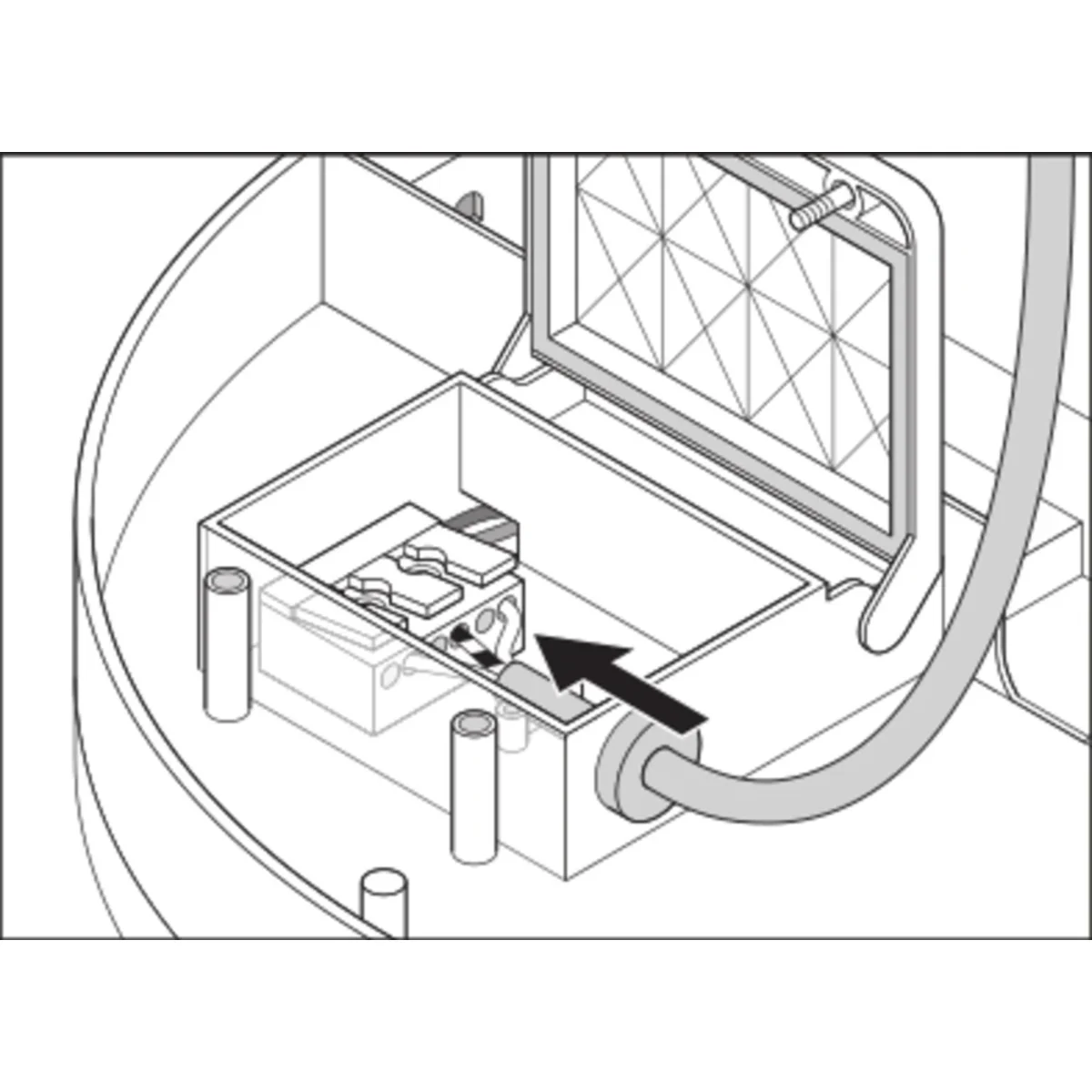

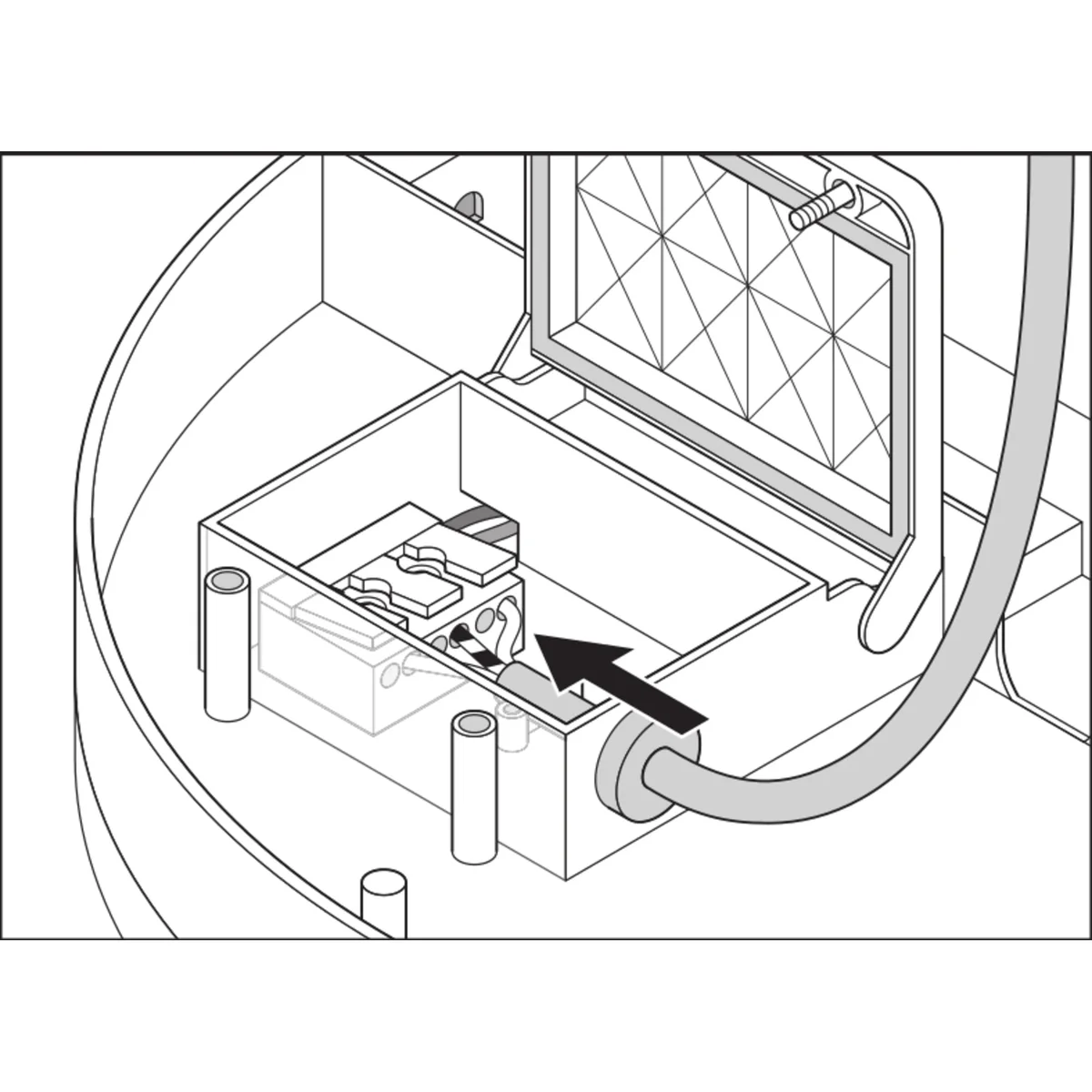

  • Type of wiring
    Suitable for through wiring
  • Connection type
    Other

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 8 pcs.
Weight (kg) 0,940 1,060 9,430
Volume (m3) - 0,006 0,058
Width (m) - 0,300 0,320
Length (m) - 0,060 0,550
Depth (m) - 0,300 0,320
