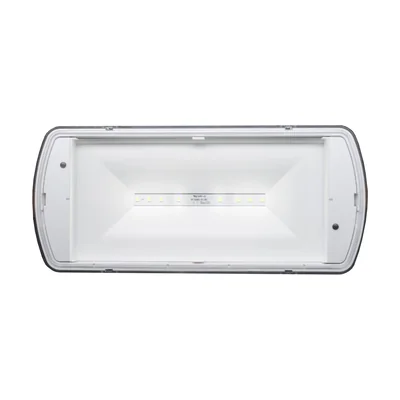

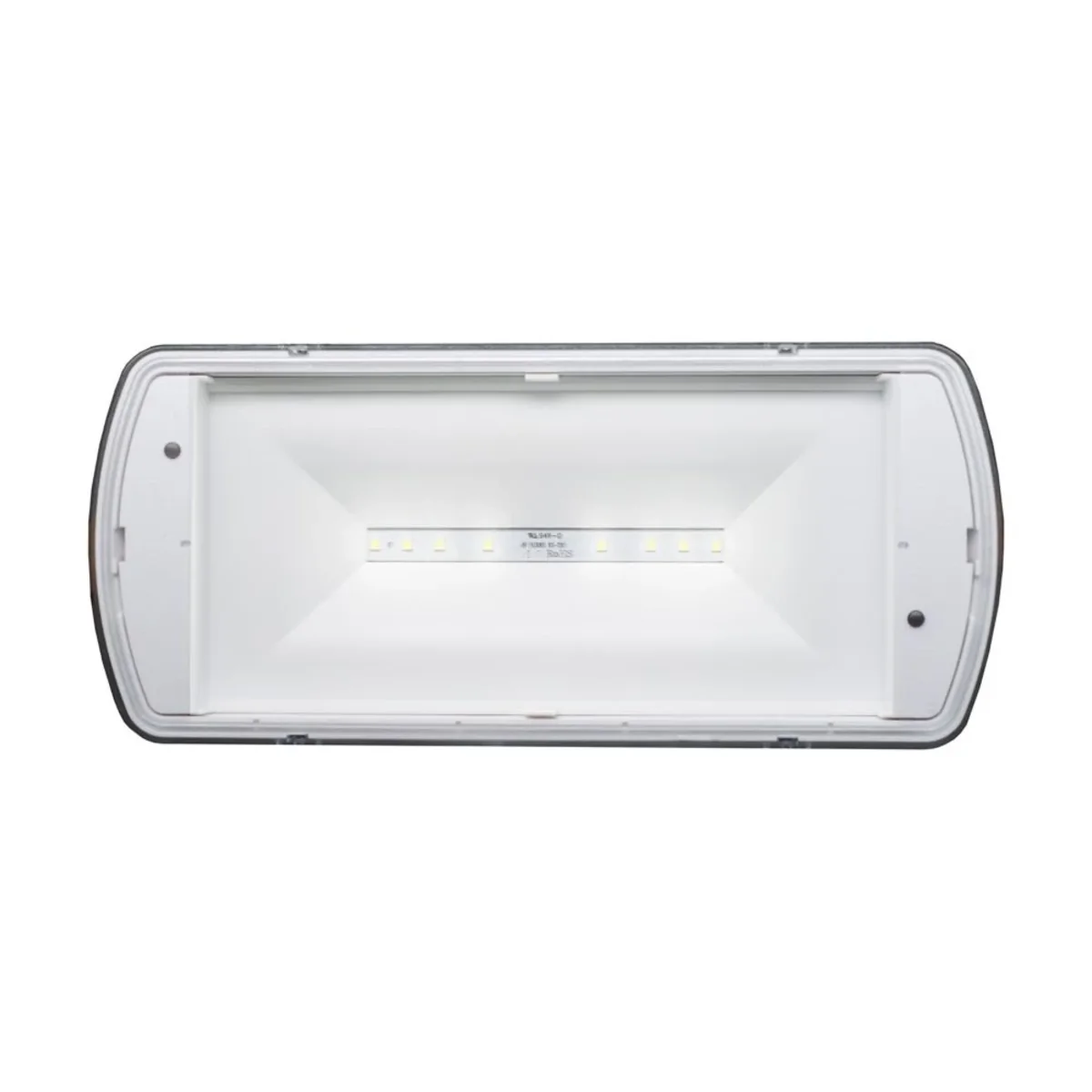

SAFELITE Emergency luminaire LED dual-purpose 230V 3.8W 150/60lm IP65 3h ST white SL2MNM65E3C3A

local index:
OWA003MOEL
Catalog No:
SL2MNM65E3C3A
EAN code:
3660191604615
Manufacturer: EATON
working time [h]: 3
Depth [mm]: 49
Protection class: II
Price:
28,63 €
gross / pcs.
(including VAT 23%)
40,90 € gross/kg.
Last lowest price: 28,63 € gross
Base price: 35,90 € gross -20%
Delivery in 3h
Accessible 535 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Easy installation and low running costs

The SafeLite luminaire series uses LED technology, which eliminates the need to replace light sources and significantly reduces electricity consumption.
SafeLite luminaires are available in two operating mode options: emergency or emergency-network.
Due to their universal design, they are perfect for supplementing and extending existing emergency lighting installations. Their well-thought-out design enables quick replacement of used batteries.

One product, many applications

SafeLite luminaires have been designed both for lighting escape routes and open areas as well as for highlighting signs indicating the direction of evacuation.
Two variants of the degree of tightness; IP42 or IP65 and additional accessories such as a double-sided cover, a built-in box or a protective grid give SafeLite luminaires a very wide range of applications.

Technical data

  • working time [h]
    3
  • Protection class
    II
  • LED
    Yes
  • Power [W]
    3.8
  • Battery voltage [V]
    3.6
  • Battery capacity [Ah]
    1.7
  • Family
    SAFELITE
  • luminous flux [lm]
    150 60
  • Operating mode
    Two-task
  • Height [mm]
    119
  • Degree of mechanical protection
    IK7
  • Depth [mm]
    49
  • Color
    White
  • Material
    PC
  • Installation
    Surface Flush-mounted
  • Rated voltage [V]
    230
  • Battery type
    Nothing: D
  • Level of security
    IP65
  • Width [mm]
    270
  • Weight [g]
    700
  • Operating temperature range [°C]
    5÷40
  • Test method
    ST (manual)

Other technical data

  • Mounting method
    Surface mounting/recessed mounting
  • Type of indicator
    Tylko jednostronny
  • Monitoring equipment
    None
  • With remote switch connection
    No
  • Battery quality
    NiCd
  • With light source
    Yes
  • Lamp holder
    None
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Nominal voltage
    220 ... 240 V
  • Light distributor
    Reflector
  • Klasa efektywności energetycznej (EEI)
    Other
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK07
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. system power
    3.2 W
  • Luminous flux in standby mode
    60 lm
  • Power factor
    0.84
  • Nominal operation time
    3 ... 3 h
  • Height/depth
    49 mm
  • Built-in width
    119 mm
  • Built-in length
    270 mm
  • Connection type
    Plug-in connection
  • Suitable for labelling type
    Sticker
  • With pictogram
    Yes
  • Wiring system
    Continuous circuit/emergency circuit
  • Power supply system
    Peripheral (individual battery)
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Number of lighting heads
    8
  • Housing colour
    White
  • Voltage type
    AC
  • Type of control gear
    Electronic transformer
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L70/B10 przy 25 °C
    60000 h
  • Degree of protection (NEMA)
    Other
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    5 ... 40 °C
  • Rated luminous flux according to IEC 62722-2-1
    150 lm
  • Colour temperature
    6500 ... 6500 K
  • Recognition distance
    20 m
  • Width
    119 mm
  • Length
    270 mm
  • Built-in height/depth
    49 mm
  • Number of poles
    2

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 15 pcs.
Weight (kg) 0,697 10,855
Volume (m3) 0,002 0,032
Width (m) 0,120 0,382
Length (m) 0,271 0,282
Depth (m) 0,051 0,293
