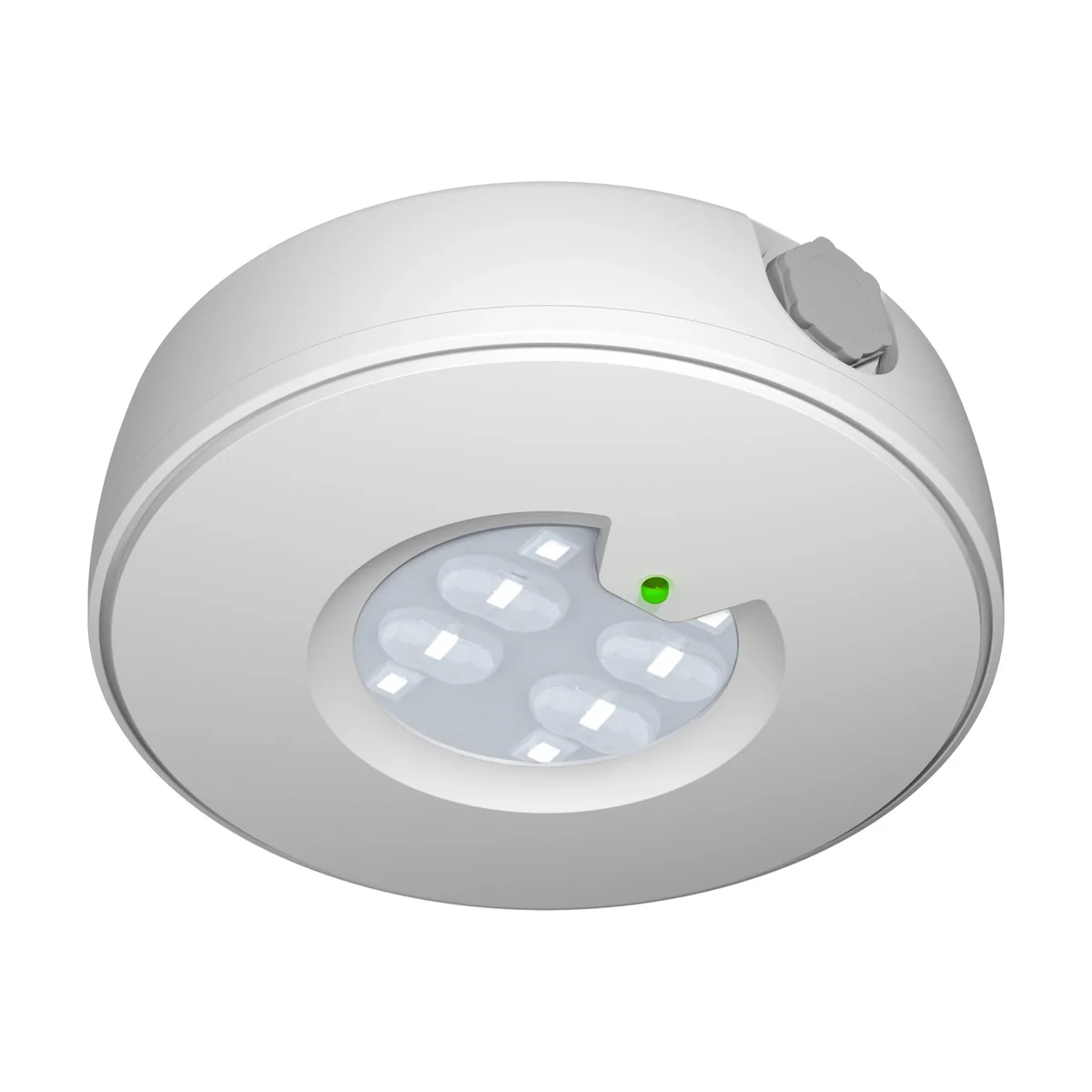

RT2SSO150SA1H Roundtech surface-mounted emergency luminaire, open optics, 150lm NM, 1H IP44, CNBOP RT2SSO150SA1H

Índice local:
OWA017MOEL
Número de catálogo:
RT2SSO150SA1H
Código EAN:
3660191814267
Fabricante: EATON
Precio:
185,08 zł
gross / uds.
(IVA incluido 23%)
hasta 2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Datos técnicos

Otros datos técnicos

  • Mounting method
    Ceiling surface mounting
  • With pictogram
    No
  • Suitable for standby switching
    No
  • With remote switch connection
    No
  • Power supply system
    Peripheral (individual battery)
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Number of lighting heads
    1
  • Housing colour
    White
  • Voltage type
    AC
  • Type of control gear
    Not required
  • Light distributor
    Focal lens
  • Degree of protection (IP)
    IP44
  • Protection class
    II
  • Max. system power
    0.2 W
  • Colour temperature
    5700 ... 5700 K
  • Nominal operation time
    1 ... 1 h
  • Height/depth
    48 mm
  • Number of poles
    2
  • Connection type
    Plug-in connection
  • Function
    Escape route lighting
  • Monitoring equipment
    None
  • Suitable for continuous circuit
    No
  • With remote control
    No
  • Battery quality
    Lithium-ions
  • With light source
    Yes
  • Lamp holder
    None
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Nominal voltage
    230 ... 230 V
  • Exchangeable control gear
    No
  • Constant light output (CLO)
    No
  • Impact strength
    IK04
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Rated luminous flux according to IEC 62722-2-1
    150 lm
  • Power factor
    0.45
  • Width
    138 mm
  • Length
    138 mm
  • Conductor cross section
    2.5 mm²

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska

Empaquetado a granel

una especie de paquete Skrzynia Karton Karton Skrzynia Karton Karton
Cantidad 1 uds. 1 uds. 20 uds. 1 uds. 1 uds. 20 uds.
Peso (kg) 0,273 0,367 7,613 0,273 0,367 7,613
Volumen (m3) - 0,002 0,052 - 0,002 0,052
Ancho (m) 0,140 0,175 0,365 0,140 0,175 0,365
Longitud (m) 0,140 0,187 0,390 0,140 0,187 0,390
Profundidad (m) 0,050 0,065 0,365 0,050 0,065 0,365
