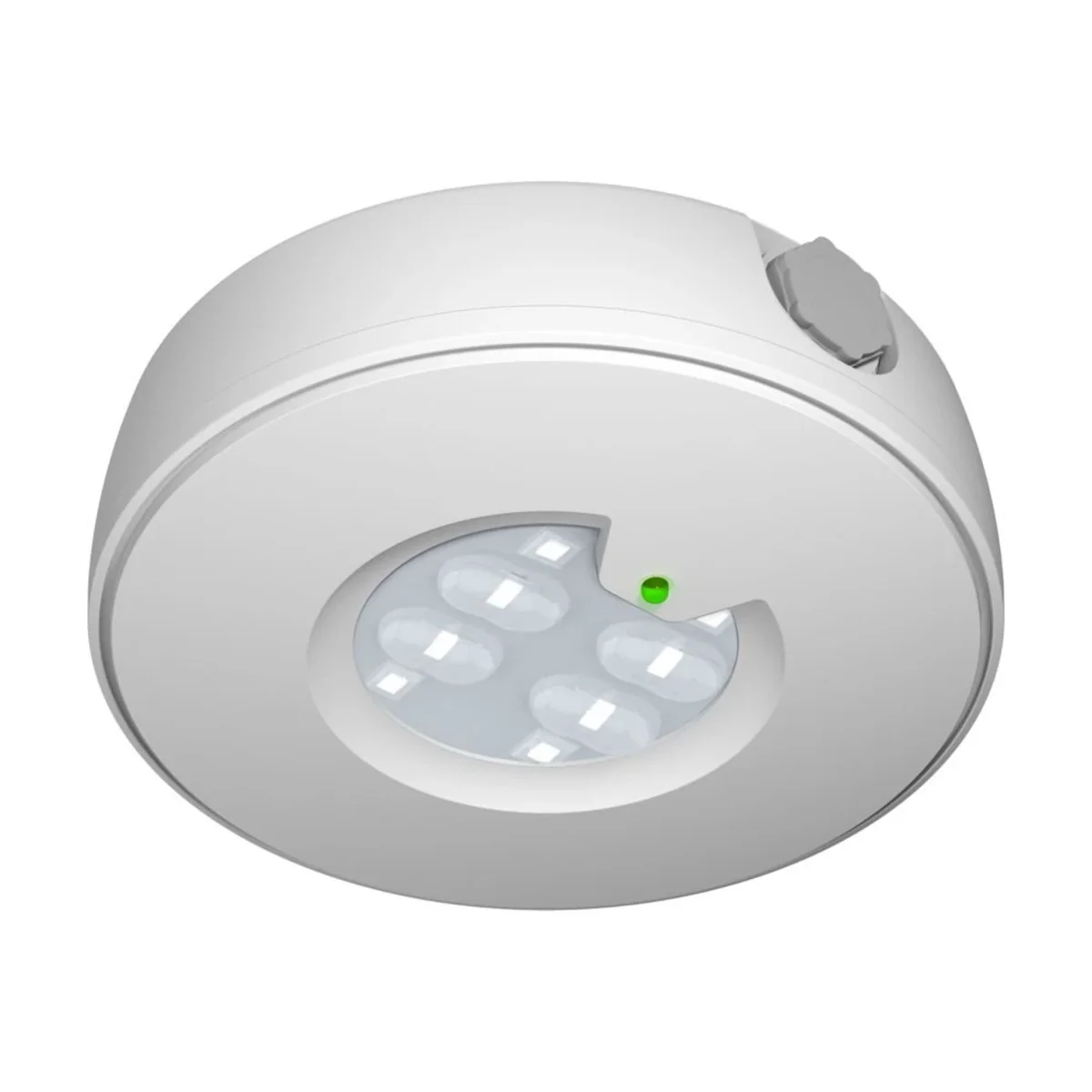

RT2SSEO400ATF1HIP Roundtech surface-mounted emergency luminaire eFocus AT 400lm MNM 1H IP65, CNBOP RT2SSEO400ATF1HIP

Внутрішній артикул:
OWA020MOEL
№ каталоговий:
RT2SSEO400ATF1HIP
Код EAN:
3660191814946
Виробник: EATON
Ціна:
311,61 zł
gross / шт.
(з ПДВ 23%)
до 2 тижнів
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Технічні дані

Інші технічні дані

  • Mounting method
    Ceiling surface mounting
  • With pictogram
    No
  • Suitable for standby switching
    No
  • With remote switch connection
    Yes
  • Power supply system
    Peripheral (individual battery)
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Number of lighting heads
    1
  • Housing colour
    White
  • Voltage type
    AC
  • Type of control gear
    Not required
  • Light distributor
    Focal lens
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Max. system power
    1.1 W
  • Luminous flux in standby mode
    60 lm
  • Power factor
    0.58
  • Width
    138 mm
  • Length
    138 mm
  • Conductor cross section
    2.5 mm²
  • Function
    Escape route lighting
  • Monitoring equipment
    None
  • Suitable for continuous circuit
    No
  • With remote control
    No
  • Battery quality
    Lithium-ions
  • With light source
    Yes
  • Lamp holder
    None
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Nominal voltage
    230 ... 230 V
  • Exchangeable control gear
    No
  • Constant light output (CLO)
    No
  • Impact strength
    IK04
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Rated luminous flux according to IEC 62722-2-1
    400 lm
  • Colour temperature
    5700 ... 5700 K
  • Nominal operation time
    1 ... 1 h
  • Height/depth
    48 mm
  • Number of poles
    3
  • Connection type
    Plug-in connection

Інформація про виробника

  • Виробник
    Eaton Electric Sp. z o.o.
  • Адреса
    80-299 Gdańsk Galaktyczna 30 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Skrzynia Karton Karton Skrzynia Karton Karton
Кількість 1 шт. 1 шт. 20 шт. 1 шт. 1 шт. 20 шт.
Вага (кг) 0,326 4,430 8,726 0,326 4,430 8,726
Об'єм (м3) - 0,002 0,052 - 0,002 0,052
Ширина (м) 0,140 0,175 0,365 0,140 0,175 0,365
Довжина (м) 0,140 0,187 0,390 0,140 0,187 0,390
Глибина (м) 0,050 0,065 0,365 0,050 0,065 0,365
