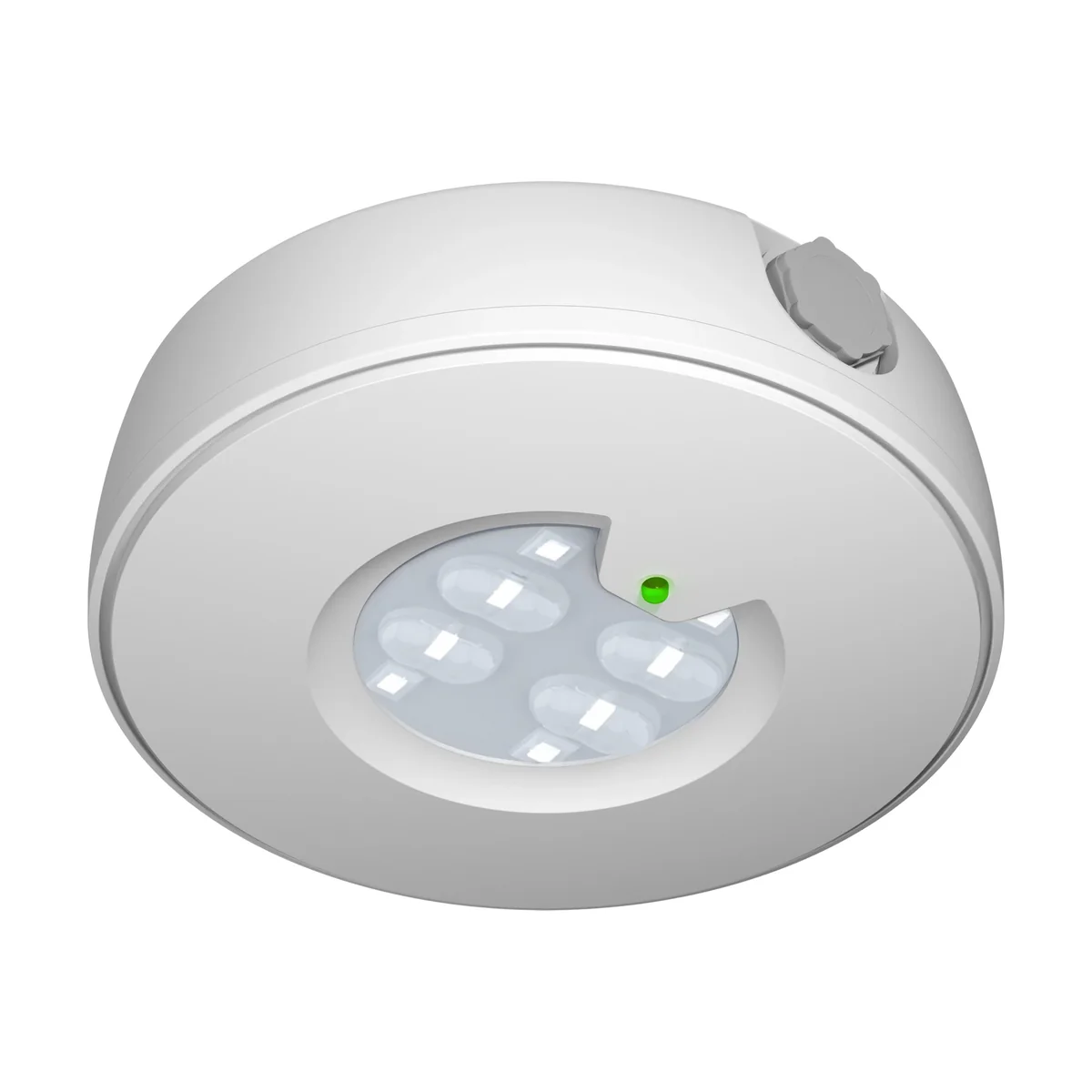

RT2SSEO200ATF1HIP Roundtech surface-mounted emergency luminaire eFocus AT 200lm MNM 1H IP65, CNBOP RT2SSEO200ATF1HIP

Místní index:
OWA019MOEL
Katalogové číslo.:
RT2SSEO200ATF1HIP
EAN kód:
3660191814878
Výrobce: EATON
Cena:
276,98 zł
gross / kusů.
(včetně DPH 23%)
do 2 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Technické údaje

Další technické údaje

  • Mounting method
    Ceiling surface mounting
  • With pictogram
    No
  • Suitable for standby switching
    No
  • With remote switch connection
    Yes
  • Power supply system
    Peripheral (individual battery)
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Number of lighting heads
    1
  • Housing colour
    White
  • Voltage type
    AC
  • Type of control gear
    Not required
  • Light distributor
    Focal lens
  • Degree of protection (IP)
    IP65
  • Protection class
    II
  • Max. system power
    1.1 W
  • Luminous flux in standby mode
    60 lm
  • Power factor
    0.58
  • Width
    138 mm
  • Length
    138 mm
  • Conductor cross section
    2.5 mm²
  • Function
    Escape route lighting
  • Monitoring equipment
    None
  • Suitable for continuous circuit
    No
  • With remote control
    No
  • Battery quality
    Lithium-ions
  • With light source
    Yes
  • Lamp holder
    None
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Nominal voltage
    230 ... 230 V
  • Exchangeable control gear
    No
  • Constant light output (CLO)
    No
  • Impact strength
    IK04
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Rated luminous flux according to IEC 62722-2-1
    200 lm
  • Colour temperature
    5700 ... 5700 K
  • Nominal operation time
    1 ... 1 h
  • Height/depth
    48 mm
  • Number of poles
    3
  • Connection type
    Plug-in connection

Podrobnosti o výrobci

  • Výrobce
    Eaton Electric Sp. z o.o.
  • Adresa
    80-299 Gdańsk Galaktyczna 30 Polska

Velkoobjemová balení

Typ obalu Skrzynia Karton Karton Skrzynia Karton Karton
Množství 1 kusů. 1 kusů. 20 kusů. 1 kusů. 1 kusů. 20 kusů.
Hmotnost (kg) 0,285 0,392 7,865 0,285 0,392 7,865
Objem (m3) - 0,002 0,052 - 0,002 0,052
Šířka (m) 0,140 0,175 0,365 0,140 0,175 0,365
Délka (m) 0,140 0,187 0,390 0,140 0,187 0,390
Hloubka (m) 0,050 0,065 0,365 0,050 0,065 0,365
