PORTAL LED Platform with twilight sensor 6W 440lm IP54 n/t NW opal rectangle white 199684/HV

local index:
OWJ571LENA
Catalog No:
199684/HV
EAN code:
5905963199684
Manufacturer: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Permissible operating temperature [°C]: from -20 to +35
Energy class: AND
Price:
44,85 €
gross / pcs.
(including VAT 23%)
Last lowest price: 44,85 € gross
Base price: 77,99 € gross -42%
Delivery in 3h
Accessible 43 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Characteristics:

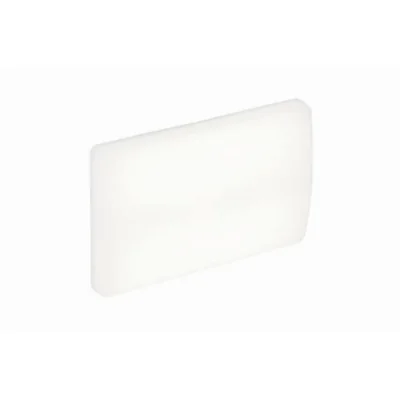

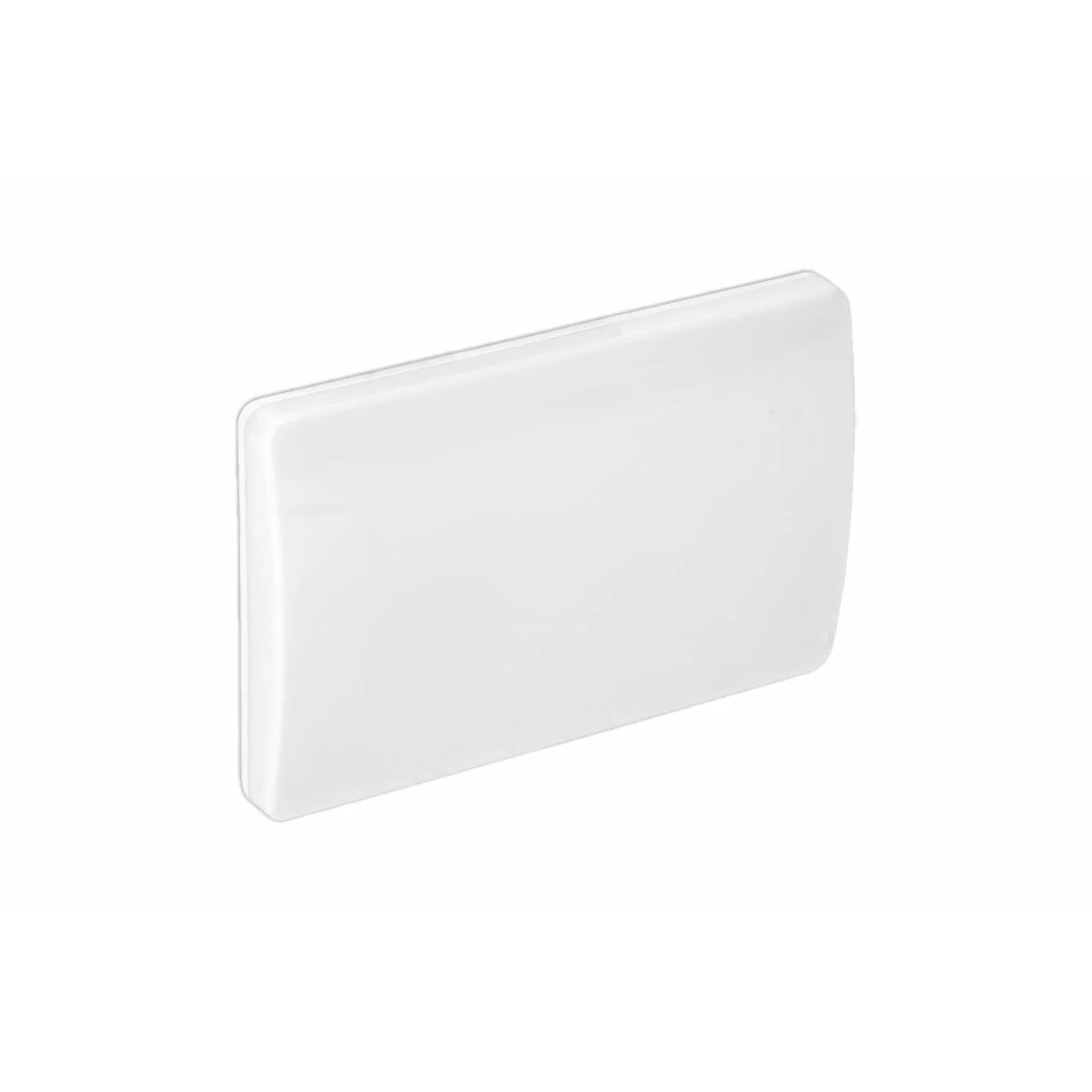

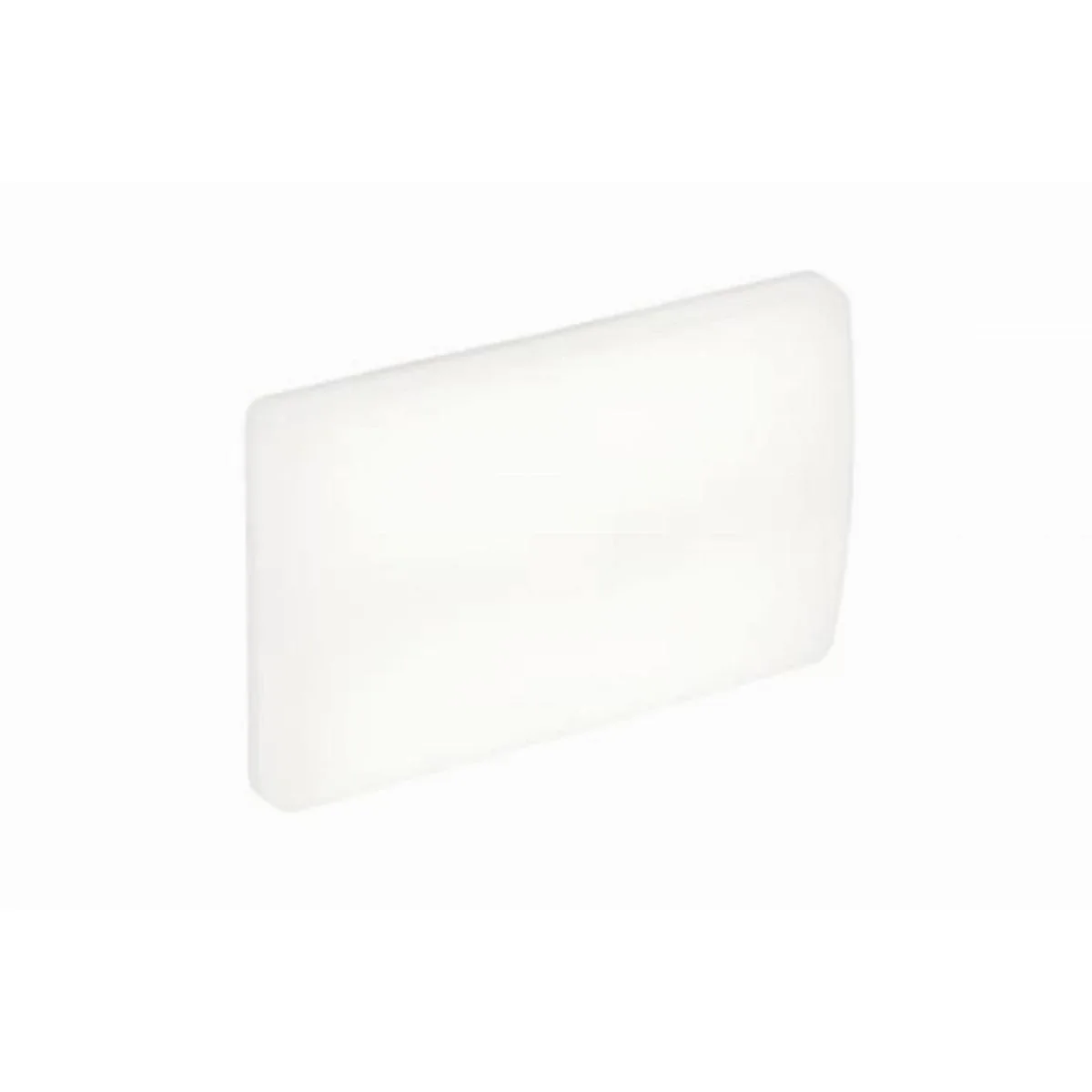

Surface-mounted, rectangular LED plafond with an integrated, energy-saving LED GO! It is characterized by high luminous efficiency and increased IP54 tightness. Its base, available in white, is made of plastic. The diffuser made of impact-resistant PC allows the luminaire to maintain high impact resistance IK08.

Application:
The surface-mounted luminaire for ceiling or wall mounting is intended for both indoor and outdoor use. with increased humidity, passageways, in staircases, as well as external as façade lighting.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Energy class
    AND
  • Shade
    PC
  • Material
    PP
  • Maximum power [W]
    2x18W
  • Rated voltage [V]
    230
  • Family
    LED PORTAL
  • luminous flux [lm]
    440
  • Ballast type
    EVG/VVG
  • Power factor [λ]
    0.53
  • Color Temperature [K]
    4000
  • Permissible operating temperature [°C]
    from -20 to +35
  • Protection class
    AND
  • Color
    White
  • Power [W]
    6
  • Installation
    Surface-mounted
  • Mechanical resistance
    IK08
  • Level of security
    IP54
  • Handle
    2G11
  • Dimensions [mm]
    280x185x55
  • Lampshade type
    Opal
  • cri (ra)
    >80

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Housing colour
    White
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Rated life time L70/B50 at 25 °C
    50000 h
  • Impact strength
    IK08
  • Suitable for emergency lighting
    No
  • With light sensor
    Yes
  • Rated luminous flux according to IEC 62722-2-1
    280 lm
  • Luminaire efficacy
    45 lm/W
  • Width
    185 mm
  • Length
    280 mm
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • With light source
    Yes
  • Housing material
    Plastic
  • Material cover
    Plastic, opal
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Degree of protection (IP)
    IP54
  • Protection class
    I
  • With movement sensor
    No
  • Max. system power
    6 W
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.53
  • Height/depth
    55 mm
