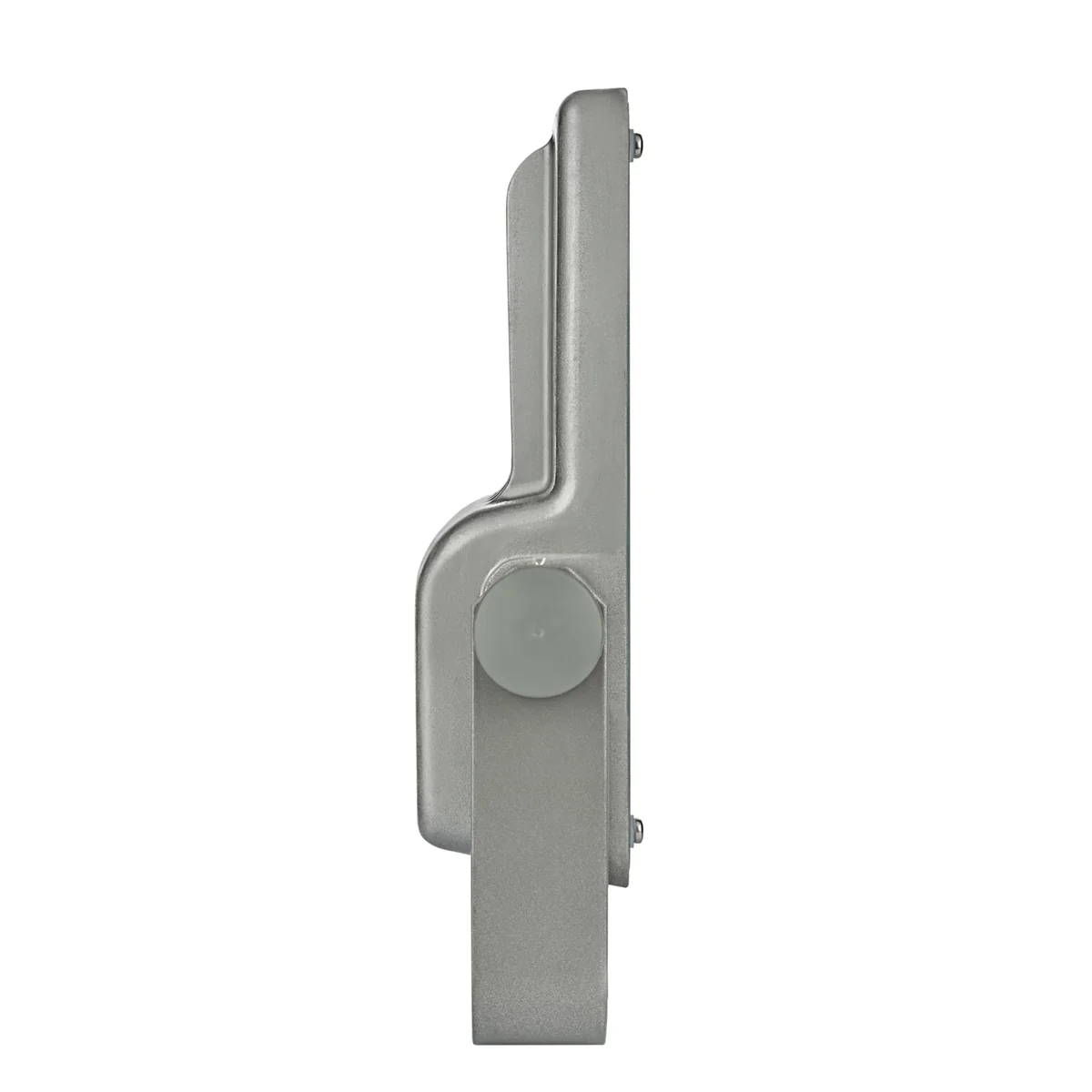

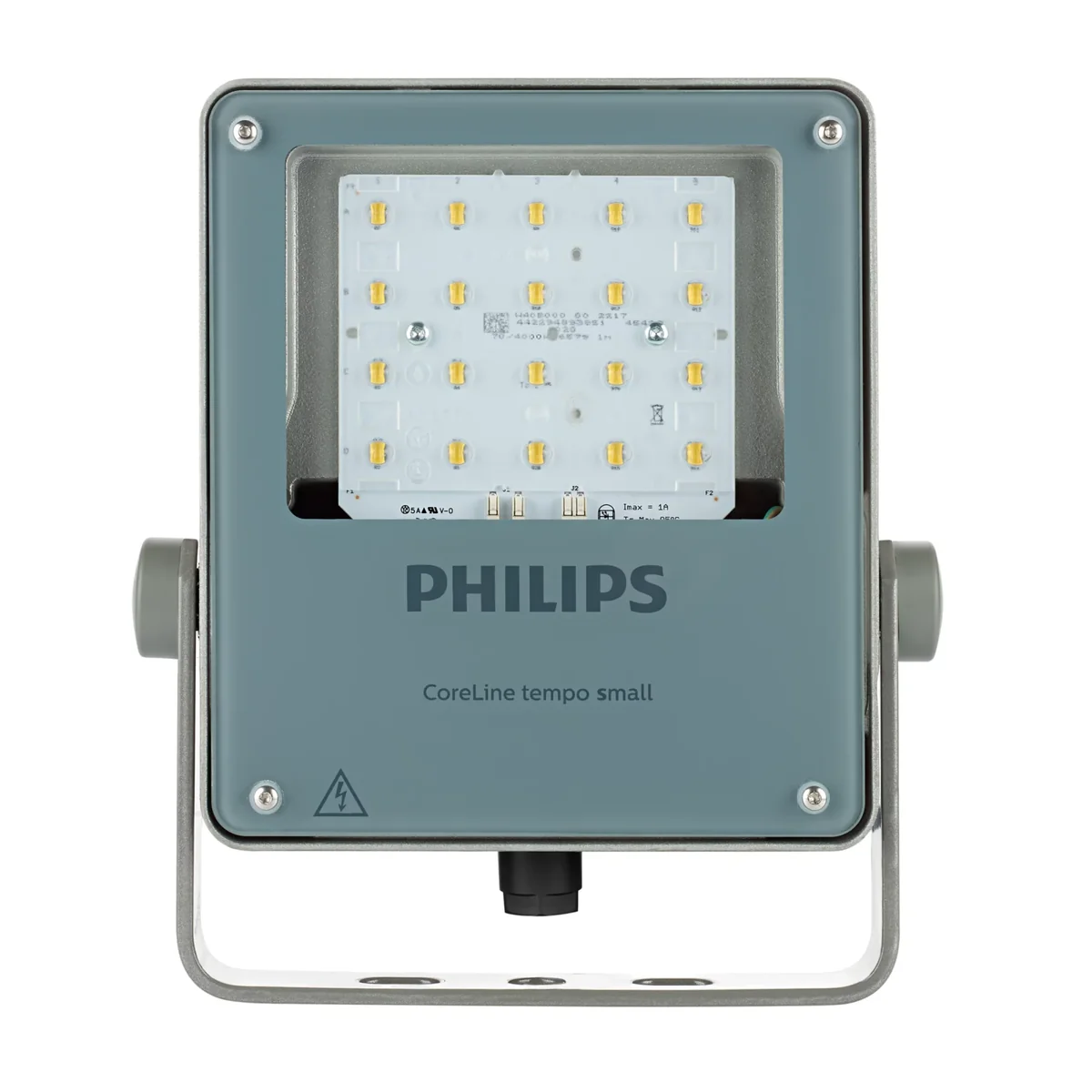

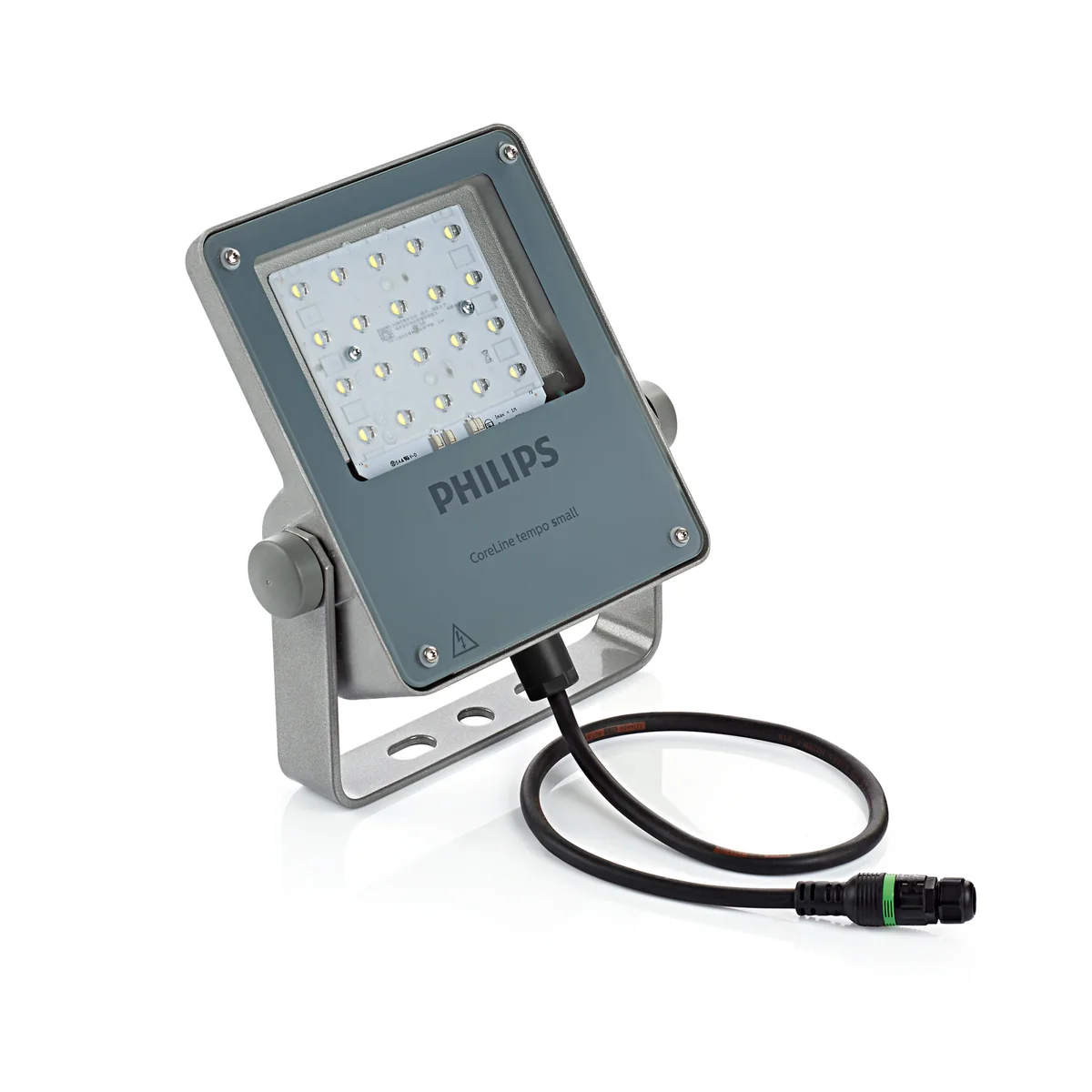

Philips Coreline BVP111 floodlight 31W 4437lm 4000K LED51-4S/740 OFA52 5-year warranty 912300060466

local index:
OZC040FARE
Catalog number:
912300060466
EAN code:
8720169556799
Manufacturer: PHILIPS - FAREL
Price:
948,33 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Technical data

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    Yes
  • Suitable for clamp-mounting
    No
  • Adjustability
    Swivelling
  • With light sensor
    No
  • With light source
    Yes
  • Lamp holder
    None
  • Surface protection
    Powder coating
  • Material cover
    Glass transparent
  • Voltage type
    AC
  • Type of control gear
    LED operating device current-controlled
  • Exchangeable control gear
    Yes
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Reflector
    None
  • Light sharing
    Asymmetric
  • Light outlet
    Direct
  • Rated life time L80/B10 at 25 °C
    75000 h
  • Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)
    10 %
  • Degree of protection (IP)
    IP66
  • Protection class
    I
  • Max. system power
    31 W
  • Colour temperature
    4000 ... 4000 K
  • Luminous flux
    5100 ... 5100 lm
  • Luminous intensity
    861 cd
  • Flickering value Pst LM
    0.06
  • Luminous flux adjustable
    No
  • Stroboscope effect value SVM
    0.09
  • Height/depth
    64 mm
  • Type of wiring
    Ending
  • Conductor cross section
    1.5 mm²
  • Connection type
    Insulation displacement connector
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    30
  • Emergency power supply integrated
    No
  • Luminaire efficacy
    142 lm/W
  • Suitable for workplace according to EN 12464-1
    Yes
  • IFTTT support available
    No
  • Unified Glare Ratio (UGR)
    0
  • Compatible with Google Assistant
    No
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    Yes
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    14
  • Housing material
    Aluminium
  • Housing colour
    Grey
  • Surface brushed
    Yes
  • Nominal voltage
    220 ... 240 V
  • With control gear
    Yes
  • Ściemniacz zależny od statecznika
    No
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Wide beam 41-80°
  • Total harmonic distortion
    2
  • Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
    96 %
  • Constant light output (CLO)
    No
  • Impact strength
    IK08
  • Rated ambient temperature according to IEC 62722-2-1
    -40 ... 45 °C
  • Colour of light
    White
  • Colour rendering index CRI
    70-79
  • Rated luminous flux according to IEC 62722-2-1
    4437 lm
  • Power factor
    0.9
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No

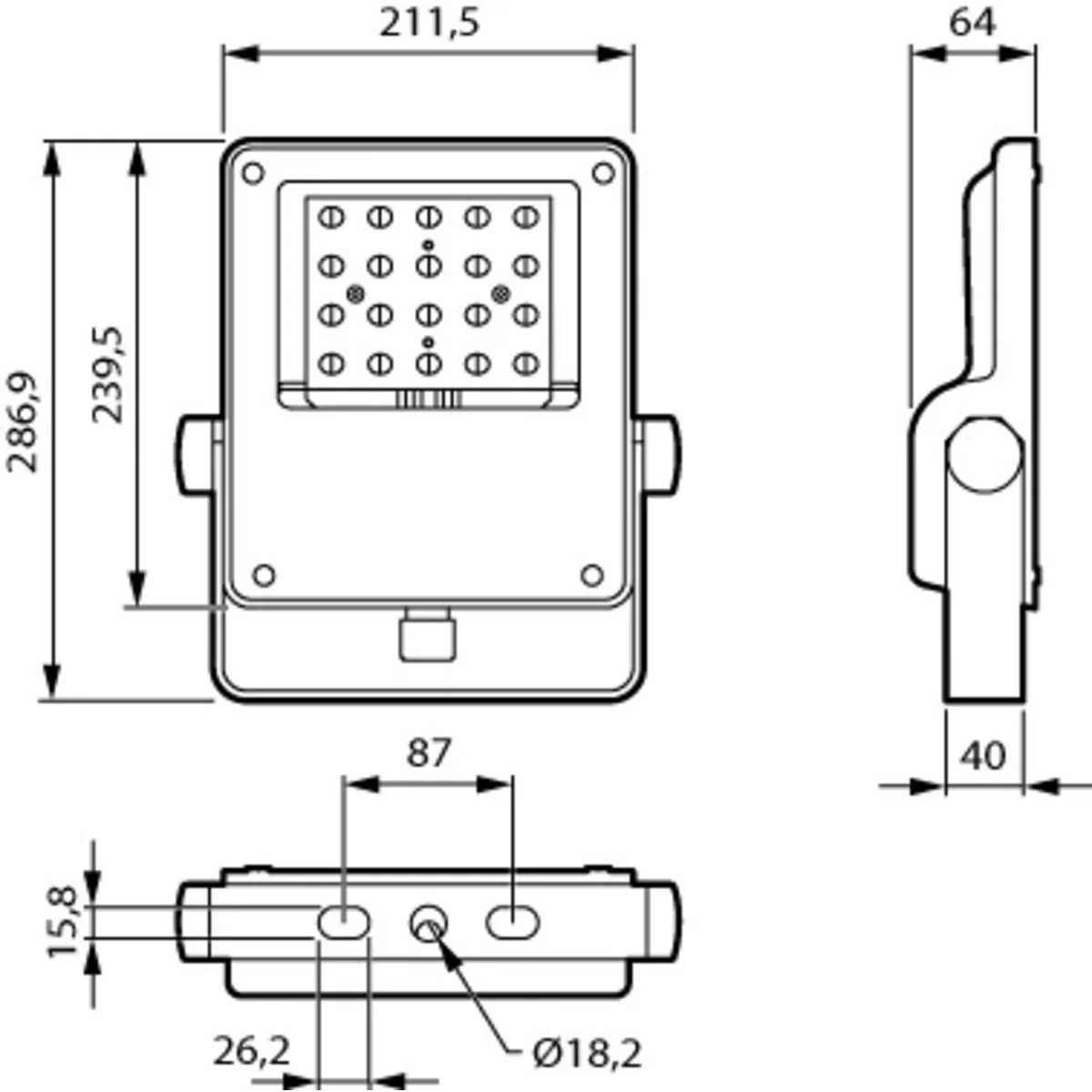

  • Width
    211.5 mm
  • Length
    286.9 mm
  • Number of poles
    3
  • Connectable conductor cross section
    7 ... 14 mm²
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    51
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Photobiological safety according to EN 62471
    RG1
  • Covering of the luminaire with thermally insulating material possible
    No
  • Colour consistency (McAdam ellipse)
    SDCM3
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

Bulk packaging

A kind of package Paczka Karton Paleta
Quantity 1 pcs. 1 pcs. 88 pcs.
Weight (kg) 2,700 2,700 240,000
Width (m) - 0,302 0,800
Length (m) - 0,305 1,200
Depth (m) - 0,076 0,850
