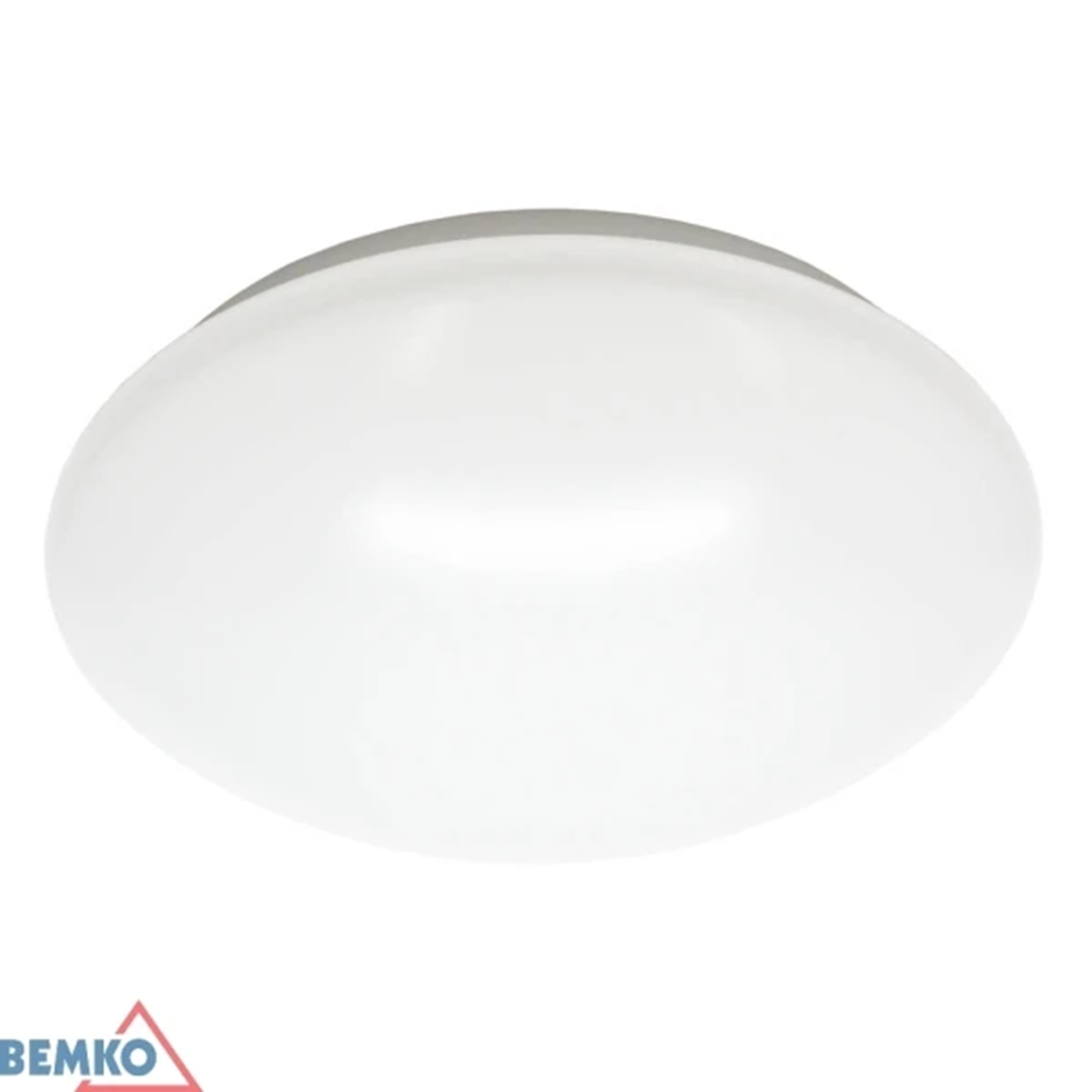

The plafond is equipped with an integrated light source - 160 SMD diodes and a microwave motion sensor that sends and receives high-frequency electromagnetic waves (5.8MHz). If an object appears in the detection field, the lighting is automatically turned on and remains on as long as the motion sensor detects the presence (movement of the object).
The installed sensor reacts to the movement of an object behind doors, windows and even thin walls.

It has three operating modes:

Eye protection mode - The luminaire slowly brightens up and goes out without causing glare. Also applies to the other two modes
Half-shadow mode - The luminaire does not turn off completely, but only reduces the power to about 10% until motion is detected again
4h delayed control mode - The luminaire is on continuously for 4 hours, then goes into standby mode

Light color [K]

3500-4800 (natural)
Housing material

steel
Rated voltage [V]

230
Level of security

IP44
lifetime [h]

30000
Color Temperature [K]

4000

sensor

Microwave
Power [W]

12
Family

PAUL
luminous flux [lm]

1000
Degree of mechanical protection

IK08
Lampshade material

PMMA

Other technical data

Suitable for suspended mounting

Yes
With light source

Yes
Housing colour

White
Voltage type

AC
Type of control gear

Electronic transformer
Degree of protection (IP)

IP44
Protection class

I
With light sensor

Yes
Rated luminous flux according to IEC 62722-2-1

900 lm
Colour rendering index CRI

80-89
Power factor

0.9
Outer diameter

225 mm

Lamp type

LED not exchangeable
Housing material

Steel
Material cover

Plastic, opal
Nominal voltage

230 ... 230 V
Beam angle

Extreme wide beam >80°
Impact strength

IK08
With movement sensor

Yes
Max. system power

12 W
Colour temperature

4000 ... 4000 K
Luminaire efficacy

75 lm/W
Height/depth

90 mm
Connection type

Push-in clamp

A kind of package	Sztuka	Karton	Paleta
Quantity	1 pcs.	6 pcs.	120 pcs.
Weight (kg)	0,670	4,020	80,400
Width (m)	0,800	-	0,800
Length (m)	1,200	-	1,200
