OWAL SLIM LED luminaire, LED, 5W, opal shade, white base, 24V, IK07, IP44 D.3165-BN-5W/24V

Lokaler Index:
OWJ003PAWB
Katalognummer:
D.3165-BN-5W/24V
EAN-Code:
5902983335344

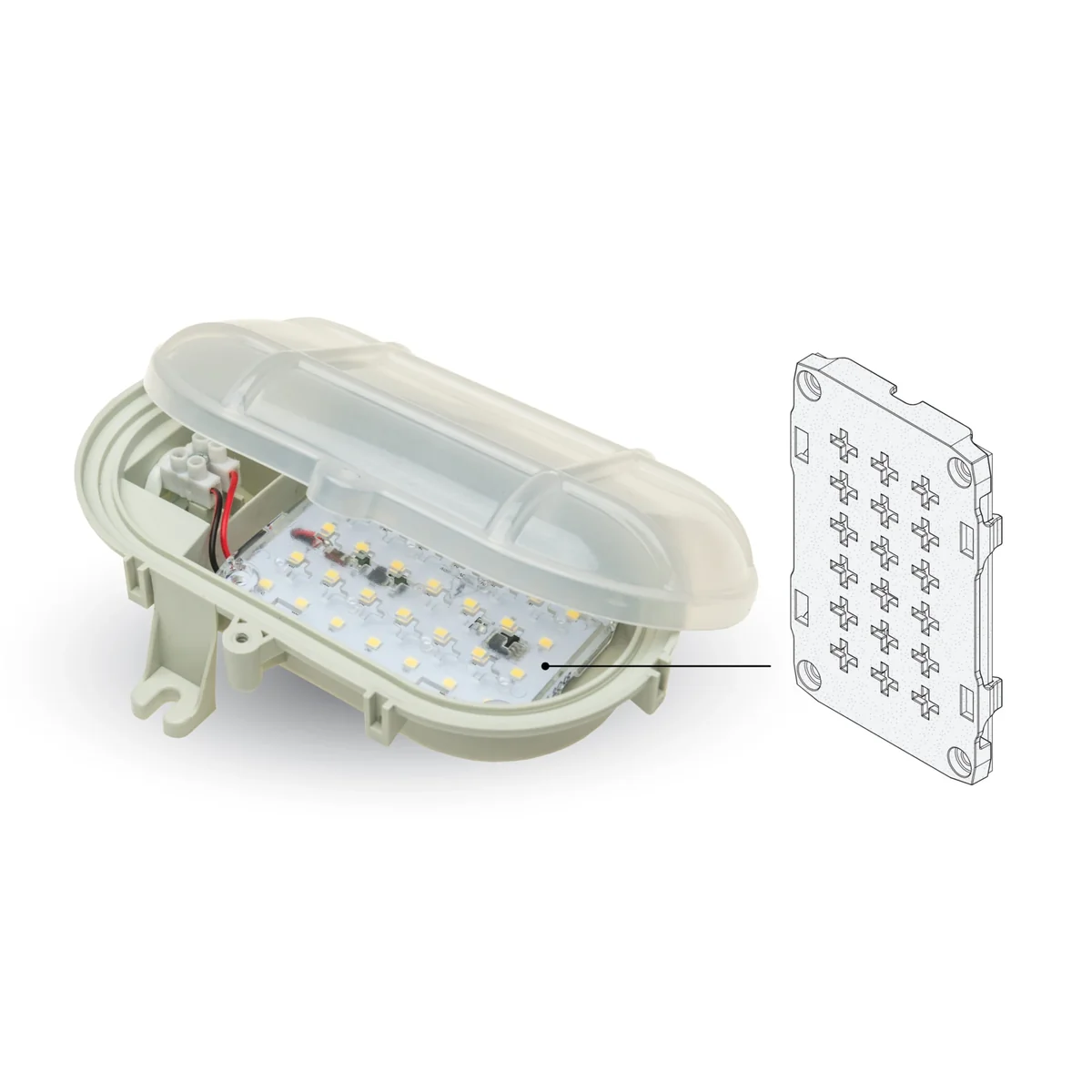

OWAL SLIM LED luminaire, LED, 5W, opal shade, white base, 24V, IK07, IP44
OWAL SLIM LED luminaire, LED, 5W, opal shade, white base, 24V, IK07, IP44

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: PAWBOL
Preis:
44,30 zł
gross / stk.
(inklusive MwSt 23%)
2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Technische Daten Hersteller-Details Großpackungen

Technische Daten

Weitere technische Daten

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Lamp holder
    Other
  • Surface protection housing
    Untreated
  • Material cover
    Plastic, structured
  • Voltage type
    AC
  • Type of control gear
    Not required
  • Exchangeable control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Light outlet
    Indirect
  • Degree of protection (NEMA)
    Other
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    -5 ... 40 °C
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    None
  • Max. system power
    5 W
  • Colour temperature
    4000 ... 4000 K
  • Constant light output (CLO)
    No
  • Height/depth
    56 mm
  • Outer diameter
    179 mm
  • Built-in width
    0 mm
  • Built-in diameter
    0 mm
  • Connection type
    Screwed terminal
  • Colour of light adjustable
    No
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    Yes
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    1
  • Housing material
    Plastic
  • Housing colour
    Grey
  • Type of grid
    Other
  • Nominal voltage
    24 ... 24 V
  • With control gear
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    None
  • Beam angle
    Open beam/diffuse
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    F
  • Impact strength
    IK08
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • With air slots
    No
  • Suitable for lamp power
    5 ... 5 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Width
    125 mm
  • Length
    179 mm
  • Built-in length
    0 mm
  • Built-in height/depth
    0 mm
  • Type of wiring
    Ending
  • Photobiological safety according to EN 62471
    Other
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Hersteller-Details

  • Hersteller
    PAWBOL Sp. z o.o.
  • Adresse
    32-640 Zator Władysława Grabskiego 29 Polska
  • E-Mail
    firma@pawbol.pl

Großpackungen

Eine Art Paket Bez opakowania
Menge 1 stk.
Gewicht (kg) 0,383
Breite (m) 0,115
Länge (m) 0,179
Tiefe (m) 0,056
