OVAL LED EVO Luminaire 5W 620lm 4000K IP44 PRM white 911170

local index:
OZF048LENA
Catalog No:
911170
EAN code:
5905963911170
Manufacturer: LENA LIGHTING
Light color [K]: 3500-4800 (natural)
Permissible operating temperature [°C]: from 0 to +25
Energy class: A+
Price:
13,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 48 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

Characteristics:

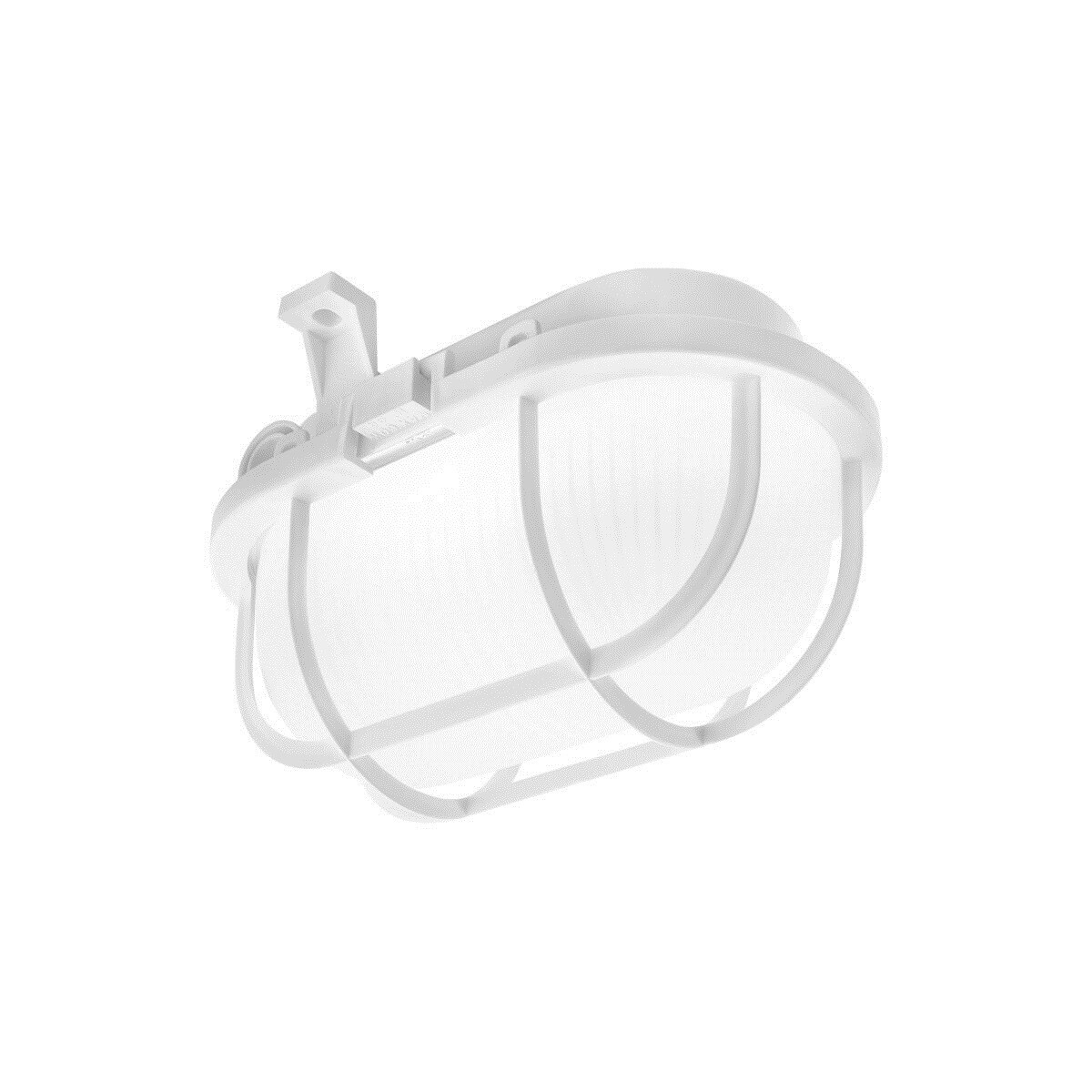

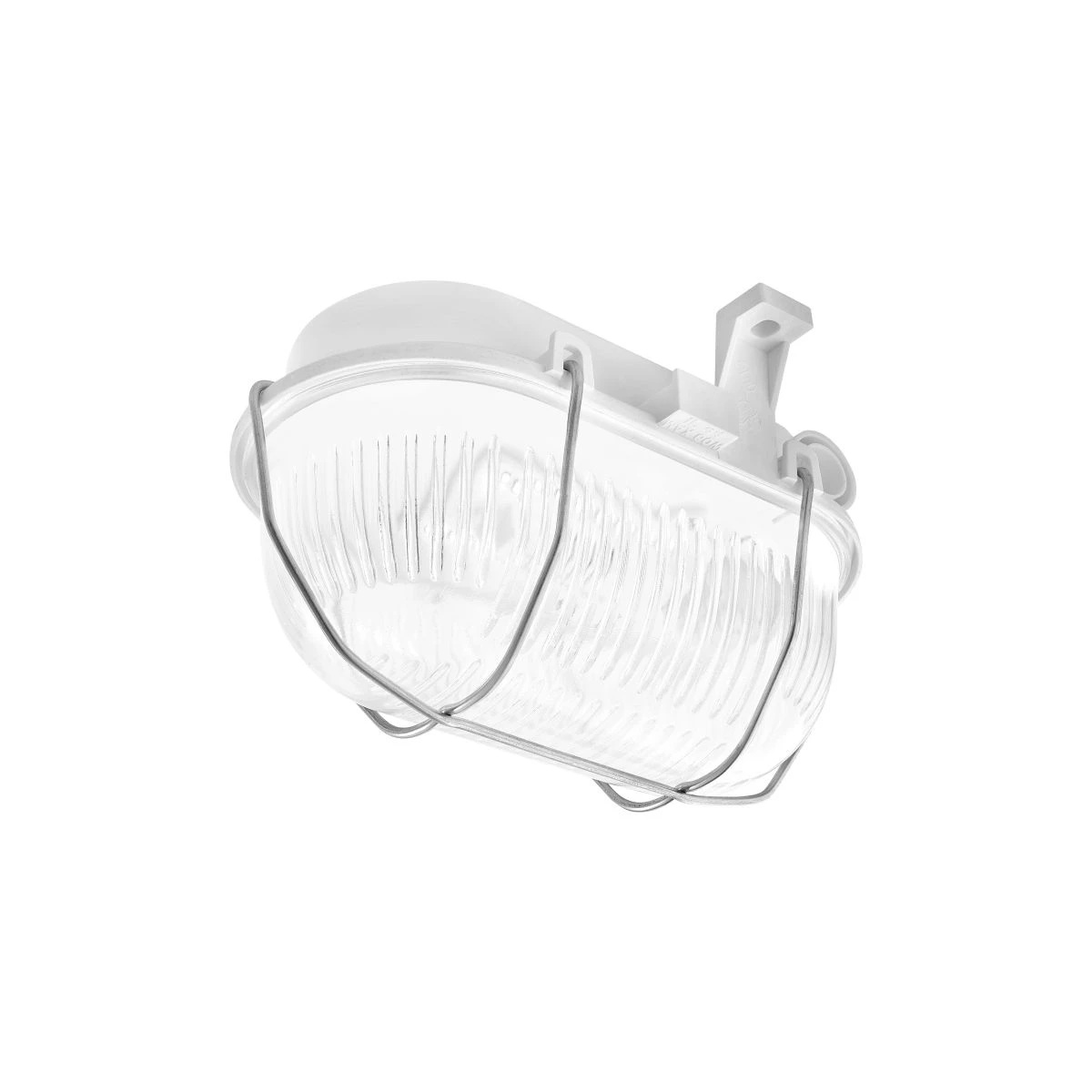

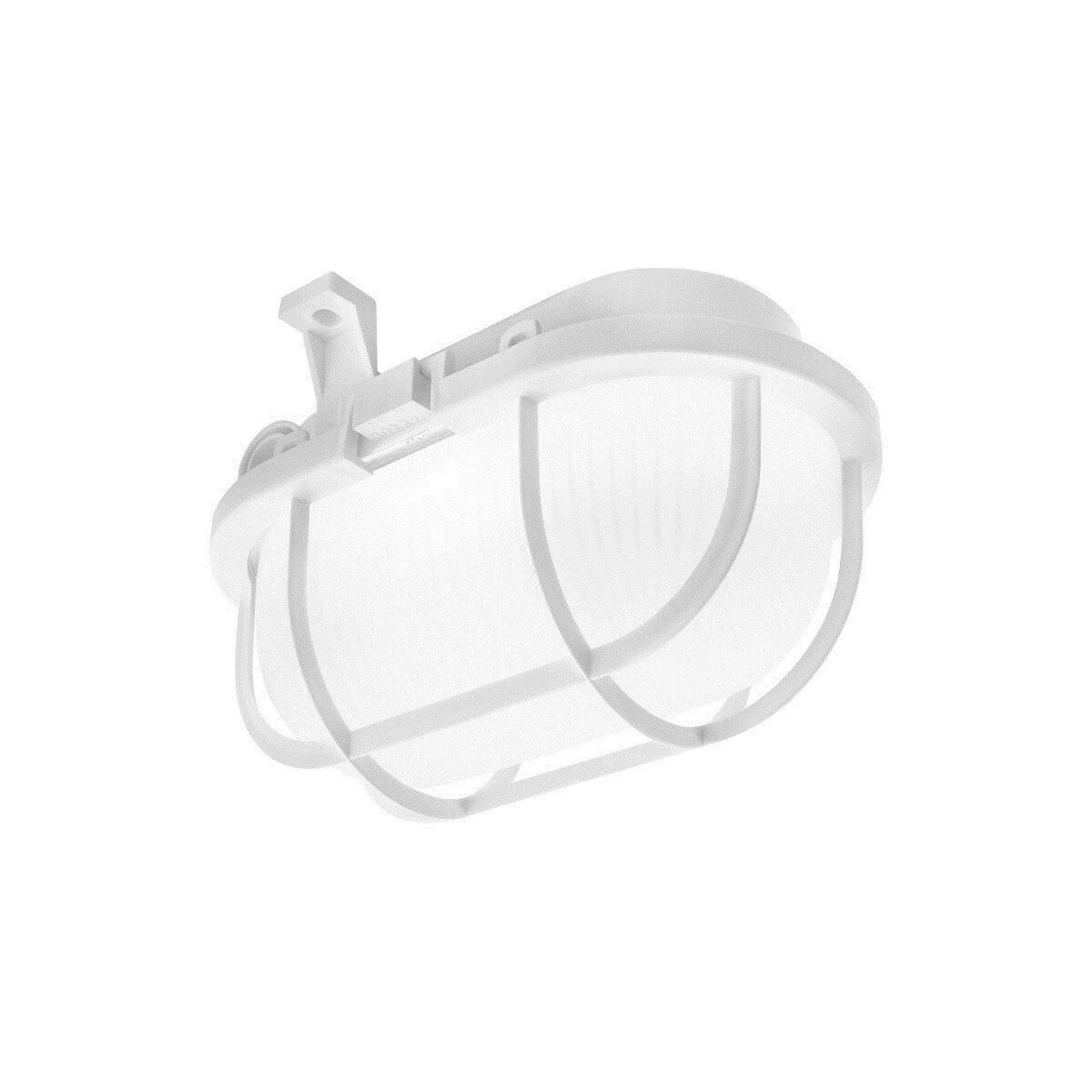

Surface-mounted, oval LED channel luminaire with an integrated, energy-saving LED GO! panel. The base is made of polypropylene and the lampshade is made of glass.

Application:
The surface-mounted luminaire for ceiling or wall mounting is intended for both outdoor use as industrial facade lighting and parking lot lighting, as well as indoor use in rooms with high humidity, in passageways and staircases as well as in sewers and basement rooms.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Energy class
    A+
  • Shade
    glass
  • Material
    PP
  • Installation
    Surface-mounted
  • Family
    OVAL LED EVO
  • Level of security
    IP44
  • Type
    Metal fence
  • Mounting dimensions
    110
  • Lampshade type
    Prismatic
  • cri (ra)
    >80
  • Permissible operating temperature [°C]
    from 0 to +25
  • Protection class
    AND
  • Color
    White
  • Power [W]
    5
  • Rated voltage [V]
    230
  • Mounting method
    suspended
  • luminous flux [lm]
    620
  • Dimensions [mm]
    170x125x115
  • Power factor [λ]
    0.99
  • Color Temperature [K]
    4000

Other technical data

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Lamp type
    LED not exchangeable
  • Material cover
    Glass transparent
  • Type of control gear
    LED operating device current-controlled
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • No dim function
    Yes
  • Degree of protection (IP)
    IP44
  • Protection class
    II
  • With movement sensor
    No
  • Max. system power
    5 W
  • Colour temperature
    4000 ... 4000 K
  • Power factor
    0.99
  • Height/depth
    115 mm
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Housing material
    Plastic
  • Nominal voltage
    220 ... 240 V
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Ściemniacz zależny od statecznika
    No
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Impact strength
    IK06
  • Suitable for emergency lighting
    No
  • With light sensor
    No
  • Rated luminous flux according to IEC 62722-2-1
    620 lm
  • Luminaire efficacy
    102 lm/W
  • Width
    125 mm
  • Length
    170 mm
