el12 Lighting Light fixtures Indoor luminaires Plafonds

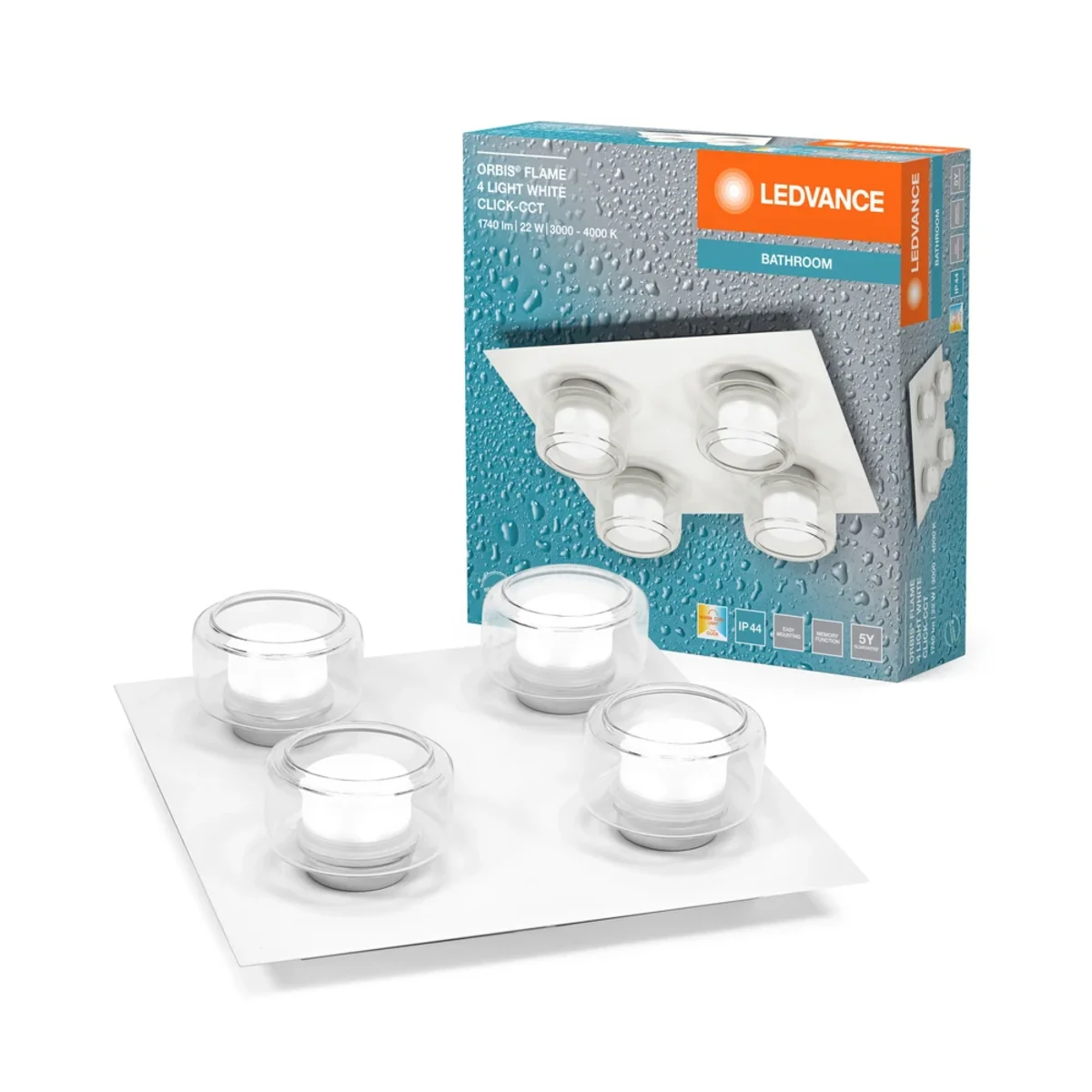

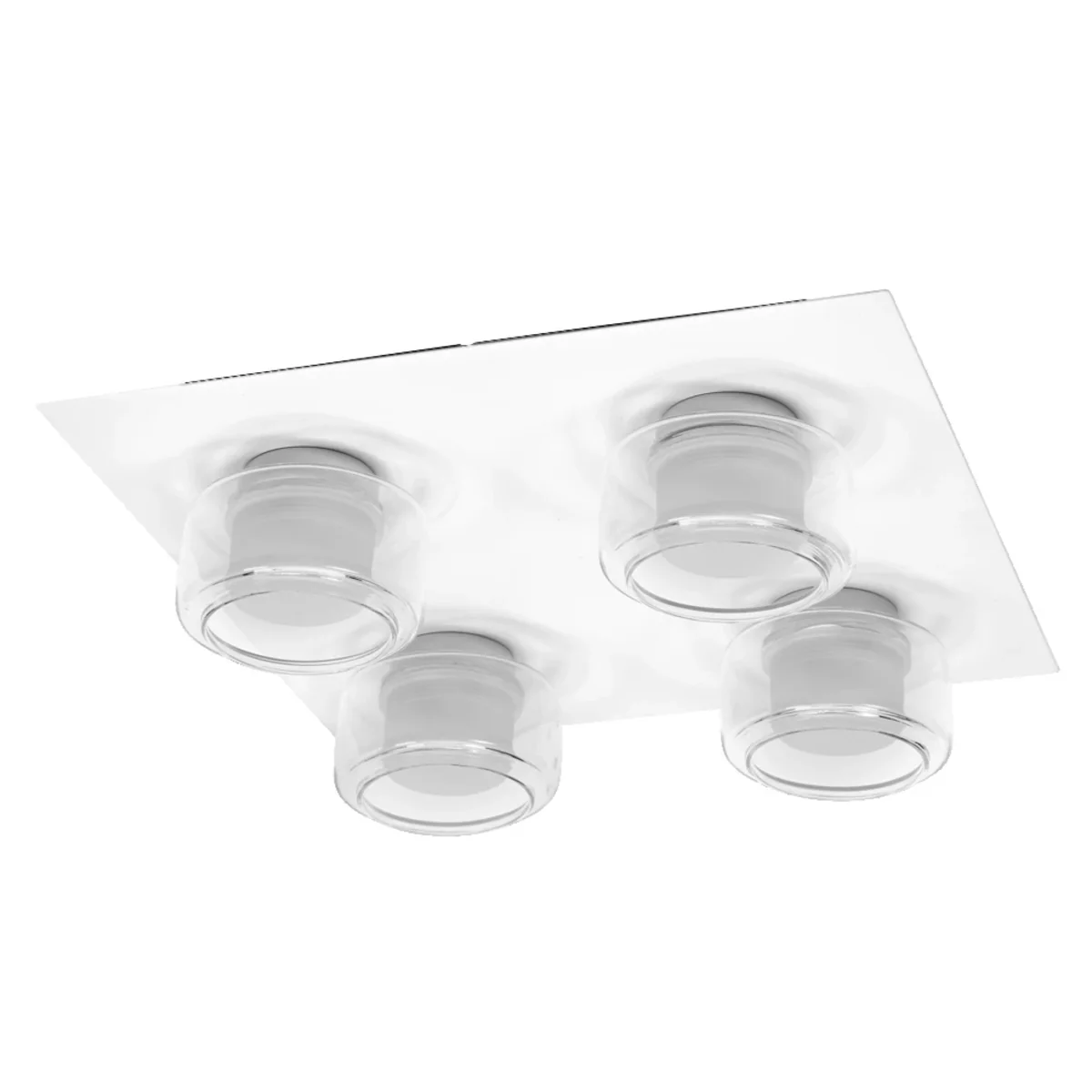

Orbis Flame 4X5.5W Click CCT IP44 White Fixture 4099854276156

Lokaler Index:
OWJ035LEDV
Katalognummer:
4099854276156
EAN-Code:
4099854276156
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture
Orbis Flame 4X5.5W Click CCT IP44 White Fixture

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: LEDVANCE
Preis:
345,00 zł
gross / stk.
(inklusive MwSt 23%)
Zugänglich 1 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Technische Daten

Weitere technische Daten

  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    Yes
  • Suitable for surface mounting
    Yes
  • Suitable for clamp-mounting
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    4
  • Material cover
    Plastic, opal
  • Voltage type
    AC
  • Nominal current
    138.000 ... 138.000 mA
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 1-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DSI
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light sharing
    Symmetric
  • Colour consistency (McAdam ellipse)
    SDCM6
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    G
  • Degree of protection (IP), front side
    IP44
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    387
  • Impact strength
    IK03
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Suitable for emergency lighting
    No
  • With movement sensor
    No
  • Covering of the luminaire with thermally insulating material possible
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Max. system power
    22 W
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Constant light output (CLO)
    No

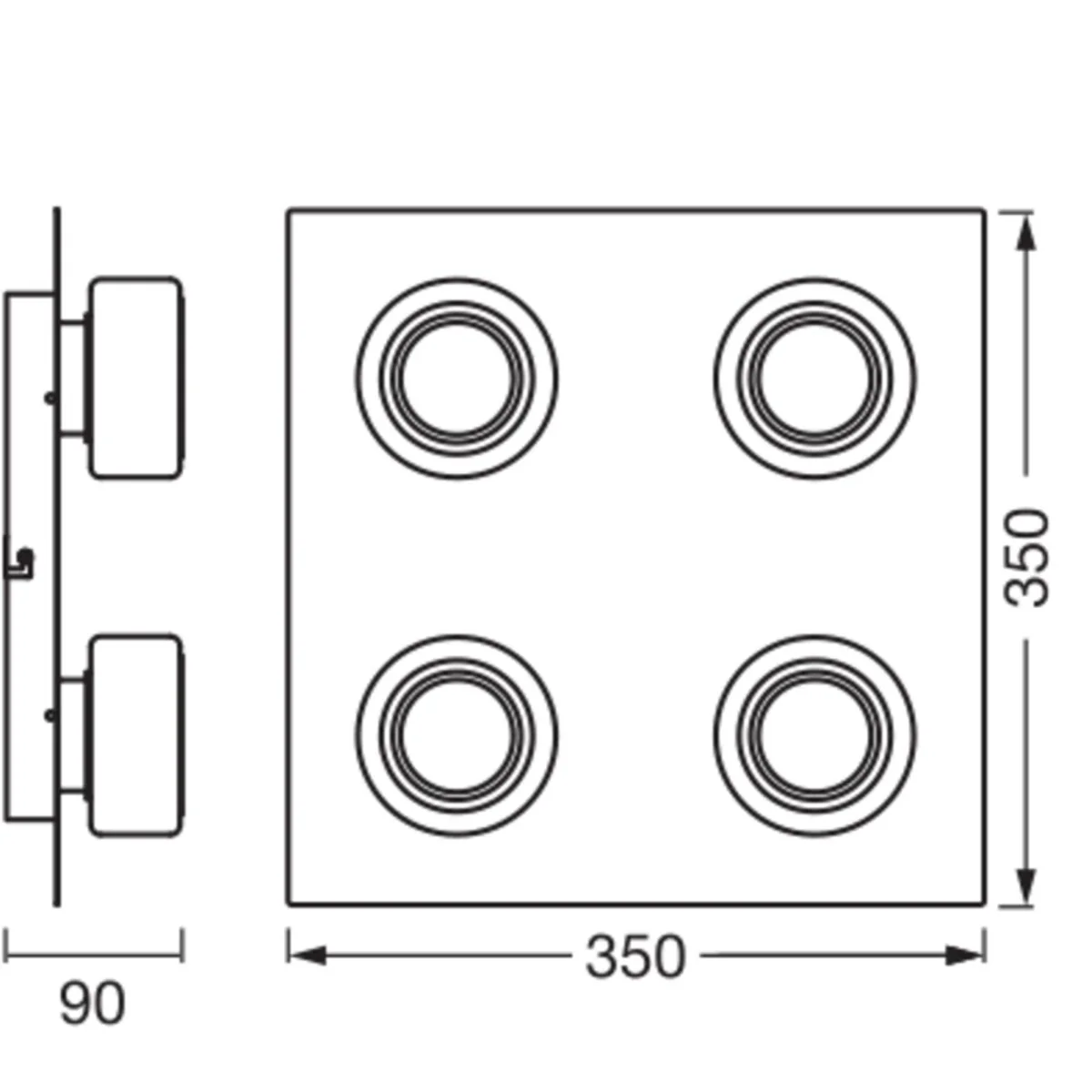

  • Height/depth
    90 mm
  • Type of wiring
    Ending
  • Współczynnik harmonicznych (THD)
    63 %
  • Photobiological safety according to EN 62471
    RG0
  • Luminous flux adjustable
    No
  • Operation by Bluetooth
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No
  • Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)
    No
  • Suitable for suspended mounting
    No
  • Suitable for built-in mounting
    No
  • Suitable for light line configuration
    No
  • Suitable for workplace according to EN 12464-1
    No
  • With light source
    Yes
  • Housing colour
    White
  • Type of grid
    Other
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Exchangeable control gear
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DMX
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Light distributor
    Diffuser lens/optic/panel
  • Beam angle
    Extreme wide beam >80°
  • Light outlet
    Direct
  • Rated life time L70/B50 at 25 °C
    30000 h
  • Maks. liczba opraw na wyłącznik nadprądowy C10
    242
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    387
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    -20 ... +40 °C
  • With switch
    No
  • With light sensor
    No
  • With air slots
    No
  • Skuteczność świetlna oprawy
    64 ... 64 lm/W
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    1400 ... 1400 lm
  • Colour temperature
    3000 ... 4000 K
  • Power factor
    0.5
  • Width
    350 mm
  • Length
    350 mm
  • Number of poles
    2
  • Connection type
    Push-in clamp
  • Colour of light adjustable
    Positions
  • Beam angle adjustable
    No
  • Compatible with Casambi
    No
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No

Hersteller-Details

  • Hersteller
    LEDVANCE GmbH
  • Adresse
    85748 Garching Parkring 29-33 Niemcy
  • E-Mail
    InfoPL@ledvance.com

Großpackungen

Eine Art Paket Skrzynia Karton
Menge 1 stk. 3 stk.
Gewicht (kg) 2,205 7,549
Volumen (m3) 0,018 0,063
Breite (m) 0,400 0,350
Länge (m) 0,110 0,420
Tiefe (m) 0,400 0,430
