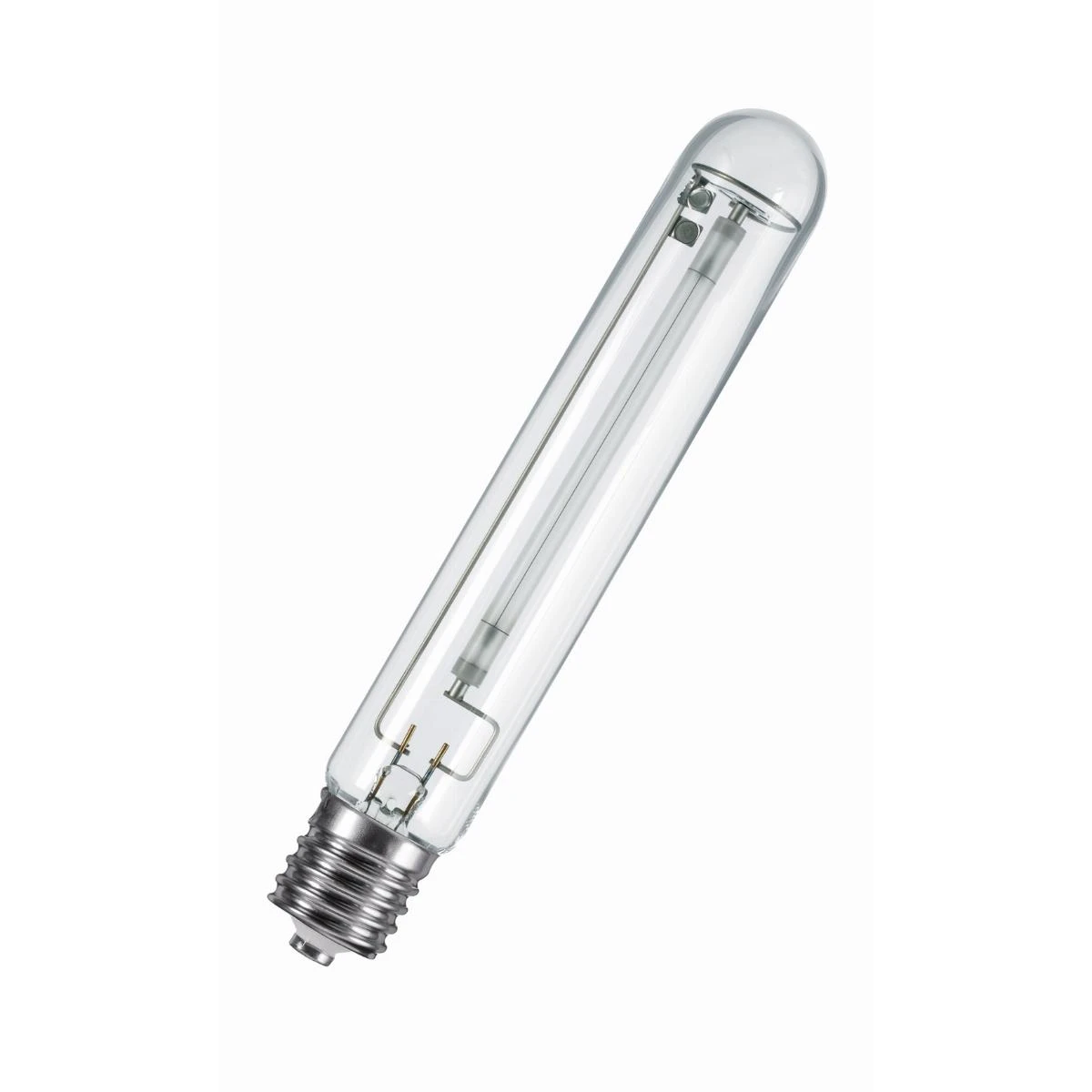

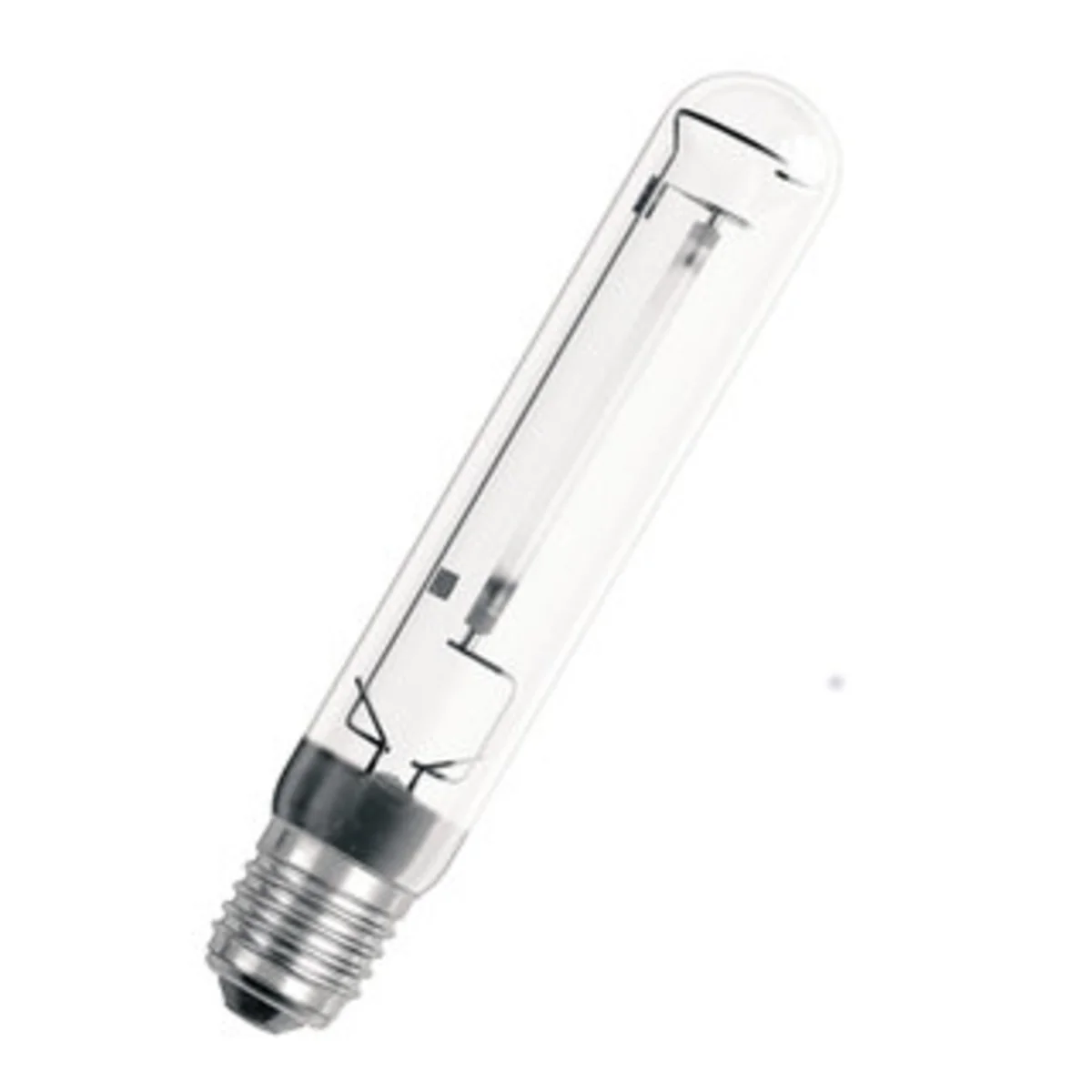

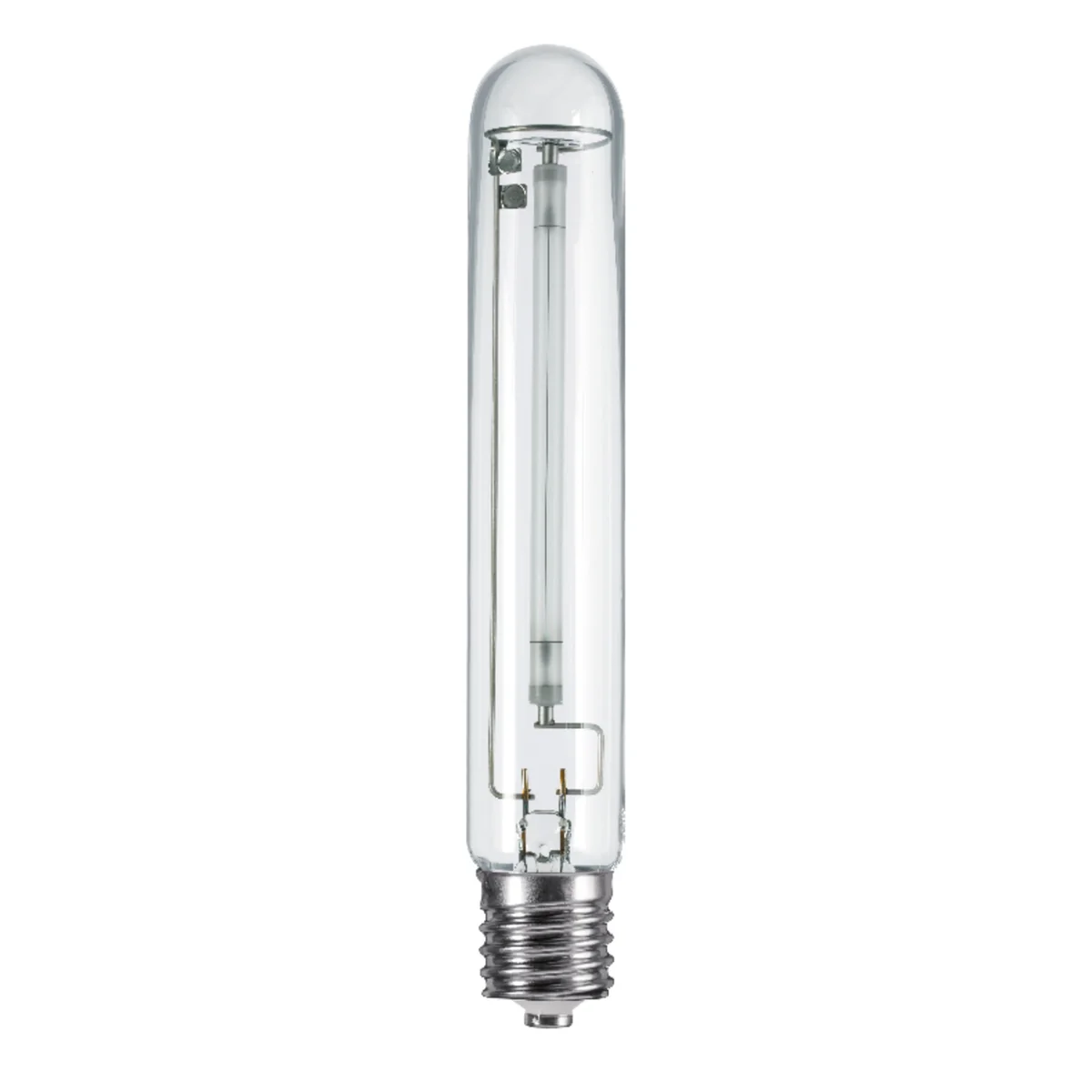

NAV T 100 SUPER 4Y 100W E40 sodium discharge bulb 4050300015743
local index:
CCS041LEDV
Catalog No:
4050300015743
EAN code:
4050300015743
Price:
21,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product benefits
- Long durability
- Very high luminous efficiency
- Very good lumen maintenance throughout lifecycle
- Up to 50% energy savings when replacing inefficient mercury lamps (HQL)
- Optimum energy efficiency with POWERTRONIC PTo 3DIM electronic ignition systems
- Dimmable in combination with conventional power supply systems and electronic power supply systems
Area of application
- Streets
- Outdoor lighting
- Industrial installations
- Intended for use in luminaires closed and open
- Outdoor applications - only in suitable luminaires
Product features
- < li>Lamp life factor: 95% after 16 000 hours of use
- Average life: up to 32,000 hours
- Lamp life factor: ≥ 80% after 16,000 burning hours (according to DIN 13201)
- ErP compliant with EU Directive 245/2009
Technical data
-
Light color [K]2000-3500 (warm)
-
LEDNO
-
Voltage [V]100
-
Rated current [A]1.2
-
Diameter [mm]47
-
HandleE40
-
Package width [mm]52
-
Package length [mm]260
-
PKWIU27.40.15
-
Length [mm]210
-
Power [W]100
-
Rated voltage [V]100
-
luminous flux [lm]10700
-
Durability [h]20000
-
lifetime [h]28000
-
Package weight [kg]0.165
-
Color Temperature [K]2000
Other technical data
-
Lamp power100.00 W
-
SocketE40
-
Colour rendering index CRI20-39
-
Lamp efficacy103 lm/W
-
External ballast requiredYes
-
Total length210.0 mm
-
Lighting for plantsNo
-
Energy efficiency classA+
-
Average nominal lifespan32000 h
-
Luminous flux10300 lm
-
Lamp shapeTube, single-ended
-
Colour temperature2000 K
-
External ignitor requiredYes
-
Mercury-freeNo
-
Diameter47.0 mm
-
Replacement for mercury vapour lampNo
-
Weighted energy consumption in 1000 hours110 kWh
-
Lamp designationOther
Manufacturer details
-
ManufacturerLEDVANCE GmbH
-
Address85748 Garching Parkring 29-33 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,110 | 0,121 | 2,262 |
| Volume (m3) | - | 0,001 | 0,010 |
| Width (m) | - | 0,050 | 0,170 |
| Length (m) | - | 0,050 | 0,220 |
| Depth (m) | - | 0,260 | 0,270 |
