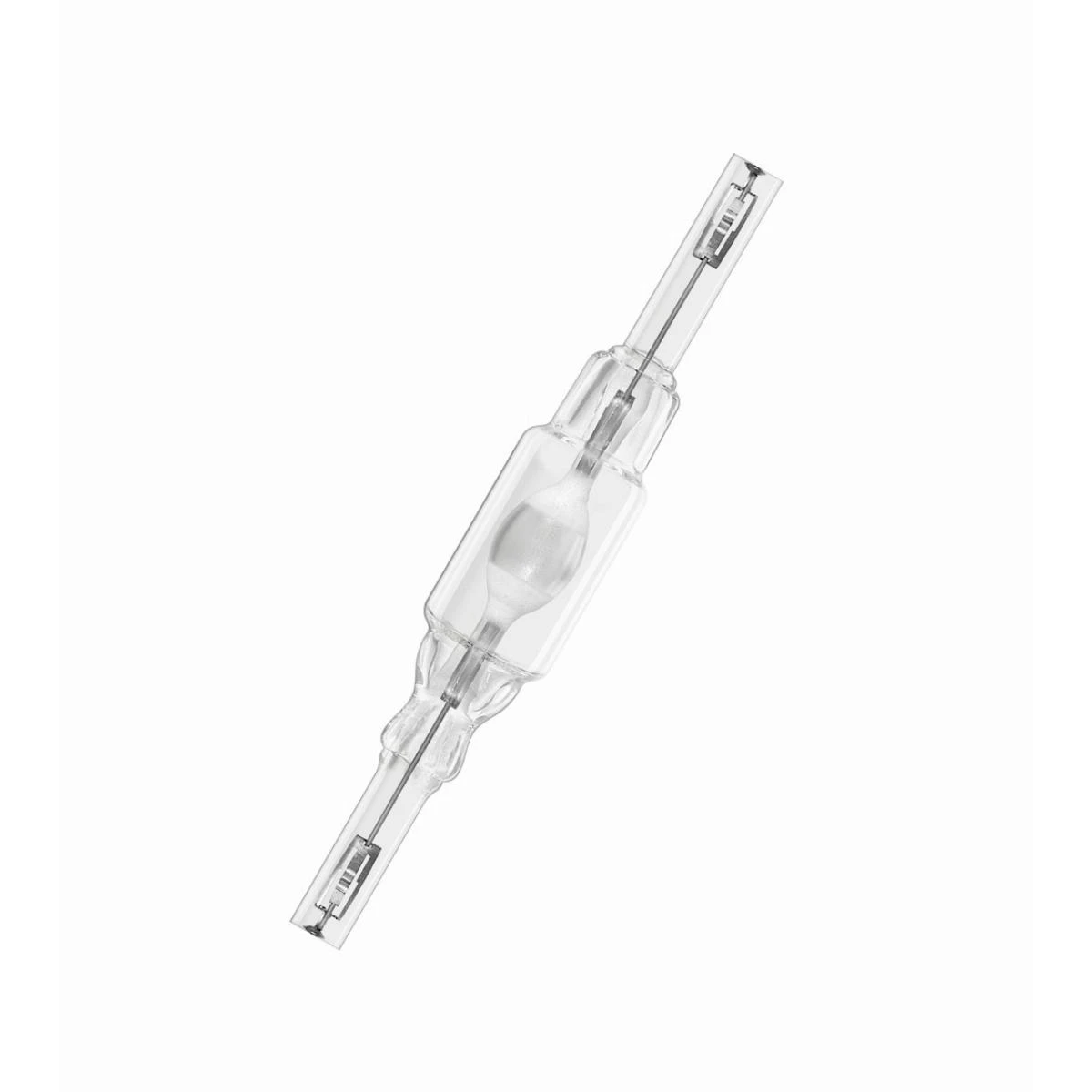

HQI TS EXCELLENCE NDL UVS 150W RX7S-24 discharge lamp 4008321678386

local index:
CCM146LEDV
Catalog No:
4008321678386
EAN code:
4008321678386
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Length [mm]: 135
LED: NO
Price:
16,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Out of stock
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Product benefits

  • High luminous efficiency
  • Róuniform light emission
  • Good to excellent color rendering
  • Long durability
  • Hot restart possible
  • UV values well below the maximum permitted thresholds according to EN 61167  ; thanks to the UV filter

Area of application

  • Shop interiors, shop windows
  • Shopping malls
  • Halls, receptions
  • Buildings, monuments, bridges
  • Museums, exhibitions
  • Exhibition halls and industrial fairs< /li>
  • Pedestrian zones, parks  public
  • Parks and gardens
  • Approved only for use in closed luminaires
  • Outdoor use - only in suitable luminaires

Product features

  • POWERSTAR quartz technology
  • Light colors: warm white (WDL), neutral white (NDL), cool daylight (CD)
  • Average durability: 12 000 hours

Technical data

  • Light color [K]
    3500-4800 (natural)
  • LED
    NO
  • Voltage [V]
    95
  • Rated current [A]
    1.8
  • Diameter [mm]
    23
  • Handle
    RX7s-24
  • Package width [mm]
    35
  • Package length [mm]
    141
  • PKWIU
    27.40.15
  • Length [mm]
    135
  • Power [W]
    150
  • Rated voltage [V]
    95
  • luminous flux [lm]
    12500
  • Durability [h]
    12000
  • lifetime [h]
    12000
  • Package weight [kg]
    0.036
  • Color Temperature [K]
    4200

Other technical data

  • Lamp power
    150.00 W
  • Luminous flux
    12500 lm
  • UV protection
    Yes
  • Colour temperature
    4200 K
  • Lamp efficacy
    83 lm/W
  • Material discharge tube
    Quartz
  • Diameter
    23.0 mm
  • External ignitor required
    Yes
  • Closed luminaire required
    Yes
  • Colour of light
    842
  • Lamp designation
    Other
  • Weighted energy consumption in 1000 hours
    165 kWh
  • Lamp voltage
    95 ... 95 V
  • Socket
    RX7s-24
  • Colour rendering index CRI
    80-89
  • Colour of light according to EN 12464-1
    Neutral white 3300-5300 K
  • Lamp shape
    Tube, double-ended
  • Burning position
    P45
  • Total length
    135.0 mm
  • External ballast required
    Yes
  • Sun tanning lamp
    No
  • Model
    Clear
  • Energy efficiency class
    A

Manufacturer details

  • Manufacturer
    LEDVANCE Sp z o.o
  • Address
    02-797 Warszawa Klimczaka 1 klatka E
  • Tax identification number
    1130104862
