Name: HB V 195W 840 90DEG IP66 EUE LEDV luminaire
Brand: LEDVANCE
SKU: OZC074LEDV
Price: 996.58 PLN
Availability: BackOrder

Suitable for wall mounting

No
With light source

Yes
Suitable for auxiliary lamp

No
Housing colour

Black
Nominal voltage

220 ... 240 V
Exchangeable control gear

No
With movement sensor

No
Dimmable

No
Dimming 1-10 V

No
Dimming DALI

No
Dimming DSI

No
Dimming phase cut-on

No
Dimming LineSwitch

No
Dimming mains voltage modulation

No
Dimming RF

No
Dimming Touch and Dim

No
Dimming with push-button

No
Light sharing

Symmetric
Energy efficiency class of the light source according to EU regulation 2019/2015

A
Colour consistency (McAdam ellipse)

SDCM5
Degree of protection (IP)

IP66
Protection class

I
Rated ambient temperature according to IEC 62722-2-1

-20 ... 50 °C
Filament test according to IEC 60695-2-11

650 °C - 30 s
Skuteczność świetlna oprawy

180 ... 180 lm/W
Colour of light

White
Colour rendering index CRI

80-89
Photobiological safety according to EN 62471

RG1
Constant light output (CLO)

No
Beam angle adjustable

No

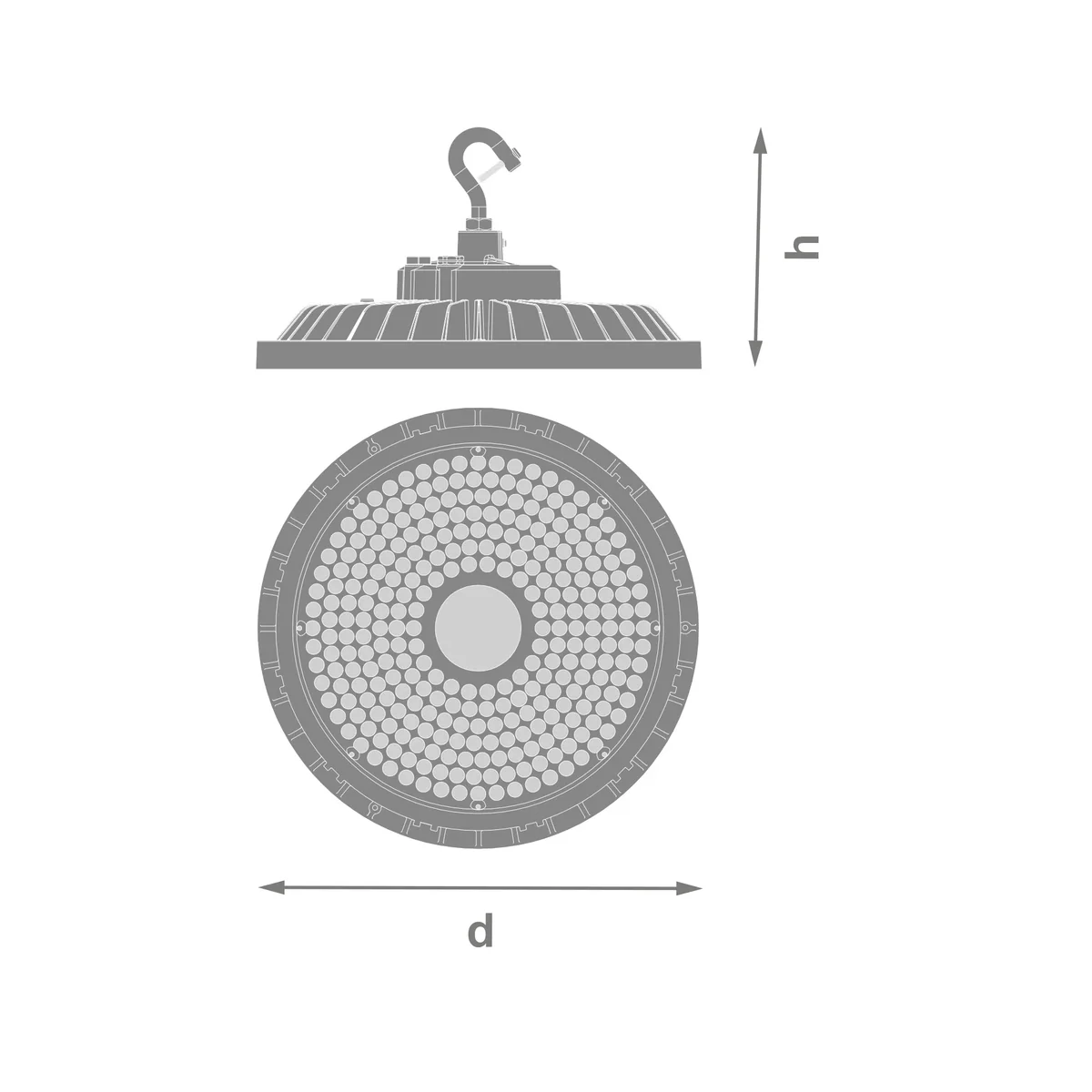

Height/depth

130 mm
Outer diameter

288 mm
Number of poles

3
Connection type

Other
Operation by Bluetooth

No
Max. number of luminaires per miniature circuit breaker C16 (MCB)

5
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C)

No

Lamp type

LED not exchangeable
Suitable for number of light sources

0
Housing material

Aluminium
Voltage type

AC
Nominal current

950 ... 0 mA
With control gear

Yes
With light sensor

No
Dimming 0-10 V

No
Dimming DALI-2

No
Dimming DMX

No
Dimming phase cut-off

No
Dimming potentiometer (integrated)

No
Dimming manufacturer's proprietary system

No
Dimming programmable

No
Dimming Sine Wave Reduction

No
Dimming Zigbee

No
Light distributor

None
Reflector

None
Beam angle

Extreme wide beam >80°
Rated life time L70/B50 at 25 °C

100000 h
Impact strength

IK10
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

Yes
Suitable for emergency lighting

No
Max. system power

195 W
Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1

35100 ... 35100 lm
Colour temperature

4000 ... 4000 K
Współczynnik harmonicznych (THD)

20 %
Power factor

0.95
Colour of light adjustable

No
Luminous flux adjustable

No
Length

288 mm
Type of wiring

Ending
Conductor cross section

1 mm²
With protective cover

Yes
Max. number of luminaires per miniature circuit breaker B16 (MCB)

5
Kuloodporność zgodnie z DIN 18032-3

No

HB V 195W 840 90DEG IP66 EUE LEDV luminaire 4099854327650
