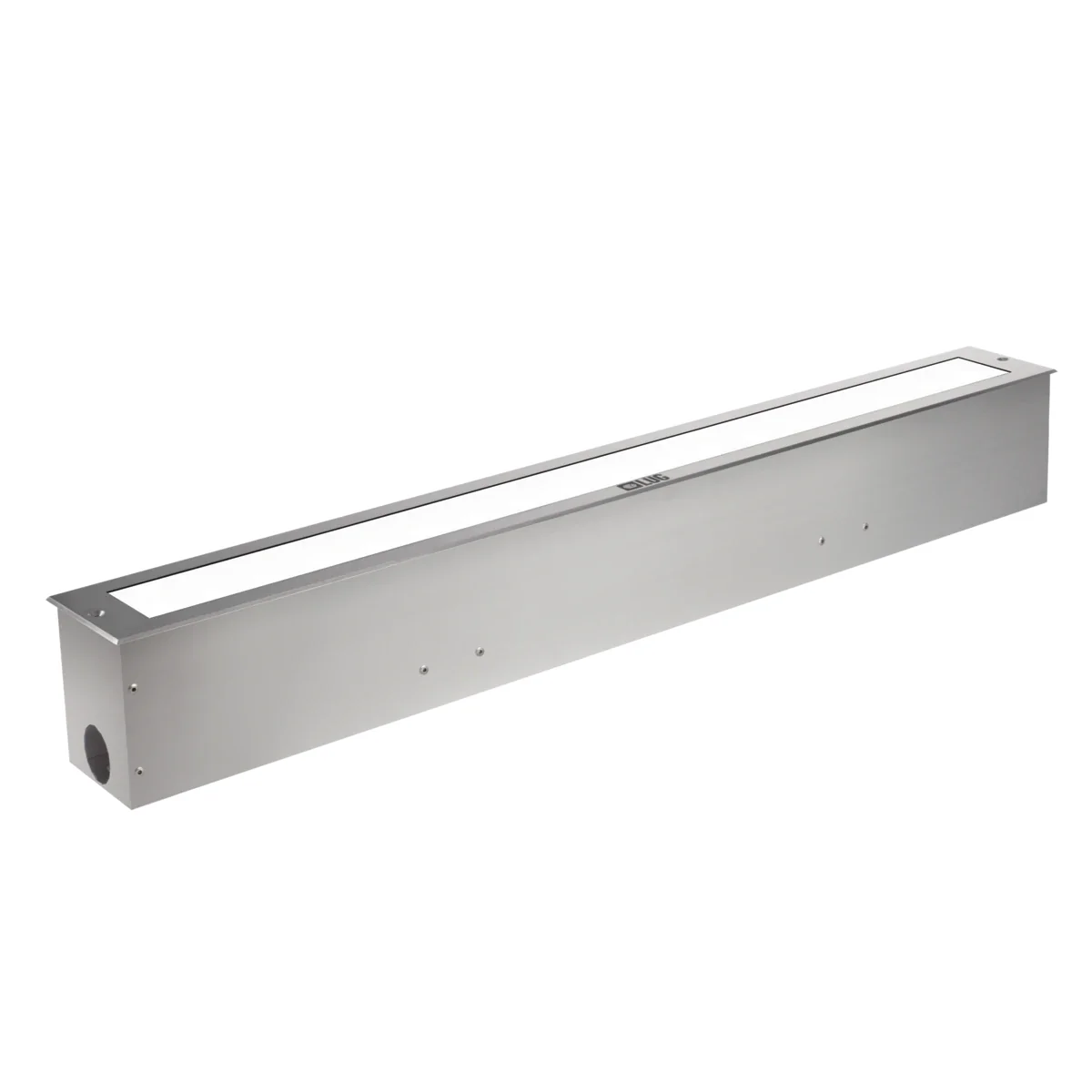

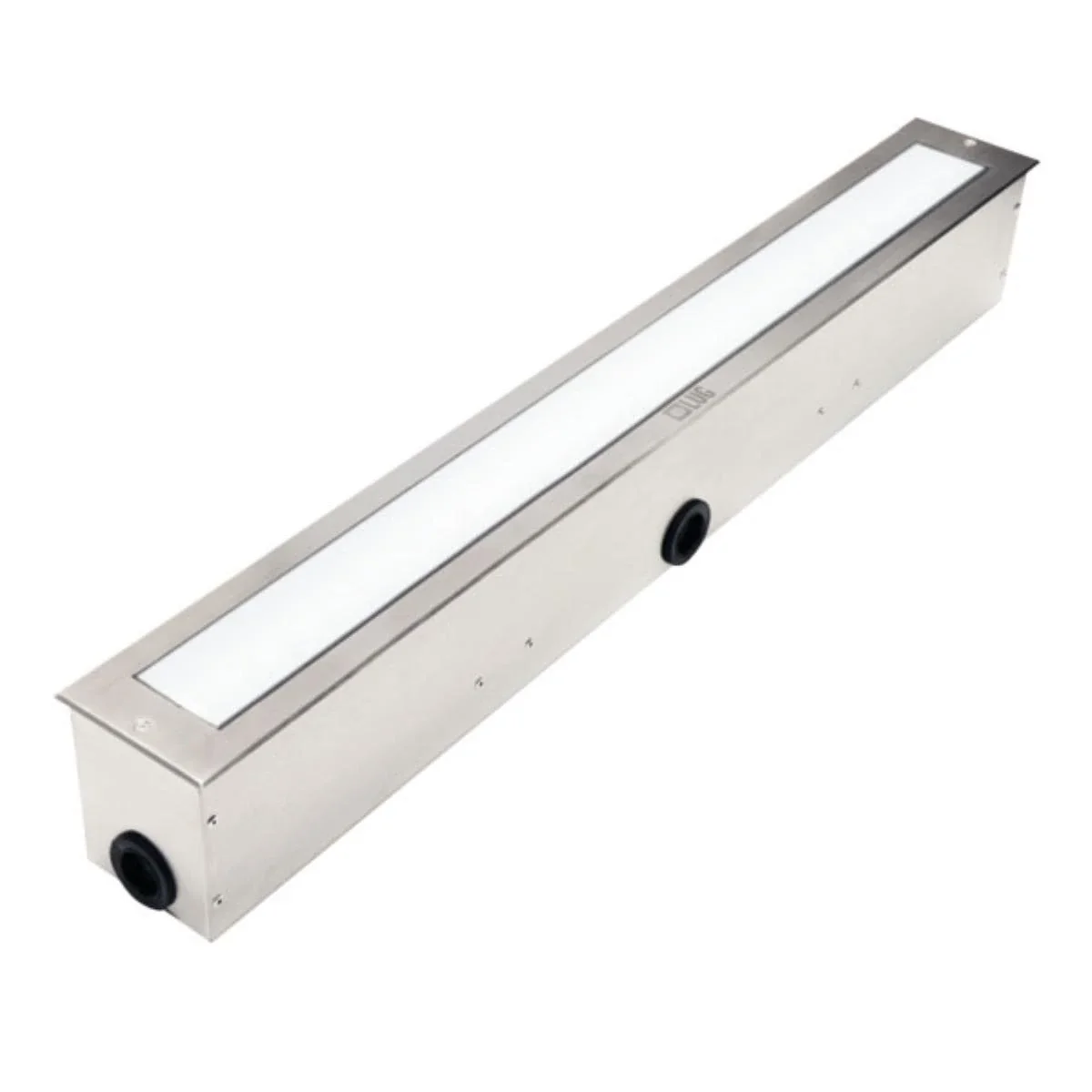

Name: GROUNDLINE MAT LED 926 ED 21W white 3000K IP67 silver 21W luminaire
Brand: LUG LIGHT
SKU: OZH001LUGQ
Price: 2855.76 PLN
Availability: BackOrder

Autres données techniques

Suitable for surface mounting

No
Suitable for wall mounting

No
Suitable for pedestal/floor mounting

Yes
Suitable for clamp-mounting

No
Lamp type

LED not exchangeable
Housing material

Steel
Material cover

Glass opal
Nominal voltage

220 ... 240 V
Type of control gear

LED operating device current-controlled
Dimming 1-10 V

No
No dim function

Yes
Light outlet

Direct
Rated life time L70/B50 at 25 °C

50000 h
Impact strength

IK10
Rated ambient temperature according to IEC 62722-2-1

-25 ... 25 °C
Colour of light

White
Colour rendering index CRI

80-89
Rated luminous flux according to IEC 62722-2-1

510 lm
Width

115 mm
Length

926 mm
Built-in height/depth

126 mm
Type of wiring

Suitable for through wiring
Connectable conductor cross section

0 ... 1 mm²
Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for built-in mounting

Yes
Suitable for ceiling mounting

No
Suitable for light-track mounting

No
Suitable for low voltage cable system

No
With light source

Yes
Housing colour

Silver
Voltage type

AC
Prąd znamionowy LED przy zasilaniu prądem stałym

350 ... 350 mA
Dimming 0-10 V

No
Dimming DALI

No
Light sharing

Symmetric
Klasa efektywności energetycznej zamontowanego źródła światła

A++, A+, A (LED)
Degree of protection (IP)

IP67
Protection class

I
Max. system power

21 W
Colour temperature

3000 ... 3000 K
Luminous flux

510 ... 510 lm
Lamp efficacy

24 lm/W
Height/depth

129 mm
Built-in width

106 mm
Built-in length

918 mm
Conductor cross section

1 mm²
Luminaire efficacy

24 lm/W
Colour consistency (McAdam ellipse)

SDCM3

GROUNDLINE MAT LED 926 ED 21W white 3000K IP67 silver 21W luminaire 140493.5L011.11
