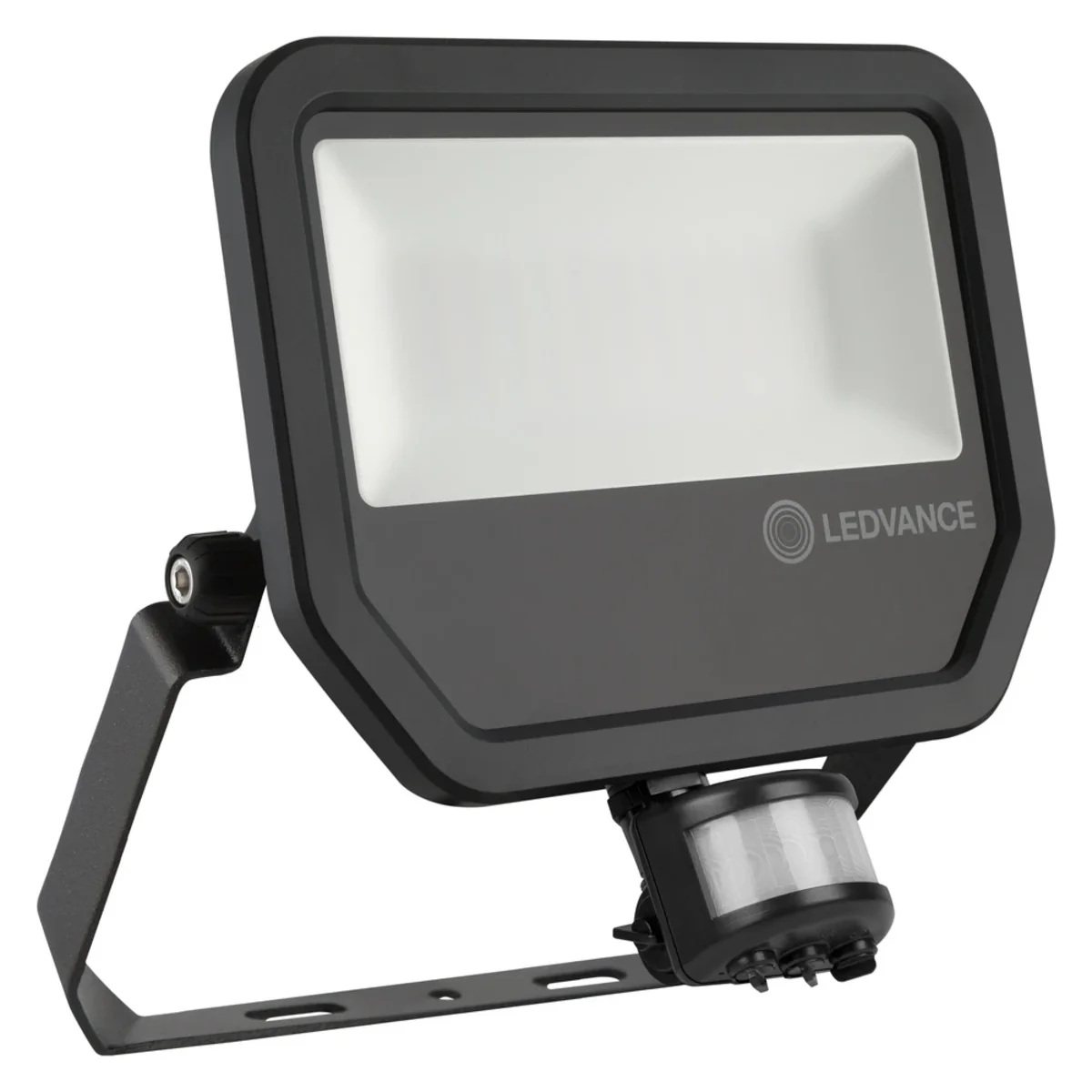

FLOODLIGHT SENSOR 50 W LED floodlight 50W 5500lm 3000K WW IP65 black 4058075460997

local index:
OZC133LEDV
Catalog No:
4058075460997
EAN code:
4058075460997
Manufacturer: LEDVANCE
Light color [K]: 2000-3500 (warm)
Length [mm]: 225
Cable length [m]: 1
Price:
72,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Nassensor illuminator wlightwa and traffic , from the FLOODLIGHT SENSOR 50 W series.

Product benefits< /p>

  • Bright, resistant and durable
  • Optimized lighting requirement met with a versatile and programmable sensor
  • Easy to adjust light detection sensor range and operating time

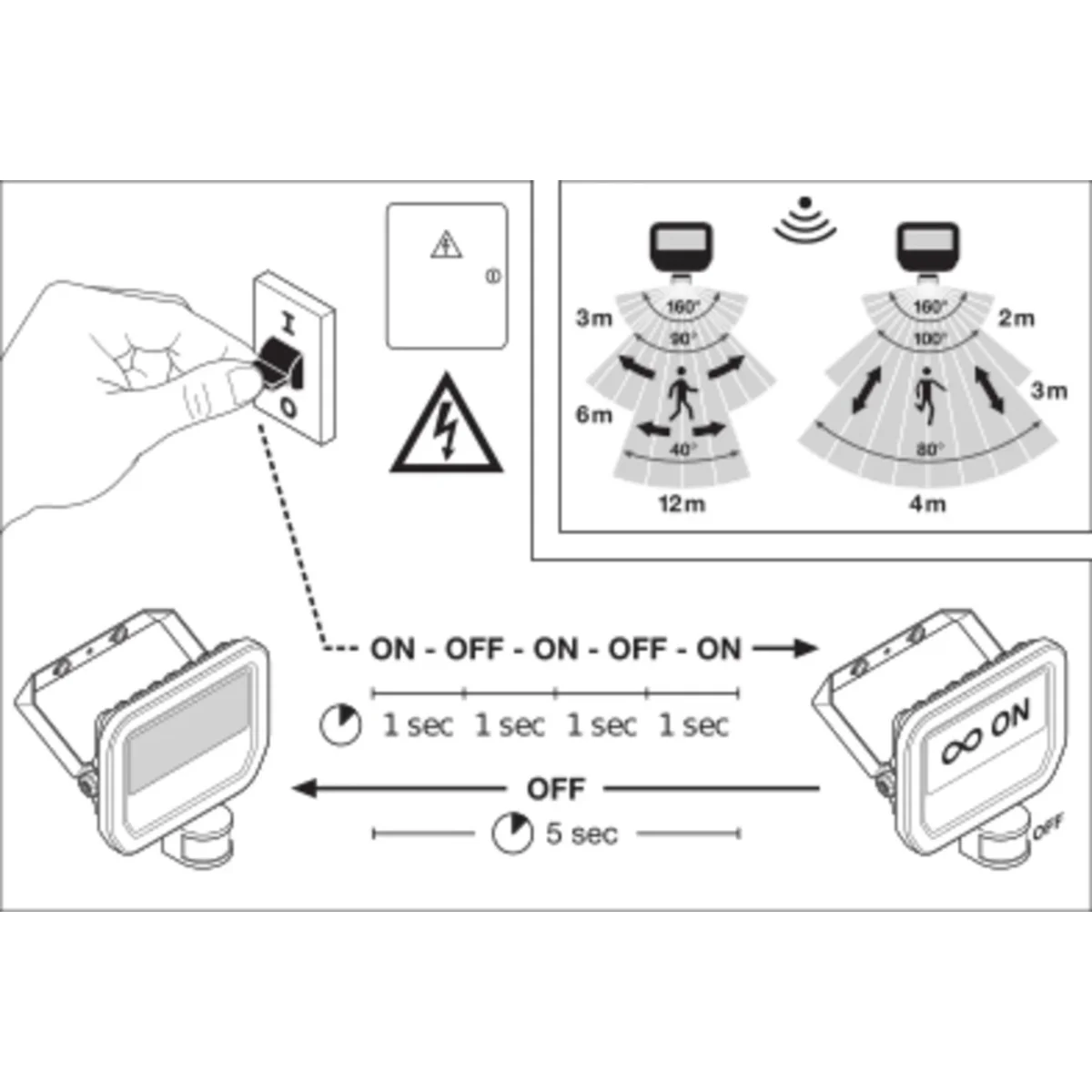

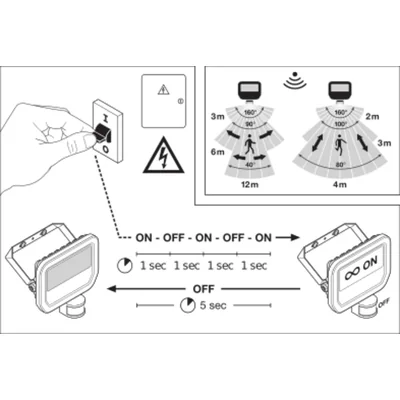

  • The ability to disable the sensor by performing the appropriate sequence of switching the luminaire's power on and off
  • Safe and very even lighting thanks to the frosted tempered glass cover
  • No top support light distribution factor (ULOR 0%) when mounted at an angle of 0°
  • Energy savings of up to 90% (compared to floodlights with halogen lamps)

Area of application

  • Replacement of floodlights for halogen bulbs
  • Outdoor use (IP65)
  • Public areas< /li>
  • Building facades
  • Construction sites
  • Gardens, balconies and other outdoor areas

Product features

  • Universal motion and light sensor

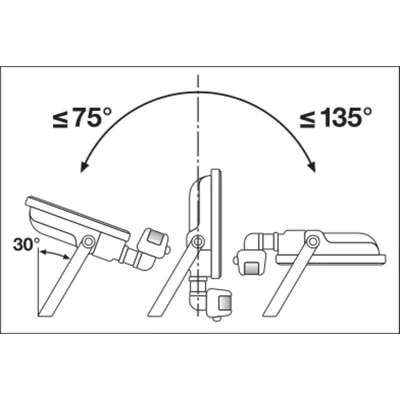

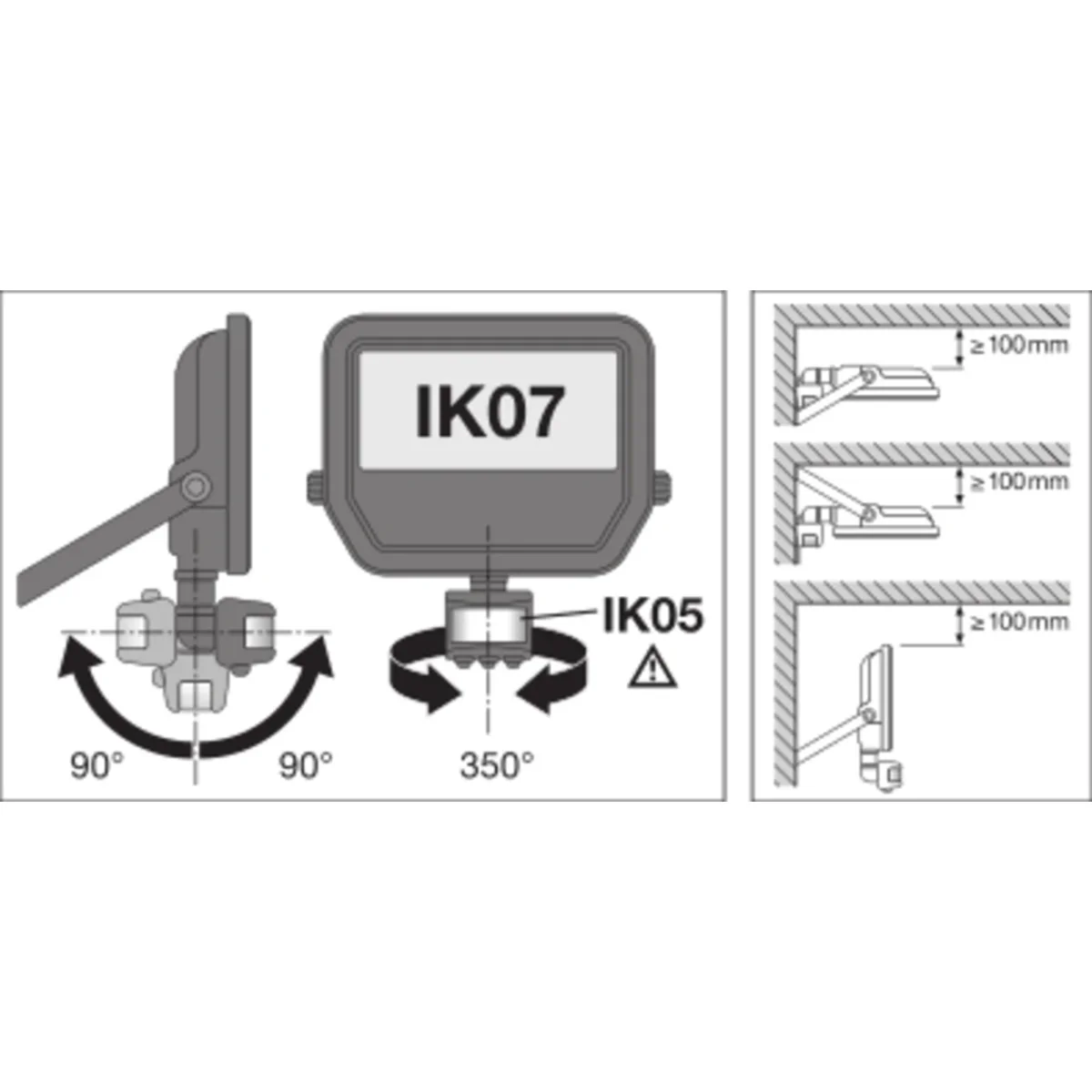

  • Sensor with 350° rotatable° and inclination by 180°
  • Reflector, symmetrical light distribution with a beam angle of 100° x 100°
  • Integrated wide voltage power supply, 100 - 277 V AC
  • Surge protection: up to 4 kV (L / N-PE), 2 kV (L-N)
  • 30° and wide swivel area
  • Bleed valve to optimize air exchange without compromising IP protection

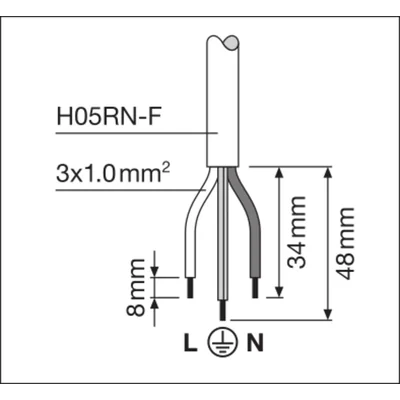

  • Pre-installed 1m flexible hose (H05RN-F), 3 x 1.0mm²

Technical data

  • Light color [K]
    2000-3500 (warm)
  • Cable length [m]
    1
  • beam angle [°]
    100 x 100
  • Color
    Black
  • Power [W]
    50
  • Rated voltage [V]
    230
  • Family
    FLOODLIGHT 20W
  • Level of security
    IP65
  • Width [mm]
    219
  • Height [mm]
    59
  • Degree of mechanical protection
    IK07
  • Color Temperature [K]
    3000

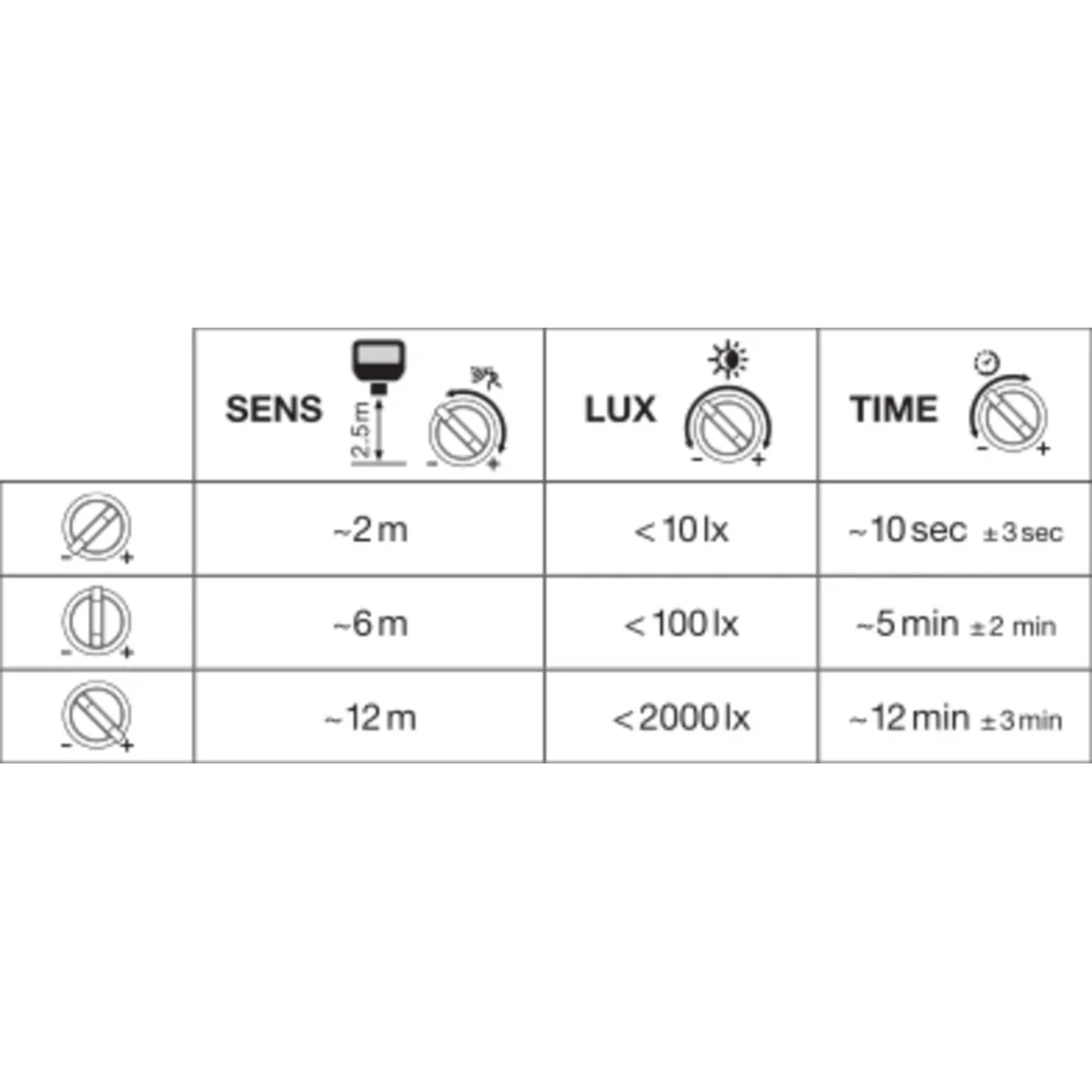

  • Motion sensor detection range [m]
    2-12
  • Sensor-controlled switching time [s-min]
    10-12
  • Length [mm]
    225
  • Detection angle [°]
    40-160
  • Protection class
    AND
  • Housing material
    Aluminum
  • Installation
    Surface-mounted
  • Initial starting current [A]
    9.6
  • Luminous efficiency [lm/W]
    110
  • luminous flux [lm]
    5500
  • Durability [h]
    70000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • Light sensor detection threshold [lx]
    10-2000

Other technical data

  • Suitable for surface mounting
    yes
  • Suitable for wall mounting
    yes
  • Suitable for ceiling mounting
    no
  • Suitable for pedestal/floor mounting
    no
  • Suitable for clamp-mounting
    no
  • Adjustability
    Swivelling
  • With light sensor
    yes
  • With light source
    yes
  • Surface protection
    Powder coating
  • Material cover
    Glass opal
  • Voltage type
    AC
  • Type of control gear
    Electronic ballast
  • Dimming DALI
    no
  • No dim function
    yes
  • Beam angle
    Open beam/diffuse
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L70/B10 przy 25 °C
    70000 h
  • Rated life time L80/B10 at 25 °C
    55000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    35000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    I
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Rated luminous flux according to IEC 62722-2-1
    5500 lm
  • Width
    219.0 mm
  • Length
    1000 mm
  • Number of poles
    3
  • Luminaire efficacy
    110 lm/W
  • Covering of the luminaire with thermally insulating material possible
    no
  • Photobiological safety according to EN 62471
    RG1
  • Suitable for built-in mounting
    no
  • Suitable for suspended mounting
    no
  • Suitable for traverse mounting
    no
  • Suitable for light-track mounting
    no
  • Suitable for low voltage cable system
    no
  • With movement sensor
    yes
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Housing colour
    Black
  • Surface brushed
    no
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    248 ... 248 mA
  • With control gear
    yes
  • Dimming manufacturer's proprietary system
    no
  • Light distributor
    Reflector
  • Light outlet
    Direct
  • Total harmonic distortion
    19
  • Rated life time L70/B50 at 25 °C
    70000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    55000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    35000 h
  • Impact strength
    IK07
  • Max. system power
    50.00 W
  • Colour temperature
    3000 ... 3000 K
  • Luminous flux
    5500 ... 5500 lm
  • Lamp efficacy
    110 lm/W
  • Height/depth
    59.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • Suitable for workplace according to EN 12464-1
    no
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Colour consistency (McAdam ellipse)
    SDCM5

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 8 pcs.
Weight (kg) 1,181 10,142
Volume (m3) 0,003 0,031
Width (m) 0,225 0,271
Length (m) 0,065 0,459
Depth (m) 0,233 0,249
