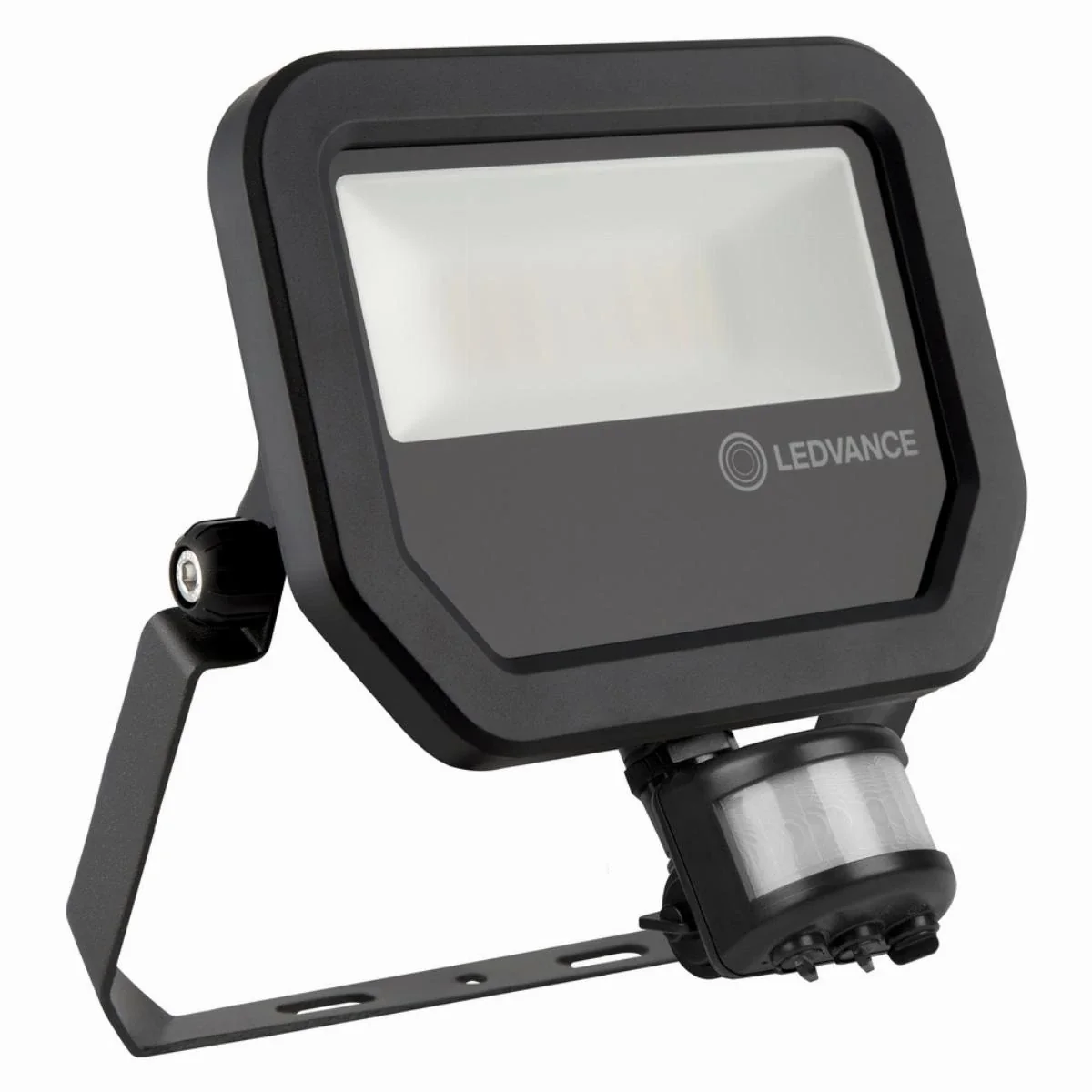

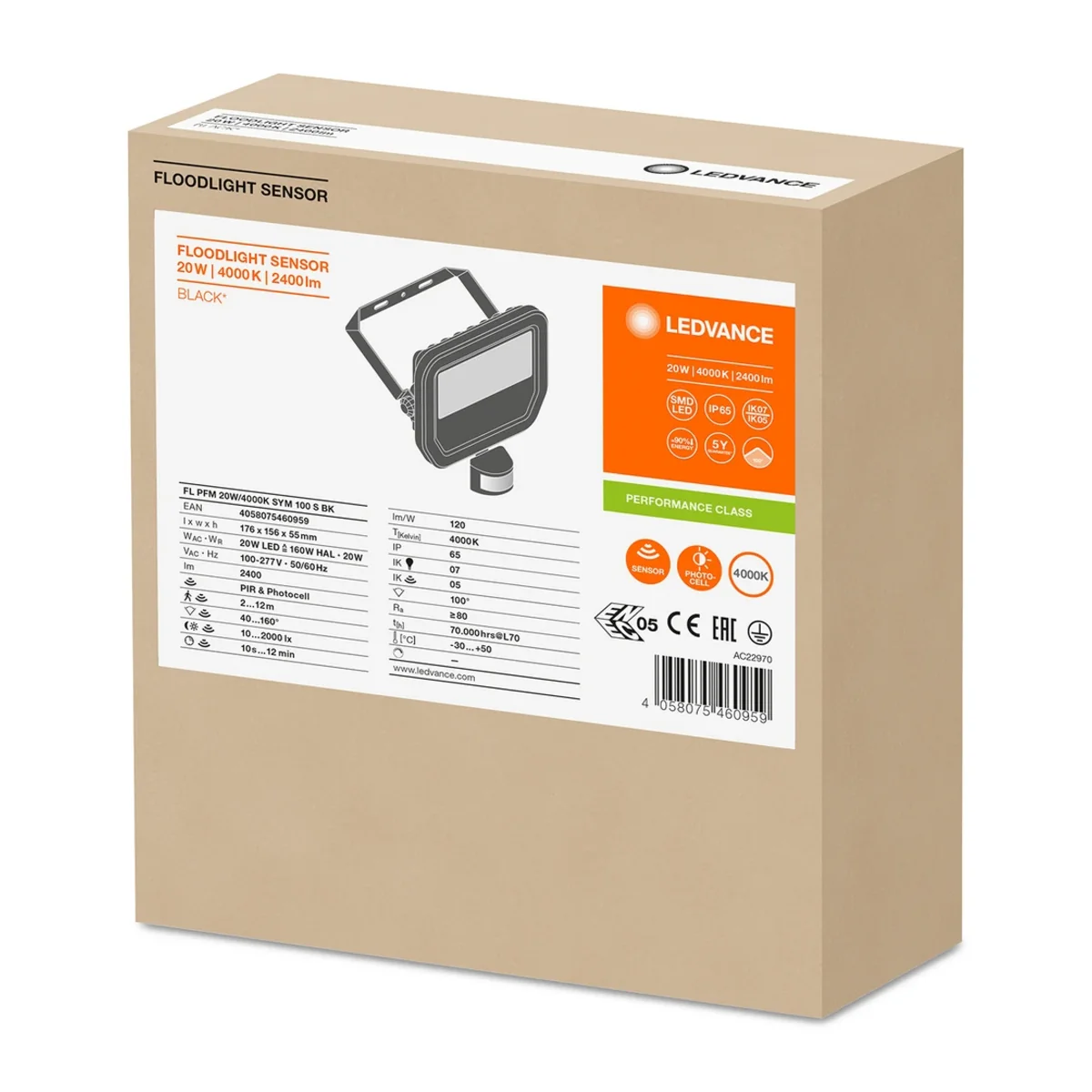

FLOODLIGHT SENSOR 20 W LED floodlight 20W 2400lm 4000K NW IP65 black 4058075460959

local index:
OZC098LEDV
Catalog No:
4058075460959
EAN code:
4058075460959
Manufacturer: LEDVANCE
Light color [K]: 3500-4800 (natural)
Length [mm]: 176
Cable length [m]: 1
Price:
38,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 31 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Nassensor illuminator wlightwa and traffic , from the FLOODLIGHT SENSOR 20 W series.

Product benefits< /p>

  • Bright, resistant and durable
  • Optimized lighting requirement met with a versatile and programmable sensor

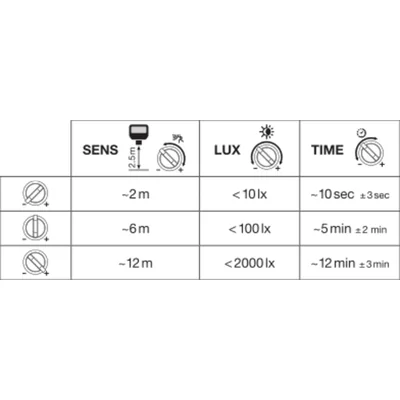

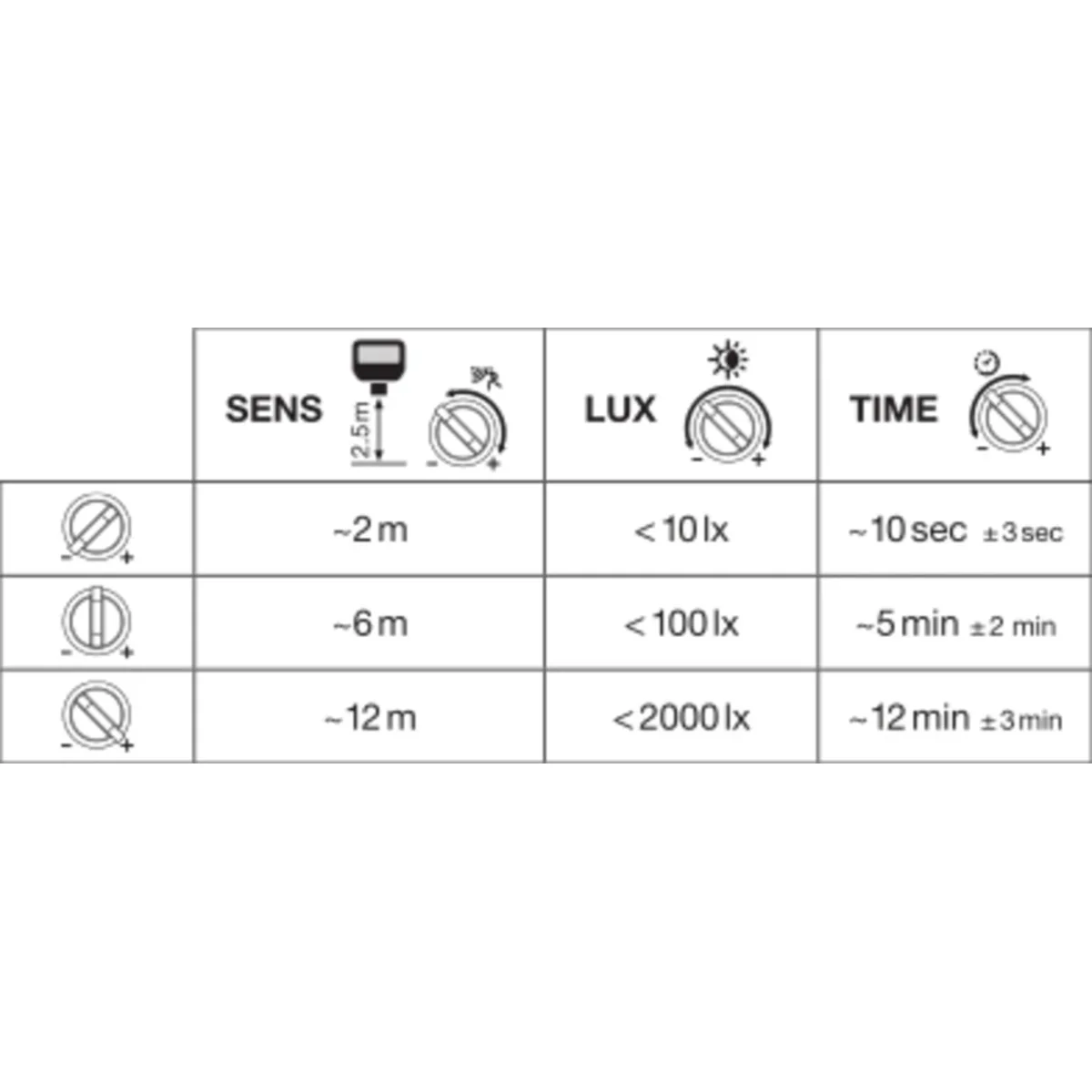

  • Easy to adjust light detection sensor range and operating time

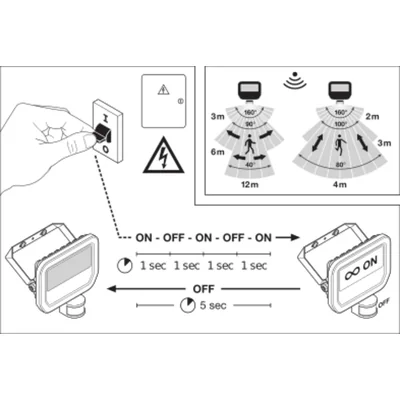

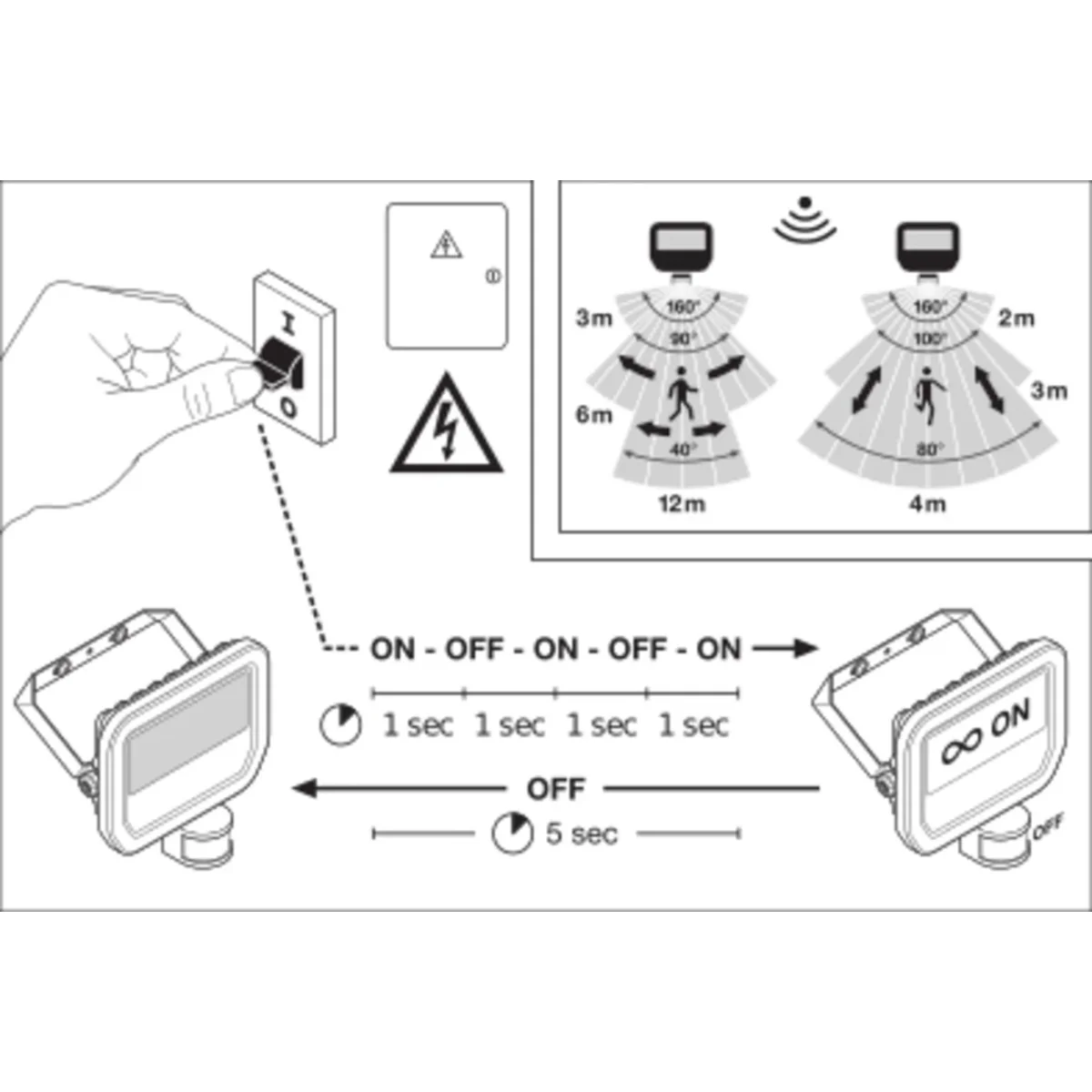

  • The ability to disable the sensor by performing the appropriate sequence of switching the luminaire's power on and off
  • Safe and very even lighting thanks to the frosted tempered glass cover
  • Energy savings up to 90 % (compared to floodlights with halogen lamps)

Area of application

  • Replacement of floodlights for halogen bulbs< /li>
  • Outdoor use (IP65)
  • Public areas
  • Building facades
  • Construction areas
  • Gardens, balconies and other places outside buildings

Product features

  • Universal motion and light sensor

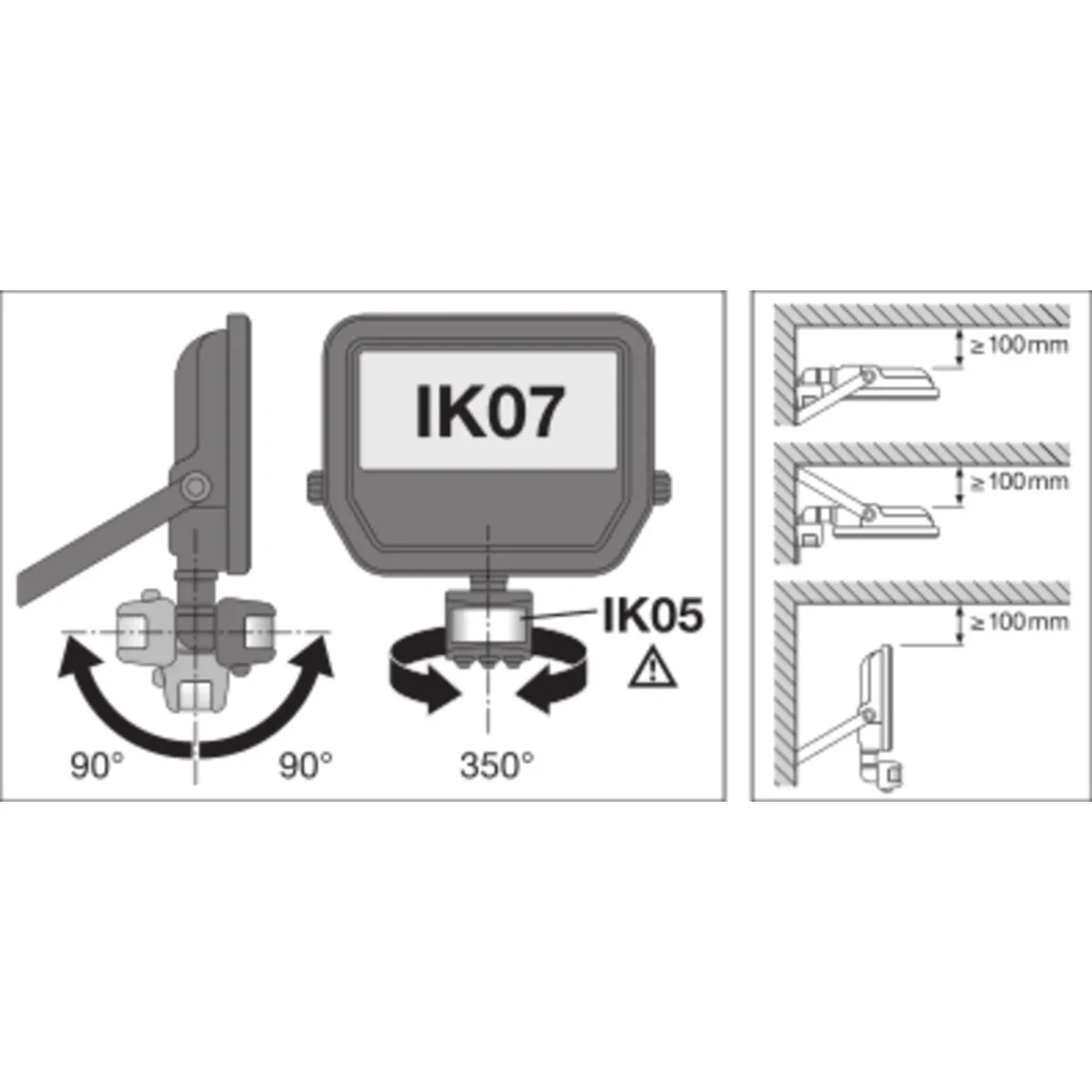

  • Sensor can be rotated 350° and inclination by 180°
  • Reflector, symmetrical light distribution with a beam angle of 100° x 100°
  • Integrated wide voltage power supply, 100 - 277 VAC
  • Surge protection: up to 4 kV (L / N-PE), 2 kV (L-N)

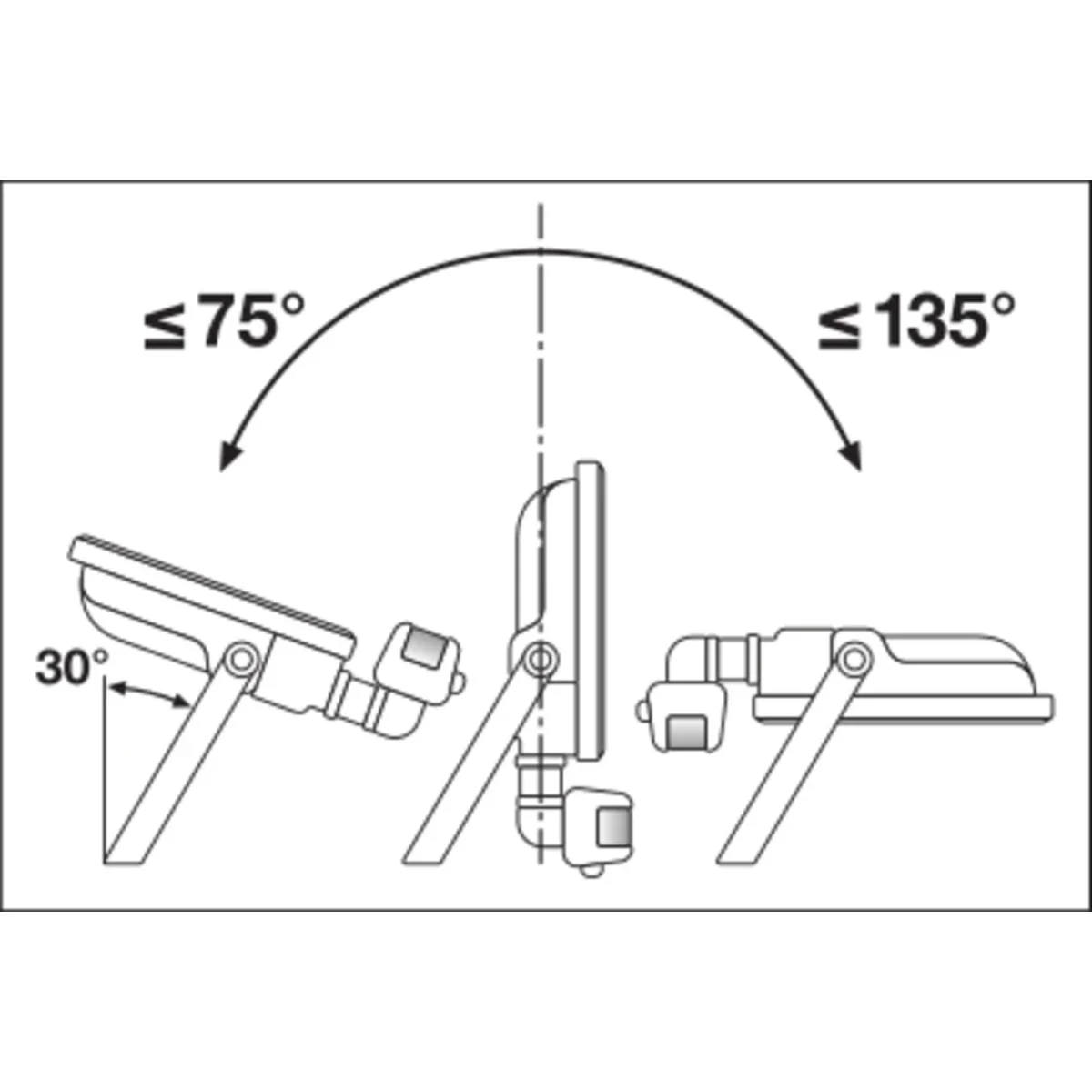

  • 30° and wide swivel area

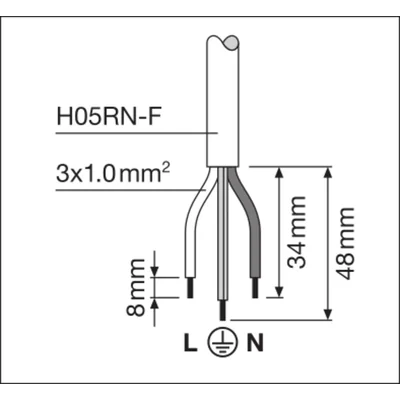

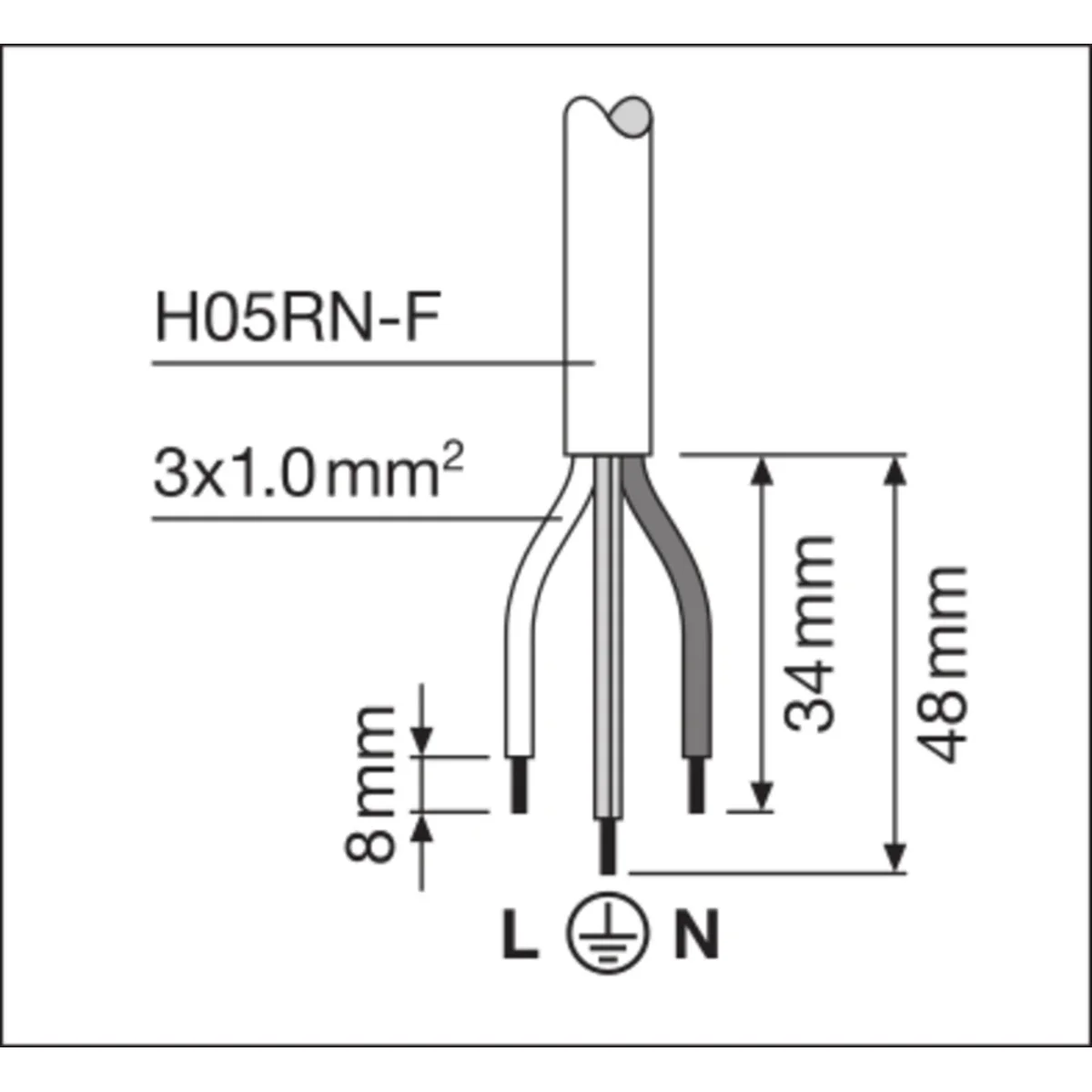

  • Pre-installed 1m flexible cable (H05RN-F), 3 x 1.0mm²

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Cable length [m]
    1
  • beam angle [°]
    100 x 100
  • Color
    Black
  • Power [W]
    20
  • Rated voltage [V]
    230
  • Family
    FLOODLIGHT 20W
  • Level of security
    IP65
  • Width [mm]
    156
  • Height [mm]
    55
  • Degree of mechanical protection
    IK07
  • Color Temperature [K]
    4000
  • Motion sensor detection range [m]
    2-12
  • Sensor-controlled switching time [s-min]
    10-12
  • Length [mm]
    176
  • Detection angle [°]
    40-160
  • Protection class
    AND
  • Housing material
    Aluminum
  • Installation
    Surface-mounted
  • Initial starting current [A]
    7.34
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    2400
  • Durability [h]
    70000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80
  • Light sensor detection threshold [lx]
    10-2000

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No
  • Adjustability
    Swivelling
  • With light sensor
    Yes
  • With light source
    Yes
  • Surface protection
    Powder coating
  • Material cover
    Glass opal
  • Voltage type
    AC
  • Type of control gear
    Electronic ballast
  • Dimming DALI
    No
  • No dim function
    Yes
  • Beam angle
    Open beam/diffuse
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L70/B10 przy 25 °C
    70000 h
  • Rated life time L80/B10 at 25 °C
    55000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    35000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    I
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Rated luminous flux according to IEC 62722-2-1
    2400 lm
  • Width
    156.0 mm
  • Length
    1000 mm
  • Number of poles
    3
  • Luminaire efficacy
    120 lm/W
  • Covering of the luminaire with thermally insulating material possible
    No
  • Photobiological safety according to EN 62471
    RG1
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    Yes
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Housing colour
    Black
  • Surface brushed
    No
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    102 ... 102 mA
  • With control gear
    Yes
  • Dimming manufacturer's proprietary system
    No
  • Light distributor
    Reflector
  • Light outlet
    Direct
  • Total harmonic distortion
    19
  • Rated life time L70/B50 at 25 °C
    70000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    55000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    35000 h
  • Impact strength
    IK07
  • Max. system power
    20.00 W
  • Colour temperature
    4000 ... 4000 K
  • Luminous flux
    2400 ... 2400 lm
  • Lamp efficacy
    120 lm/W
  • Height/depth
    55.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • Suitable for workplace according to EN 12464-1
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Colour consistency (McAdam ellipse)
    SDCM5

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 12 pcs.
Weight (kg) 0,570 0,652 8,518
Volume (m3) - 0,002 0,032
Width (m) - 0,160 0,350
Length (m) - 0,070 0,410
Depth (m) - 0,180 0,220
