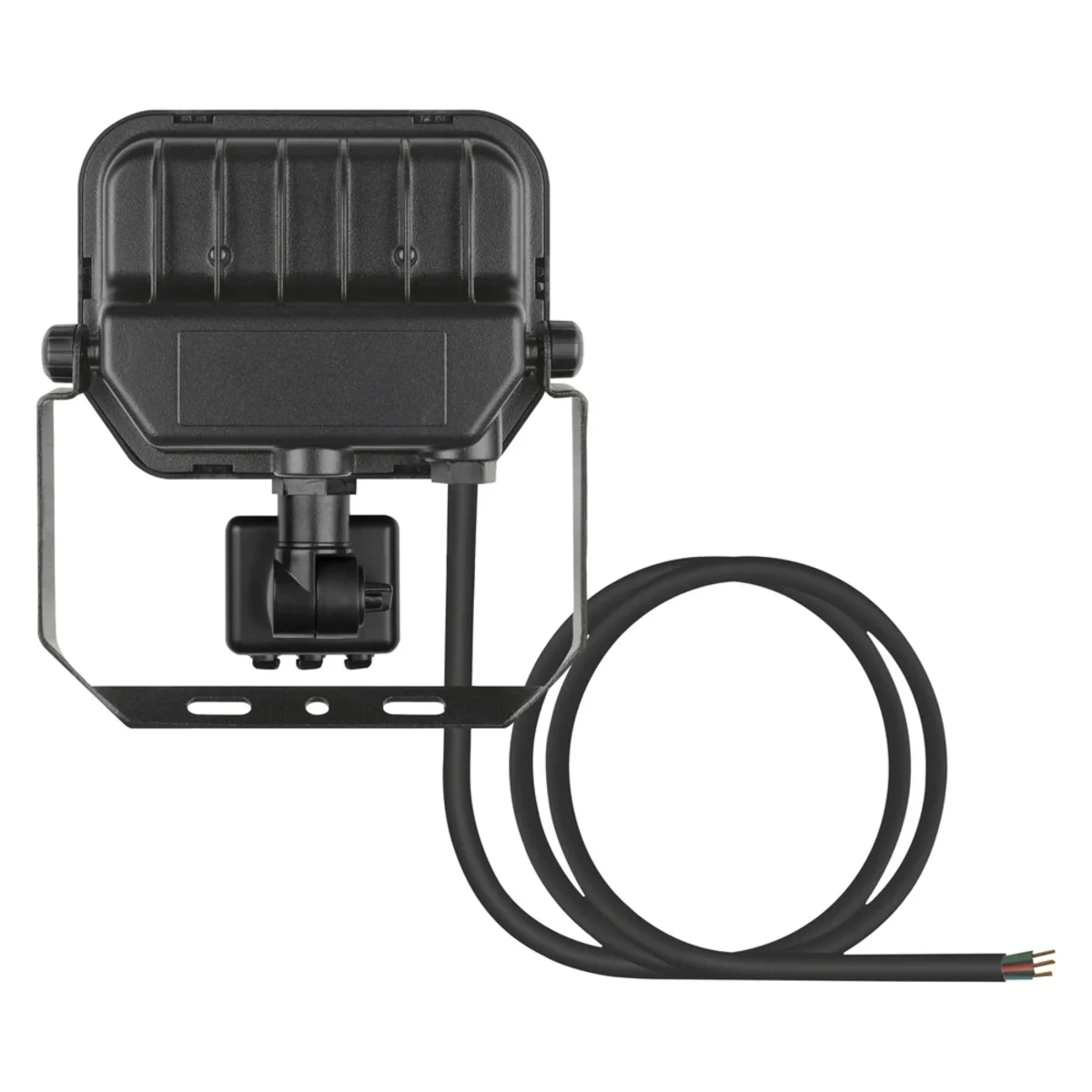

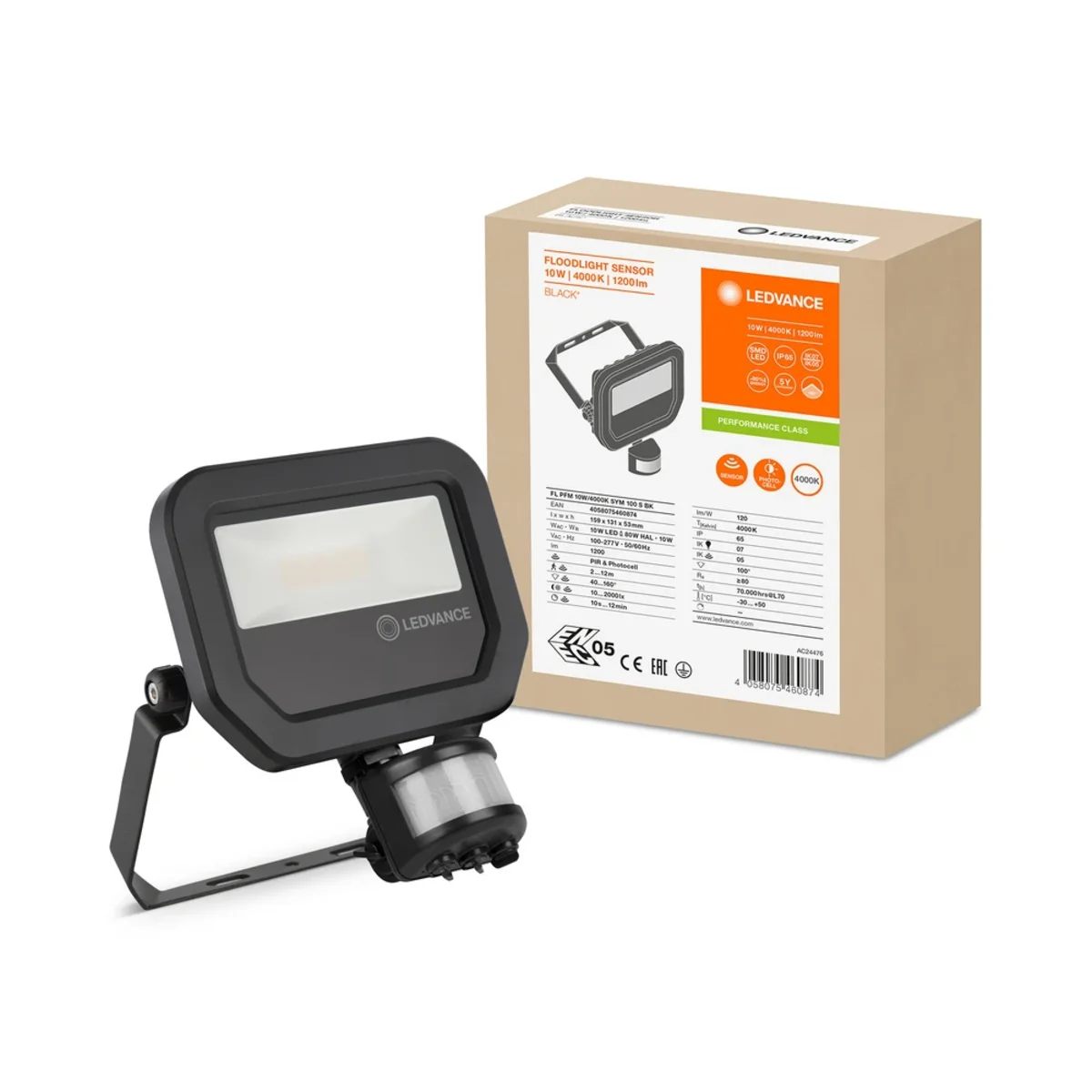

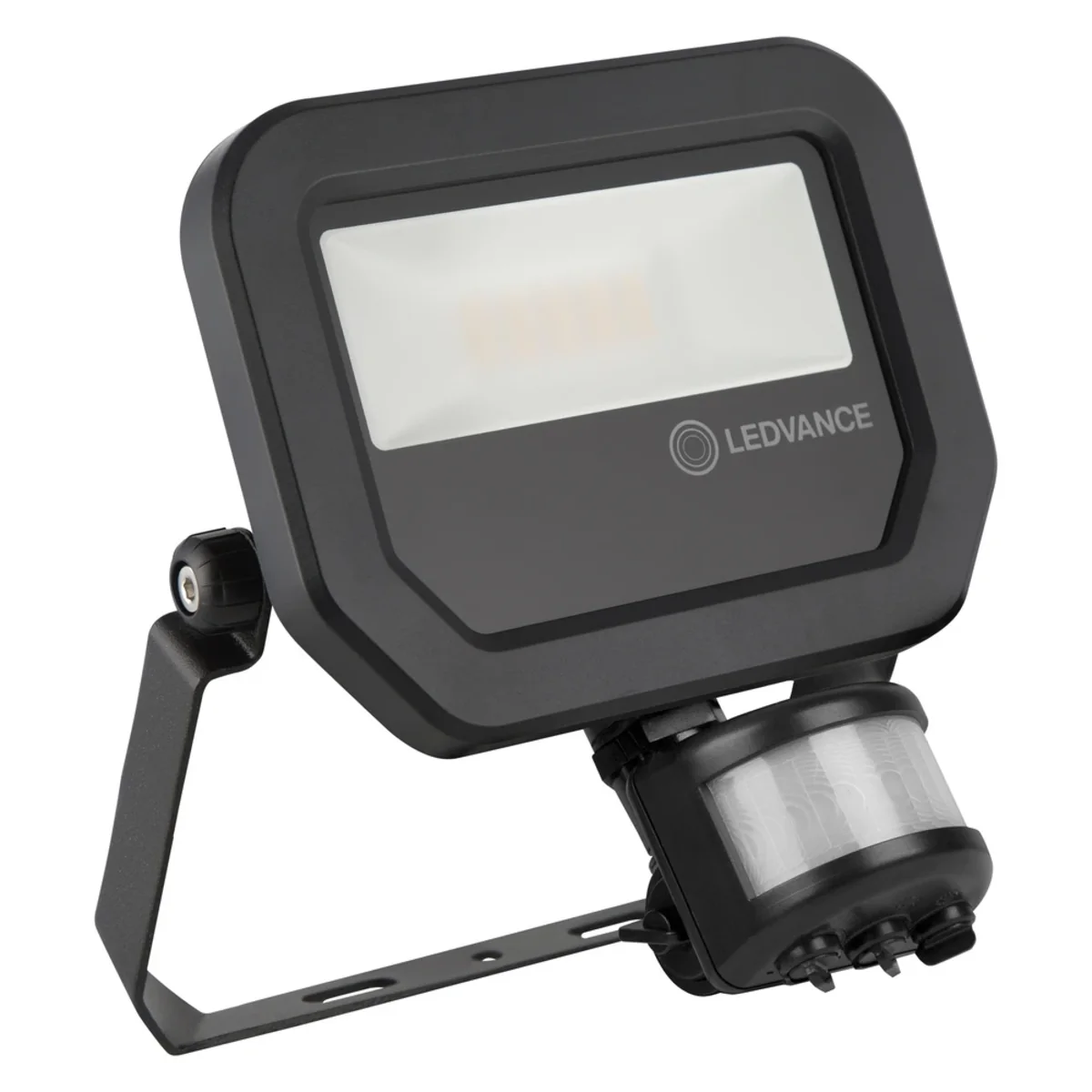

FLOODLIGHT SENSOR 10 W LED floodlight 10W 1200lm 4000K NW IP65 black 4058075460874
local index:
OZC129LEDV
Catalog No:
4058075460874
EAN code:
4058075460874
Price:
31,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Nassensor illuminator wlightwa and traffic , from the FLOODLIGHT SENSOR 10 W series.
Product benefits< /p>
- Bright, resistant and durable
- Optimized lighting requirement met with a versatile and programmable sensor
- Easy to adjust light detection sensor range and operating time

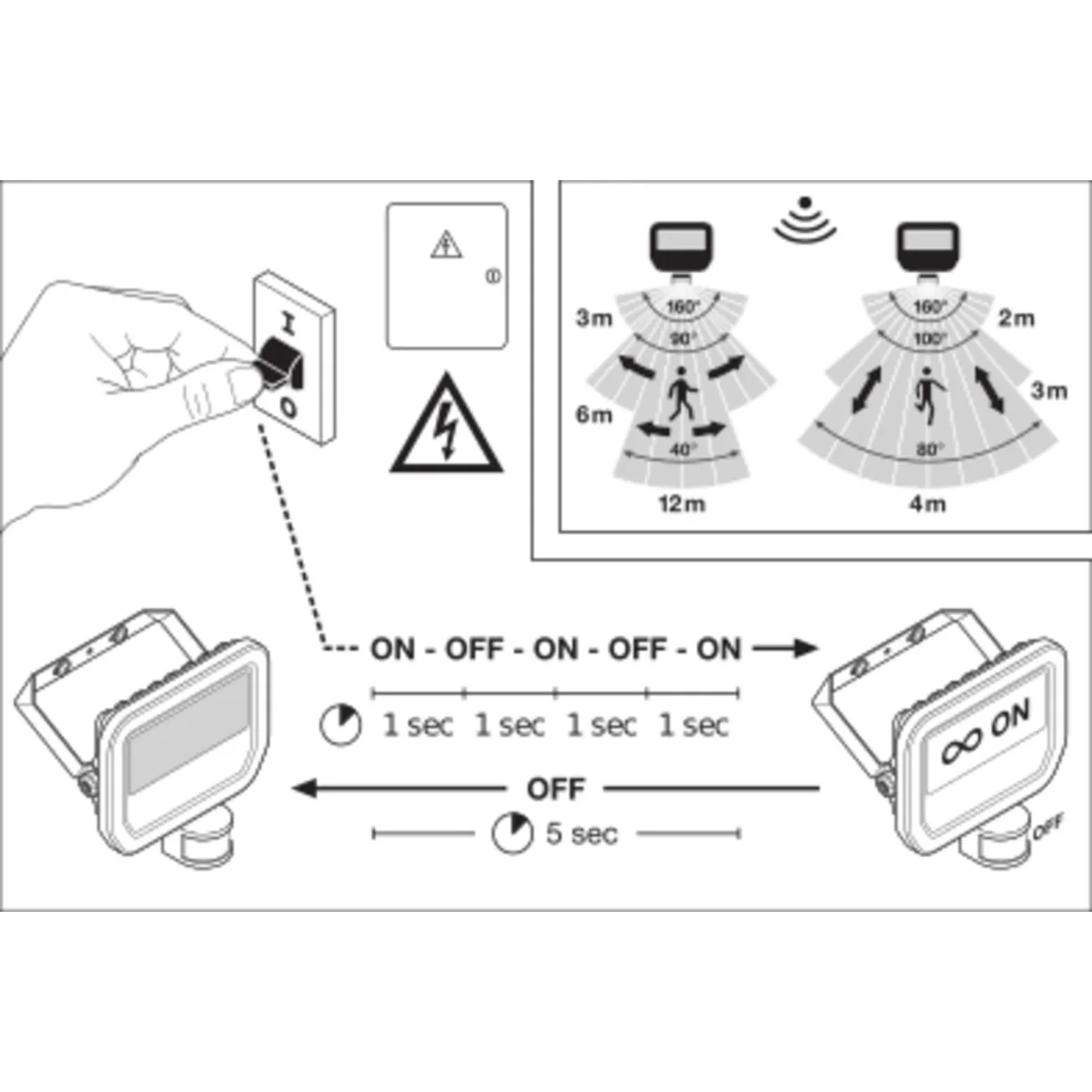

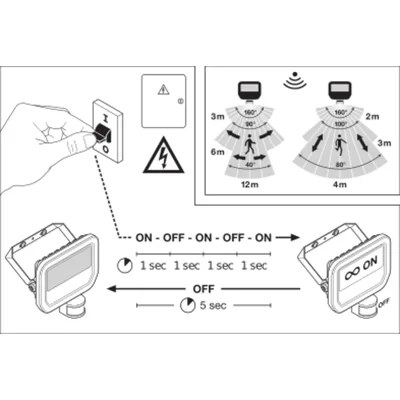

- The ability to disable the sensor by performing the appropriate sequence of switching the luminaire's power on and off
- Safe and very even lighting thanks to the frosted tempered glass cover
- No top support light distribution factor (ULOR 0%) when mounted at an angle of 0°
- Energy savings of up to 90% (compared to floodlights with halogen lamps)
Area of application
- Replacement of floodlights for halogen bulbs
- Outdoor use (IP65)
- Public areas< /li>
- Building facades
- Construction sites
- Gardens, balconies and other outdoor spaces
Product features
- Universal motion and light sensor

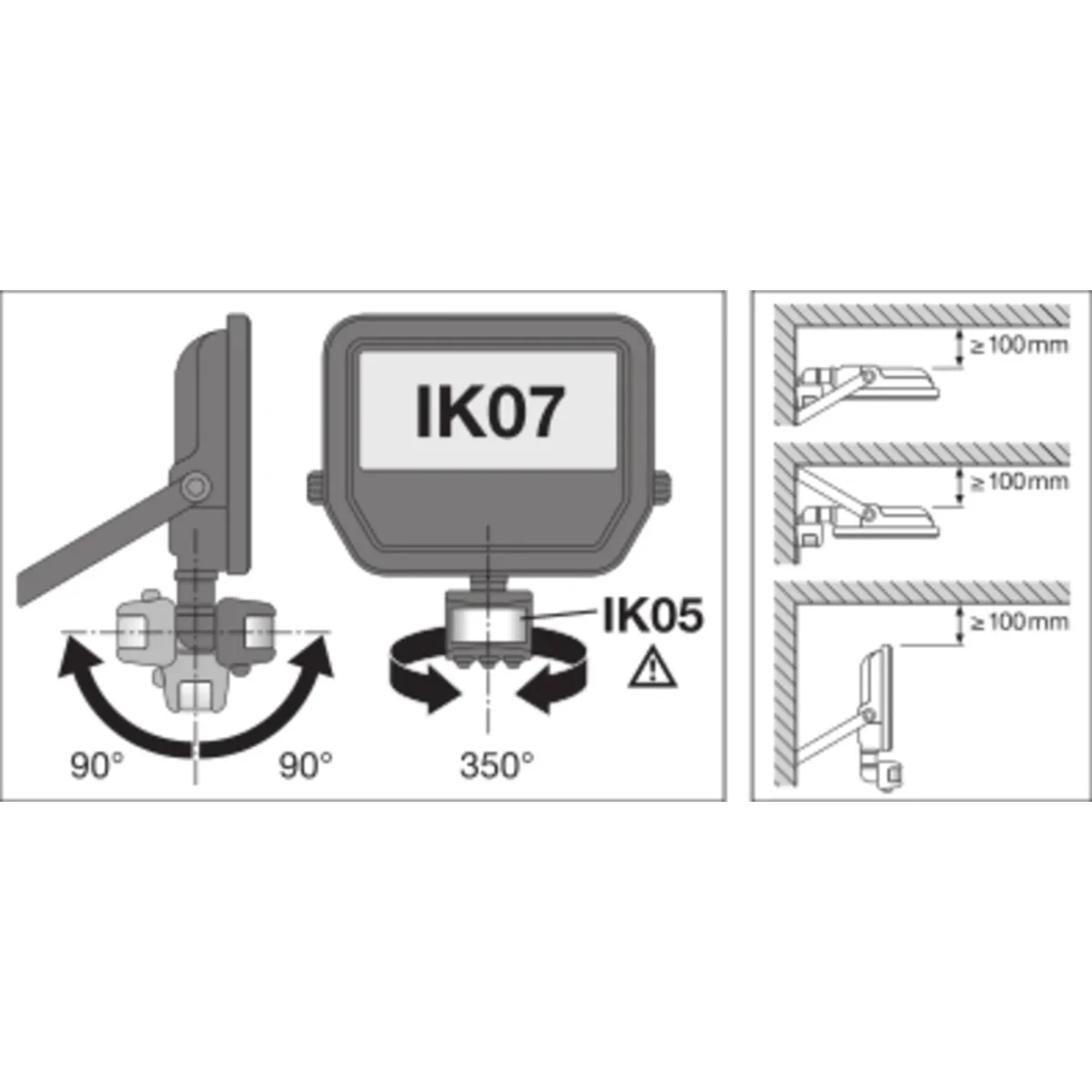

- Sensor with 350° and inclination by 180°
- Reflector, symmetrical light distribution with a beam angle of 100° x 100°
- Integrated wide voltage power supply, 100 - 277 V AC
- Surge protection: up to 4 kV (L / N-PE), 2 kV (L-N)

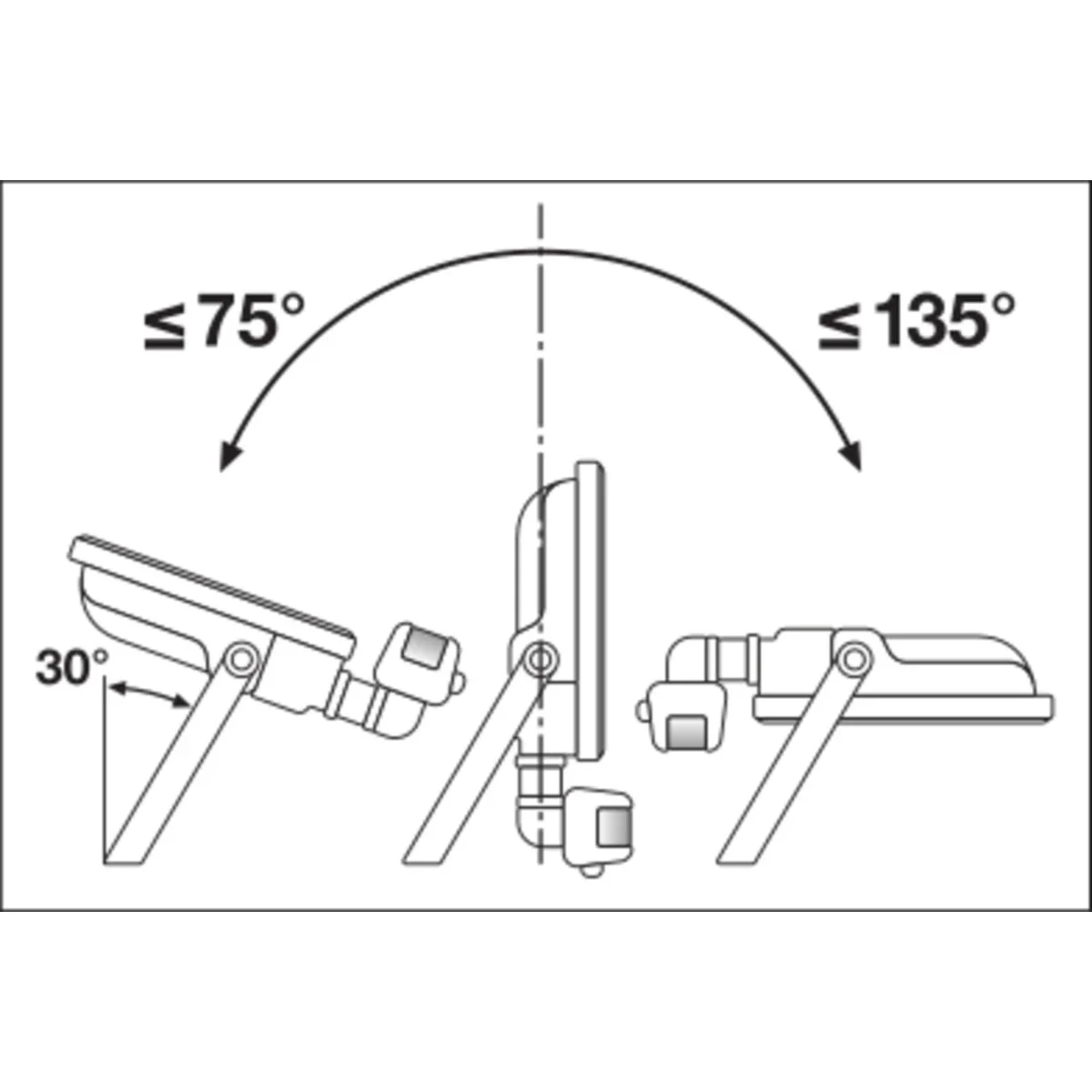

- 30° and wide swivel area

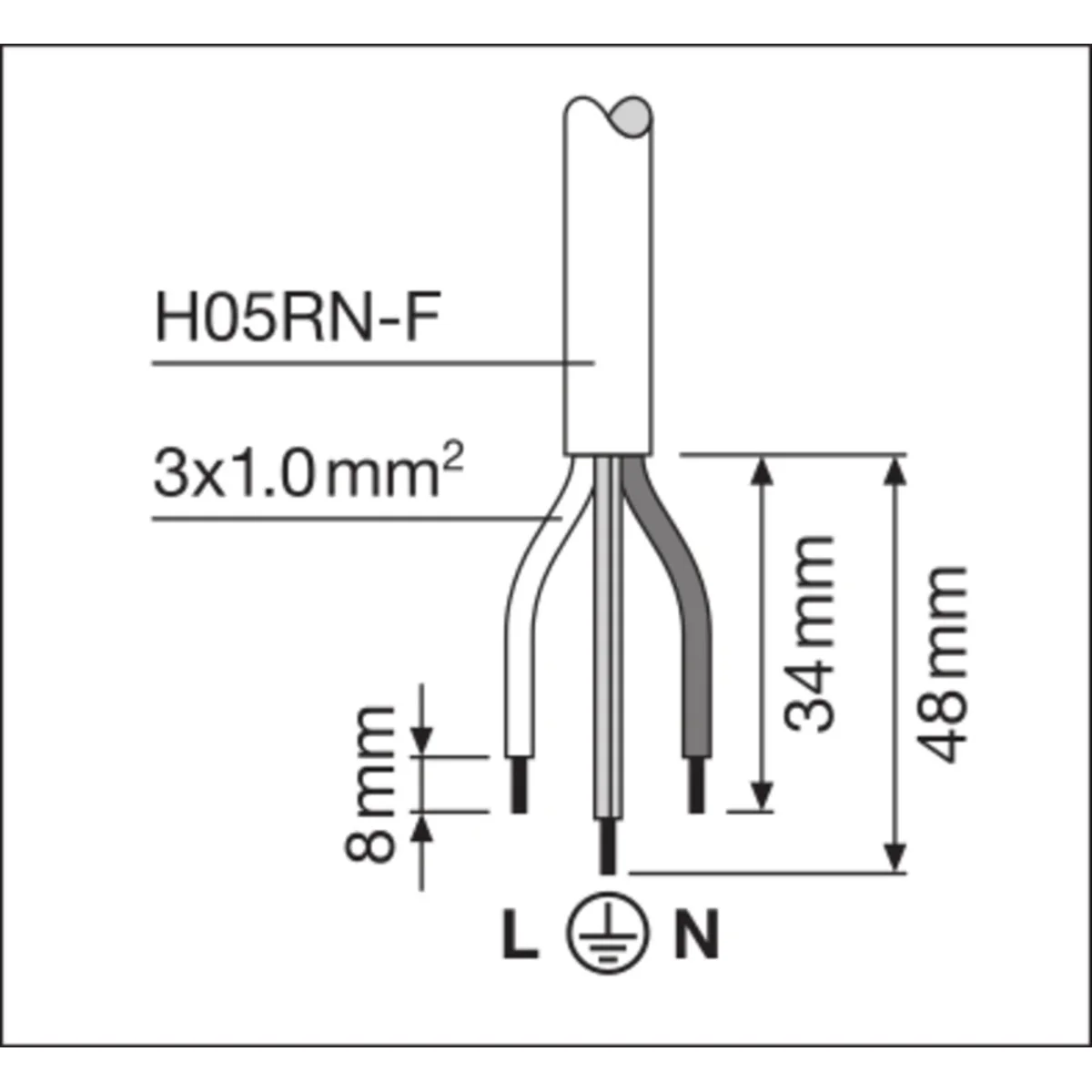

- Pre-installed 1m flexible cable (H05RN-F), 3 x 1.0mm²
Technical data
-
Light color [K]3500-4800 (natural)
-
Cable length [m]1
-
beam angle [°]100 x 100
-
ColorBlack
-
Power [W]10
-
Rated voltage [V]230
-
FamilyFLOODLIGHT 10W
-
Level of securityIP65
-

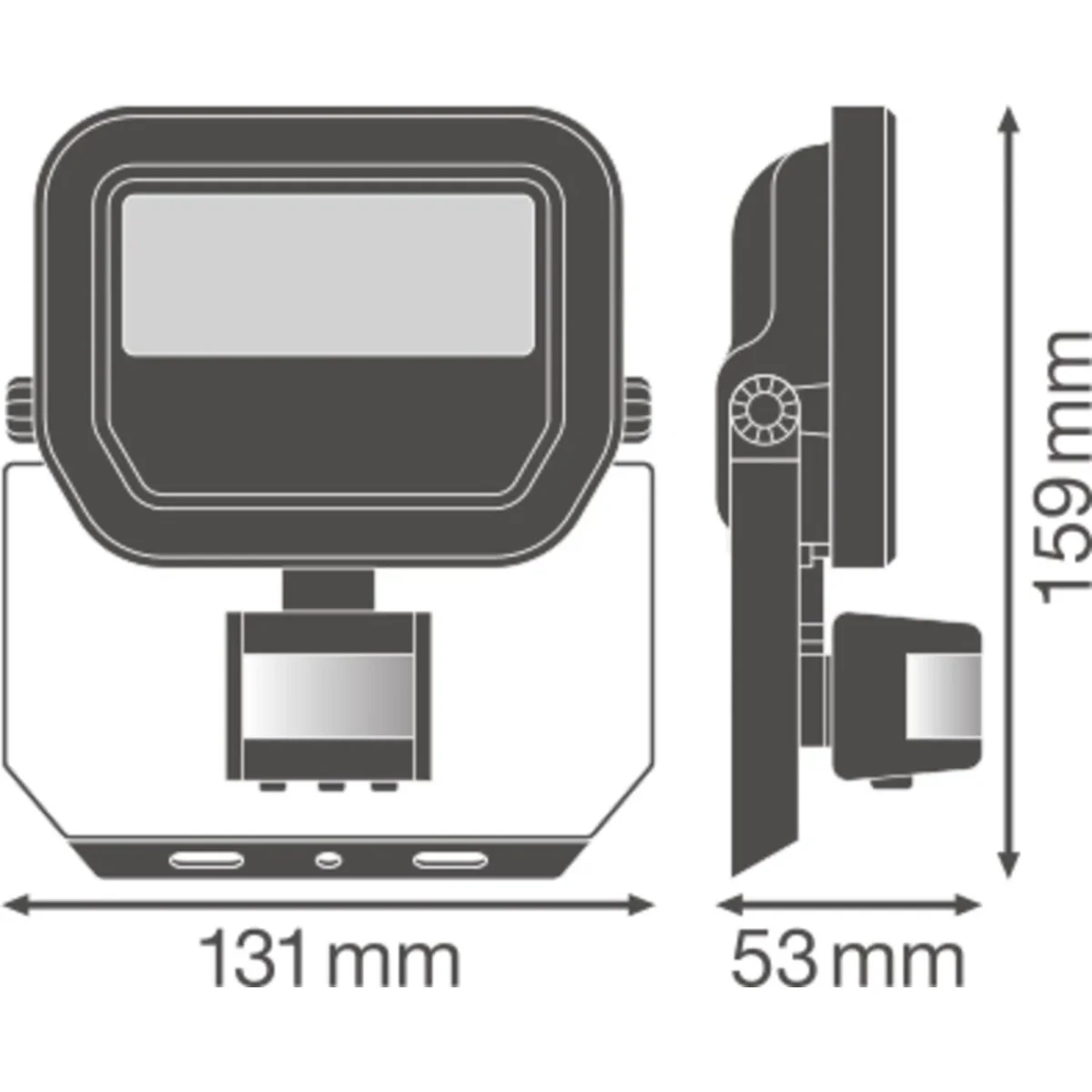

Width [mm]131
-
Height [mm]53
-
Degree of mechanical protectionIK07
-
Color Temperature [K]4000
-

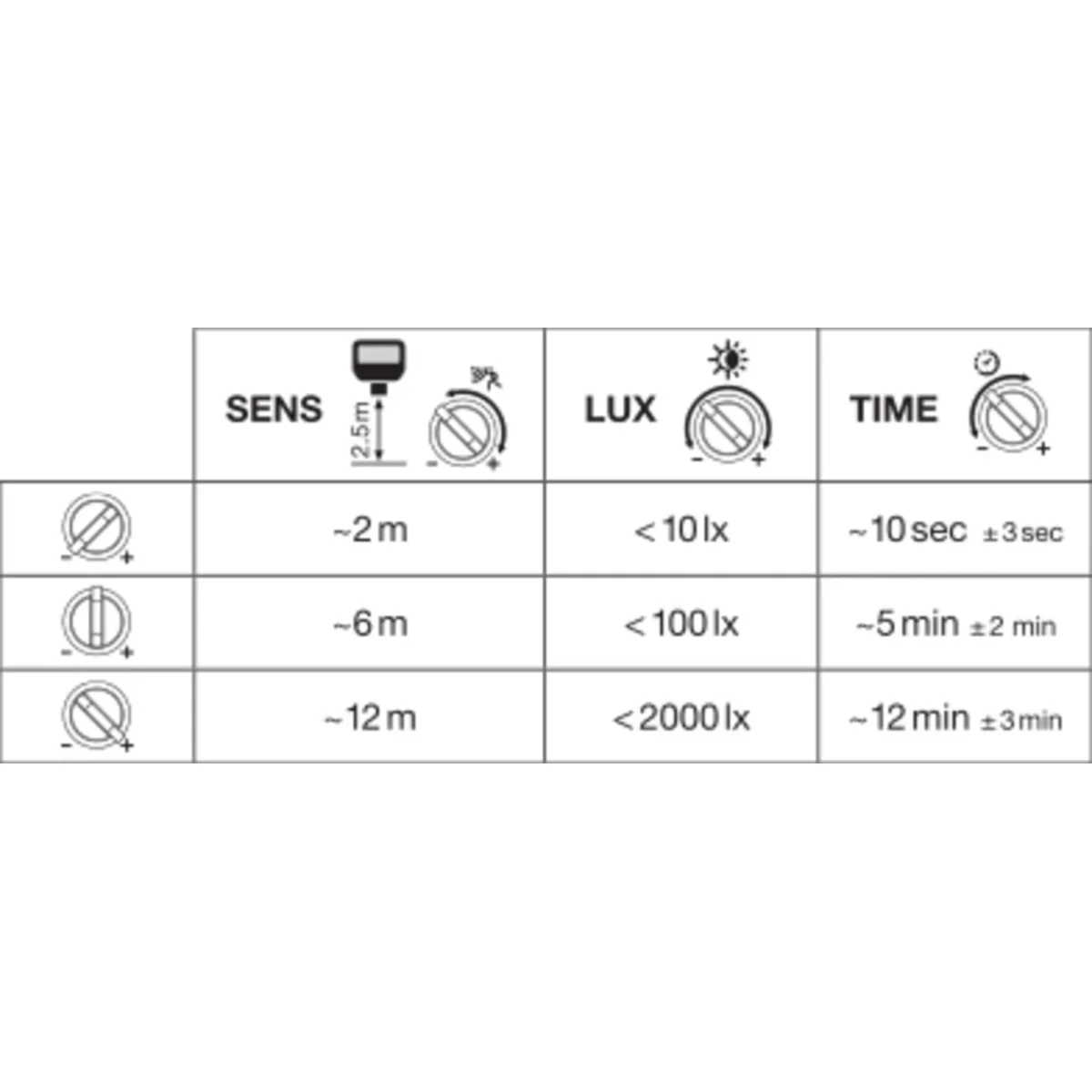

Motion sensor detection range [m]2-12
-
Sensor-controlled switching time [s-min]10-12
-
Length [mm]159
-
Detection angle [°]40-160
-
Protection classAND
-
Housing materialAluminum
-

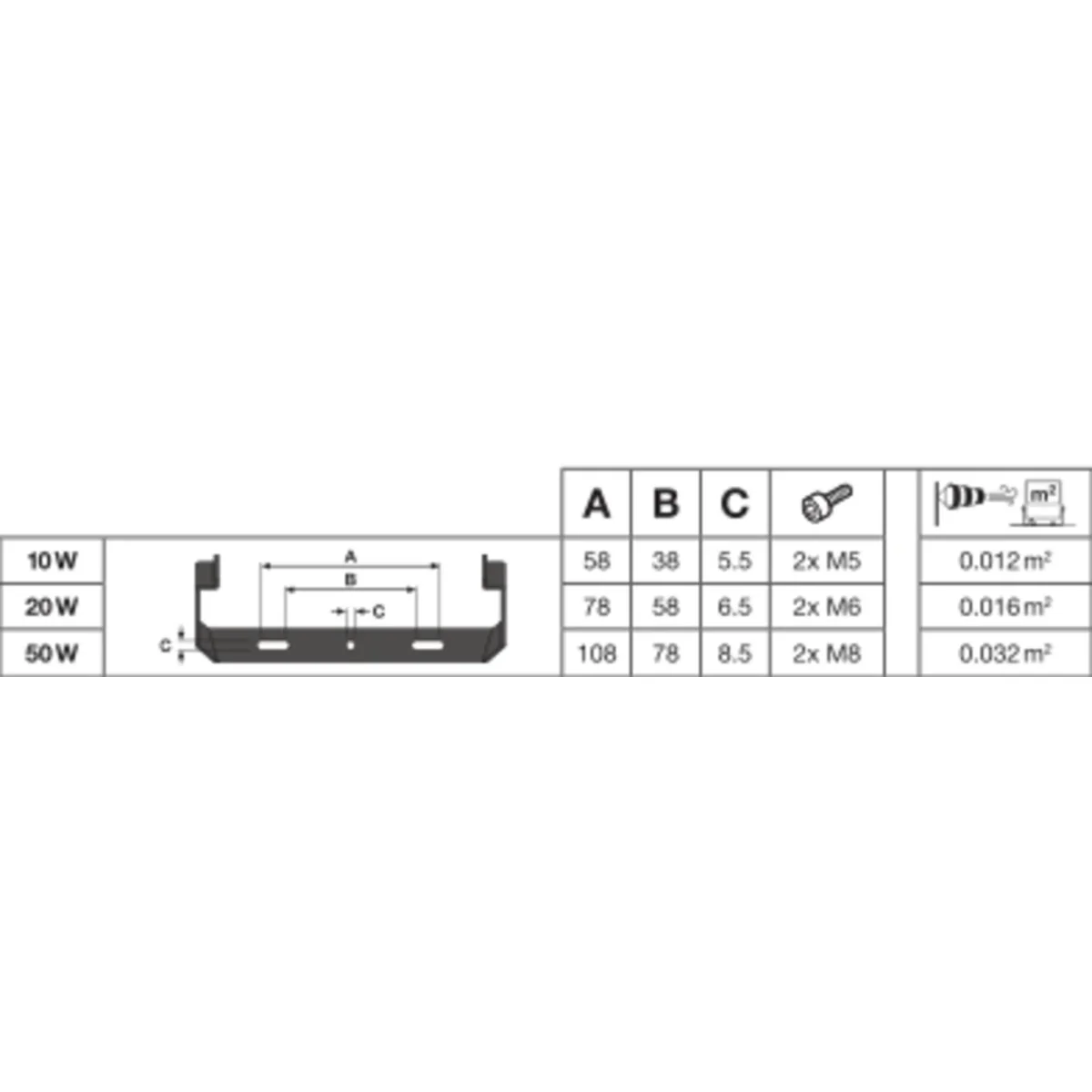

InstallationSurface-mounted
-
Initial starting current [A]7.2
-
Luminous efficiency [lm/W]120
-
luminous flux [lm]1200
-
Durability [h]70000
-
Electrical endurance (number of cycles)100000
-
Power factor [λ]≥0.90
-
cri (ra)>80
-
Light sensor detection threshold [lx]10-2000
Other technical data
-
Suitable for surface mountingYes
-
Suitable for wall mountingYes
-
Suitable for ceiling mountingNo
-
Suitable for pedestal/floor mountingNo
-
Suitable for clamp-mountingNo
-
AdjustabilitySwivelling
-
With light sensorYes
-
With light sourceYes
-
Surface protectionPowder coating
-
Material coverGlass opal
-
Voltage typeAC
-
Type of control gearElectronic ballast
-
Dimming DALINo
-
No dim functionYes
-
Beam angleOpen beam/diffuse
-
Klasa efektywności energetycznej zamontowanego źródła światłaA++, A+, A (LED)
-
Żywotność znamionowa L70/B10 przy 25 °C70000 h
-
Rated life time L80/B10 at 25 °C55000 h
-
Żywotność znamionowa L90/B10 przy 25°C35000 h
-
Degree of protection (IP)IP65
-
Protection classI
-
Colour of lightWhite
-
Colour rendering index CRI80-89
-
Rated luminous flux according to IEC 62722-2-11200 lm
-
Width131.0 mm
-
Length1000 mm
-
Number of poles3
-
Luminaire efficacy120 lm/W
-
Covering of the luminaire with thermally insulating material possibleNo
-
Photobiological safety according to EN 62471RG1
-
Suitable for built-in mountingNo
-
Suitable for suspended mountingNo
-
Suitable for traverse mountingNo
-
Suitable for light-track mountingNo
-
Suitable for low voltage cable systemNo
-
With movement sensorYes
-
Lamp typeLED not exchangeable
-
Housing materialAluminium
-
Housing colourBlack
-
Surface brushedNo
-
Prąd znamionowy LED przy zasilaniu prądem stałym48 ... 48 mA
-
With control gearYes
-
Dimming manufacturer's proprietary systemNo
-
Light distributorReflector
-
Light outletDirect
-
Total harmonic distortion19
-
Rated life time L70/B50 at 25 °C70000 h
-
Żywotność znamionowa L80/B50 przy 25 °C55000 h
-
Żywotność znamionowa L90/B50 przy 25 °C35000 h
-
Impact strengthIK07
-
Max. system power10.00 W
-
Colour temperature4000 ... 4000 K
-
Luminous flux1200 ... 1200 lm
-
Lamp efficacy120 lm/W
-
Height/depth53.0 mm
-
Type of wiringEnding
-
Connection typeOther
-
Suitable for workplace according to EN 12464-1No
-
Filament test according to IEC 60695-2-11650 °C - 30 s
-
Colour consistency (McAdam ellipse)SDCM5

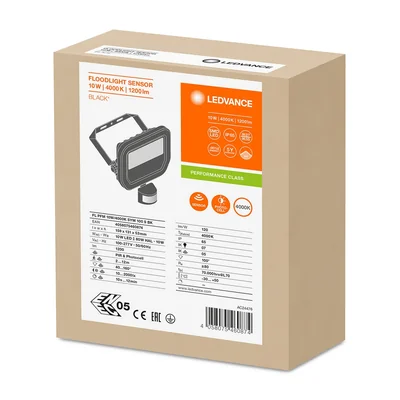

Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 0,440 | 0,498 | 6,509 |
| Volume (m3) | - | 0,001 | 0,021 |
| Width (m) | - | 0,140 | 0,280 |
| Length (m) | - | 0,070 | 0,400 |
| Depth (m) | - | 0,170 | 0,180 |
