el12 Lighting Light fixtures Outdoor luminaires Floodlights, reflectors and projectors

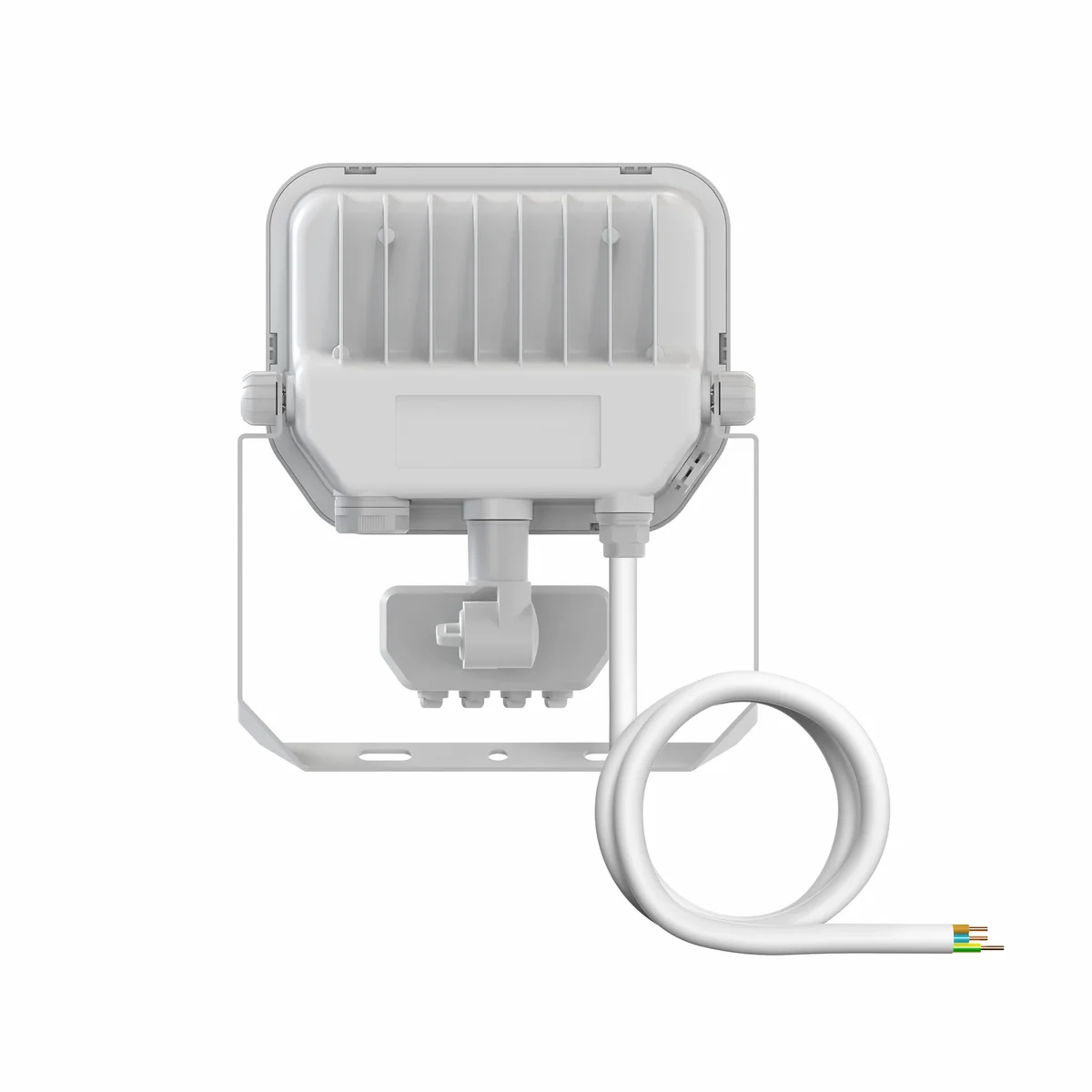

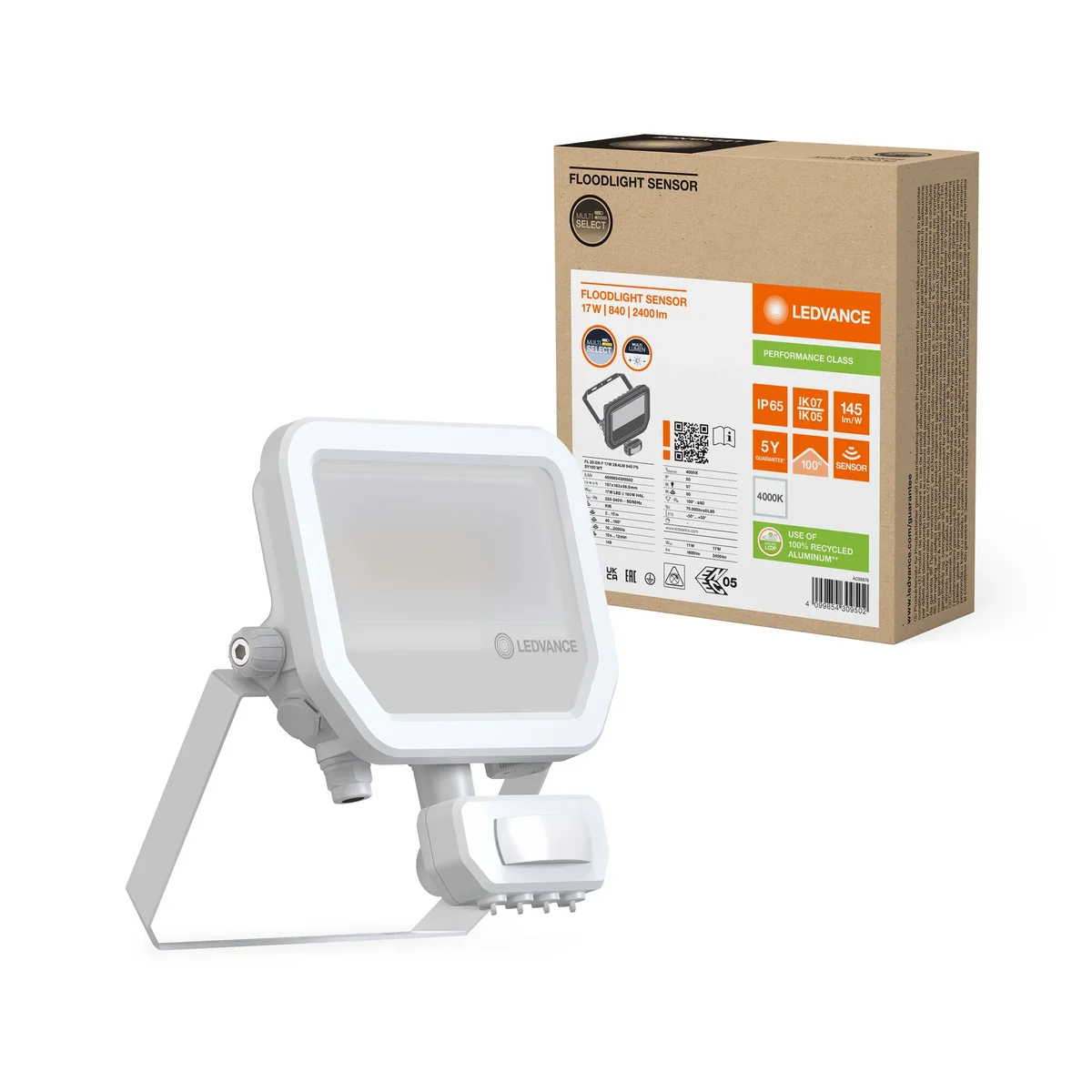

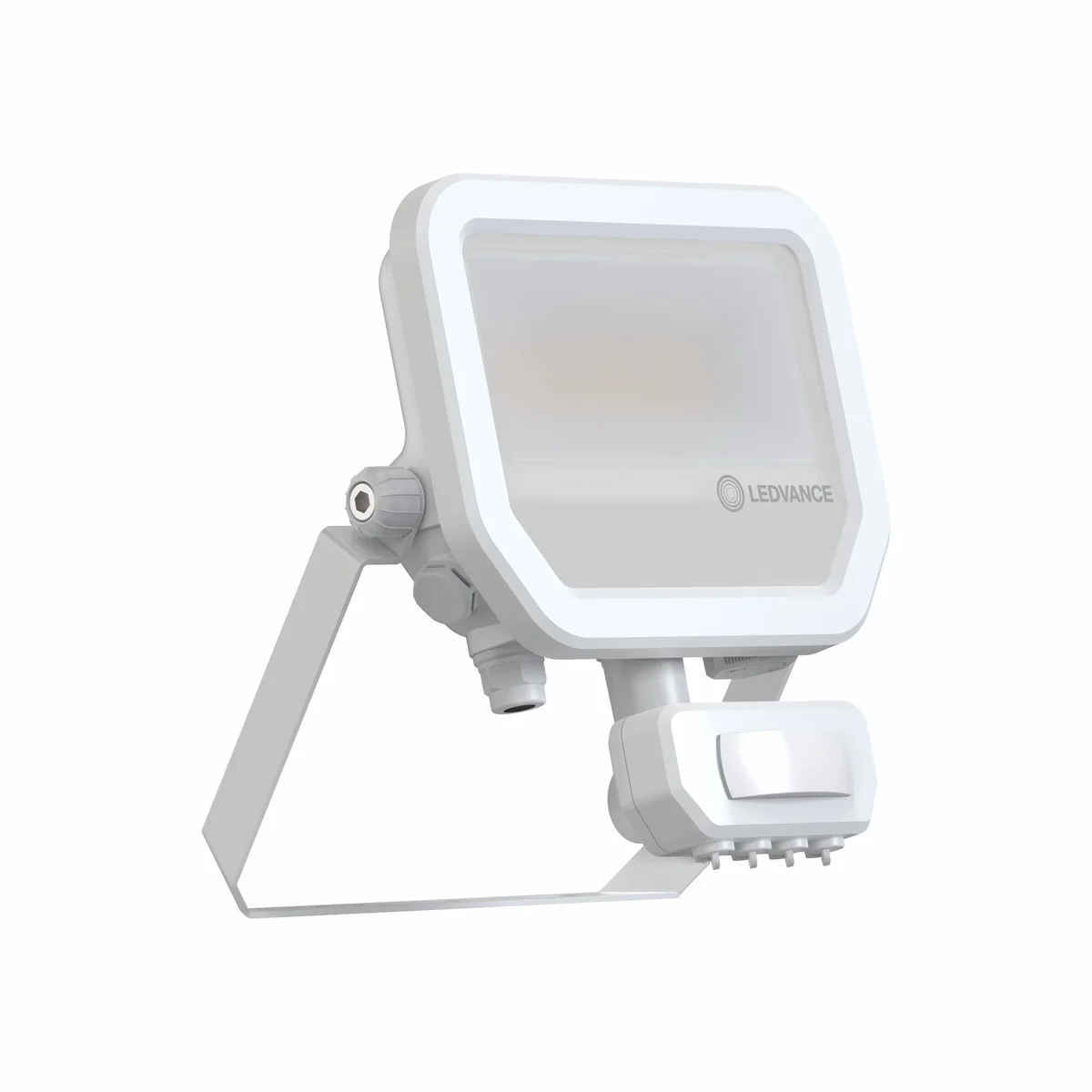

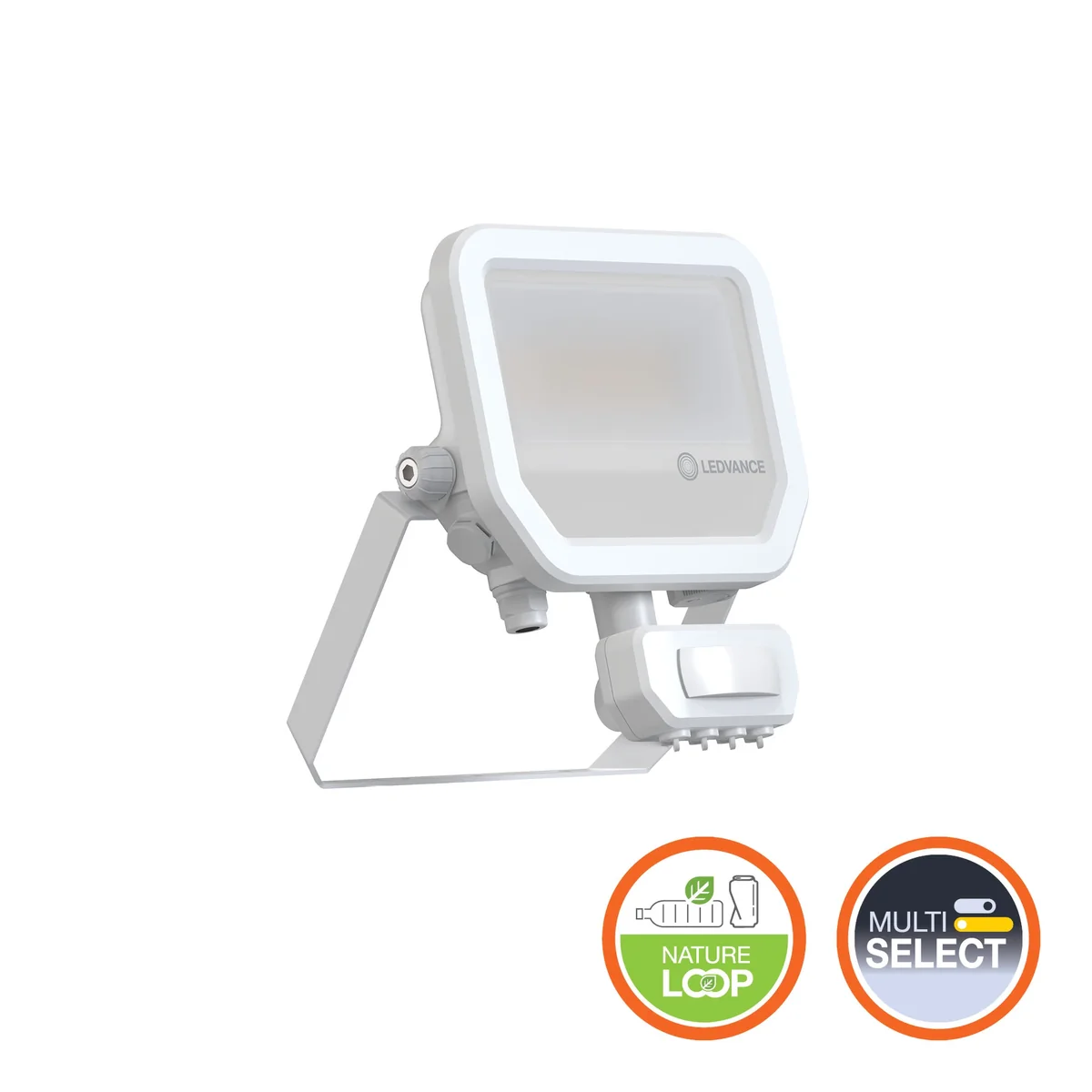

Floodlight FLOODLIGHT SENSOR 20 17W 2K4LM 840 PS SY100 WT 4099854309502

local index:
OZC086LEDV
Catalog number:
4099854309502
EAN code:
4099854309502
Manufacturer: LEDVANCE
Price:
171,13 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    No
  • Suitable for clamp-mounting
    No
  • Adjustability
    Swivelling
  • Technologia wykonania czujnika ruchu/obecności
    Passive infrared
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Powder coating
  • Material cover
    Glass opal
  • Voltage type
    AC
  • Nominal current
    75 ... 60 mA
  • With control gear
    Yes
  • Exchangeable control gear
    No
  • Dimming 1-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Light distributor
    Reflector

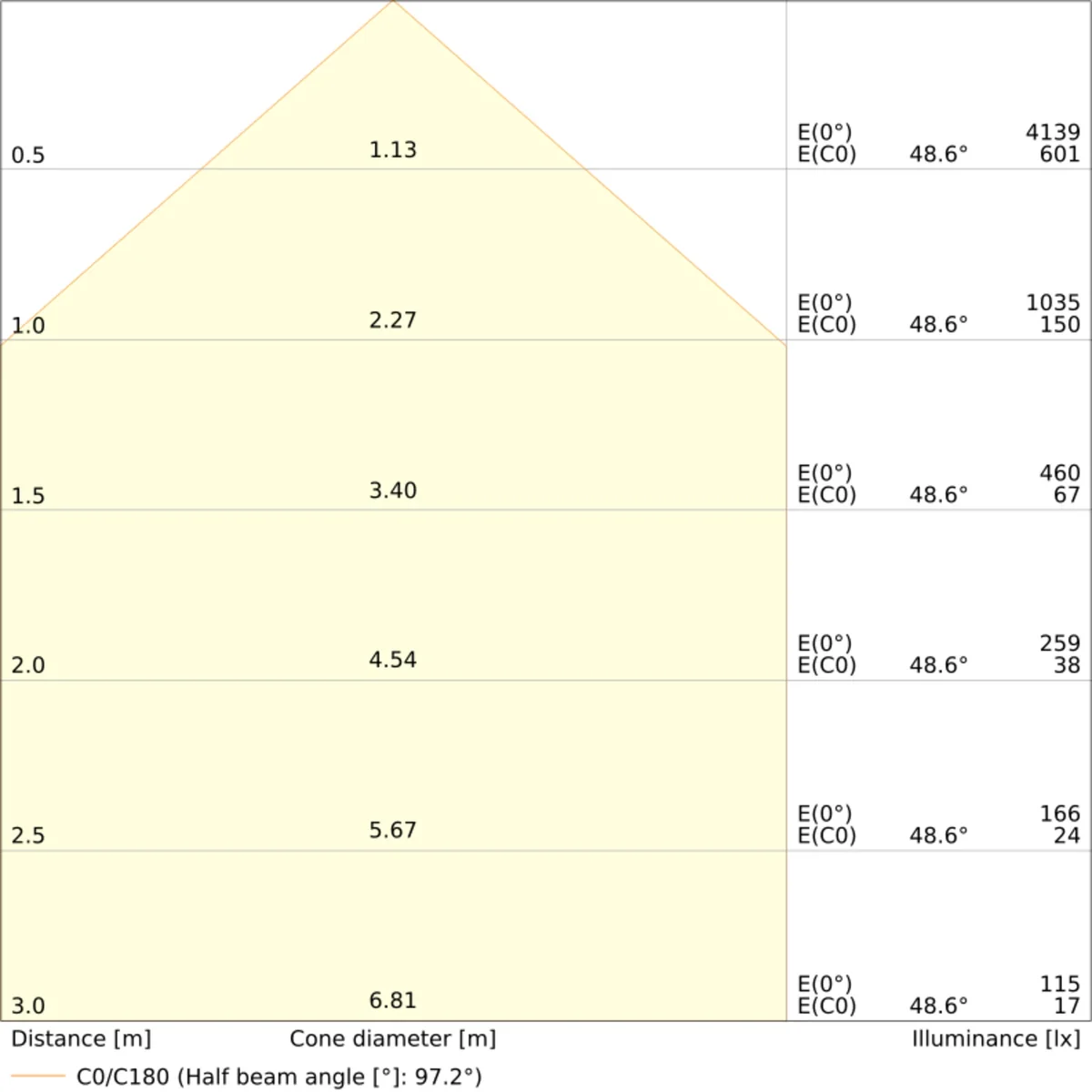

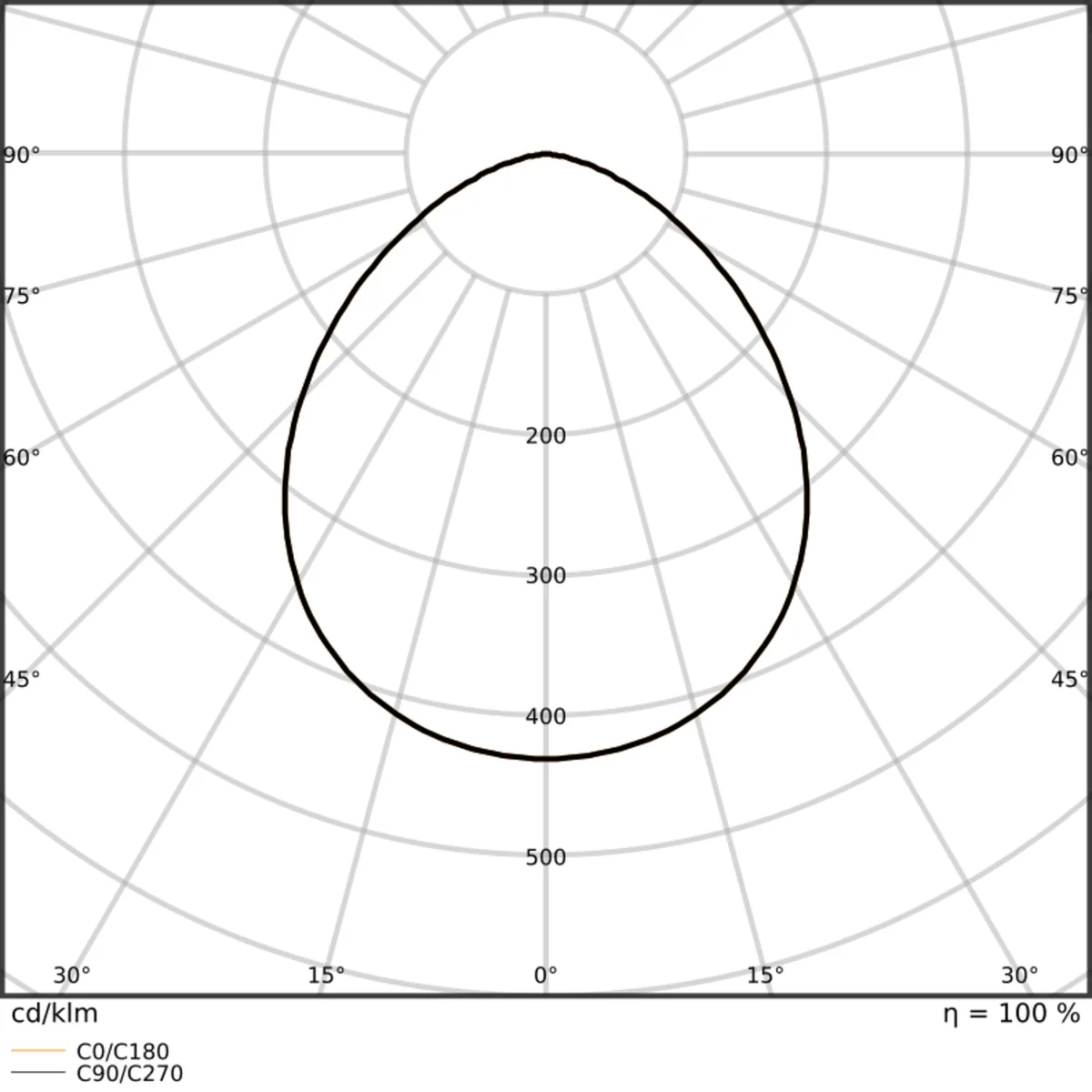

  • Beam angle
    Extreme wide beam >80°
  • Energy efficiency class of the light source according to EU regulation 2019/2015
    C
  • Rated life time L70/B50 at 25 °C
    100000 h
  • Degree of protection (IP), front side
    IP65
  • Protection class
    I
  • Max. system power
    17 W
  • Colour temperature
    4000 ... 4000 K
  • Colour rendering index CRI
    80-89
  • Luminous flux adjustable
    No
  • Power factor
    0.9

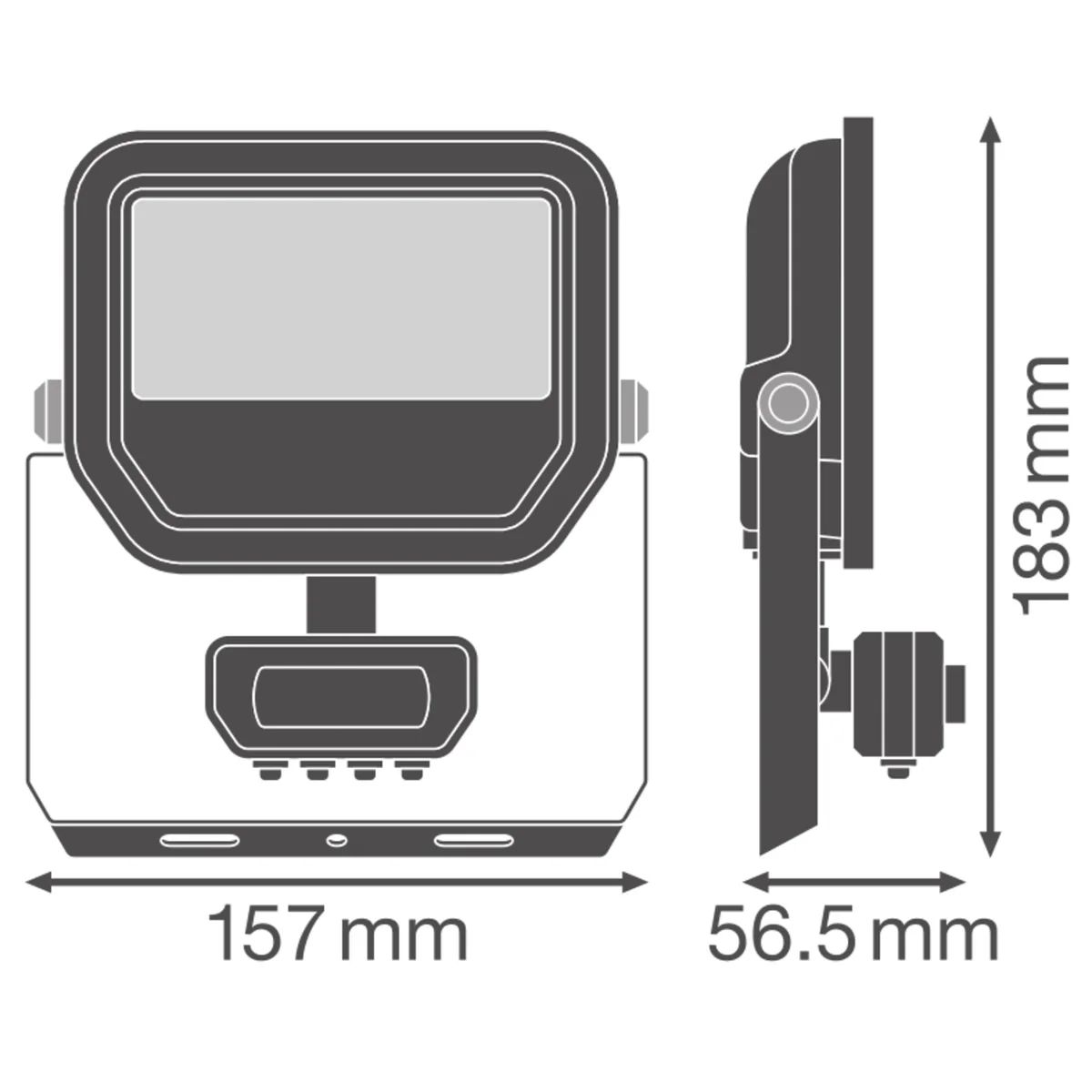

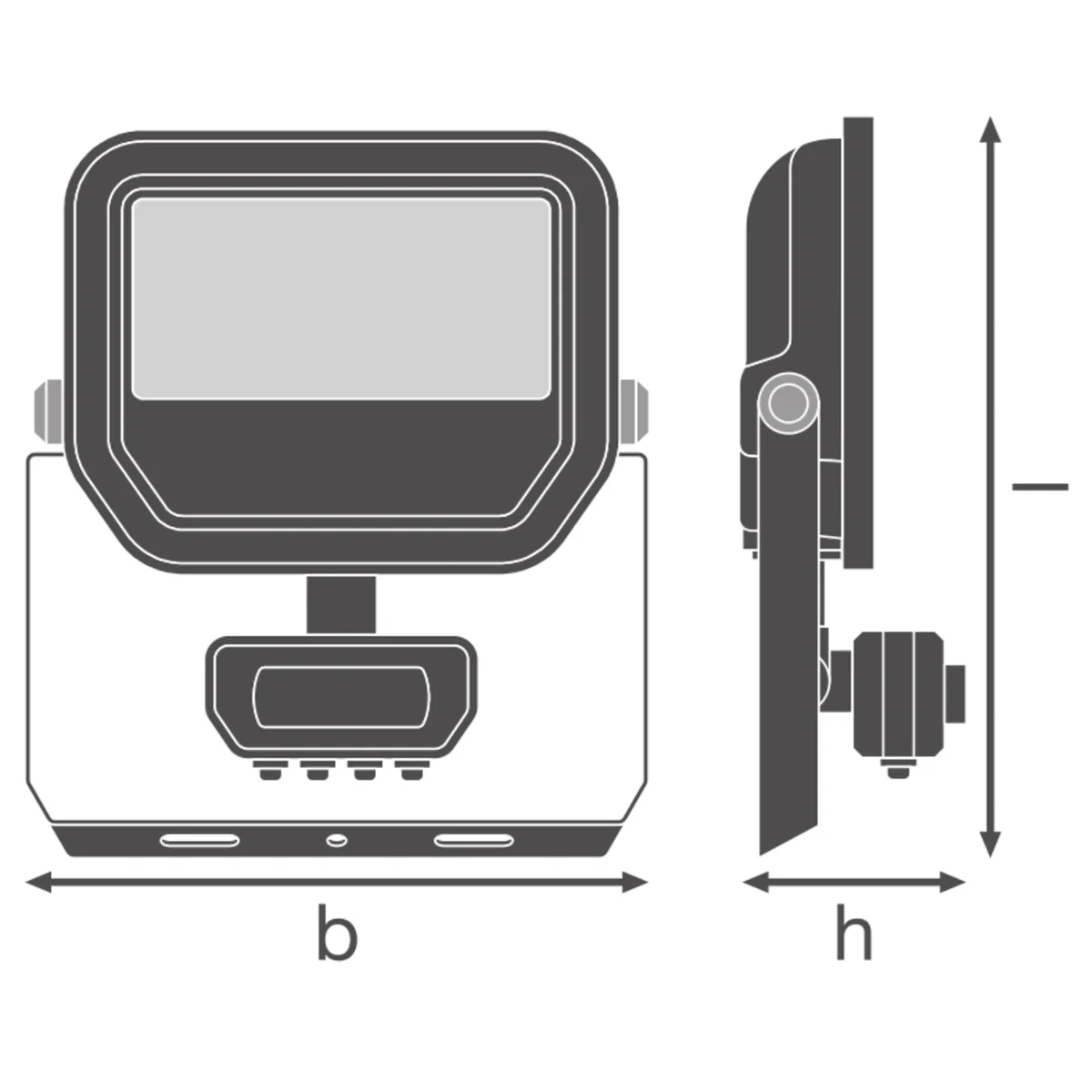

  • Length
    157 mm
  • Height/depth
    183 mm
  • Number of poles
    3
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    Yes
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    96
  • Photobiological safety according to EN 62471
    RG1
  • Covering of the luminaire with thermally insulating material possible
    No
  • Colour consistency (McAdam ellipse)
    SDCM5
  • Operation by Bluetooth
    No
  • Compatible with Casambi
    No
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No

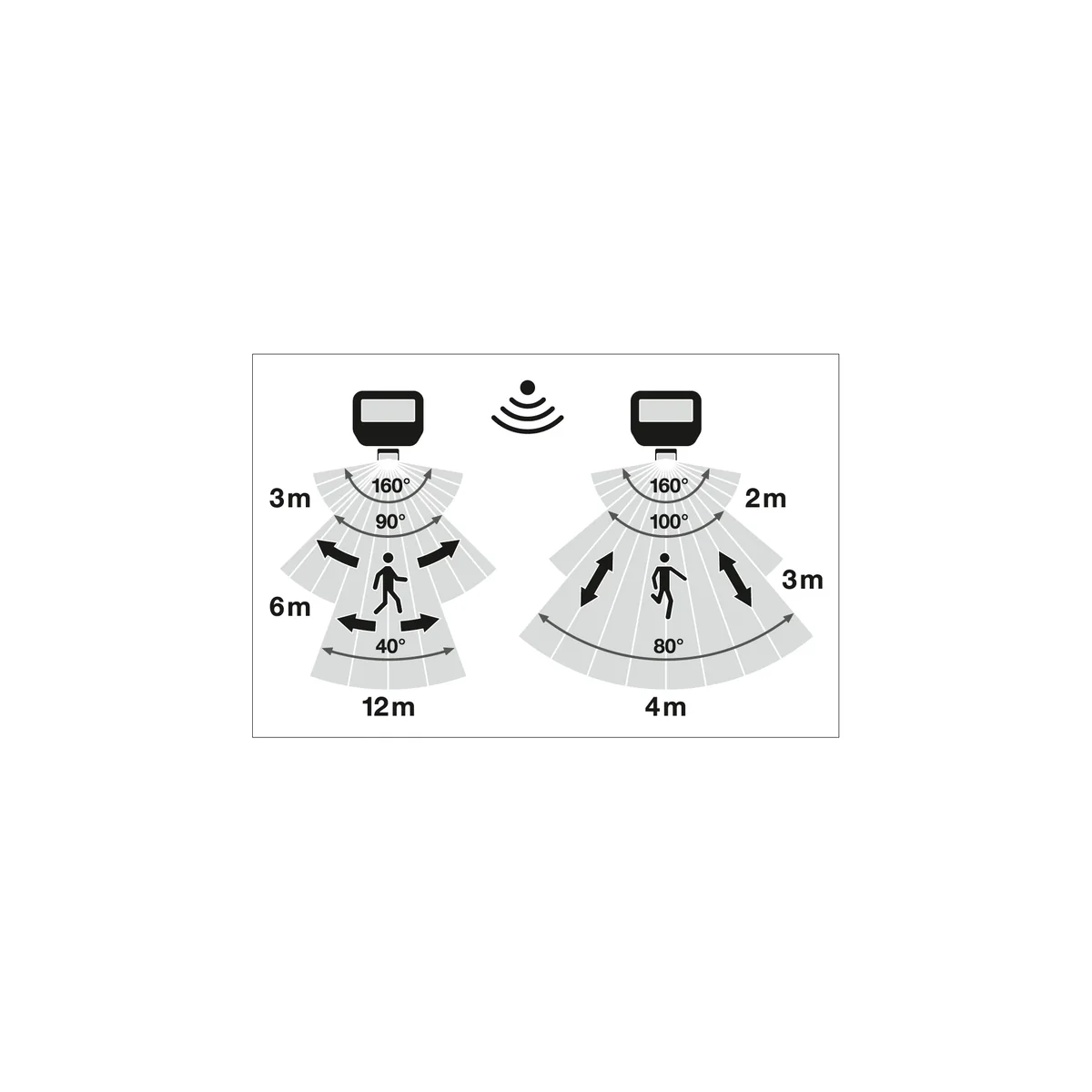

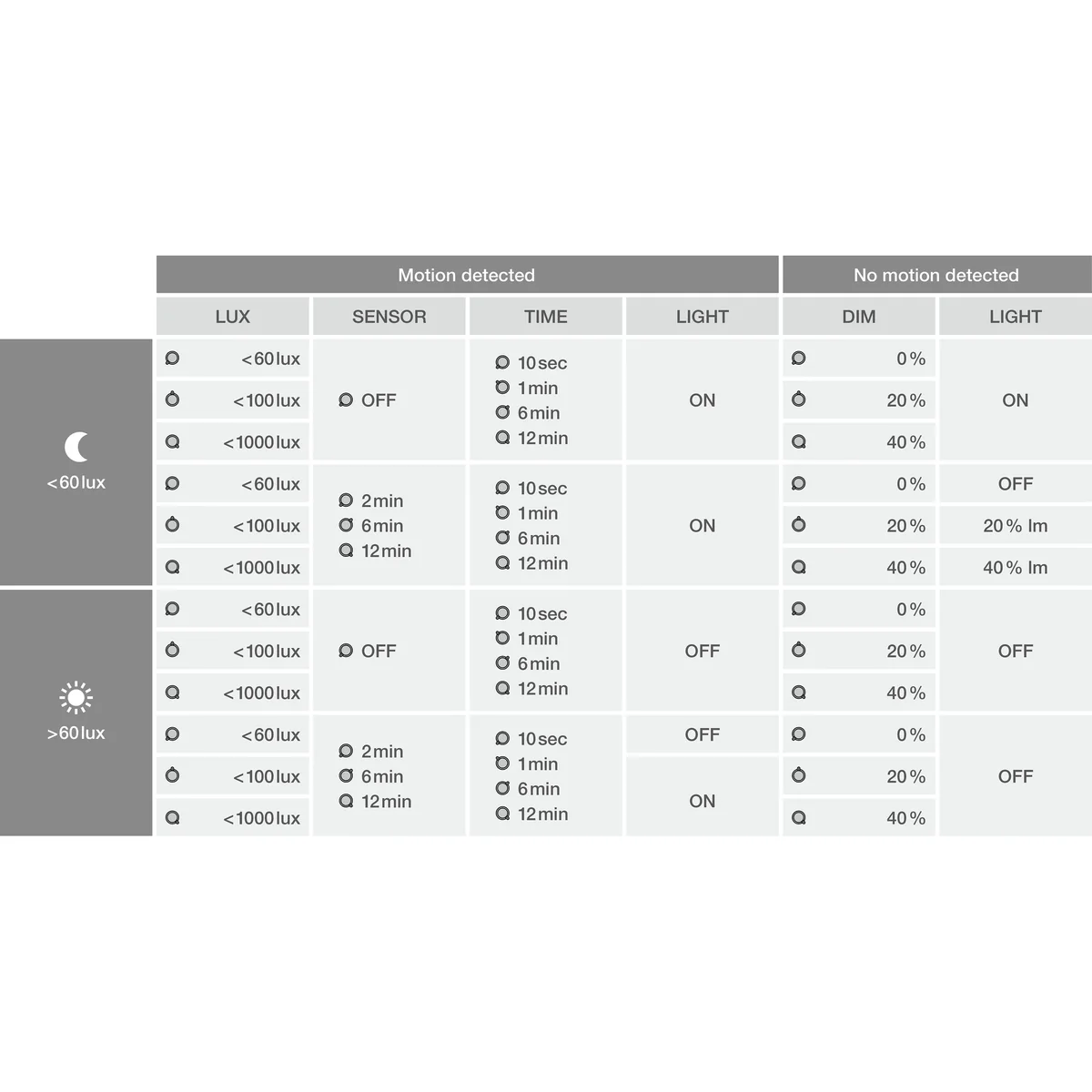

  • With movement sensor
    Yes
  • With light sensor
    Yes
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    White
  • Surface brushed
    No
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    Electronic ballast
  • Dimmable
    No
  • Dimming 0-10 V
    No
  • Dimming DALI-2
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • Reflector
    Matt
  • Light sharing
    Symmetric
  • Light outlet
    Direct
  • Współczynnik harmonicznych (THD)
    20 %
  • Constant light output (CLO)
    No
  • Impact strength
    IK05
  • Rated ambient temperature according to IEC 62722-2-1
    -30 ... 50 °C
  • Colour of light
    White
  • Colour of light adjustable
    No
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    1600 ... 2400 lm
  • Skuteczność świetlna oprawy
    145 ... 145 lm/W
  • Beam angle adjustable
    No
  • Width
    38 mm
  • Type of wiring
    Ending
  • Connection type
    Push-in clamp
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    75
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Suitable for workplace according to EN 12464-1
    No
  • IFTTT support available
    No
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

  • Manufacturer
    LEDVANCE GmbH
  • Address
    85748 Garching Parkring 29-33 Niemcy
  • E-mail
    InfoPL@ledvance.com

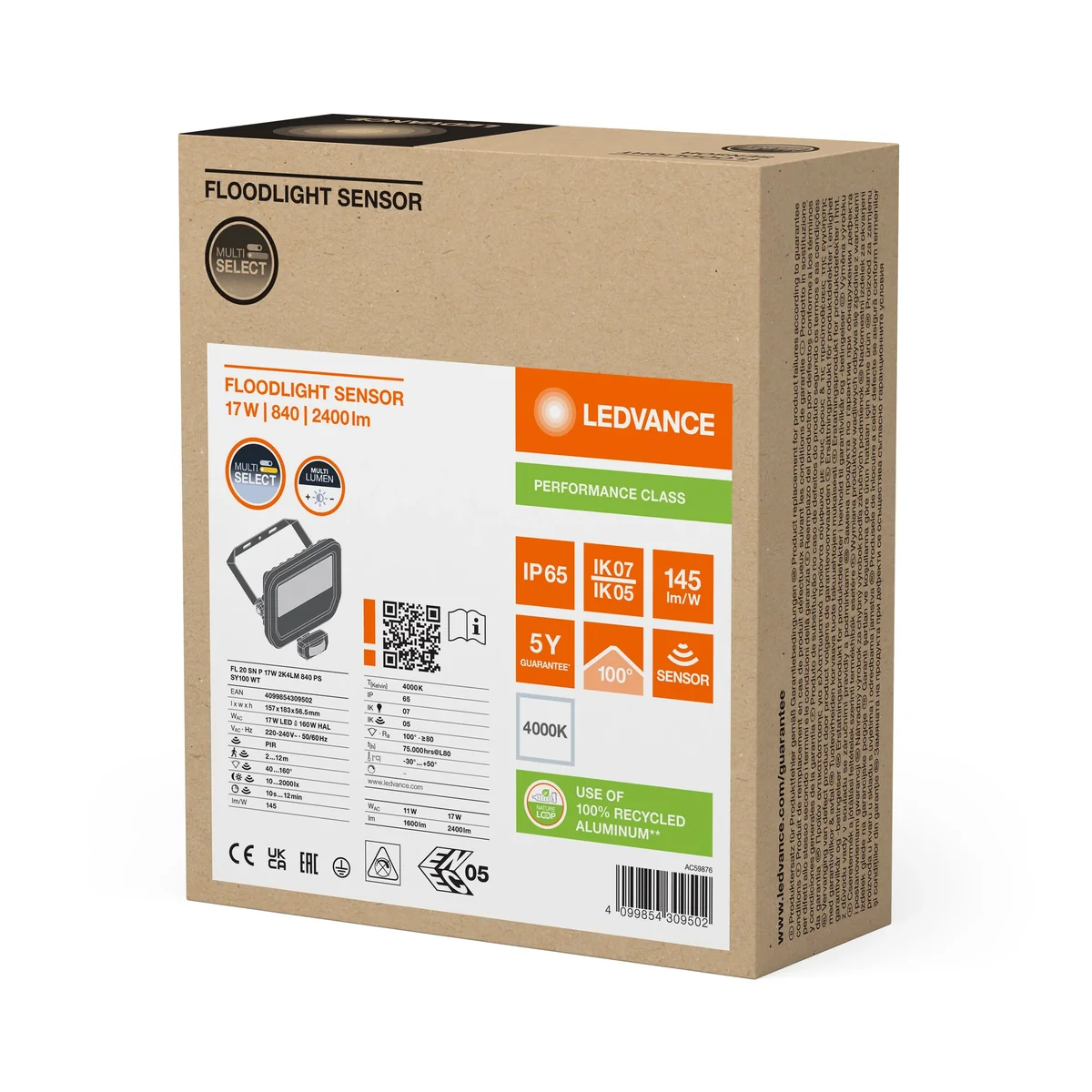

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,649 8,418
Volume (m3) 0,002 0,032
Width (m) 0,160 0,290
Length (m) 0,070 0,500
Depth (m) 0,190 0,220
