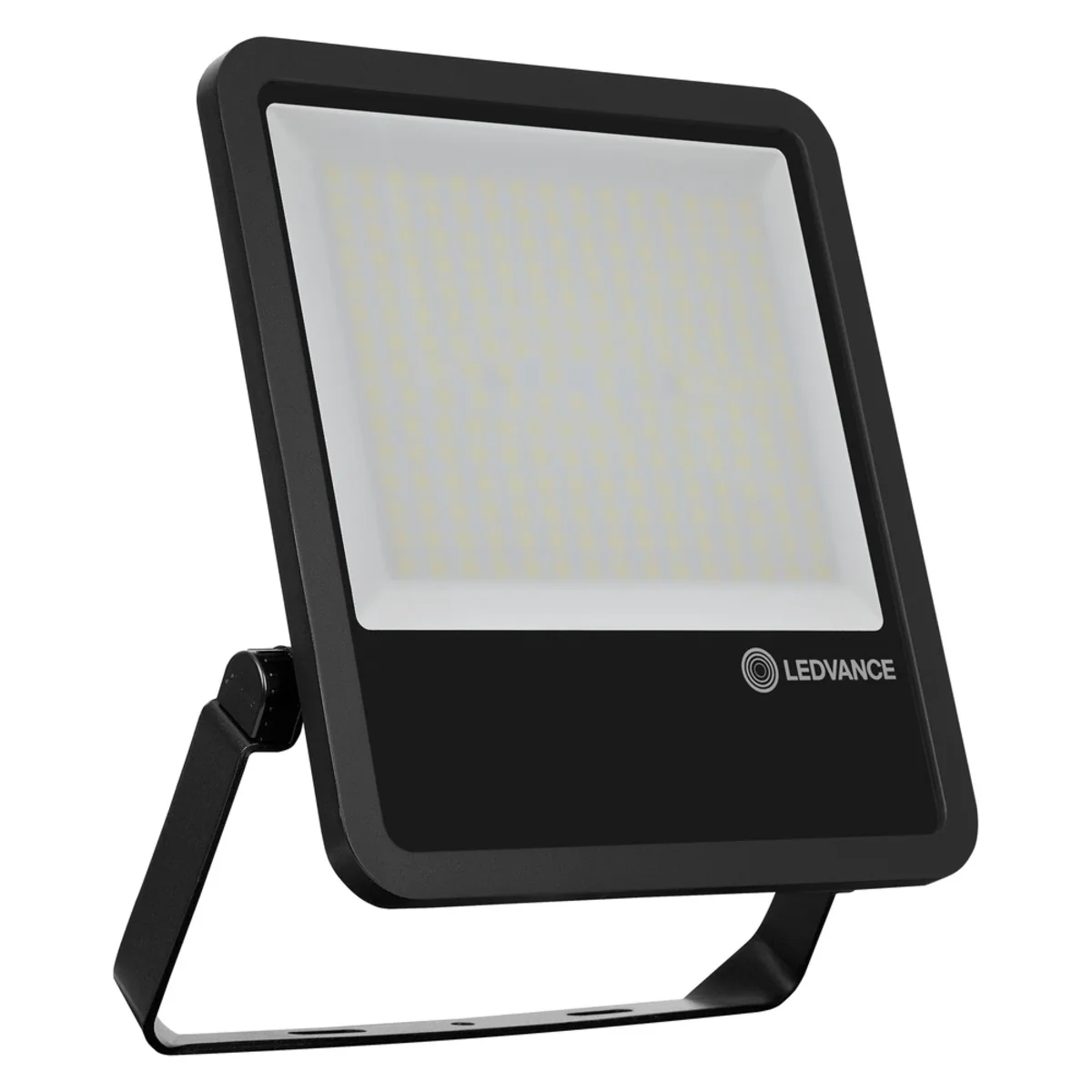

FLOODLIGHT 200 W LED floodlight 200W 25000lm 6500K CW IP65 black 4058075423770
local index:
OZC145LEDV
Catalog No:
4058075423770
EAN code:
4058075423770
Price:
339,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Universal forsilluminator , from the FLOODLIGHT 200W series.
Product benefits
- Bright, resistant and durable
- Safe and very even lighting thanks to the frosted tempered glass cover
- No upper light distribution coefficient (ULOR 0% ) when mounted at an angle of 0°
- Energy savings of up to 90% (compared to floodlights with halogen lamps)
Area of application
- Replacement of floodlights for halogen bulbs
- Outdoor use (IP65)
- Public areas
- Facades of buildings ;w
- Construction sites
- Gardens, balconies and other outdoor areas
Product features< /p>

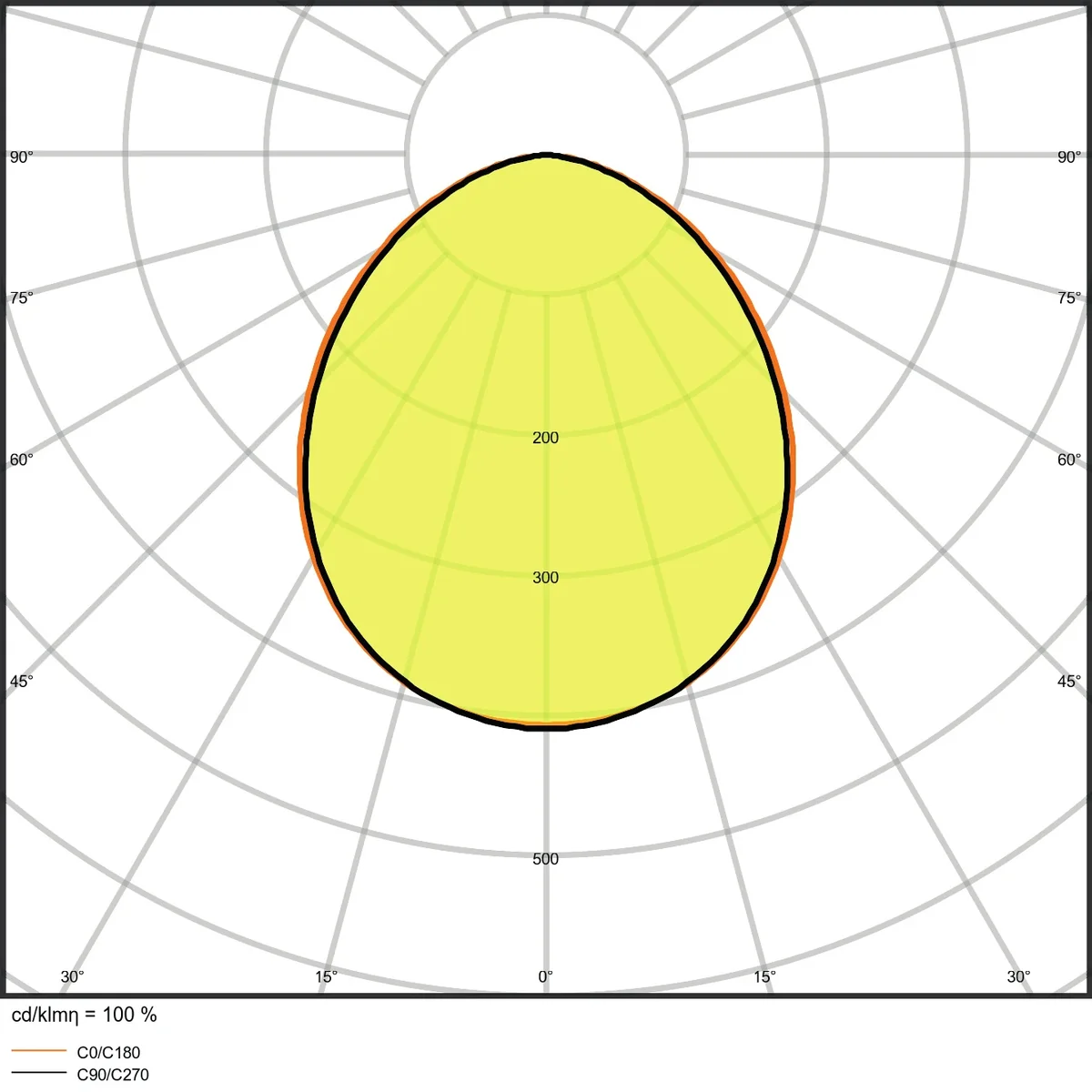

- Reflector, symmetrical light distribution with a beam angle of 100° x 100°
- Integrated power supply with a wide range of supply voltage, 100 - 277 VAC
- Surge protection: up to 4 kV (L / N-PE), 2 kV (L-N)< /li>

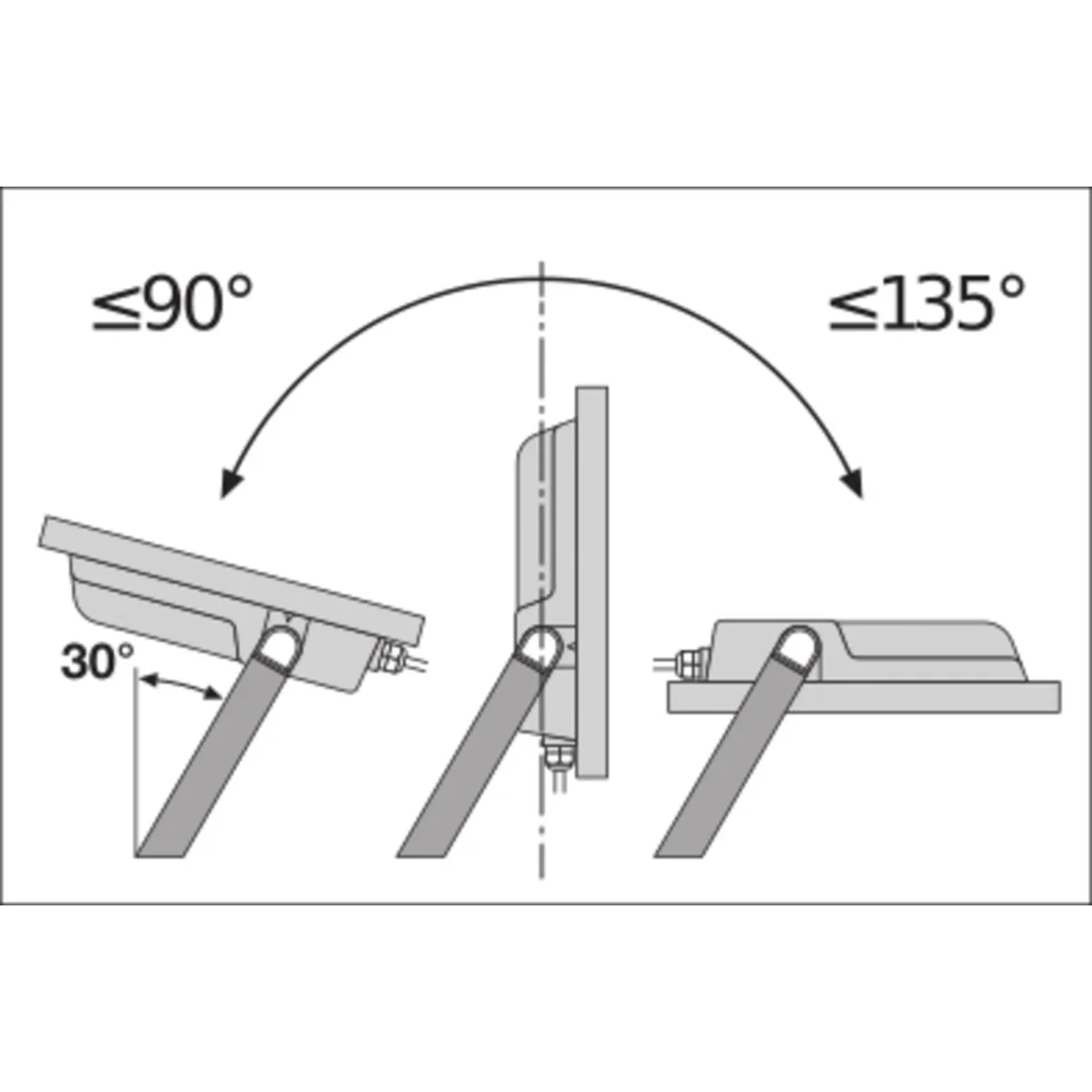

- 30° and wide swivel area
- Bleed valve to optimize air exchange without compromising IP protection

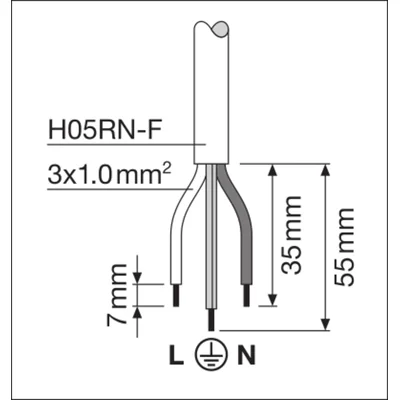

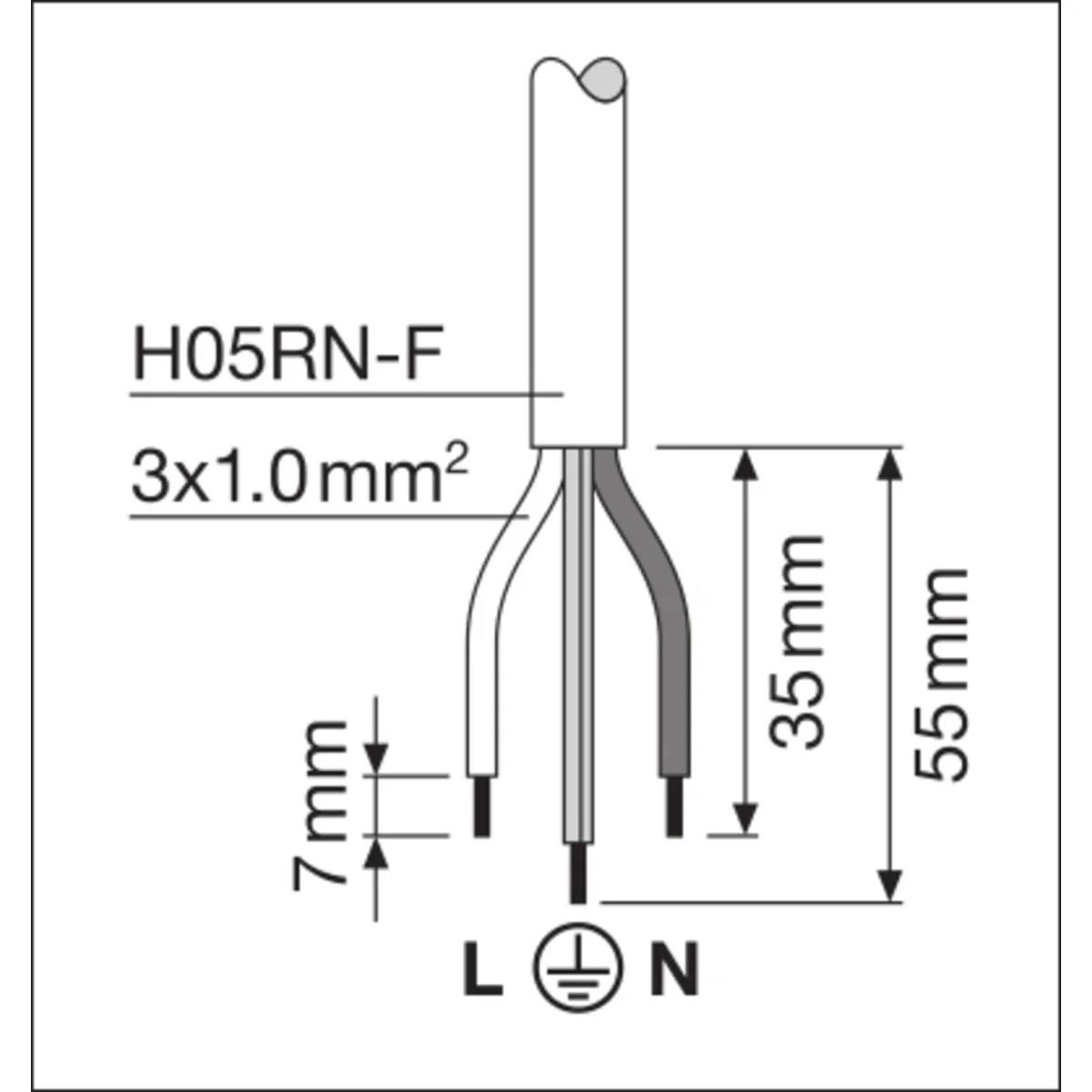

- Pre-installed 1m flexible hose (H05RN-F), 3 x 1.0mm²
Technical data
-
Light color [K]4800-6500 (cool)
-
Cable length [m]1
-
Protection classAND
-
Housing materialAluminum
-

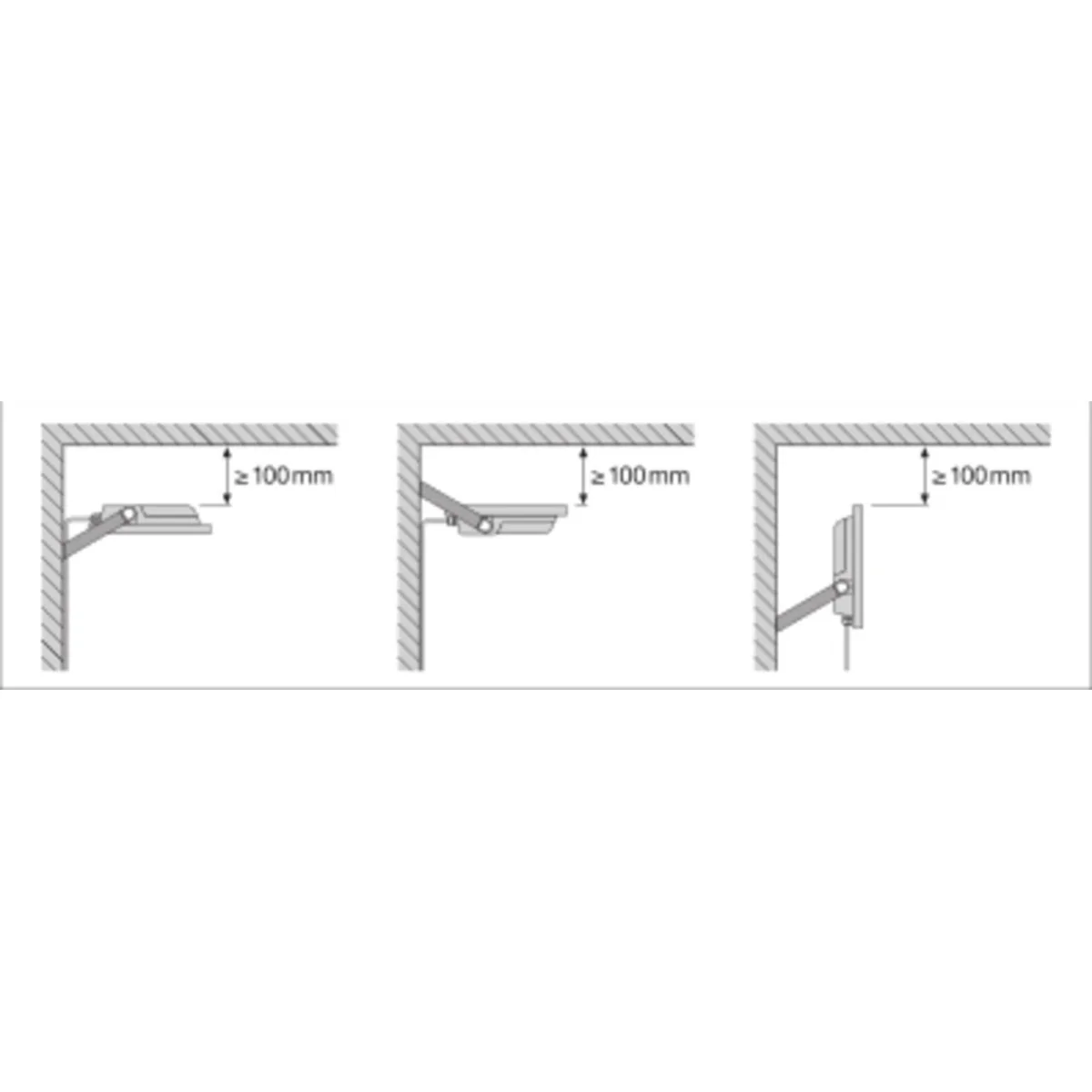

InstallationSurface-mounted
-
Initial starting current [A]80
-
Luminous efficiency [lm/W]125
-
luminous flux [lm]25000
-
Durability [h]70000
-
Electrical endurance (number of cycles)100000
-
Power factor [λ]≥0.90
-
cri (ra)>80
-

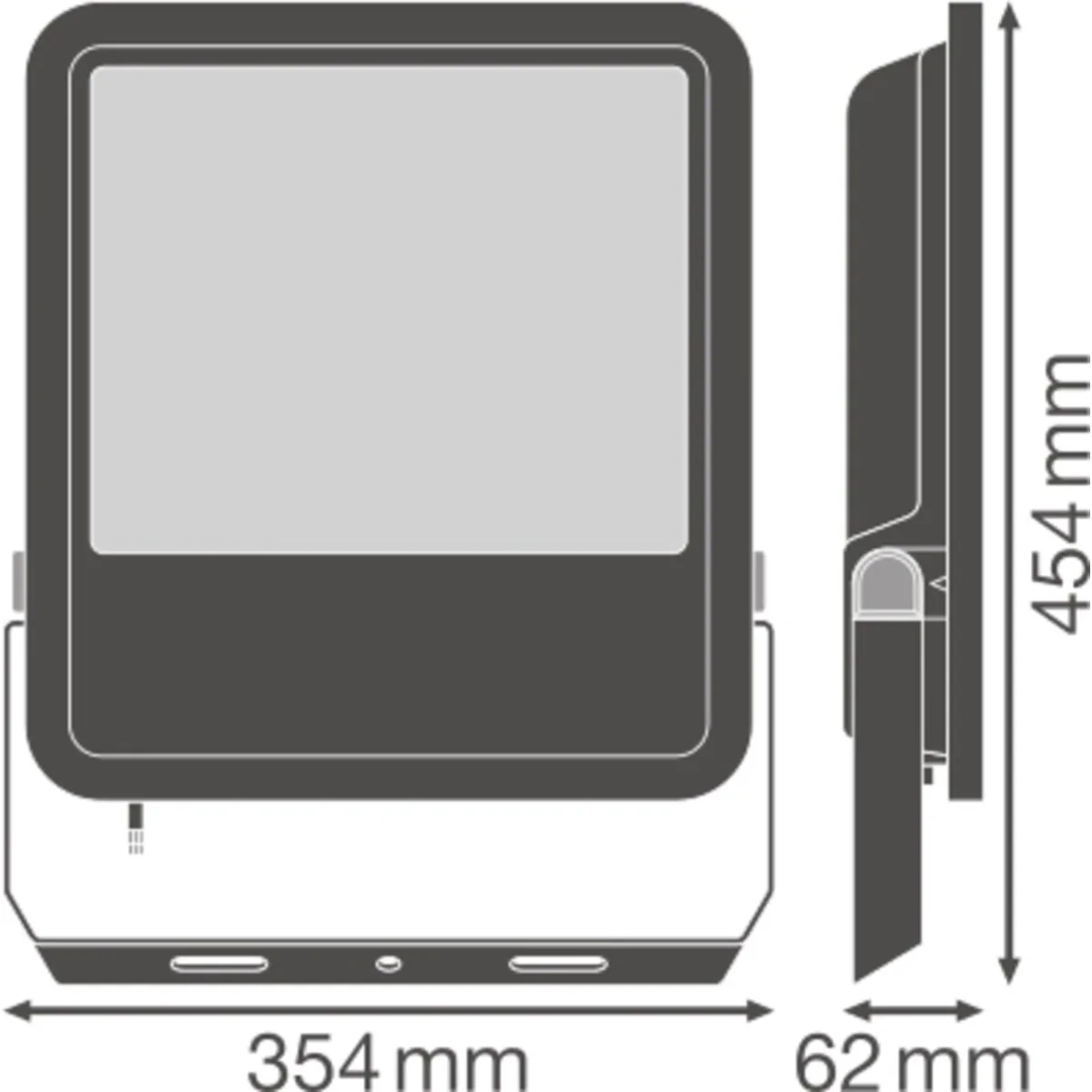

Length [mm]454
-

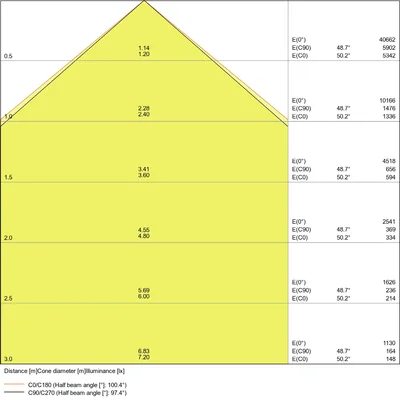

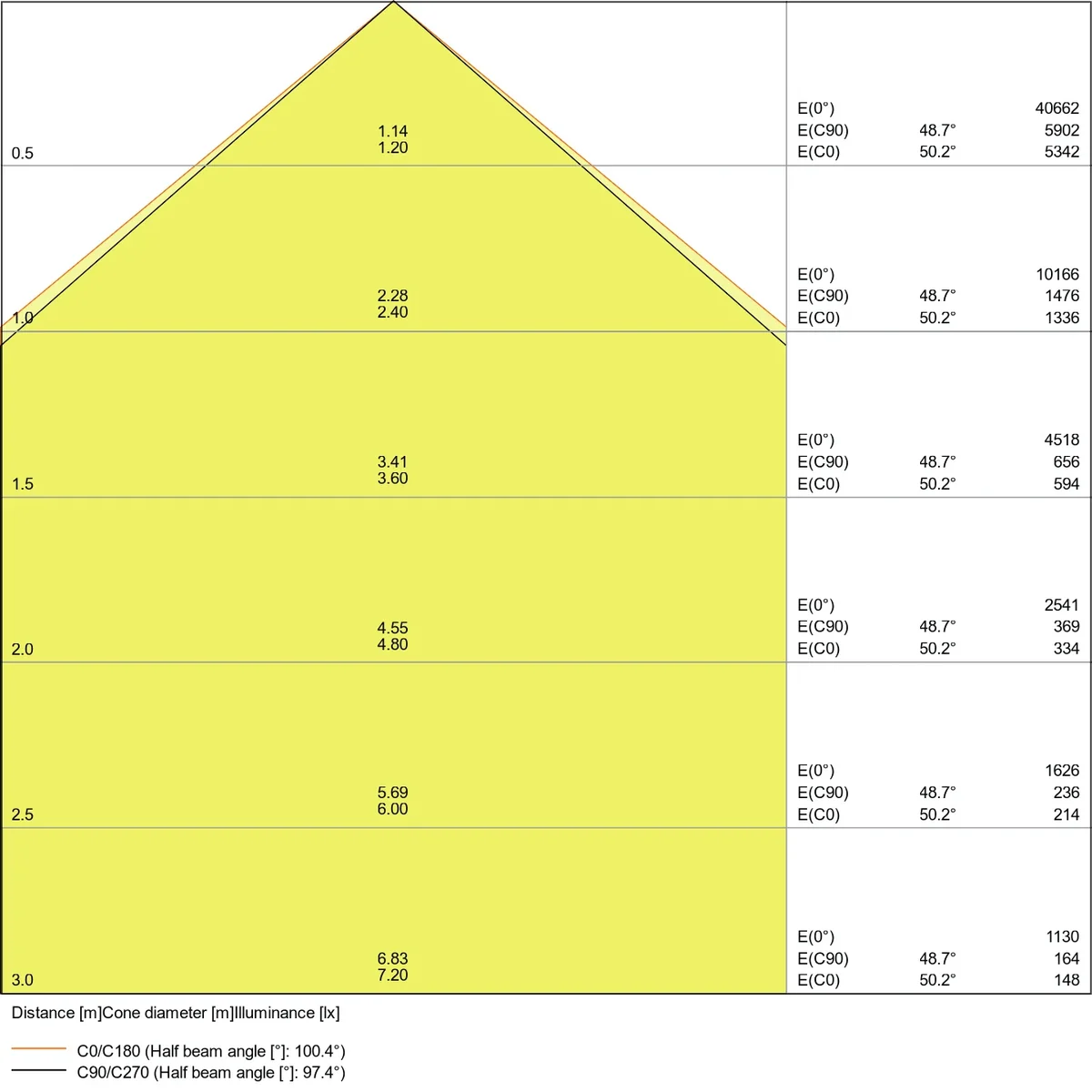

beam angle [°]100 x 100
-
ColorBlack
-
Power [W]200
-
Rated voltage [V]230
-
FamilyFLOODLIGHT 65W
-
Level of securityIP65
-
Width [mm]354
-
Height [mm]62
-
Degree of mechanical protectionIK07
-
Color Temperature [K]6500
Other technical data
-
Suitable for surface mountingYes
-
Suitable for wall mountingYes
-
Suitable for ceiling mountingNo
-
Suitable for pedestal/floor mountingNo
-
Suitable for clamp-mountingNo
-
AdjustabilitySwivelling
-
With light sensorNo
-
With light sourceYes
-
Surface protectionPowder coating
-
Material coverGlass opal
-
Voltage typeAC
-
Type of control gearElectronic ballast
-
Dimming DALINo
-
No dim functionYes
-
Beam angleOpen beam/diffuse
-
Klasa efektywności energetycznej zamontowanego źródła światłaA++, A+, A (LED)
-
Żywotność znamionowa L70/B10 przy 25 °C70000 h
-
Rated life time L80/B10 at 25 °C55000 h
-
Żywotność znamionowa L90/B10 przy 25°C35000 h
-
Degree of protection (IP)IP65
-
Protection classI
-
Colour of lightWhite
-
Colour rendering index CRI80-89
-
Rated luminous flux according to IEC 62722-2-125000 lm
-
Width354.0 mm
-
Length1000 mm
-
Number of poles3
-
Luminaire efficacy125 lm/W
-
Covering of the luminaire with thermally insulating material possibleNo
-
Photobiological safety according to EN 62471RG1
-
Suitable for built-in mountingNo
-
Suitable for suspended mountingNo
-
Suitable for traverse mountingNo
-
Suitable for light-track mountingNo
-
Suitable for low voltage cable systemNo
-
With movement sensorNo
-
Lamp typeLED not exchangeable
-
Housing materialAluminium
-
Housing colourBlack
-
Surface brushedNo
-
Prąd znamionowy LED przy zasilaniu prądem stałym1000 ... 1000 mA
-
With control gearYes
-
Dimming manufacturer's proprietary systemNo
-
Light distributorReflector
-
Light outletDirect
-
Total harmonic distortion19
-
Rated life time L70/B50 at 25 °C70000 h
-
Żywotność znamionowa L80/B50 przy 25 °C55000 h
-
Żywotność znamionowa L90/B50 przy 25 °C35000 h
-
Impact strengthIK08
-
Max. system power200.00 W
-
Colour temperature6500 ... 6500 K
-
Luminous flux25000 ... 25000 lm
-
Lamp efficacy125 lm/W
-
Height/depth62.0 mm
-
Type of wiringEnding
-
Connection typeOther
-
Suitable for workplace according to EN 12464-1No
-
Filament test according to IEC 60695-2-11650 °C - 30 s
-
Colour consistency (McAdam ellipse)SDCM5
Bulk packaging
| A kind of package | Karton | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 6,000 | 6,665 |
| Volume (m3) | - | 0,020 |
| Width (m) | - | 0,100 |
| Length (m) | - | 0,410 |
| Depth (m) | - | 0,520 |
