el12 Lighting Light fixtures Outdoor luminaires Floodlights, reflectors and projectors

FLOODLIGHT 10 W LED floodlight 10W 1200lm 6500K CW IP65 white 4058075420946

local index:
OZC116LEDV
Catalog No:
4058075420946
EAN code:
4058075420946

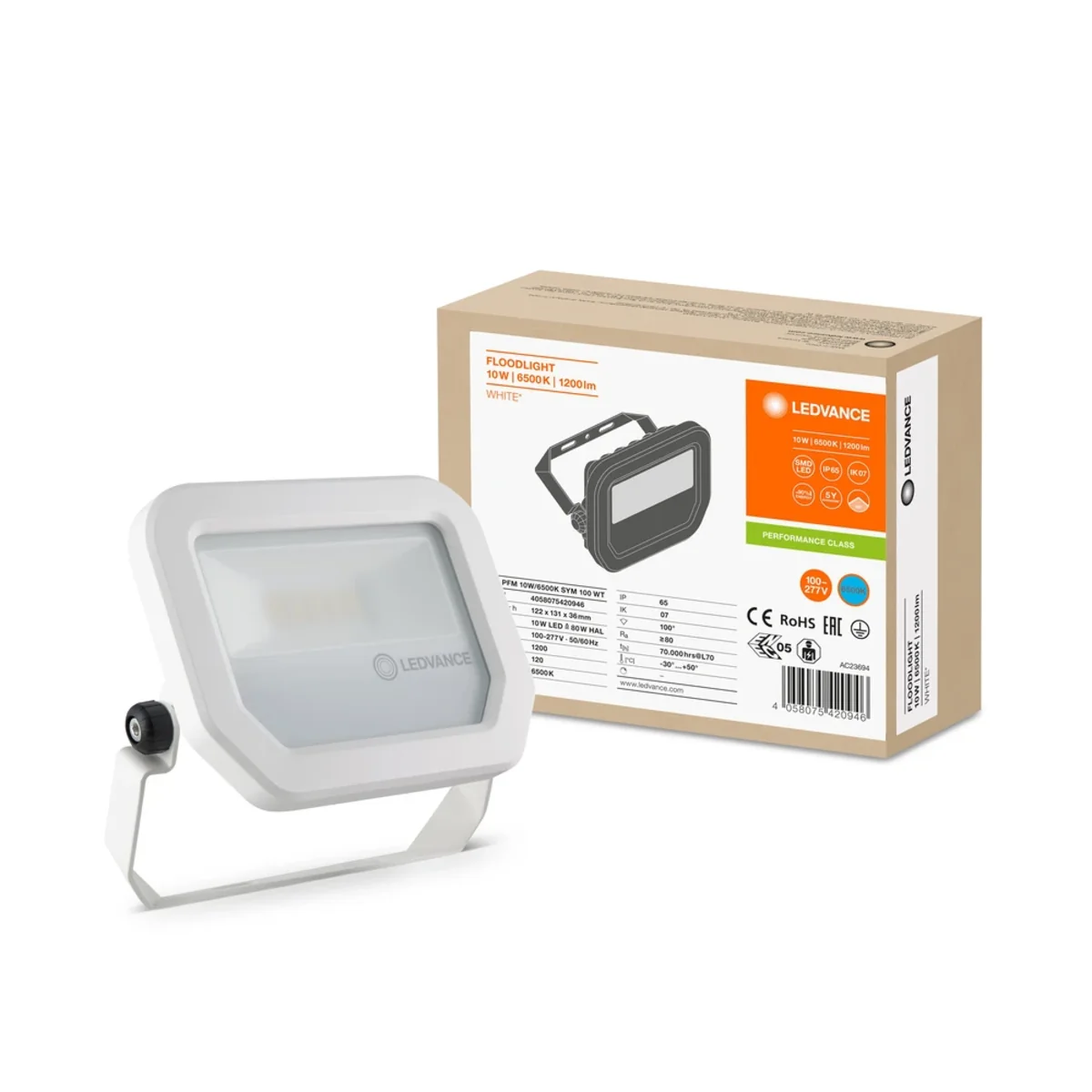

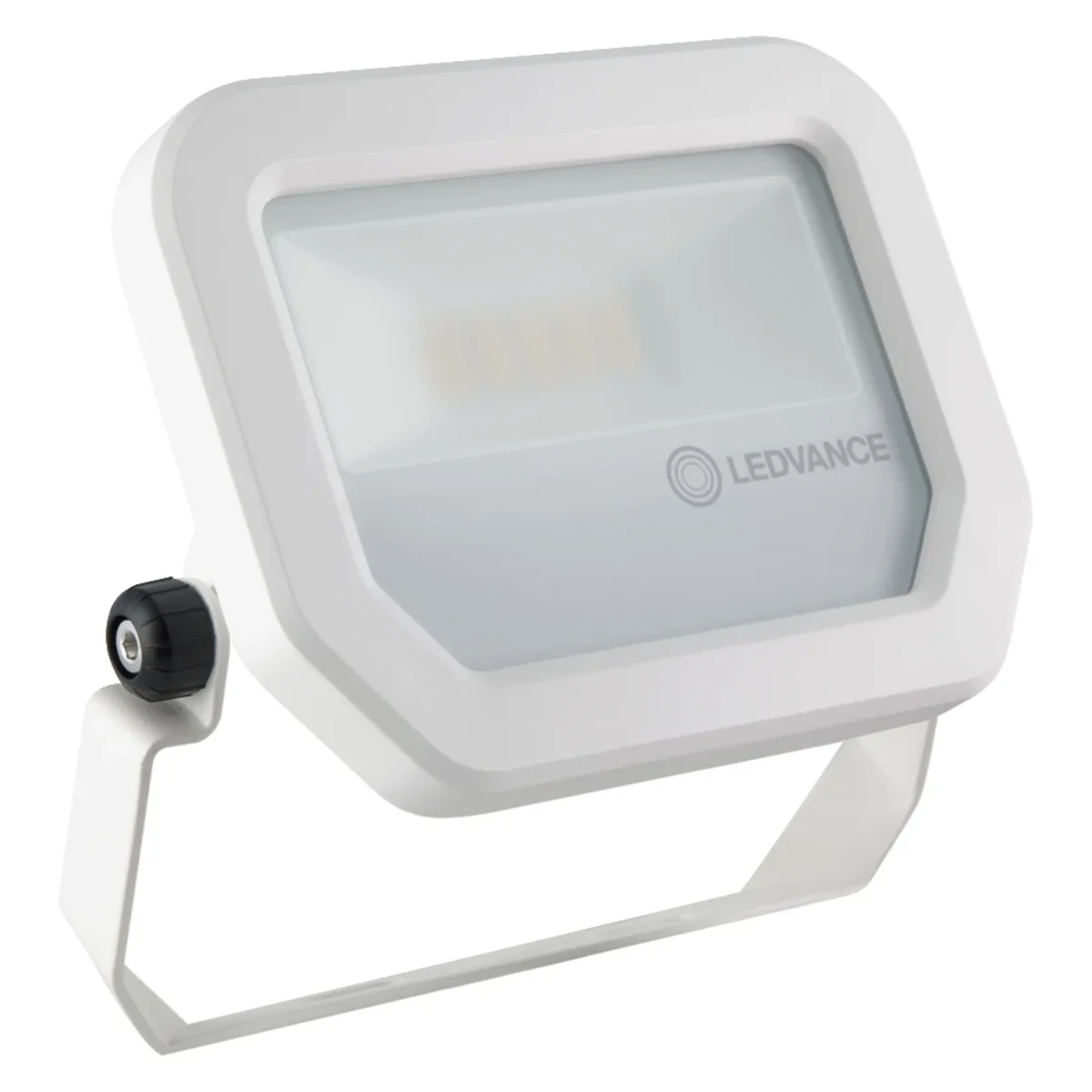

FLOODLIGHT 10 W LED floodlight 10W 1200lm 6500K CW IP65 white
FLOODLIGHT 10 W LED floodlight 10W 1200lm 6500K CW IP65 white

Click on the photo to enlarge

Manufacturer: LEDVANCE
Light color [K]: 4800-6500 (cool)
Length [mm]: 122
Cable length [m]: 1
See full description
Price:
18,87 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Bulk packaging

Product description

Universal forsilluminator , from the FLOODLIGHT 10W series.

Product benefits

  • Bright, resistant and durable
  • Safe and very even lighting thanks to the frosted tempered glass cover
  • No upper light distribution coefficient (ULOR 0% ) when mounted at an angle of 0°
  • Energy savings of up to 90% (compared to floodlights with halogen lamps)

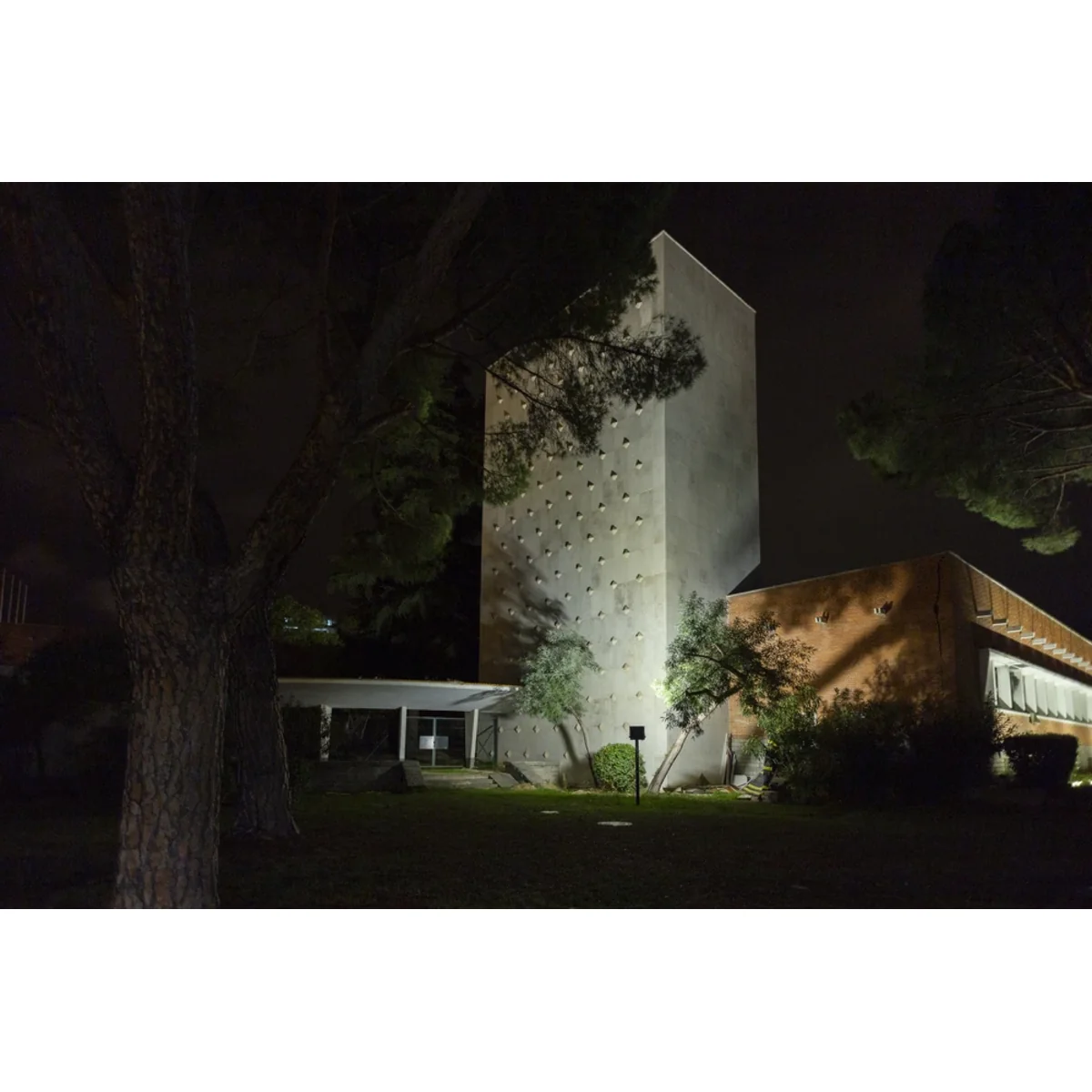

Area of application

  • Replacement of floodlights for halogen bulbs
  • Outdoor use (IP65)
  • Public areas
  • Facades of buildings ;w
  • Construction sites
  • Gardens, balconies and other outdoor areas

Product features< /p>

  • Reflector, symmetrical light distribution with a beam angle of 100° x 100°
  • Integrated power supply with a wide range of supply voltage, 100 - 277 VAC
  • Surge protection: up to 4 kV (L / N-PE), 2 kV (L-N)< /li>

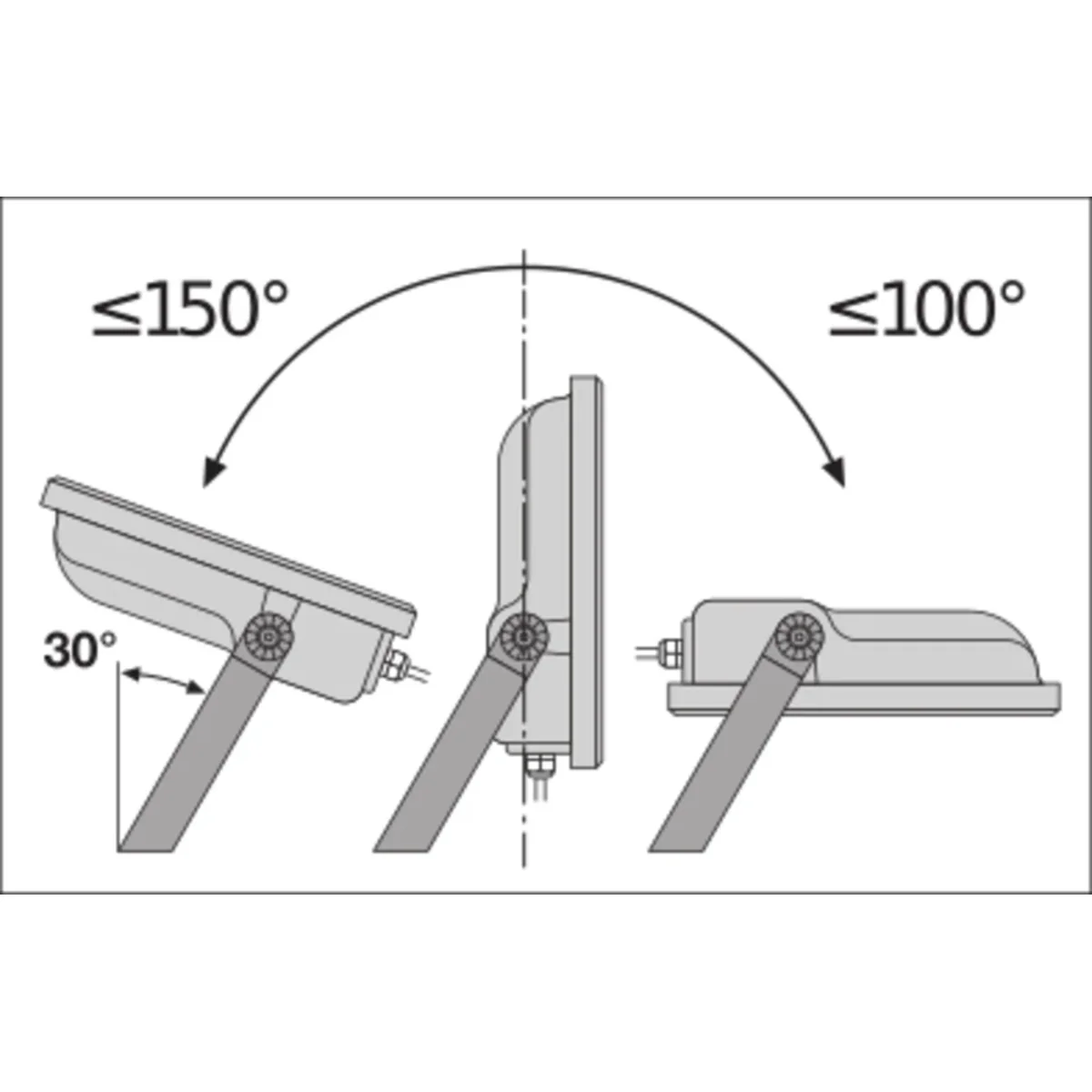

  • 30° and wide swivel area

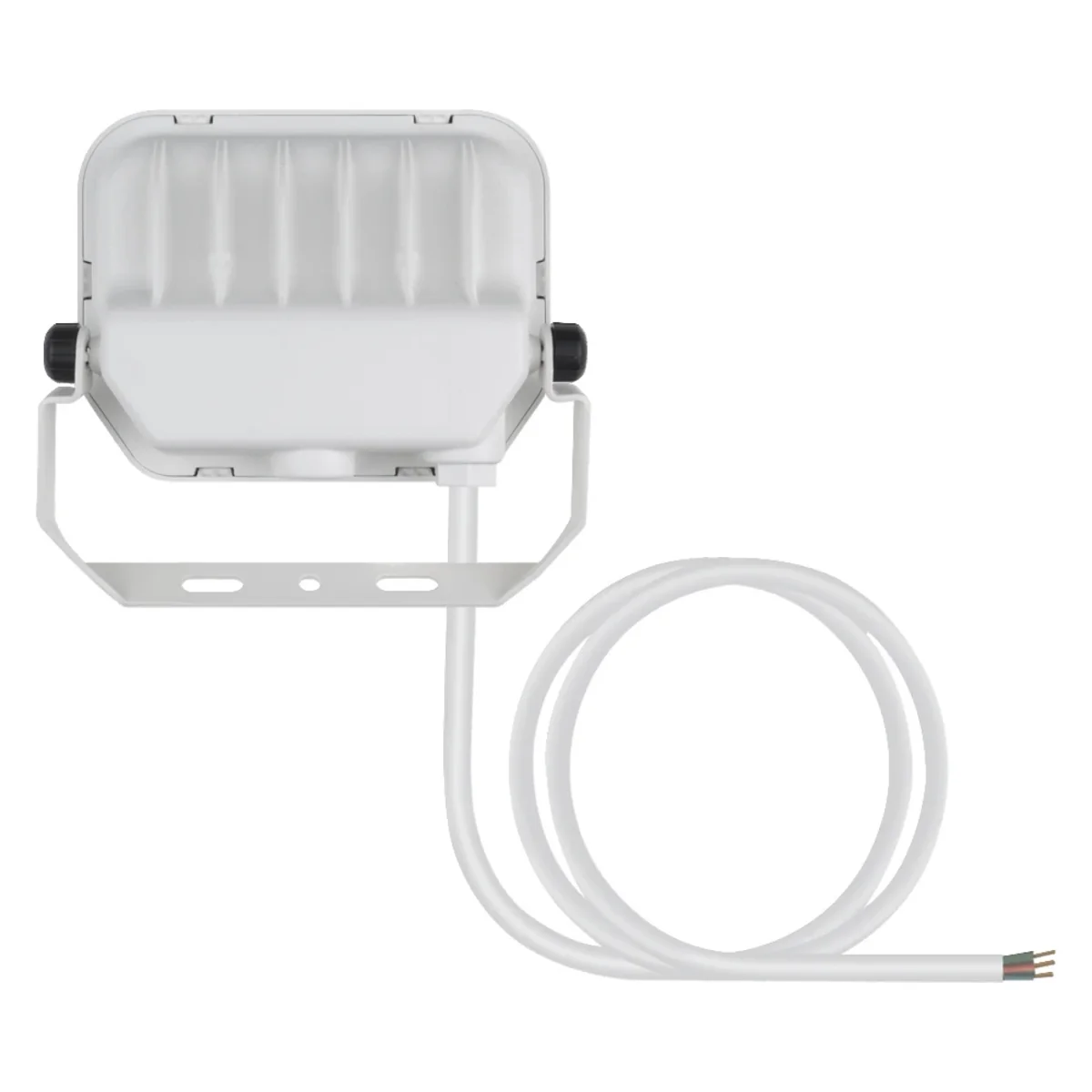

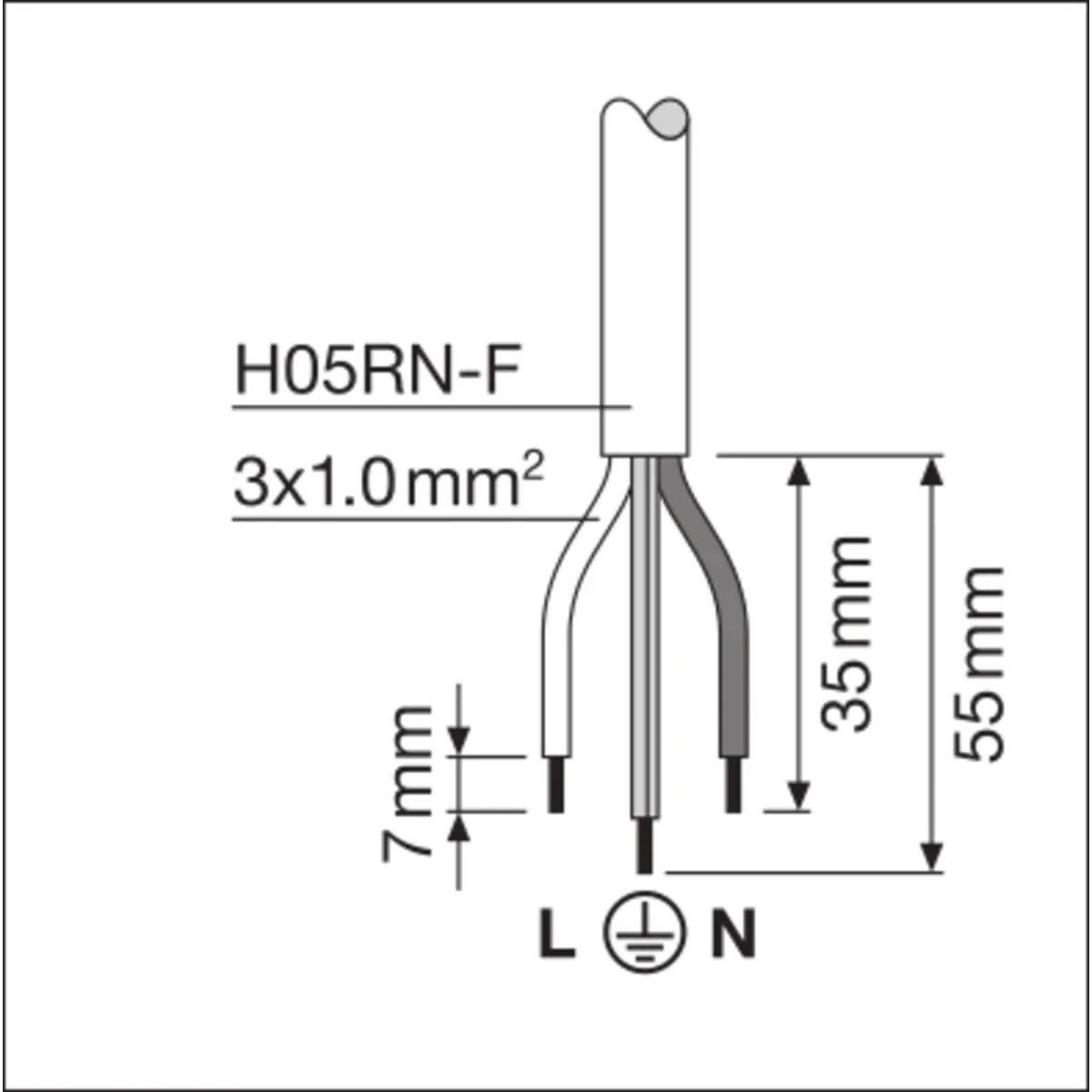

  • Pre-installed 1m flexible cable (H05RN-F), 3 x 1.0mm²

Technical data

  • Light color [K]
    4800-6500 (cool)
  • Cable length [m]
    1
  • Protection class
    AND
  • Housing material
    Aluminum
  • Installation
    Surface-mounted
  • Initial starting current [A]
    3.68
  • Family
    FLOODLIGHT 10W
  • Level of security
    IP65
  • Width [mm]
    131
  • Height [mm]
    36
  • Degree of mechanical protection
    IK07
  • Color Temperature [K]
    6500
  • Length [mm]
    122
  • beam angle [°]
    100 x 100
  • Color
    White
  • Power [W]
    10
  • Rated voltage [V]
    230
  • Rated current [mA]
    49
  • Luminous efficiency [lm/W]
    120
  • luminous flux [lm]
    1200
  • Durability [h]
    70000
  • Electrical endurance (number of cycles)
    100000
  • Power factor [λ]
    ≥0.90
  • cri (ra)
    >80

Other technical data

  • Suitable for surface mounting
    Yes
  • Suitable for wall mounting
    Yes
  • Suitable for ceiling mounting
    No
  • Suitable for pedestal/floor mounting
    Yes
  • Suitable for clamp-mounting
    No
  • Adjustability
    Swivelling
  • With light sensor
    No
  • With light source
    Yes
  • Surface protection
    Powder coating
  • Material cover
    Glass opal
  • Voltage type
    AC
  • Type of control gear
    Electronic ballast
  • Dimming DALI
    No
  • No dim function
    Yes
  • Beam angle
    Open beam/diffuse
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Żywotność znamionowa L70/B10 przy 25 °C
    70000 h
  • Rated life time L80/B10 at 25 °C
    55000 h
  • Żywotność znamionowa L90/B10 przy 25°C
    35000 h
  • Degree of protection (IP)
    IP65
  • Protection class
    I
  • Colour of light
    White
  • Colour rendering index CRI
    80-89
  • Rated luminous flux according to IEC 62722-2-1
    1200 lm
  • Width
    131.0 mm
  • Length
    1000 mm
  • Number of poles
    3
  • Luminaire efficacy
    120 lm/W
  • Covering of the luminaire with thermally insulating material possible
    No
  • Photobiological safety according to EN 62471
    RG1
  • Suitable for built-in mounting
    No
  • Suitable for suspended mounting
    No
  • Suitable for traverse mounting
    No
  • Suitable for light-track mounting
    No
  • Suitable for low voltage cable system
    No
  • With movement sensor
    No
  • Lamp type
    LED not exchangeable
  • Housing material
    Aluminium
  • Housing colour
    White
  • Surface brushed
    No
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    49 ... 49 mA
  • With control gear
    Yes
  • Dimming manufacturer's proprietary system
    No
  • Light distributor
    Reflector
  • Light outlet
    Direct
  • Total harmonic distortion
    19
  • Rated life time L70/B50 at 25 °C
    70000 h
  • Żywotność znamionowa L80/B50 przy 25 °C
    55000 h
  • Żywotność znamionowa L90/B50 przy 25 °C
    35000 h
  • Impact strength
    IK07
  • Max. system power
    10.00 W
  • Colour temperature
    6500 ... 6500 K
  • Luminous flux
    1200 ... 1200 lm
  • Lamp efficacy
    120 lm/W
  • Height/depth
    36.0 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • Suitable for workplace according to EN 12464-1
    No
  • Filament test according to IEC 60695-2-11
    650 °C - 30 s
  • Colour consistency (McAdam ellipse)
    SDCM5

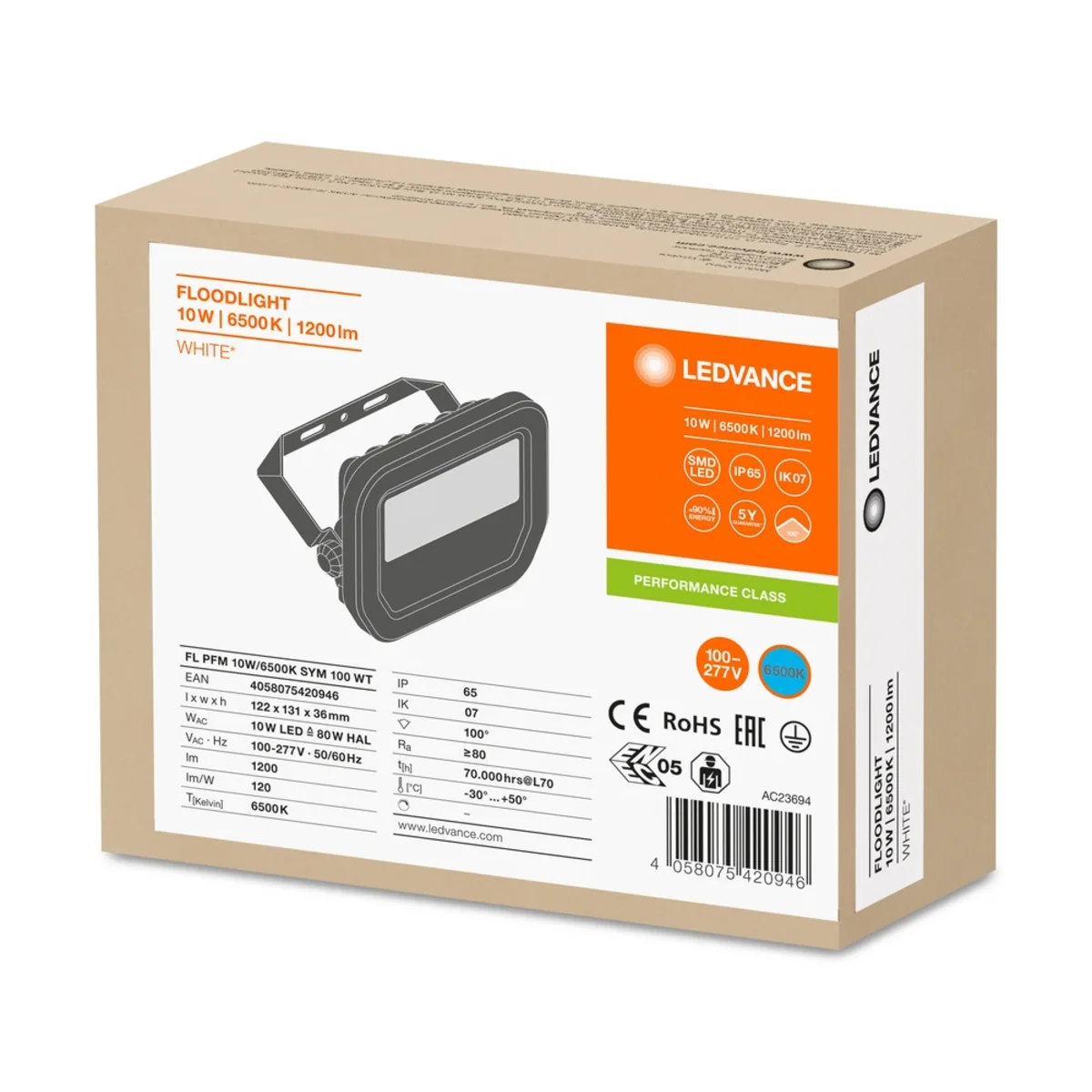

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 1 pcs. 12 pcs.
Weight (kg) 0,400 0,447 5,840
Volume (m3) - 0,001 0,015
Width (m) - 0,060 0,290
Length (m) - 0,140 0,360
Depth (m) - 0,120 0,140
See more >>
See other products in the category: Floodlights, reflectors and projectors
